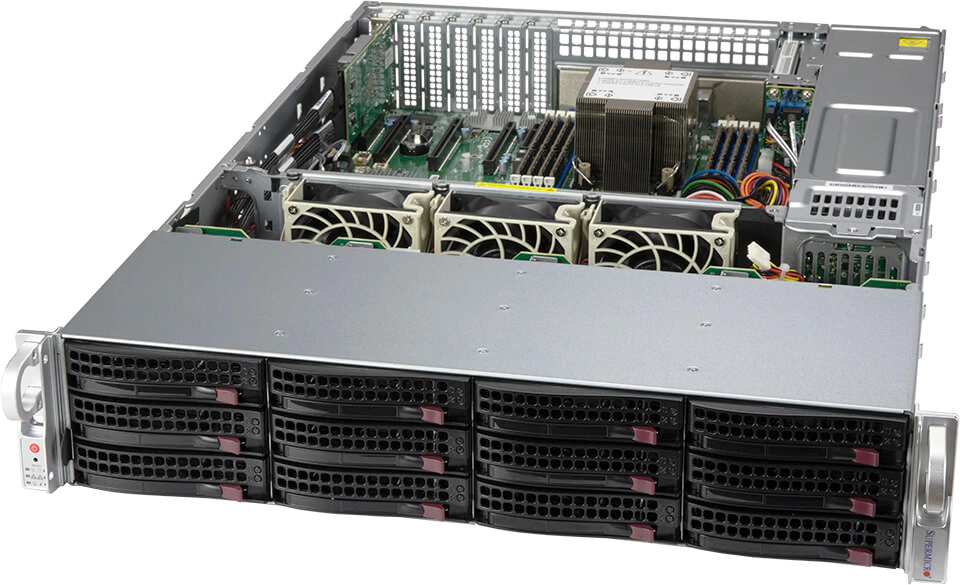

SSG-520P-ACTR12H - 2U - Storage Server

2,670.51€ *
Content: 1 Stück

Prices plus VAT plus shipping costs

Delivery time 3-4 Weeks

Configure

  • SSG-520P-ACTR12H
sysGen/SUPERMICRO  SSG-520P-ACTR12H , includes: Mainboard Super  X12SPI-TF... more
Product information "SSG-520P-ACTR12H - 2U - Storage Server"

sysGen/SUPERMICRO SSG-520P-ACTR12H, includes:
Mainboard Super X12SPI-TF / 2U Rackmount CSE-826BTS-R802LPB

  • Corporate Database
  • Database Processing amp Storage
  • Enterprise Server
  • HPC, Data Center
  • Appliance Optimized Storage

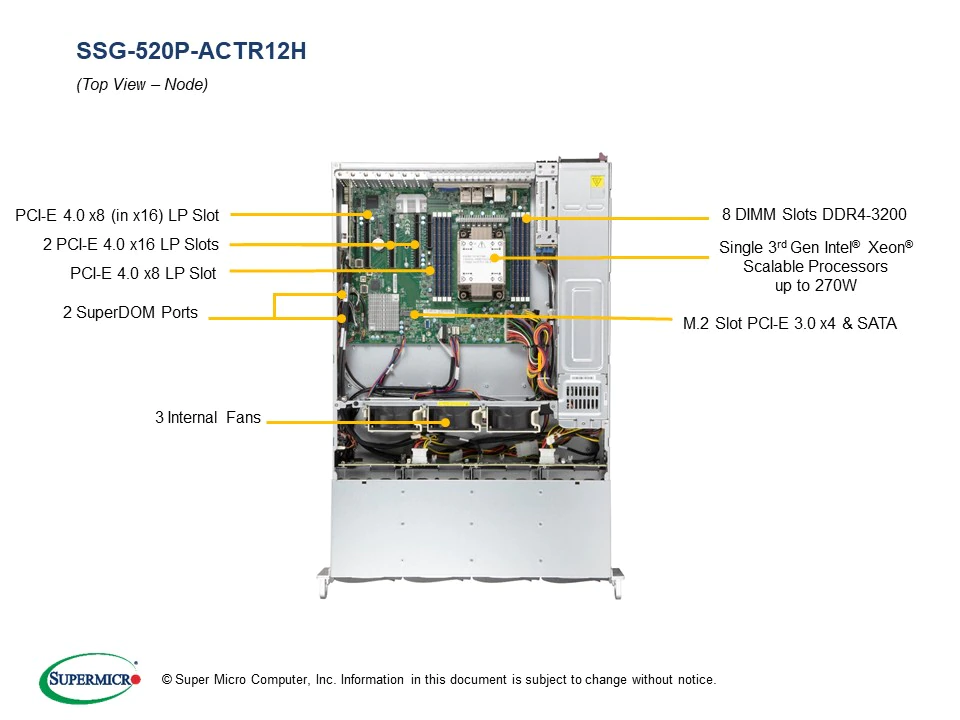

  • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM;
    Up to 2TB: 8x 256 GB DRAM;
    Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem

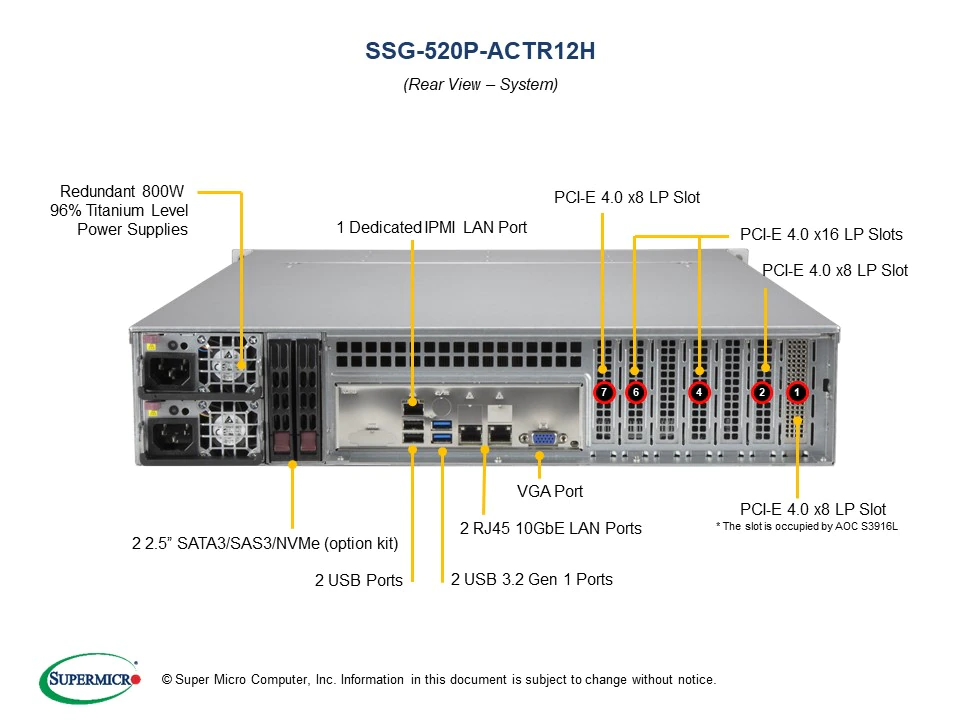

  • 2 PCI-E 4.0 x16 (LP) slots, 2 PCI-E 4.0 x8 (LP) slots

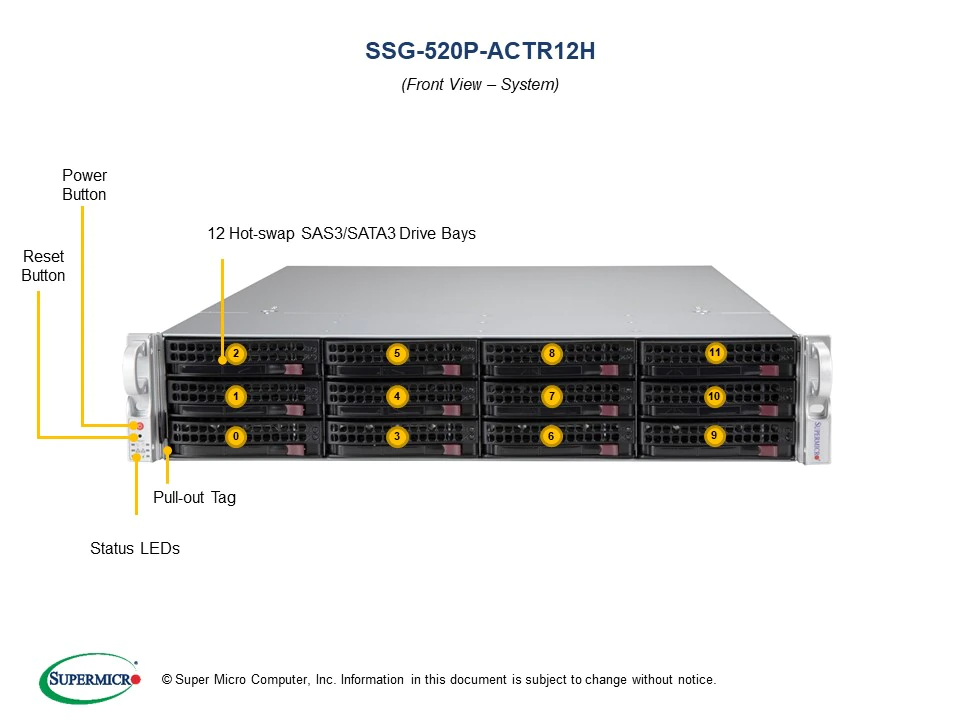

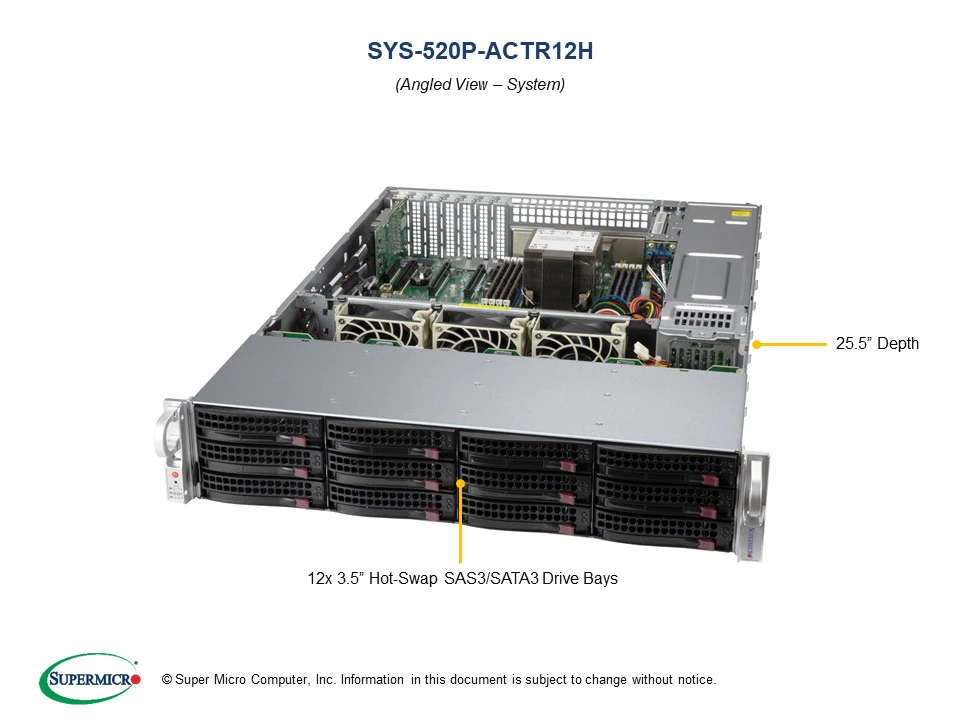

  • 12x Direct-attached hot-swap 3.5" SAS3/SATA3 drive bays,
    Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5" NVMe/SATA (rear, optional)
  • Intel® Ethernet Controller X550 2x 10GbE RJ45
  • Redundant Titanium 800W Power Supply
Applications: Backup Storage, Data Center, HPC
System Type: Storage Server
Form Factor: 2U
CPU Socket: 1 CPU
CPU Type: Intel Xeon Scalable Ice Lake (3.Gen)
Max. GPU Count: 0-OHNE GPU
DIMM Slots: 8 DIMMs
Storage Interface: NVMe (optional), SAS (native), SATA (native)
Network Speed: 10GBase-T
Drive Bays: 12 Drives
Drive Bays Form Factor: 2.5", 3.5", M.2
PCIe Slots: 4 PCIe Slots
Case Depth: 25.6" (650mm)
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
Properties: "SSG-520P-ACTR12H - 2U - Storage Server"
Applications: Backup Storage, Data Center, HPC
System Type: Storage Server
Form Factor: 2U
CPU Socket: 1 CPU
CPU Type: Intel Xeon Scalable Ice Lake (3.Gen)
Max. GPU Count: 0-OHNE GPU
DIMM Slots: 8 DIMMs
Storage Interface: NVMe (optional), SAS (native), SATA (native)
Network Speed: 10GBase-T
Drive Bays: 12 Drives
Drive Bays Form Factor: 2.5", 3.5", M.2
PCIe Slots: 4 PCIe Slots
Case Depth: 25.6" (650mm)
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
