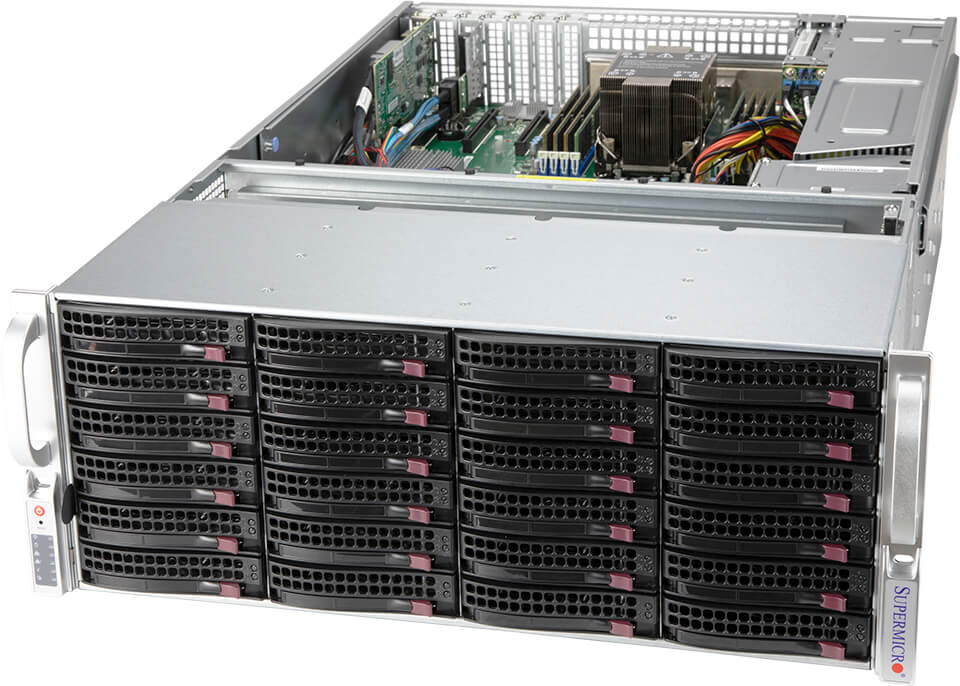

SSG-540P-E1CTR36L - 4U - Storage Server
Price On Request
Content: 1 Stück
Prices plus VAT plus shipping costs
Delivery time 3-4 Weeks
- Order number: SSG-540P-E1CTR36L
sysGen/SUPERMICRO SSG-540P-E1CTR36L , includes: Mainboard Super X12SPI-TF... more
Product information "SSG-540P-E1CTR36L - 4U - Storage Server"
sysGen/SUPERMICRO SSG-540P-E1CTR36L, includes:
Mainboard Super X12SPI-TF / 2U Rackmount CSE-847BTS-R1K23LPBP4
Applications
- Corporate Database
- Database Processing amp Storage
- Enterprise Server
- HPC, Data Center
- Appliance Optimized Storage
Features

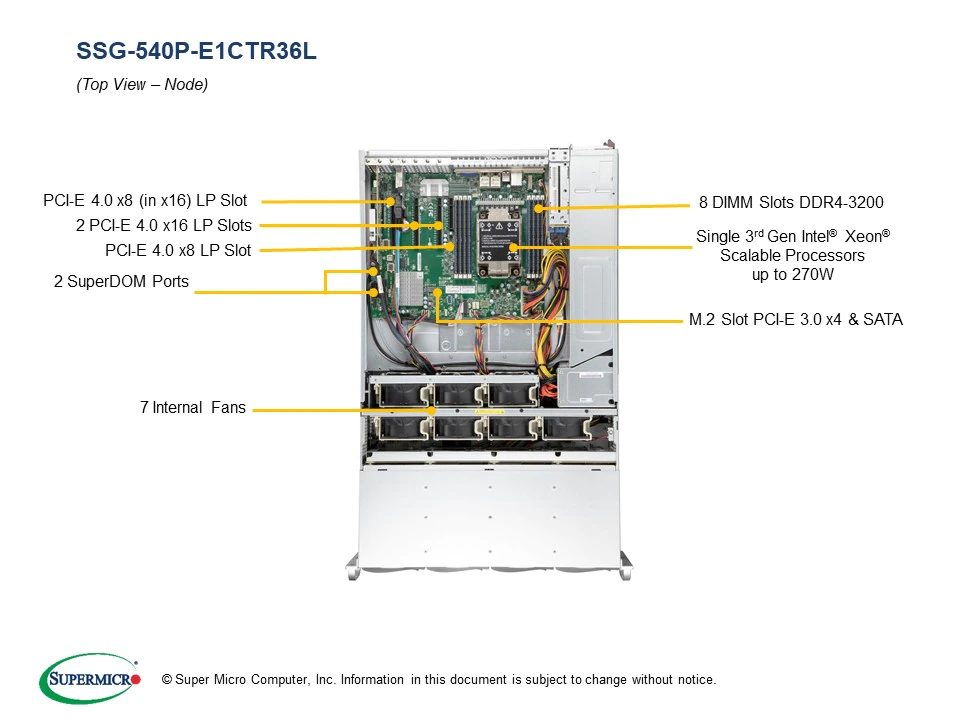

- Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
- 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM;
Up to 2TB: 8x 256 GB DRAM;
Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem - 2 PCI-E 4.0 x16 (LP) slots, 2 PCI-E 4.0 x8 (LP) slots

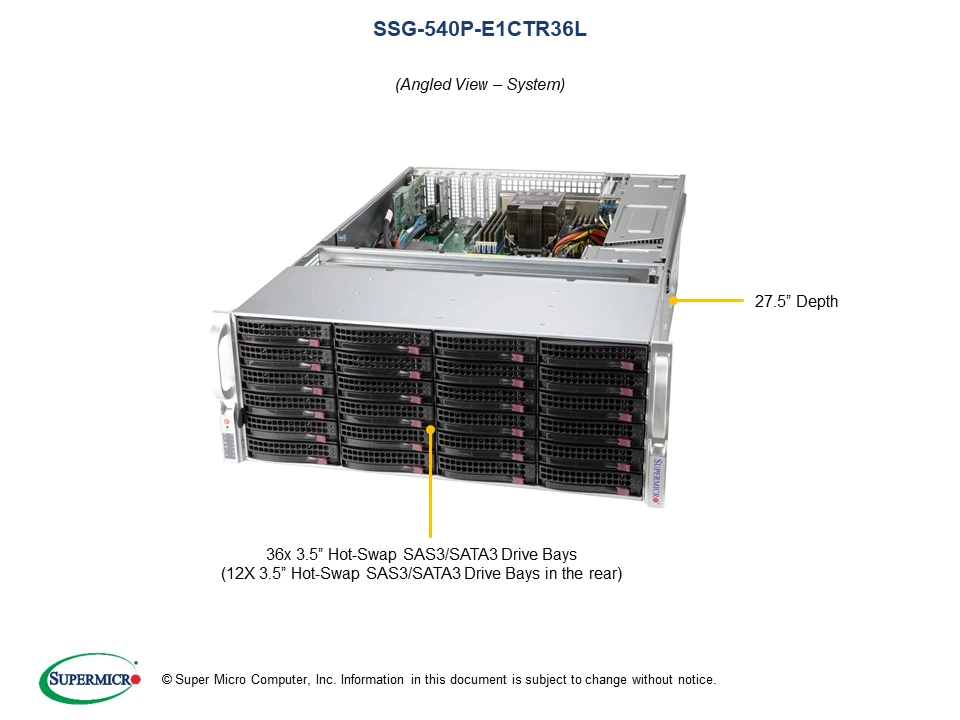

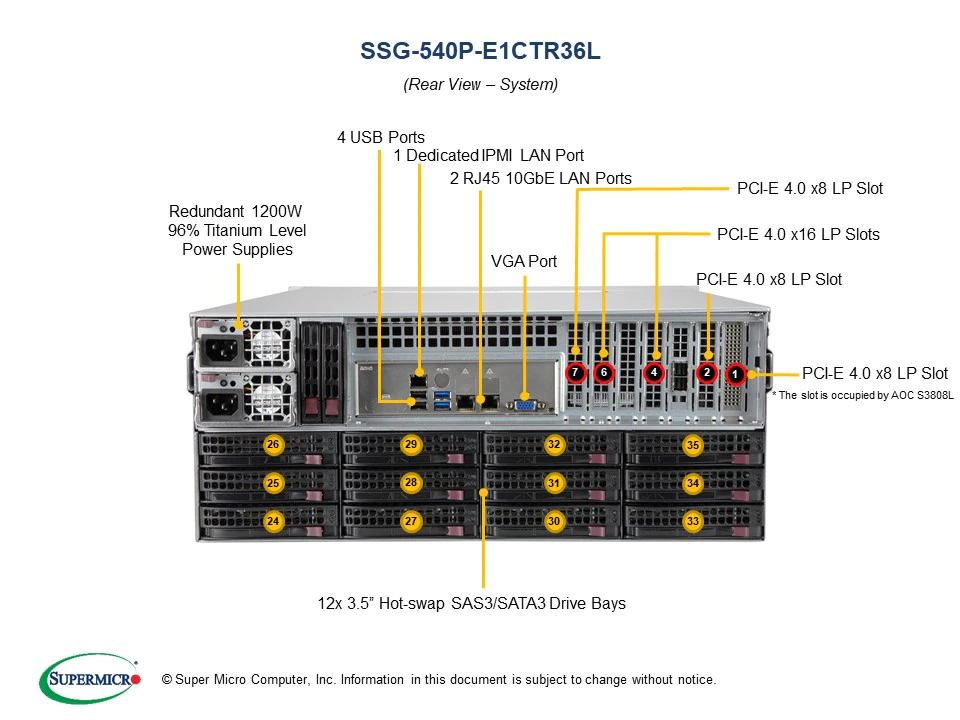

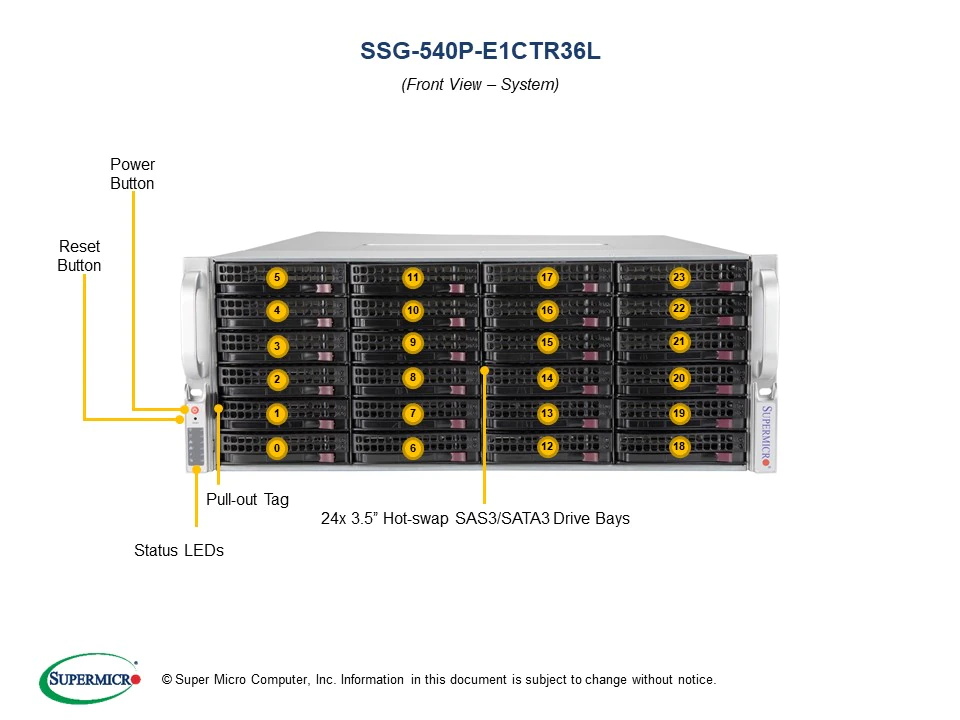

- 36x Hot-swap 3.5" SAS3/SATA3 drive bays (24 front + 12 rear)
Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5" NVMe/SATA (rear, optional);
2x Internal fixed bay support up to 4x 2.5" drive bays (optional) - Intel® Ethernet Controller X550 2x 10GbE RJ45
- Redundant Titanium 1200W Power Supply
| Applications: | Backup Storage, Data Center, HPC |
| Case Depth: | 27.5" (699mm) |
| CPU Socket: | Single Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 8 DIMMs |
| Drive Bays Form Factor: | 2.5", 3.5", M.2 |
| SSDs/HDDs: | 36 |
| Form Factor: | 4U |
| Max. GPU Count: | N/A |
| On-board Network: | 10GBase-T |
| PCIe Slots: | 4 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | NVMe (optional), SAS (native), SATA (native) |
| System Type: | Storage Server |
Related links to "SSG-540P-E1CTR36L - 4U - Storage Server"
Properties: "SSG-540P-E1CTR36L - 4U - Storage Server"
| Applications: | Backup Storage, Data Center, HPC |
| Case Depth: | 27.5" (699mm) |
| CPU Socket: | Single Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 8 DIMMs |
| Drive Bays Form Factor: | 2.5", 3.5", M.2 |
| SSDs/HDDs: | 36 |
| Form Factor: | 4U |
| Max. GPU Count: | N/A |
| On-board Network: | 10GBase-T |
| PCIe Slots: | 4 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | NVMe (optional), SAS (native), SATA (native) |
| System Type: | Storage Server |
Related links to "SSG-540P-E1CTR36L - 4U - Storage Server"
Request form
Do you need further information, personal advice or a quotation? Please use our Request Form or alternatively our other request forms:
NVIDIA DGX Server Storage GPU/Workstation HPC
We thank you in advance for your interest in our products, services and solutions and will contact you as soon as possible.
