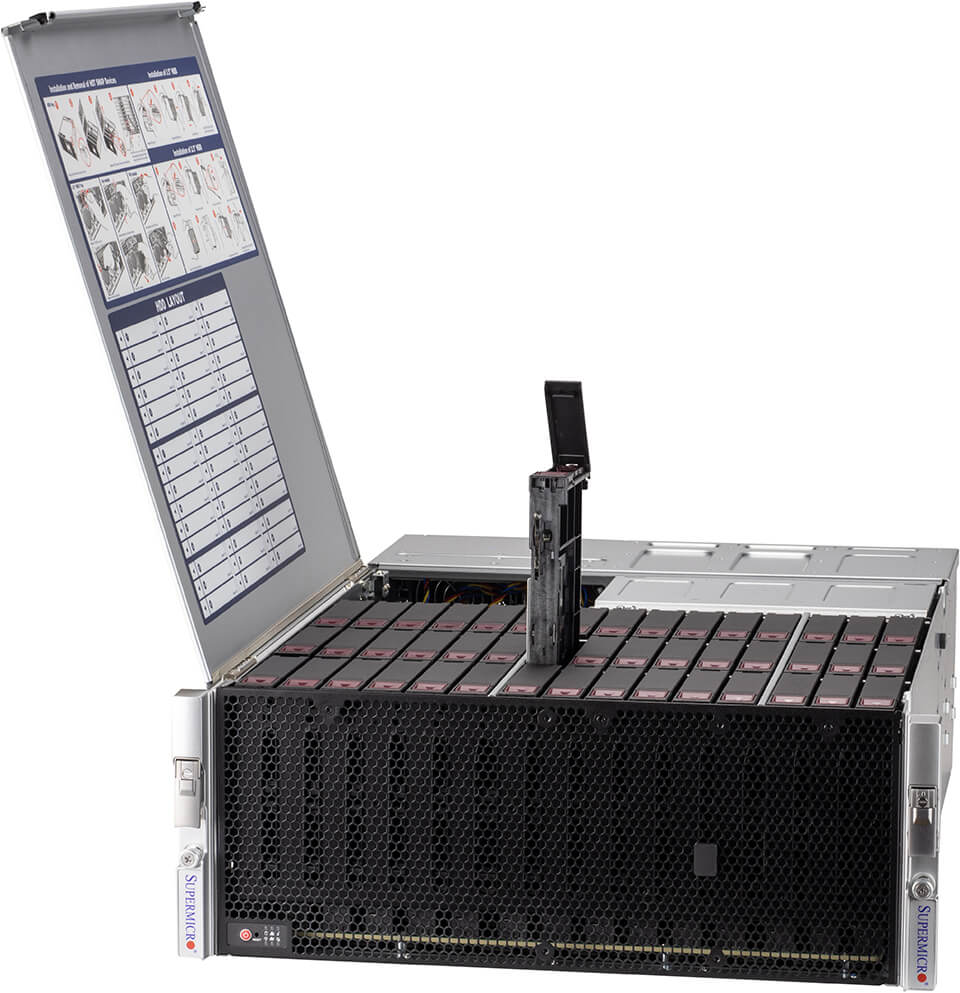

SSG-540P-E1CTR45L - 4U - Storage Server

4,687.52€ *
Content: 1 Stück

Prices plus VAT plus shipping costs

Delivery time 3-4 Weeks

Configure

  • SSG-540P-E1CTR45L
sysGen/SUPERMICRO  SSG-540P-E1CTR45L , includes: Mainboard Super  X12SPI-TF... more
Product information "SSG-540P-E1CTR45L - 4U - Storage Server"

sysGen/SUPERMICRO SSG-540P-E1CTR45L, includes:
Mainboard Super X12SPI-TF / 2U Rackmount CSE-946LTS-R1K66P1

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 1 CPU, 1 DIMM and 20 drives)

  • Corporate Database
  • Database Processing amp Storage
  • Enterprise Server
  • HPC, Data Center
  • Appliance Optimized Storage
  • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM;
    Up to 2TB: 8x 256 GB DRAM;
    Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
  • 2 PCI-E 4.0 x16 (LP) slots, 2 PCI-E 4.0 x8 (LP) slots

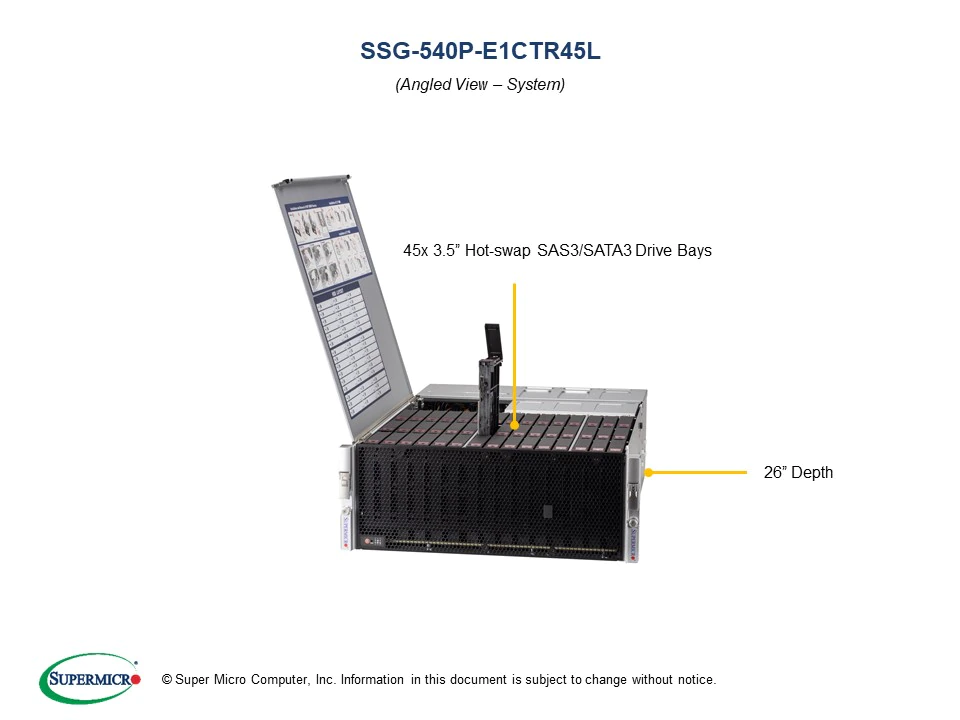

  • 45x Top-loading hot-swap 3.5" SAS3/SATA3 drive bays, 2x Hot-swap 2.5" SATA drive bays (rear),
    Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5" SATA3/NVMe (rear, optional)
  • Intel® Ethernet Controller X550 2x 10GbE RJ45
  • Redundant Platinum 1600W Power Supply
Applications: Backup Storage, Data Center, HPC
System Type: Storage Server
Form Factor: 4U
CPU Socket: 1 CPU
CPU Type: Intel Xeon Scalable Ice Lake (3.Gen)
Max. GPU Count: 0-OHNE GPU
DIMM Slots: 8 DIMMs
Storage Interface: NVMe (optional), SAS (native), SATA (native)
Network Speed: 10GBase-T
Drive Bays: 45 Laufwerkschächte
Drive Bays Form Factor: 2.5", 3.5", M.2
PCIe Slots: 4 PCIe Slots
Case Depth: 26" (660 mm)
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
Special Features: Complete System Only, Drive Top Loader
Properties: "SSG-540P-E1CTR45L - 4U - Storage Server"
Applications: Backup Storage, Data Center, HPC
System Type: Storage Server
Form Factor: 4U
CPU Socket: 1 CPU
CPU Type: Intel Xeon Scalable Ice Lake (3.Gen)
Max. GPU Count: 0-OHNE GPU
DIMM Slots: 8 DIMMs
Storage Interface: NVMe (optional), SAS (native), SATA (native)
Network Speed: 10GBase-T
Drive Bays: 45 Laufwerkschächte
Drive Bays Form Factor: 2.5", 3.5", M.2
PCIe Slots: 4 PCIe Slots
Case Depth: 26" (660 mm)
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
Special Features: Complete System Only, Drive Top Loader
