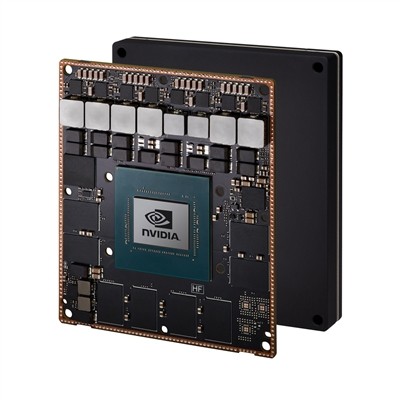

NVIDIA JETSON AGX XAVIER MODULE 8GB

NVIDIA JETSON AGX XAVIER MODULE 8GB
Price On Request
Content: 1 Stück

Prices plus VAT plus shipping costs

Delivery time 4 weeks



  • NVIDIA JETSON AGX XAVIER MODULE 8GB - 900-82888-0060-000
A new AI milestone for autonomous machines Server-class performance in the palm of your hand... more
Product information "NVIDIA JETSON AGX XAVIER MODULE 8GB"

A new AI milestone for autonomous machines
Server-class performance in the palm of your hand

Jetson AGX Xavier 8GB is a lower-power lower-price Jetson AGX Xavier offering full hardware and software compatibility with the existing Jetson AGX Xavier. It consumes a maximum of 20W for the full module while delivering up to 20 TOPS of AI performance.

This advanced system-on-module is powered by the NVIDIA Xavier SoC and designed specifically for autonomous machines. Heterogeneous accelerated computing architecture delivers advanced edge capabilities. Plus , it comes with integrated memory, storage, power management, and an innovative thermal design to enable faster time to market. Run modern AI workloads and solve problems in areas like manufacturing, logistics, retail, service, agriculture, smart cities, and healthcare.

Jetson AGX Xavier is supported by NVIDIA JetPack, which includes board support package (BSP), Ubuntu Linux OS, NVIDIA CUDA, cuDNN, and TensorRT software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. It’s also supported by the NVIDIA DeepStream SDK, which delivers a complete toolkit for real-time situational awareness through intelligent video analytics (IVA) . This helps you boost performance and accelerate software development, while reducing development cost and effort.

Features:

  • Module
    • 384-Core Volta GPU with 48 Tensor cores
    • (2x) NVDLA Engines
    • 6-core ARM v8.2 64-bit CPU, 8MB L2 + 4MB L3
    • 8GB 256-bit LPDDR4x
    • 32 GB eMMC 5.1 Flash Storage
    • 7-Way VLIW Vision Accelerator Processor
    Power
    1. Voltage input 5 V, 9 V~20 V
    2. Module Power: 10 W~30 W

    Environment
    • Operating temperature: -25 C to 80 C measured on the TTP surface
    • Storage temperature: -25 C to 80 C
    • Humidity: TBD (non-operational)
    • Vibration: TBD (random/ sinusoidal)
    • Shock: TBD
Jetson GPU: 384-Core Volta GPU with Tensor Cores
Jetson CPU: 6-Core ARM v8.2 64-Bit CPU, 6 MB L2 + 4 MB L3
Jetson Encoder/Decoder: (2x) 4Kp30 HEVC| (2x) 4Kp60 HEVC
Jetson DL Beschleuniger: (2x) NVDLA Engines
Jetson Sehbeschleuniger: 7-Way VLIW Vision Processor
Jetson Speicher: 8 GB 256-Bit LPDDR4x | 85.3 GB/s
Jetson Display: HDMI 2.0, eDP 1.4, DP 1.2
Jetson CSI: (16x) CSI-2 Lanes
Jetson PCIe: (8x) PCIe Gen3 / (8x) SLVS-EC
Jetson Datenspeicher: 32 GB eMMC 5.1
Jetson Sonstiges: UART, SPI, CAN, I2C, I2S, DMIC, GPIOs
Jetson Größe: 87 mm x 100 mm
Jetson Konnektivität: Gigabit Ethernet
Jetson Power: 10 W~20 W
Jetson Abmessung: 699 pin Molex Mirror Mex Connector Integrated Thermal Transfer Plate
Properties: "NVIDIA JETSON AGX XAVIER MODULE 8GB"
Jetson GPU: 384-Core Volta GPU with Tensor Cores
Jetson CPU: 6-Core ARM v8.2 64-Bit CPU, 6 MB L2 + 4 MB L3
Jetson Encoder/Decoder: (2x) 4Kp30 HEVC| (2x) 4Kp60 HEVC
Jetson DL Beschleuniger: (2x) NVDLA Engines
Jetson Sehbeschleuniger: 7-Way VLIW Vision Processor
Jetson Speicher: 8 GB 256-Bit LPDDR4x | 85.3 GB/s
Jetson Display: HDMI 2.0, eDP 1.4, DP 1.2
Jetson CSI: (16x) CSI-2 Lanes
Jetson PCIe: (8x) PCIe Gen3 / (8x) SLVS-EC
Jetson Datenspeicher: 32 GB eMMC 5.1
Jetson Sonstiges: UART, SPI, CAN, I2C, I2S, DMIC, GPIOs
Jetson Größe: 87 mm x 100 mm
Jetson Konnektivität: Gigabit Ethernet
Jetson Power: 10 W~20 W
Jetson Abmessung: 699 pin Molex Mirror Mex Connector Integrated Thermal Transfer Plate
