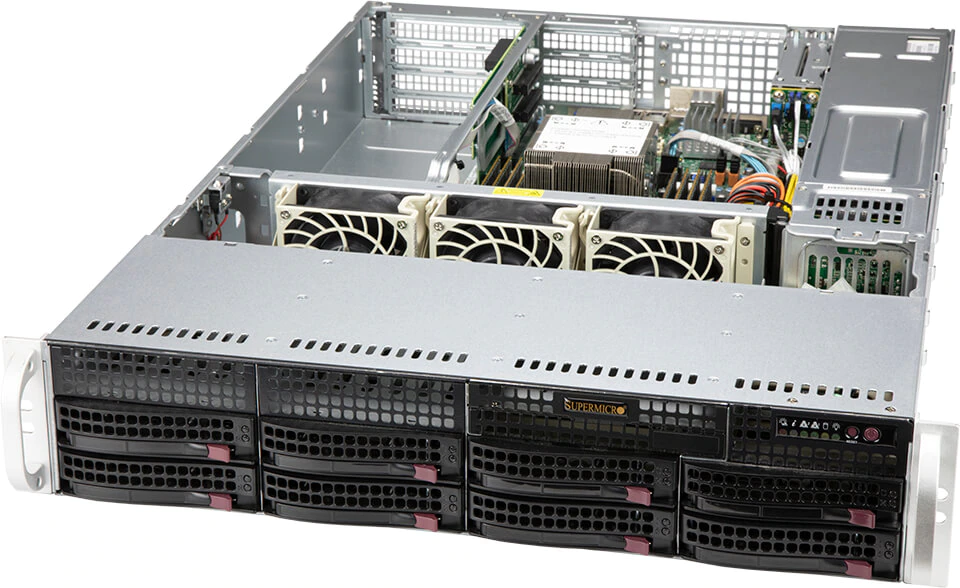

SYS-520P-WTR - 2U - Server-Barebone
Price On Request
Content: 1 Stück
Prices plus VAT plus shipping costs
Delivery time 3-4 Weeks
- Order number: SYS-520P-WTR
sysGen/SUPERMICRO Server SYS-520P-WTR, Mainboard Super X12SPW-TF... more
Product information "SYS-520P-WTR - 2U - Server-Barebone"
sysGen/SUPERMICRO Server SYS-520P-WTR, Mainboard Super X12SPW-TF
Applications
- DB Processing and Storage
- Connectivity/Storage Computer Nodes
- Data Center Optimized
- Network Appliance

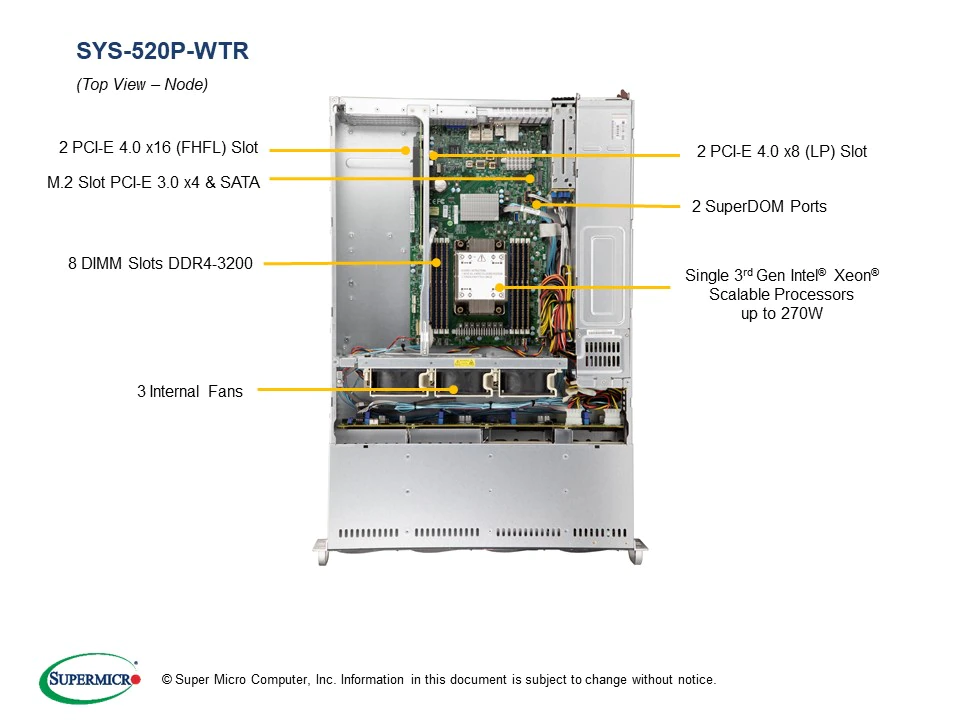

Features
- Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
- 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM
- 2 PCI-E 4.0 x16 (FHFL) slots, 2 PCI-E 4.0 x8 (LP) slots

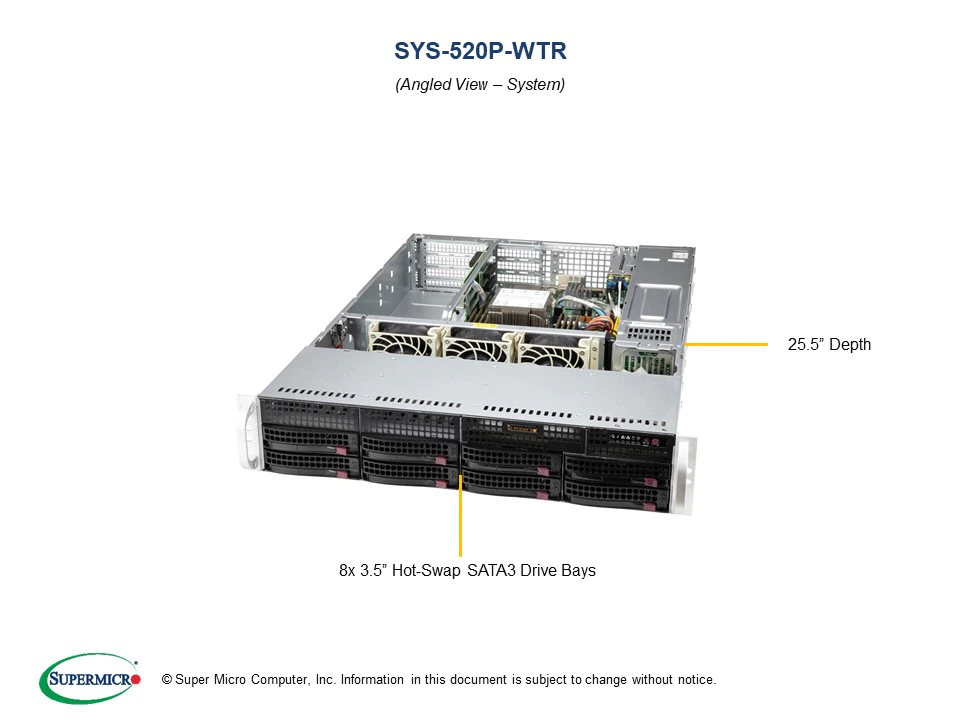

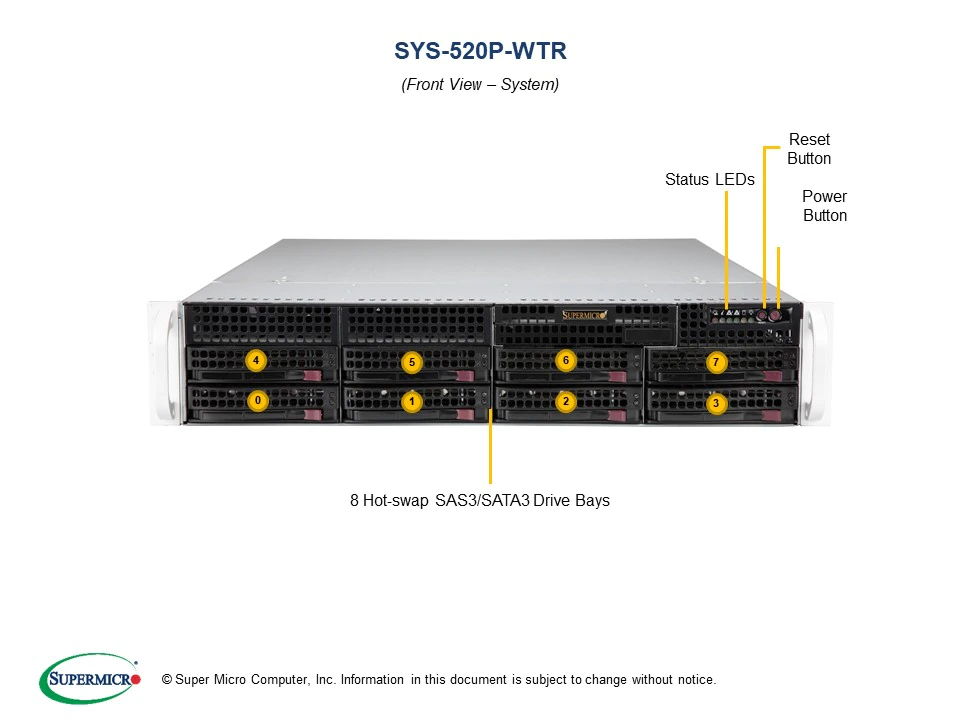

- 8x hot-swap 3.5'' SATA3 drive bays, SAS3 with additional SAS controller card,

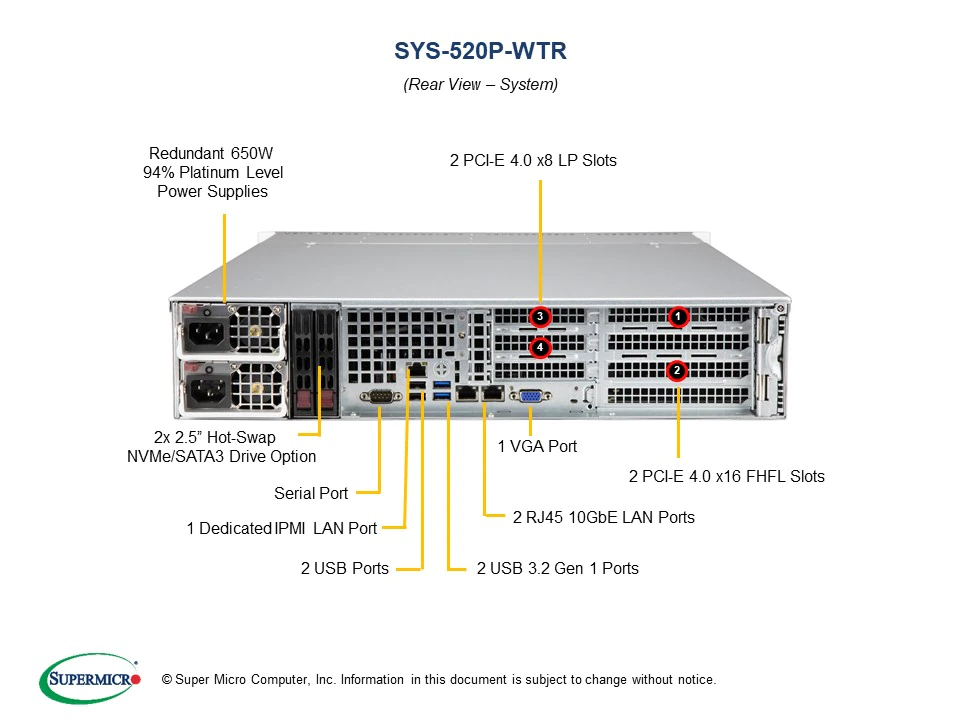

Optional 2x 2.5'' Gen4 NVMe drives at rear; Onboard 1x NVMe/SATA M.2 - Intel® Ethernet Controller X550 2x 10GbE RJ45
- Redundant Platinum 650W Power Supply
| Applications: | Backup Storage, HPC |
| Case Depth: | 25.5" (648mm) |
| CPU Socket: | Single Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 8 DIMMs |
| Drive Bays Form Factor: | 3.5", M.2 |
| SSDs/HDDs: | 8 Drives |
| Form Factor: | 2U |
| Max. GPU Count: | N/A |
| On-board Network: | 10GBase-T |
| PCIe Slots: | 4 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | NVMe (optional), SAS (optional), SATA (native) |
| System Type: | Super Server |
Related links to "SYS-520P-WTR - 2U - Server-Barebone"
Properties: "SYS-520P-WTR - 2U - Server-Barebone"
| Applications: | Backup Storage, HPC |
| Case Depth: | 25.5" (648mm) |
| CPU Socket: | Single Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 8 DIMMs |
| Drive Bays Form Factor: | 3.5", M.2 |
| SSDs/HDDs: | 8 Drives |
| Form Factor: | 2U |
| Max. GPU Count: | N/A |
| On-board Network: | 10GBase-T |
| PCIe Slots: | 4 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | NVMe (optional), SAS (optional), SATA (native) |
| System Type: | Super Server |
