SYS-1014S-WTRT - 1U - Server Barebone
- Order number: SYS-1014S-WTRT
sysGen/SUPERMICRO AS-1014S-WTRT, Mainboard Super H12SSW-NT Applications... more
Product information "SYS-1014S-WTRT - 1U - Server Barebone"
sysGen/SUPERMICRO AS-1014S-WTRT, Mainboard Super H12SSW-NT
Applications
- DB Processing & Storage
- Data Center Applications
- Firewall Applications
Features

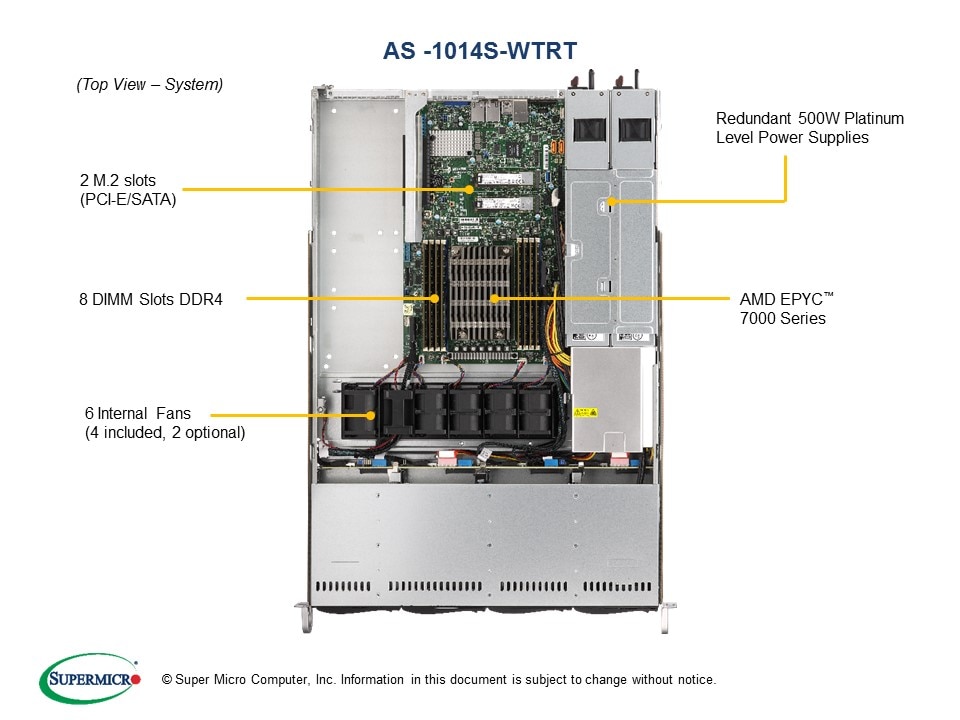

- Single AMD EPYC™ 7003/7002 Series Processor
- 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
- 2 PCI-E 4.0 x16 (FHFL) slots, 1 PCI-E 4.0 x16 (LP) slot
- Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key(SFT-OOB-LIC)

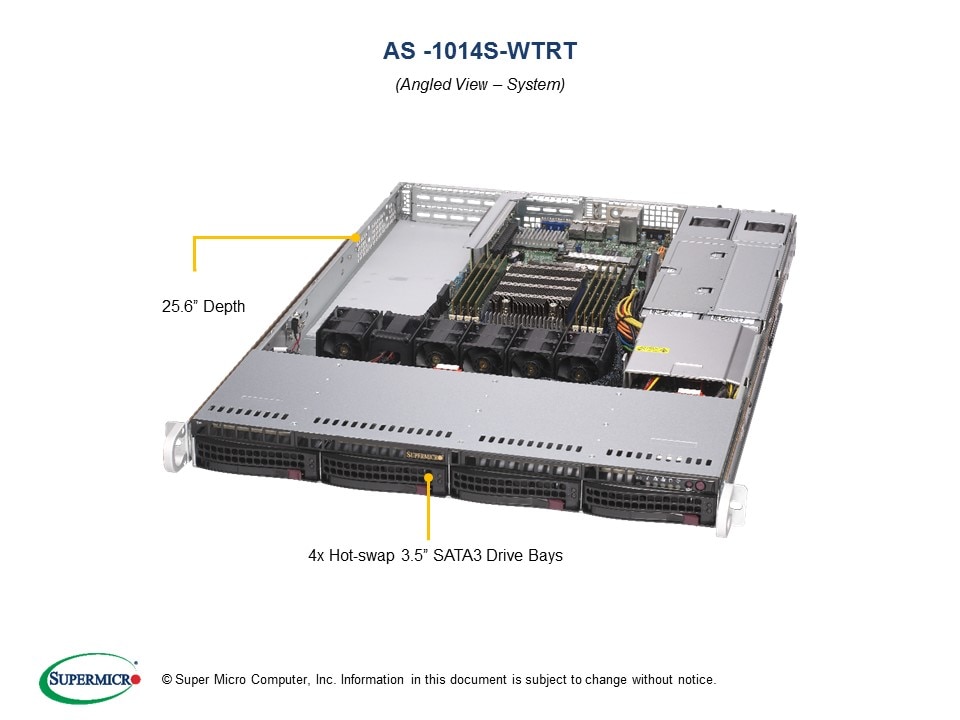

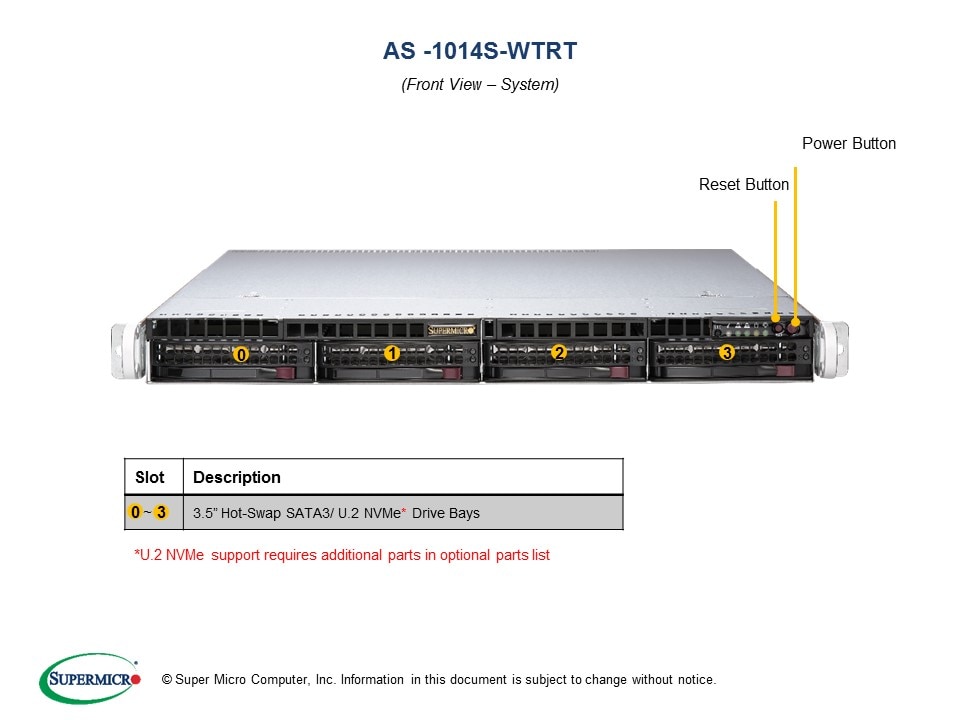

included for OOB BIOS management - 4 Hot-swap 3.5" SATA3 drive bays,
Optional 4 U.2 NVMe (PCI-E 3.0) drive

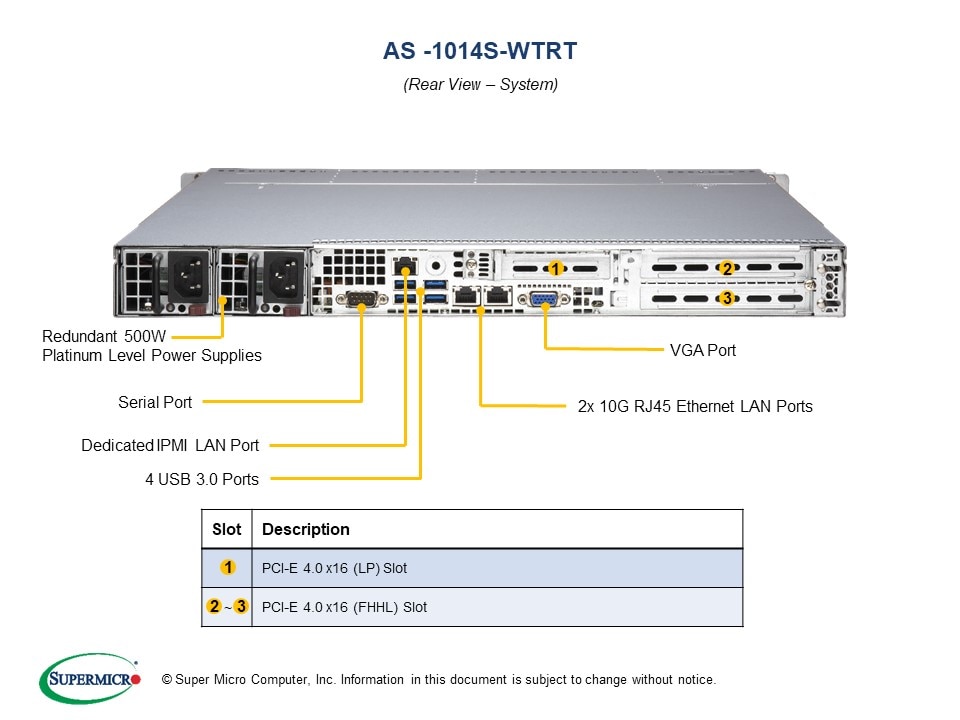

support via additional kit for NVMe devices - 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller
- 1 VGA, 5 USB 3.0 (4 rear, 1 Type A)
- 2 SuperDOM (Disk on Module) ports
- 500W Redundant Power Supplies Platinum Level High-efficiency
Applications: | Cloud Computing, Data Center |
System Type: | Super Server |
Form Factor: | 1U |
CPU Socket: | Single Socket |
CPU Type: | AMD EPYC 7002 ROME (2.Gen), AMD EPYC 7003 MILAN (3.Gen) |
Max. GPU Count: | N/A |
DIMM Slots: | 8 DIMMs |
Storage Interface: | NVMe (optional), SATA (native) |
Network Speed: | 10GBase-T |
Drive Bays: | 4 Drives |
Drive Bays Form Factor: | 3.5", M.2 |
PCIe Slots: | 3 PCIe Slots |
Case Depth: | 25.6" (650mm) |
Number of Nodes per System: | 1 Node |
Redundant Power Supply: | Redundant Power Supply incl. |
Remote Management: | Remote Management incl. |
Related links to "SYS-1014S-WTRT - 1U - Server Barebone"
Properties: "SYS-1014S-WTRT - 1U - Server Barebone"
Applications: | Cloud Computing, Data Center |
System Type: | Super Server |
Form Factor: | 1U |
CPU Socket: | Single Socket |
CPU Type: | AMD EPYC 7002 ROME (2.Gen), AMD EPYC 7003 MILAN (3.Gen) |
Max. GPU Count: | N/A |
DIMM Slots: | 8 DIMMs |
Storage Interface: | NVMe (optional), SATA (native) |
Network Speed: | 10GBase-T |
Drive Bays: | 4 Drives |
Drive Bays Form Factor: | 3.5", M.2 |
PCIe Slots: | 3 PCIe Slots |
Case Depth: | 25.6" (650mm) |
Number of Nodes per System: | 1 Node |
Redundant Power Supply: | Redundant Power Supply incl. |
Remote Management: | Remote Management incl. |
Related links to "SYS-1014S-WTRT - 1U - Server Barebone"
