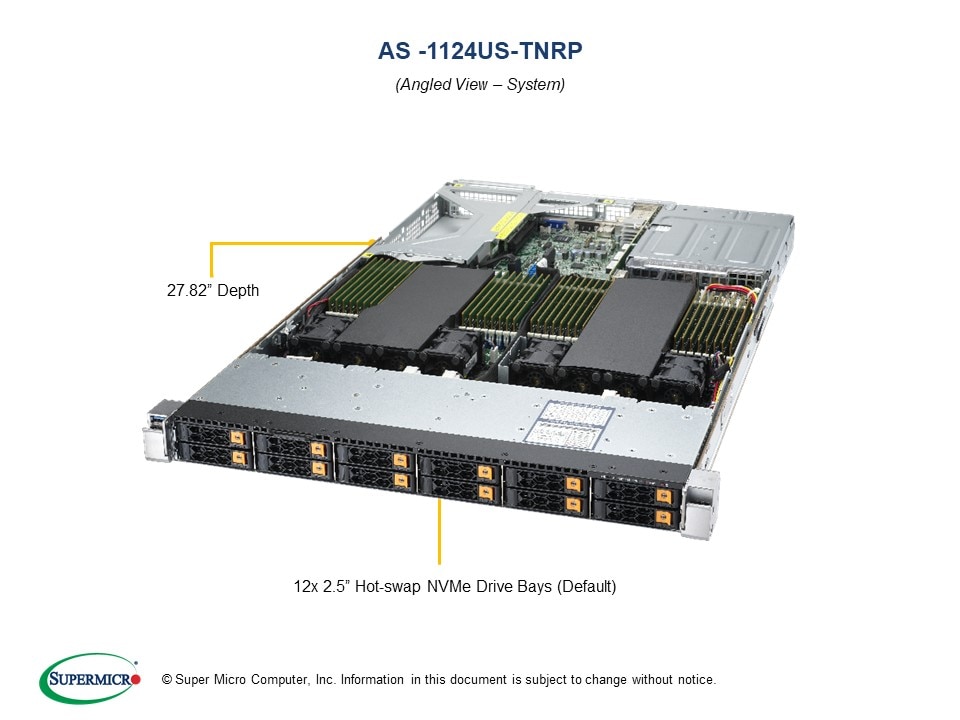

SYS-1124US-TNRP -1U -Server
- Order number: SYS-1124US-TNRP
sysGen/SUPERMICRO Server SYS-1124US-TNRP, Mainboard Super H12DSU-iN... more
Product information "SYS-1124US-TNRP -1U -Server"
sysGen/SUPERMICRO Server SYS-1124US-TNRP, Mainboard Super H12DSU-iN
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs & at least 24/32 cores per CPU is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 storage drive.
Applications
- Virtualization
- Cloud Computing
- High End Enterprise Server
Features
- Dual AMD EPYC™ 7003/7002 Series Processors

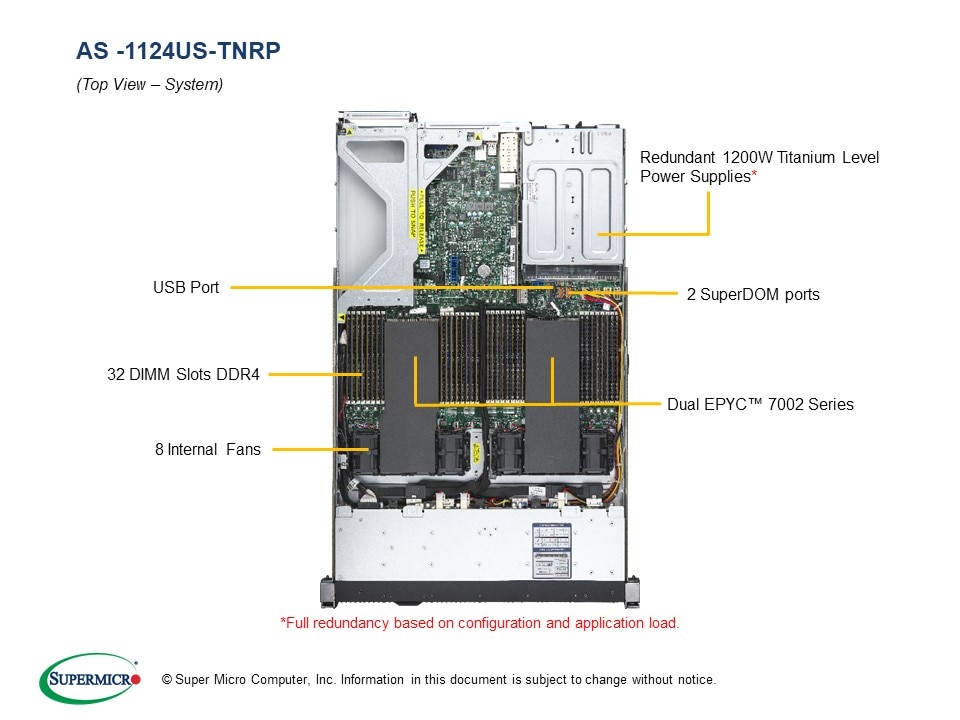

- 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
- 2 PCI-E 4.0 x16 (FH, 9.5"L), 1 PCI-E 4.0 x16 (LP), 1 PCI-E 4.0 x16 (internal proprietary LP slot)
- Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management

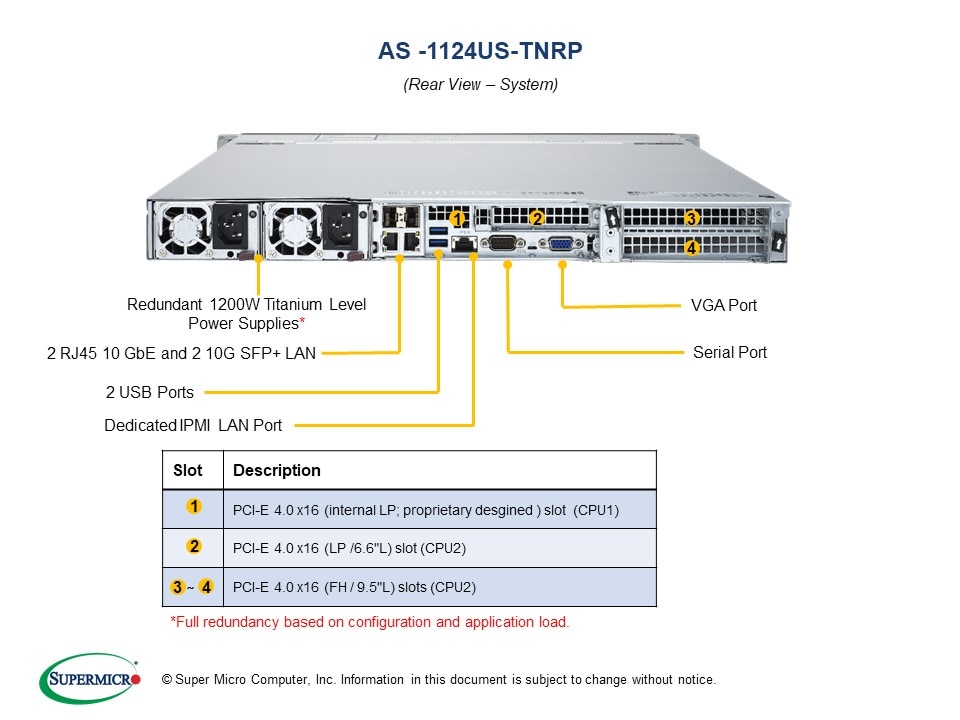

- Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4

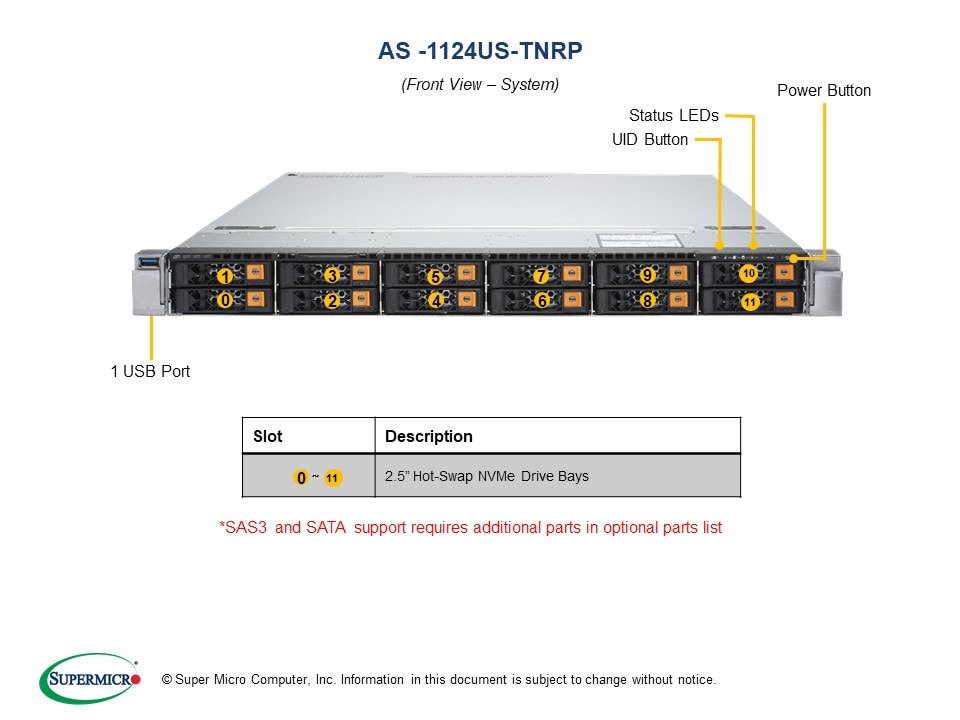

- Drive Bays: 12 Hot-swap 2.5" U.2 NVMe drive bays or SATA3/SAS3 (via optional SAS kit)
- 1200W Redundant Power Supplies Titanium Level (96%)(Full redundancy based on configuration and application load)
| Applications: | Cloud Computing, Virtualization |
| Case Depth: | 29.1" (739mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | AMD EPYC 7002 ROME (2.Gen), AMD EPYC 7003 MILAN (3.Gen) |
| DIMM Slots: | 32 DIMMs |
| Drive Bays Form Factor: | 2.5" |
| Form Factor: | 1U |
| Max. GPU Count: | N/A |
| On-board Network: | 10GBase-T |
| Number of Nodes per System: | 1 Node |
| PCIe Slots: | 4 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (native), SAS (optional), SATA (optional) |
| System Type: | Super Server |
Related links to "SYS-1124US-TNRP -1U -Server"
Properties: "SYS-1124US-TNRP -1U -Server"
| Applications: | Cloud Computing, Virtualization |
| Case Depth: | 29.1" (739mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | AMD EPYC 7002 ROME (2.Gen), AMD EPYC 7003 MILAN (3.Gen) |
| DIMM Slots: | 32 DIMMs |
| Drive Bays Form Factor: | 2.5" |
| Form Factor: | 1U |
| Max. GPU Count: | N/A |
| On-board Network: | 10GBase-T |
| Number of Nodes per System: | 1 Node |
| PCIe Slots: | 4 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (native), SAS (optional), SATA (optional) |
| System Type: | Super Server |
Related links to "SYS-1124US-TNRP -1U -Server"
Request form
Do you need further information, personal advice or a quotation? Please use our Request Form or alternatively our other request forms:
NVIDIA DGX Server Storage GPU/Workstation HPC
We thank you in advance for your interest in our products, services and solutions and will contact you as soon as possible.
