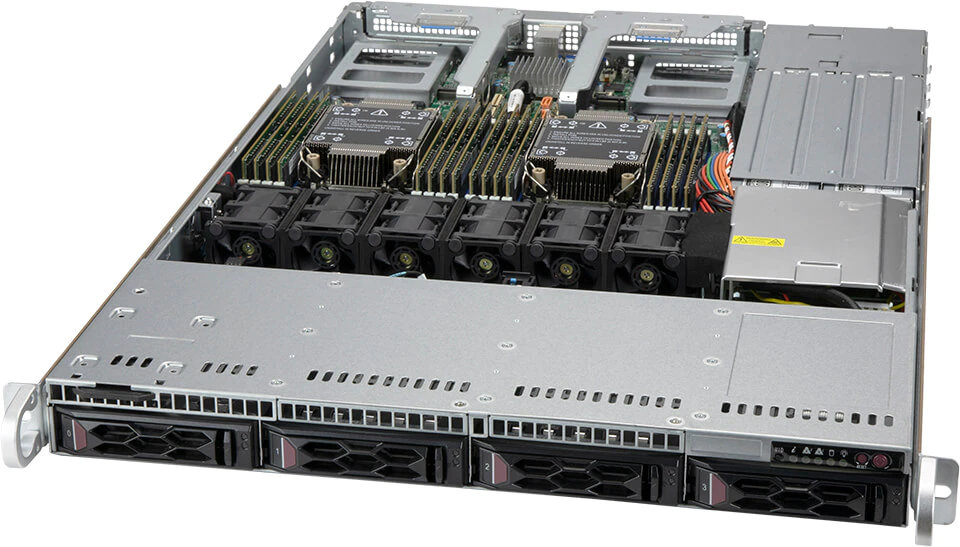

SYS-610C-TR - 1U - CloudDC Server Barebone

1,854.72€ *
Content: 1 Stück

Prices plus VAT plus shipping costs

Delivery time 4 Weeks

Configure

  • SYS-610C-TR
sysGen/SUPERMICRO  SYS-610C-TR , includes: Mainboard Super  X12DDW-A6  / 1U... more
Product information "SYS-610C-TR - 1U - CloudDC Server Barebone"

sysGen/SUPERMICRO SYS-610C-TR, includes:
Mainboard Super X12DDW-A6 / 1U Rackmount CSE-LA15TQC-R860AW

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system(with Minimum 2 CPUs, 4 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC).
NIC requirement can either be AIOM or PCIe card.

  • Web Server, Firewall Application
  • Data Center Optimized, Value IaaS
  • Cloud Computing, Compact Server
  • DNS & Gateway Servers, Firewall Application

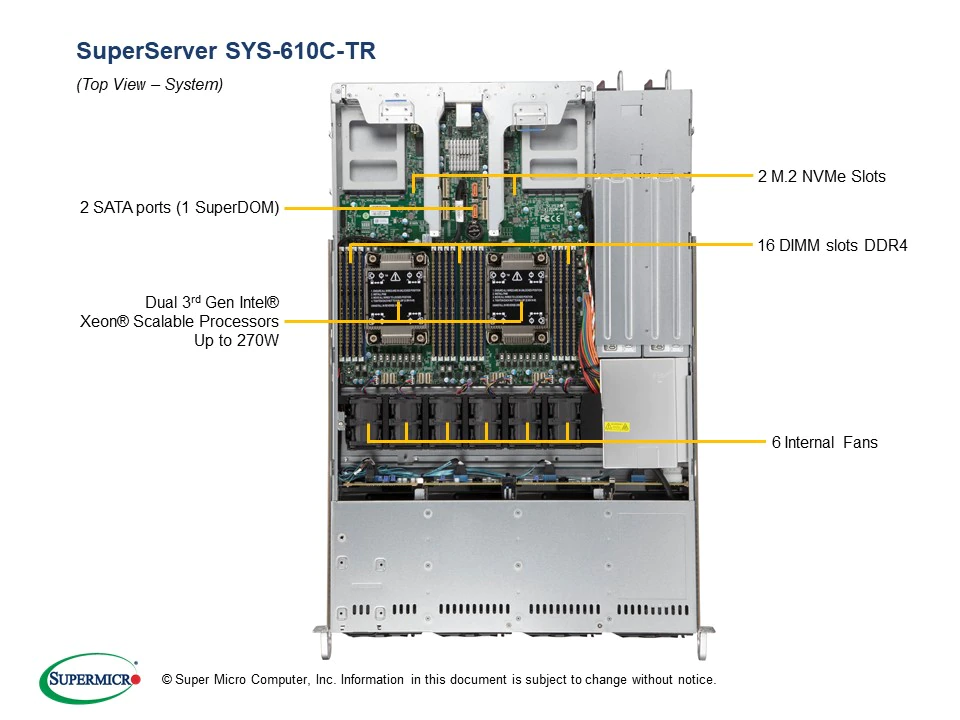

  • Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  • 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® DCPMM
  • 2 PCI-E 4.0 x16 FHHL; 2 PCI-E 4.0 x16 AIOM (OCP 3.0); 2 PCI-E 3.0 x2 NVMe M.2
  • Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN

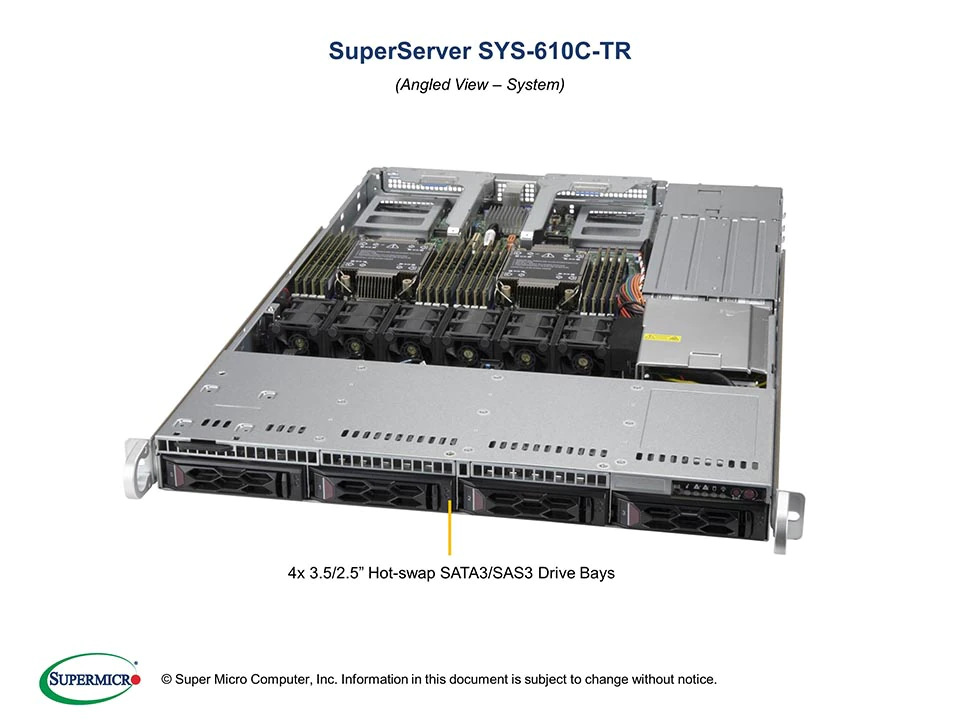

  • 4x 3.5/2.5" hot-swap SATA/SAS drive bays
  • 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
  • 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
Applications: Cloud Computing, HPC, Virtualization
System Type: Super Server
Form Factor: 1U
CPU Socket: 2 CPUs
CPU Type: Intel Xeon Scalable Ice Lake (3.Gen)
Max. GPU Count: 2 GPUs
DIMM Slots: 16 DIMMs
Storage Interface: SAS (optional), SATA (native)
Drive Bays: 4 Drives
Drive Bays Form Factor: 2.5", M.2
PCIe Slots: 4 PCIe Slots
Case Depth: 25.6" (650mm)
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
Special Features: Complete System Only
Properties: "SYS-610C-TR - 1U - CloudDC Server Barebone"
Applications: Cloud Computing, HPC, Virtualization
System Type: Super Server
Form Factor: 1U
CPU Socket: 2 CPUs
CPU Type: Intel Xeon Scalable Ice Lake (3.Gen)
Max. GPU Count: 2 GPUs
DIMM Slots: 16 DIMMs
Storage Interface: SAS (optional), SATA (native)
Drive Bays: 4 Drives
Drive Bays Form Factor: 2.5", M.2
PCIe Slots: 4 PCIe Slots
Case Depth: 25.6" (650mm)
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
Special Features: Complete System Only
