SYS-610U-TNR - 1U - Server Barebone
Prices plus VAT plus shipping costs
Delivery time 4 Weeks
- Order number: SYS-610U-TNR
sysGen/SUPERMICRO Server SYS-610U-TNR, Mainboard Super X12DPU-6
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC adapter*). *NIC adapter requirement includes either 1 Ultra Riser card with integrated NIC or 1 AOC-URG4N4 Ultra Riser card with 1 standard PCI-E NIC adapter.
Applications
- Virtualization
- Cloud Computing
- Software Defined Storage
- 5G/Telco
- HPC
- High End Enterprise Server
- Application Tier Service Provider
Features
- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
- Intel® C621A Chipset

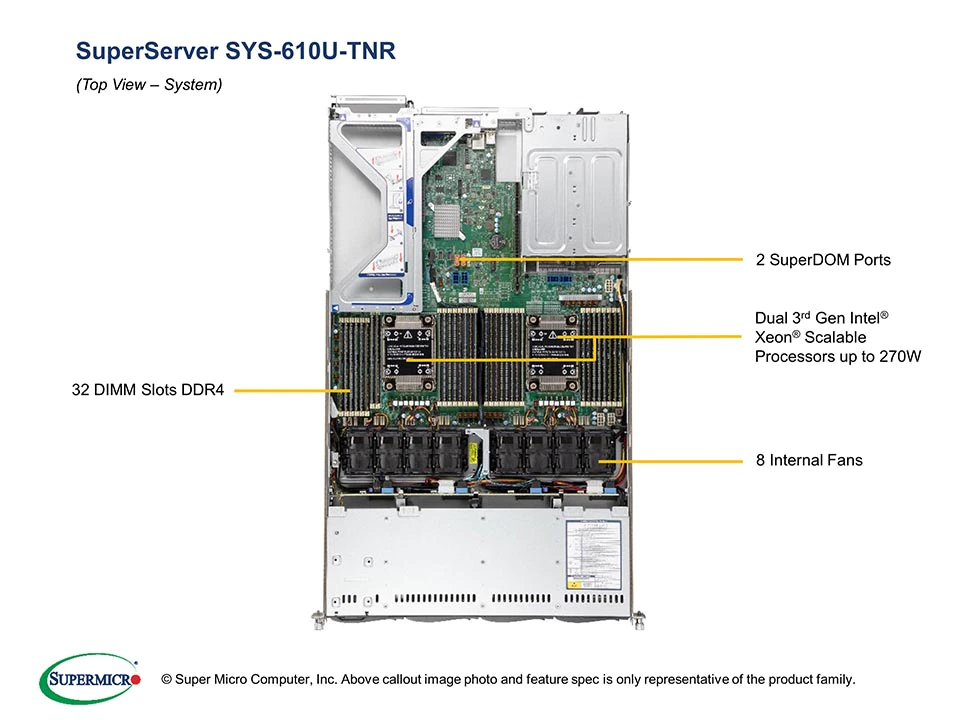

- 32 DIMM Slots; up to 8TB DRAM;
- Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
Intel® Optane™ Persistent Memory 200 series - 1 PCIe 4.0 x16 Internal LP slot(s)
- 1 PCIe 4.0 x16 LP slot(s)
- 2 PCIe 4.0 x16 FH, 10.5"L slot(s)

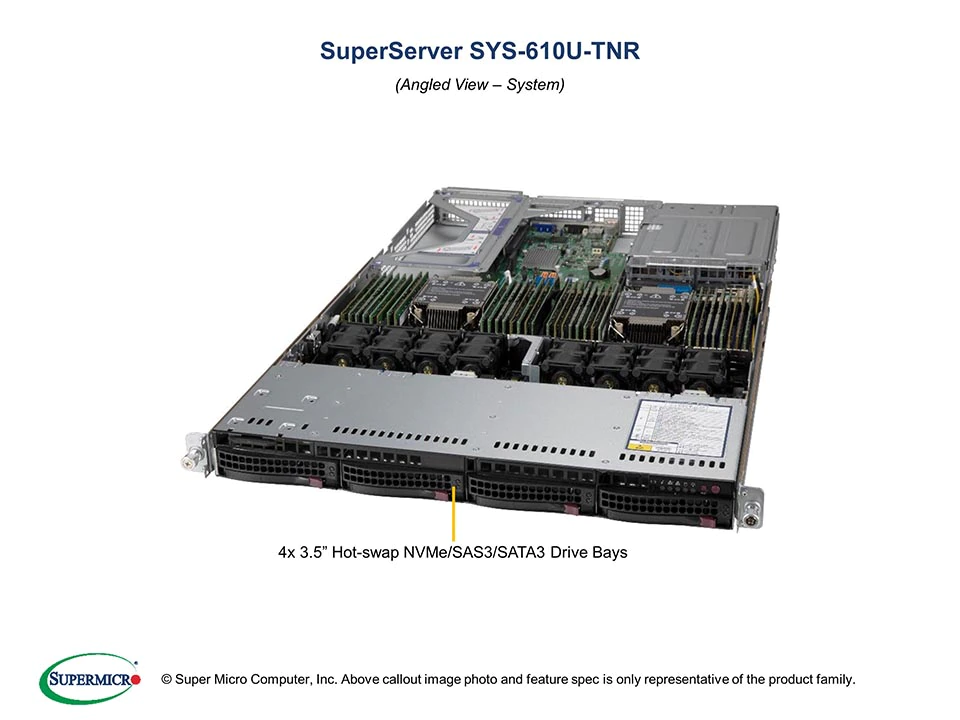

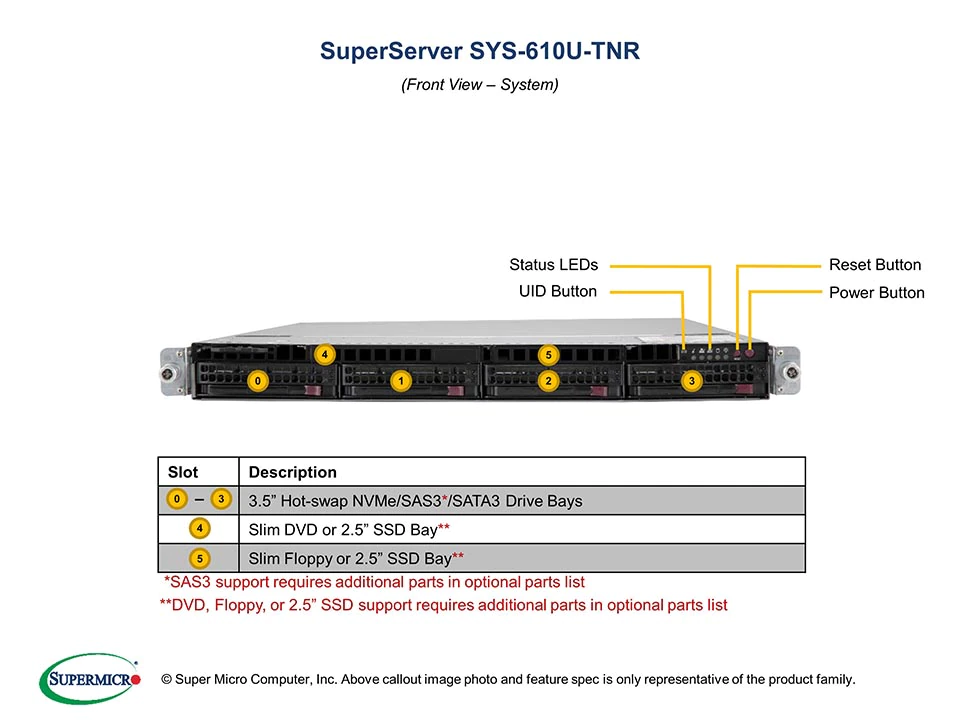

- 4x3.5" hot-swap hybrid NVMe/SATA/SAS drive bays
- Flexible networking options
- 8 heavy duty fans with optimal fan speed control

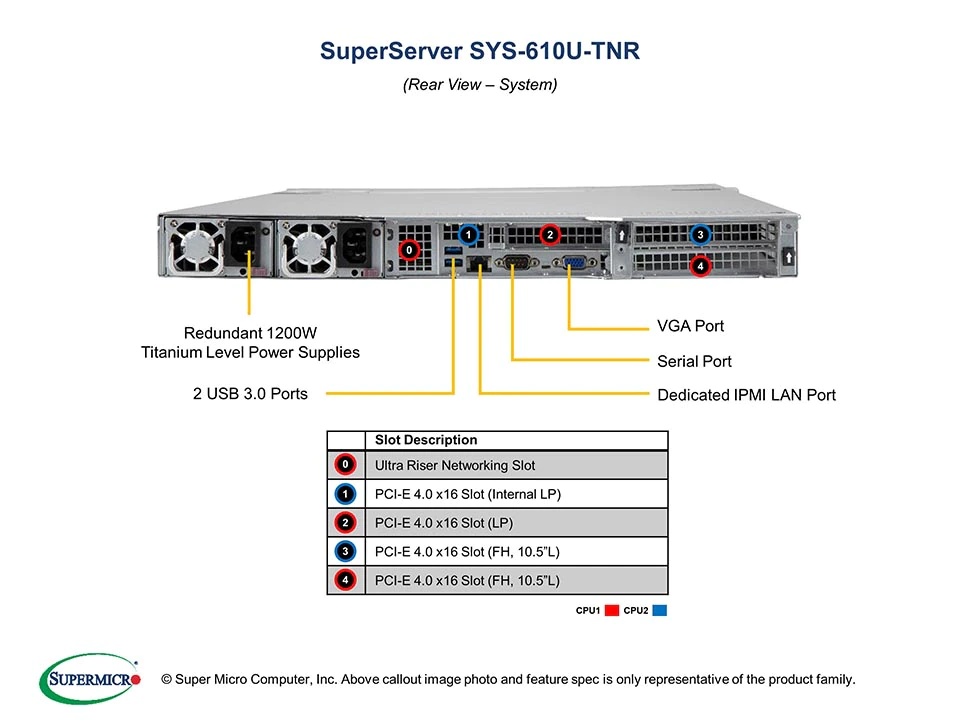

- 1200W redundant Titanium level power supplies
- 1 VGA Port, 2 USB rear Port, 1 COM Port(s)
| Applications: | Cloud Computing, HPC, Virtualization |
| Case Depth: | 29.7" (754mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 32 DIMMs |
| Drive Bays Form Factor: | 3.5" |
| SSDs/HDDs: | 4 |
| Form Factor: | 1U |
| Max. GPU Count: | 2 GPUs |
| On-board Network: | N/A |
| PCIe Slots: | 4 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (optional), SAS (optional), SATA (native) |
| System Type: | Super Server |
| Applications: | Cloud Computing, HPC, Virtualization |
| Case Depth: | 29.7" (754mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 32 DIMMs |
| Drive Bays Form Factor: | 3.5" |
| SSDs/HDDs: | 4 |
| Form Factor: | 1U |
| Max. GPU Count: | 2 GPUs |
| On-board Network: | N/A |
| PCIe Slots: | 4 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (optional), SAS (optional), SATA (native) |
| System Type: | Super Server |
