sysGen GRAID-System Storage Solution for NVMe with SR-1000 and AMD Milan CPU | SYS-R182-Z93

Price On Request

Content: 1 Stück

Prices plus VAT plus shipping costs

Customize

Order number: saac636bb851d0ab6

This product is a pre-configured set, this can be adjusted in the configurator before your... more

Close menu

Product information "sysGen GRAID-System Storage Solution for NVMe with SR-1000 and AMD Milan CPU | SYS-R182-Z93"

This product is a pre-configured set, this can be adjusted in the configurator before your request.

Position	Number	Product	Price (€)	Total (€)

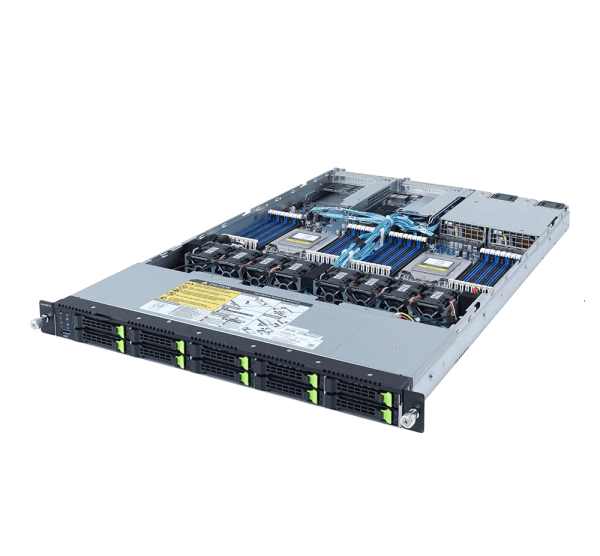

1	1	SYS-R182-Z93 - 1U - Server Barebone SYS-R182-Z93 sysGen/Gigabyte Server SYS-R182-Z93,Mainboard MZ92-FS1 DB Processing Cloud Computing Data Center Appilcations Dual Socket AMD EPYC™ 7003 series processor Supports GRAID SupremeRAID NVMe/NVMe-oF RAID Card Up to 4TB of DDR4-3200 ECC LRDIMM 10x Hot-swappable 2.5" NVMe Drives 2x PCIe Gen4 x16 FHHL slots, 1x OCP 3.0 mezzanine slot (PCIe Gen4 x16), 1x OCP 2.0 mezzanine slot (PCIe Gen3 x8) occupied by CNVO132, 2 x NVMe HBA 1x M.2 slots, M-key, PCIe Gen3 x4, supports NGFF.2242/2260/2280 NOTE: CPU TDP is limited to 225W if using M.2 device 2x 1GbE Lan Ports, 1x dedicated IPMI RJ45 port (ASPEED 2500) 1200W 80 PLUS Platinum redundant/hot-swap power supply	2469,60	2469,60
2	2	AMD EPYC 7443 Milan 24x 2.80GHz Epyc 7443 Milan SP3, PCIe 4.0, 24, 4.00 GHz, 3200 MHz, 2.80 GHz, 200 W, 4 TB, Milan (3.Gen)	2488,50	4977,00
3	16	16GB DDR4-3200 RDIMM ECC FP HMA82GR7CJR8N-XN DDR4, RDIMM, ECC, 16 GB, FP, 3200 Mhz	134,45	2151,20
4	1	GRAID SupremeRAID SR-1000 NVMe-Controller \| up to 8 SSDs SR-BUN-1000-ED08	1575,00	1575,00
5	1	Micron 7450 PRO 1.9TB NVMe PCIe 4.0 M.2 22x110mm 3D TLC MTFDKBG1T9TFR-1BC1ZABYY 735000 IOPS, TLC, M.2, M.2 NVMe, 110 x 22 x 3.5 mm, 8 W, 2400 MB/s, 1.92 TB, 5000 MB/s, 120000 IOPS, 2,0 mio. hours	441,00	441,00
6	8	Micron 7450 PRO 3.8TB NVMe PCIe 4.0 3D TLC U.3 15mm 1DWPD MTFDKCC3T8TFR-1BC1ZABYY 1000000 IOPS, TLC, 2.5" (U.3), NVMe, U.3, 15.0 mm, 16.6W, 5300 MB/s, 3.84 TB, 6800 MB/s, 180000 IOPS, 2,0 mio. hours	921,37	7370,96
7	1	MCX653106A-ECAT-SP - ConnectX®-6 VPI adapter card, 100Gb/s, dual-port QSFP56 MCX653106A-ECAT-SP Dual Ports, QSFP56, 100G, Standard Full Profile, Infiniband	1197,70	1197,70
8	1	Teilegarantie - 3 Jahre sys-service-basic	inkl.	inkl.

System Type:	Storage Server
Form Factor:	1 U
Application:	All-Flash NVMe
CPU:	2x AMD EPYC 7443 Milan
Memory (RAM):	256GB DDR4 RDIMM ECC
GPU:	Without
Data medium:	1x 1.9TB NVMe (OS) M.2, 8x 7.6TB NVMe (U.3) SSDs
Onboard Network Interfaces:	2 x 1Gb/s
additional network adapter:	Dual Port QSFP56 - bis zu 100Gb/s
Remot Management:	1 x Dedicated management port
Power Supply:	1200 Watt Netzteil redundant
Server warranty:	incl. parts warranty - 3 years

Related links to "sysGen GRAID-System Storage Solution for NVMe with SR-1000 and AMD Milan CPU | SYS-R182-Z93"

Open properties

Menü schließen

Properties: "sysGen GRAID-System Storage Solution for NVMe with SR-1000 and AMD Milan CPU | SYS-R182-Z93"

System Type:	Storage Server
Form Factor:	1 U
Application:	All-Flash NVMe
CPU:	2x AMD EPYC 7443 Milan
Memory (RAM):	256GB DDR4 RDIMM ECC
GPU:	Without
Data medium:	1x 1.9TB NVMe (OS) M.2, 8x 7.6TB NVMe (U.3) SSDs
Onboard Network Interfaces:	2 x 1Gb/s
additional network adapter:	Dual Port QSFP56 - bis zu 100Gb/s
Remot Management:	1 x Dedicated management port
Power Supply:	1200 Watt Netzteil redundant
Server warranty:	incl. parts warranty - 3 years
