SYS-121H-TNR - 1U - Server Barebone

Price On Request

Content: 1 Stück

Prices plus VAT plus shipping costs

Delivery time 3-4 Weeks

Configure

Order number: SYS-121H-TNR

sysGen/SUPERMICRO Server SYS-121H-TNR , Mainboard ... more

Close menu

Product information "SYS-121H-TNR - 1U - Server Barebone"

sysGen/SUPERMICRO Server SYS-121H-TNR, Mainboard Super X13DEM

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 1 NIC adapter*, and 1 drive). *NIC adapter requirement includes either 1 AIOM networking card or 1 standard PCI-E NIC adapter.

Applications

Virtualization
AI Inference and Machine Learning
Enterprise Server
Software-defined Storage
Cloud Computing

Features

Dual Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors
32x DIMM slots up to 4TB Registered ECC DDR5-4800MHz

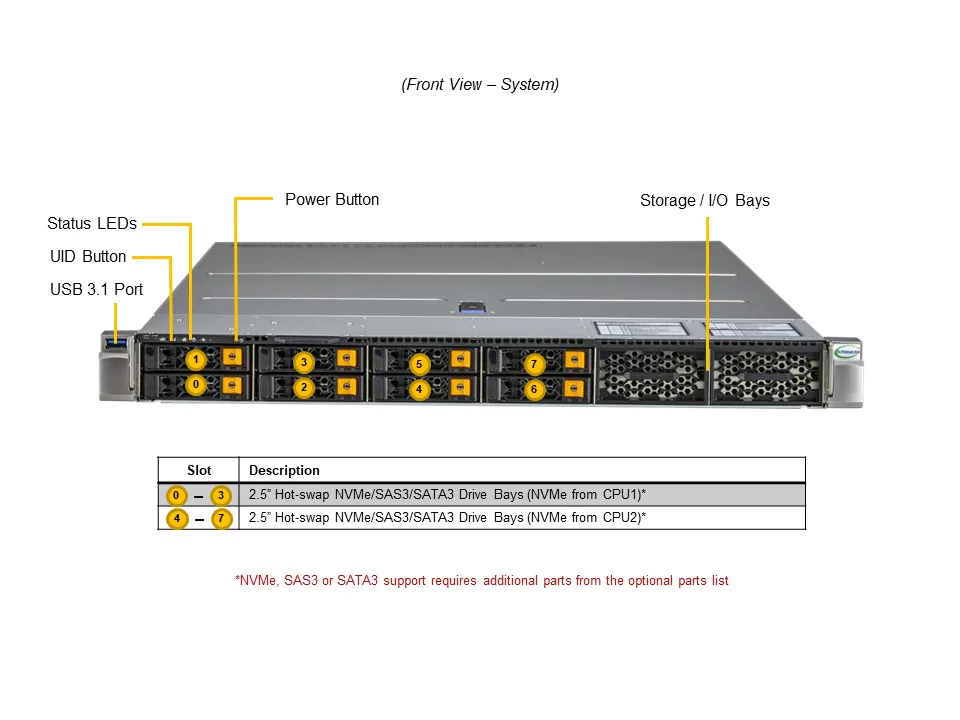

8x 2.5" hot-swap NVMe/SATA/SAS drive bays;
Optional 12x 2.5" hot-swap NVMe/SAS/SATA drive bays;
2x internal M.2 NVMe/SATA drive slots;

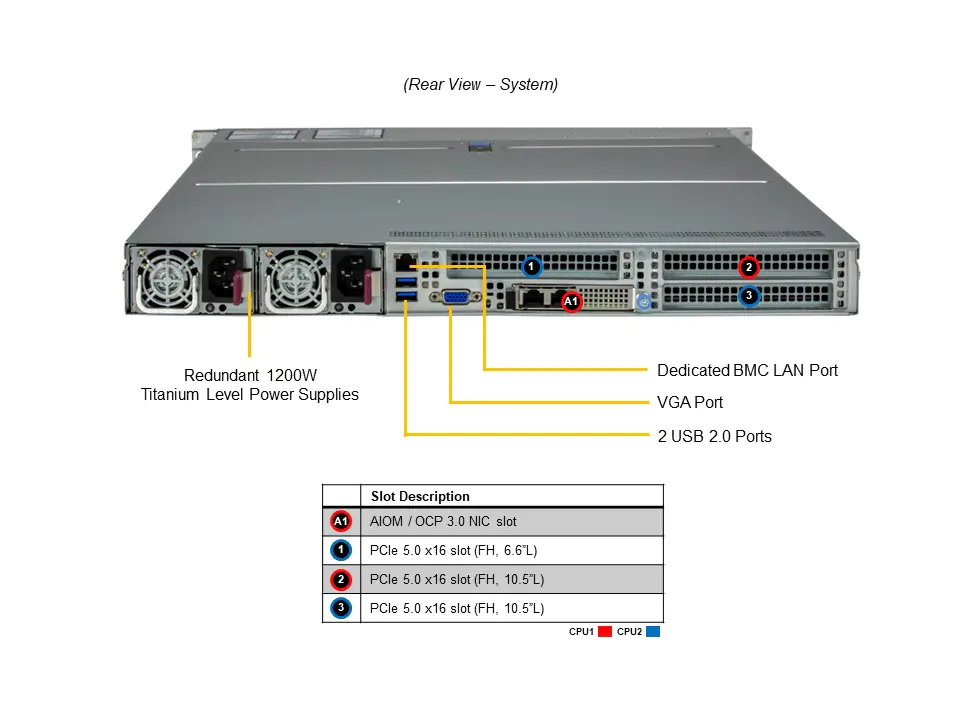

3 PCIe 5.0 x16 slots with support for GPU/Accelerator cards
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
800W/1200W Redundant Titanium CRPS w/PMBus power supply

NOTE: Supports up to 350W TDP CPUs (Aircooled)

Supports up to 350W TDP CPUs (Liquid Cooled)

Applications:	AI / Deep Learning, AI Inference and Machine Learing, Cloud Computing, Enterprise Server, Machine Learning, Software-defined Storage, Virtualization
Case Depth:	29.4" (747mm)
CPU Socket:	Dual Socket
CPU Type:	Intel Xeon Scalable Emerald Rapids(5 Gen), Intel Xeon Scalable Sapphire Rapids (4.Gen)
DIMM Slots:	32 DIMMs
Drive Bays Form Factor:	2.5", M.2
SSDs/HDDs:	8 Drives
Form Factor:	1U
GPU Type:	PCIe
Max. GPU Count:	3 GPUs
On-board Network:	N/A
PCIe Slots:	3 PCIe Slots
Redundant Power Supply:	Redundant Power Supply incl.
Remote Management:	Remote Management incl.
Special Features:	Complete System Only
Storage Interface:	NVMe (optional), SAS (optional), SATA (optional)
System Type:	GPU Server, Super Server
