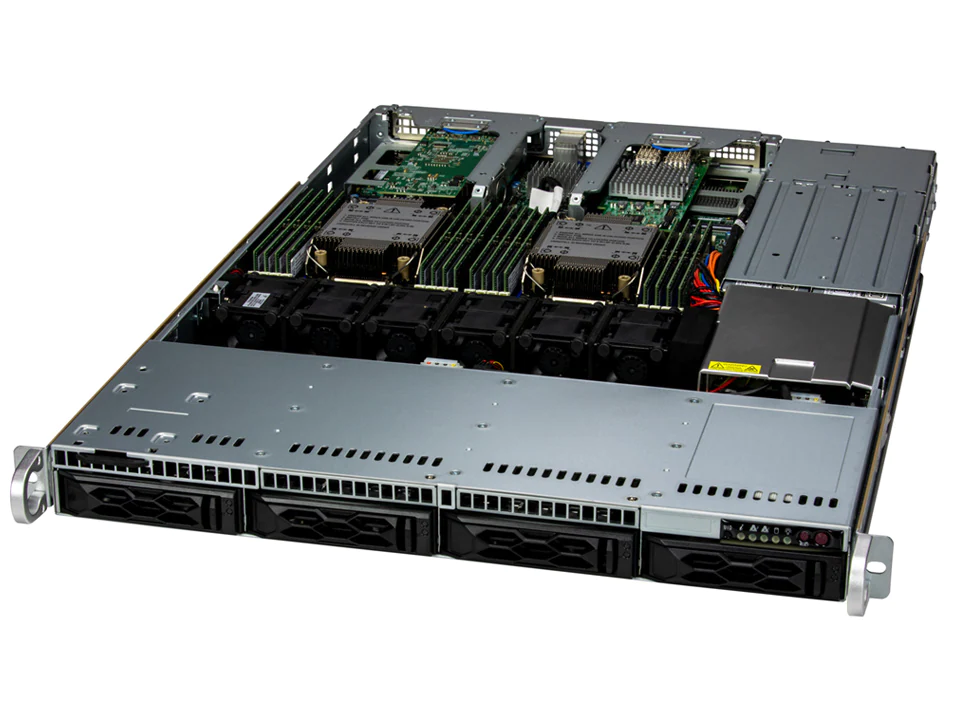

SYS-611C-TN4R - 1U - CloudDC Server Barebone
Price On Request
Content: 1 Stück
Prices plus VAT plus shipping costs
Delivery time 3-4 Weeks
- Order number: SYS-611C-TN4R
sysGen/SUPERMICRO Server SYS-611C-TN4R, Mainboard Super X13DDW-A... more
Product information "SYS-611C-TN4R - 1U - CloudDC Server Barebone"
sysGen/SUPERMICRO Server SYS-611C-TN4R, Mainboard Super X13DDW-A
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs, 1 Storage Device HDD/HDS/M.2, and 1 NIC). NIC requirement can either be AIOM or PCIe card.
Applications
- Web Server, Firewall Application
- Cloud Computing, Compact Server
- Data Center Optimized, Value IaaS
- DNS & Gateway Servers, Firewall Application
- CDN, Edge Nodes
Features
- Dual sockets E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors
- 16 x DIMMs up to 4TB ECC DDR5-4800: RDIMM
- 2 x PCIe 5.0 x16 FHHL
- 2 x PCIe 5.0 x4 NVMe M.2
- Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN

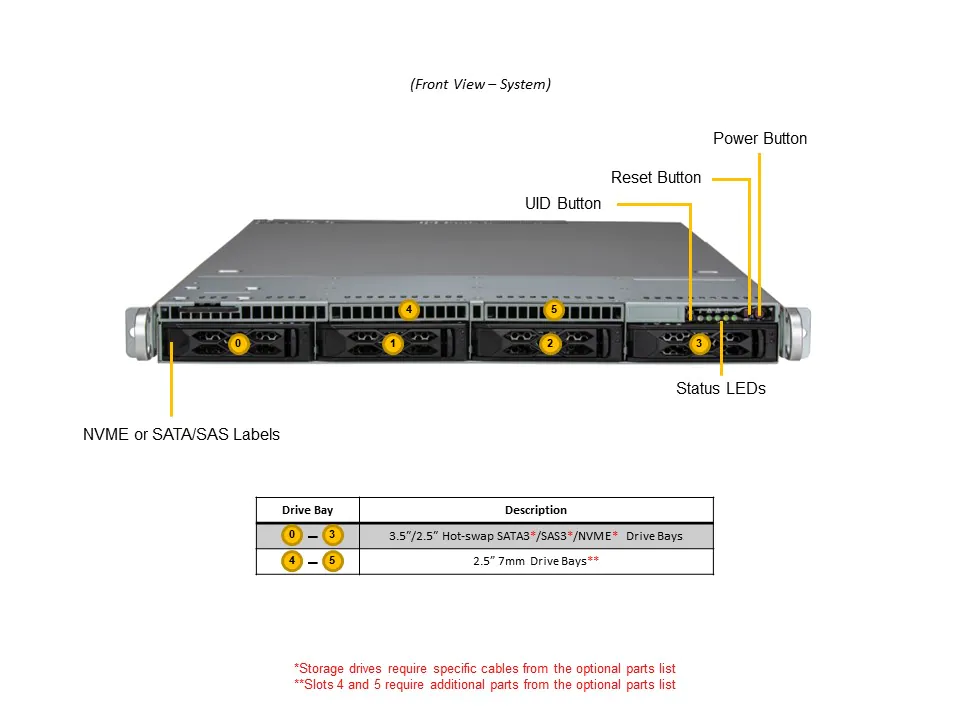

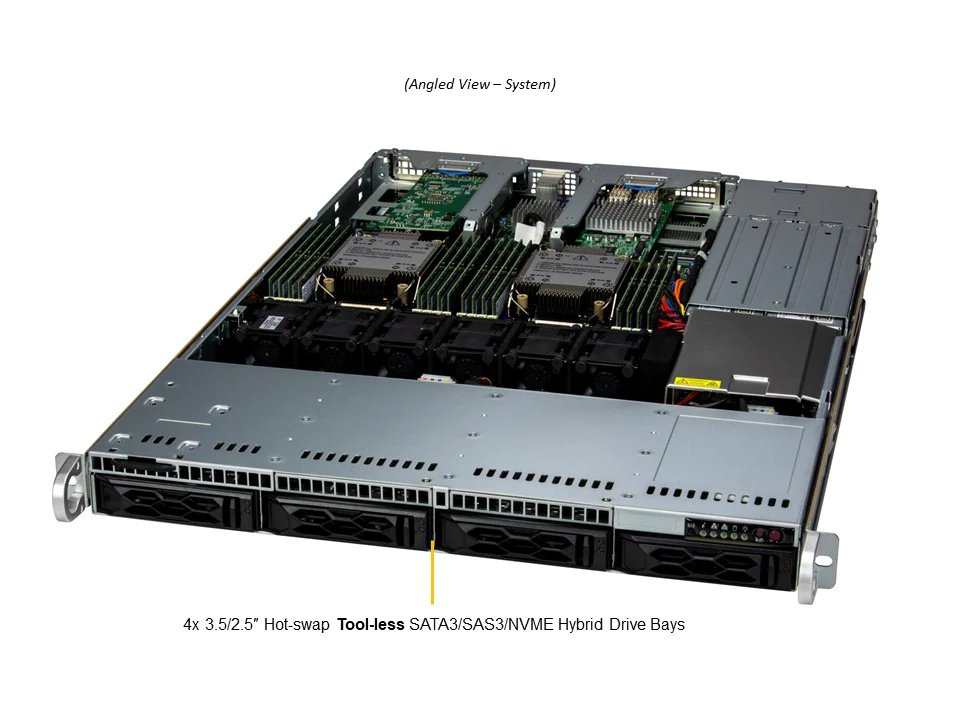

- 4 x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays

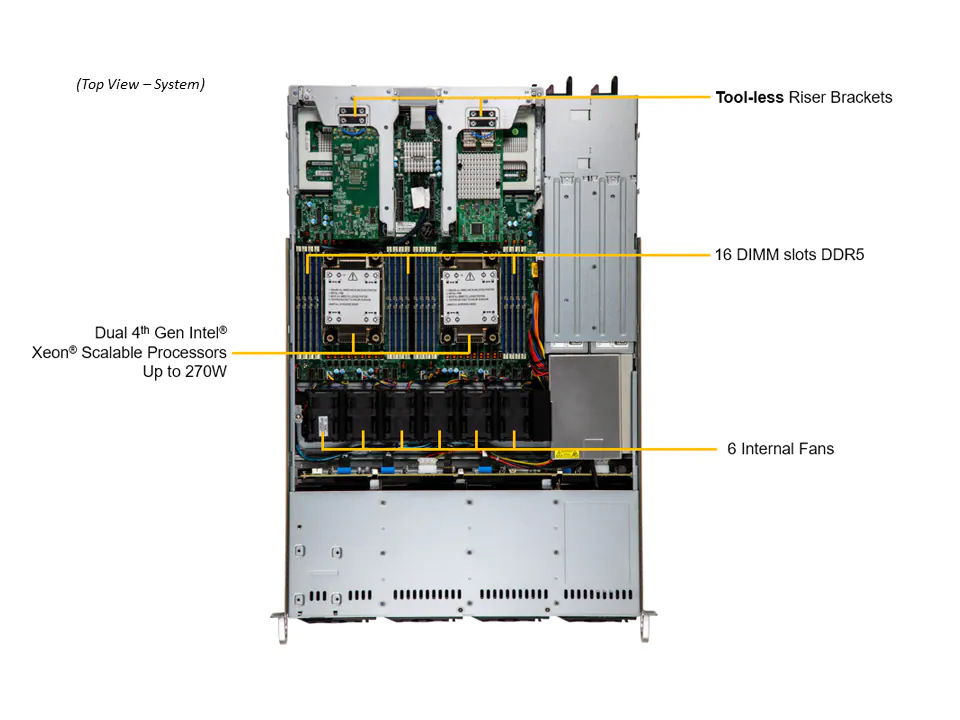

- 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
- 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
- 1 VGA, 1 COM, 2 USB 3.0 (rear)
| Applications: | CDN, Edge Nodes, Cloud Computing, Email/Firewall/Application Server, General Purpose, HPC, Web Hosting |
| Case Depth: | 25.6" (650mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | Intel Xeon Scalable Emerald Rapids(5 Gen), Intel Xeon Scalable Sapphire Rapids (4.Gen) |
| DIMM Slots: | 16 DIMMs |
| Drive Bays Form Factor: | 3.5", M.2 |
| SSDs/HDDs: | 4 |
| Form Factor: | 1U |
| GPU Type: | PCIe |
| Max. GPU Count: | 2 GPUs |
| On-board Network: | N/A |
| PCIe Slots: | 2 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (optional), SAS (optional), SATA (optional) |
| System Type: | GPU Server, Super Server |
