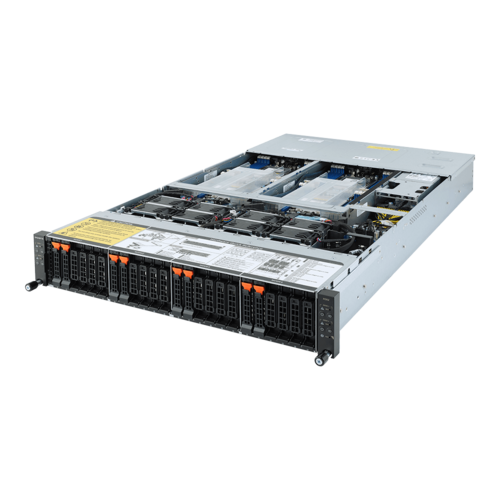

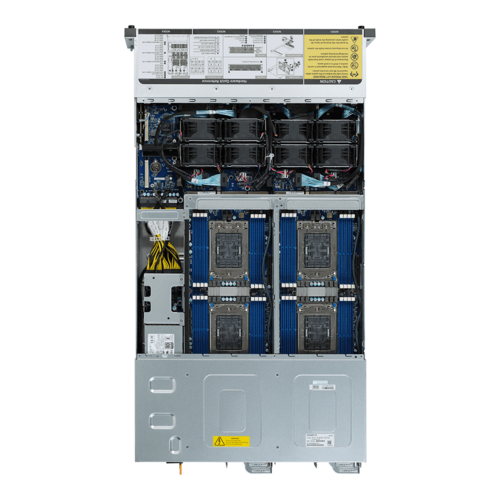

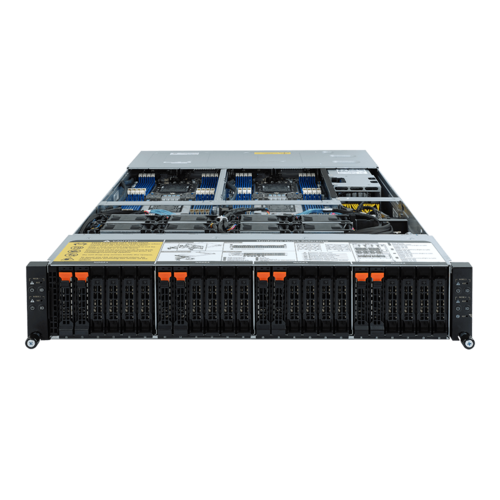

SYS-H262-Z63 (Rev. A00) - 2U - 4 Nodes Server
- Order number: SYS-H262-Z63-A00
sysGen/Gigabyte Server SYS-H262-Z63 (rev. A00), Motherboard MZ62-HD0 Rev. 3.0 :... more
Product information "SYS-H262-Z63 (Rev. A00) - 2U - 4 Nodes Server"
sysGen/Gigabyte Server SYS-H262-Z63 (rev. A00), Motherboard MZ62-HD0 Rev. 3.0 :
Application
- HCI & Hybrid/Private Cloud Server
- Virtual Desktop Infrastructure (VDI)
- Databases
- File Storage
Features

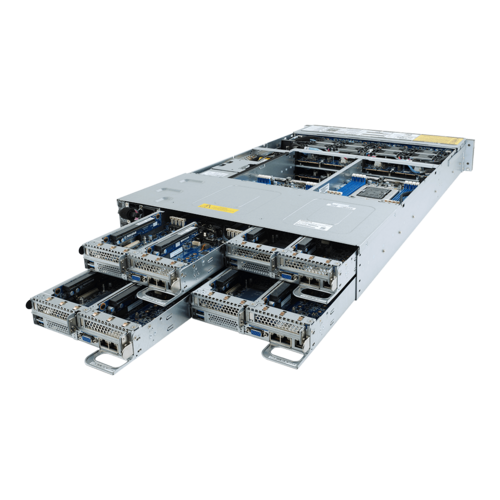

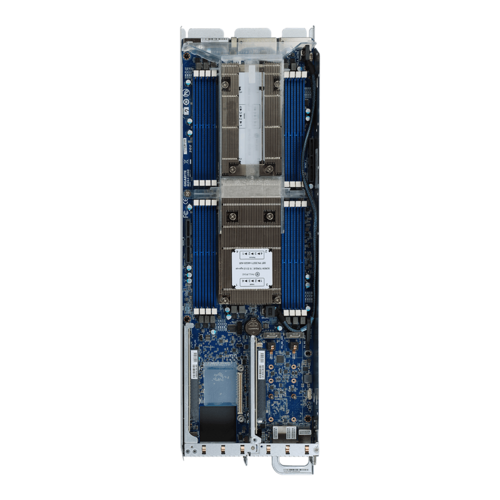

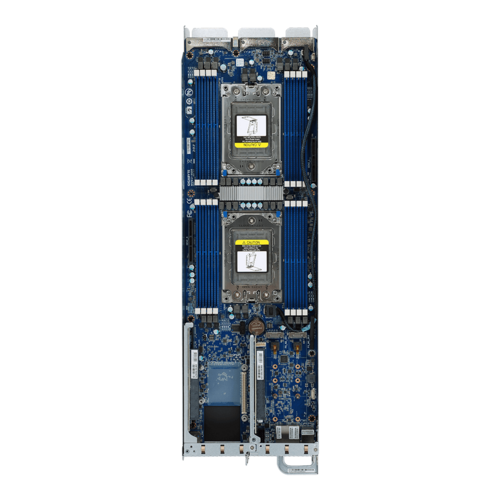

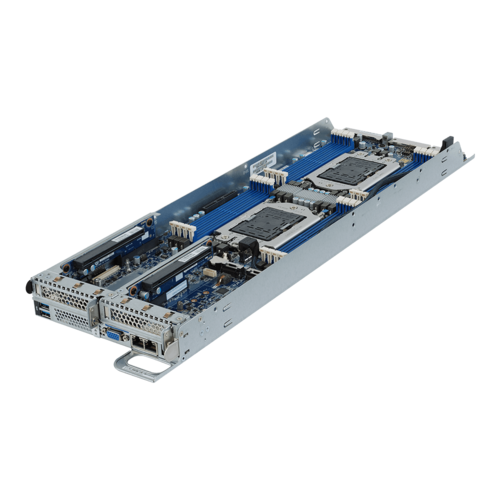

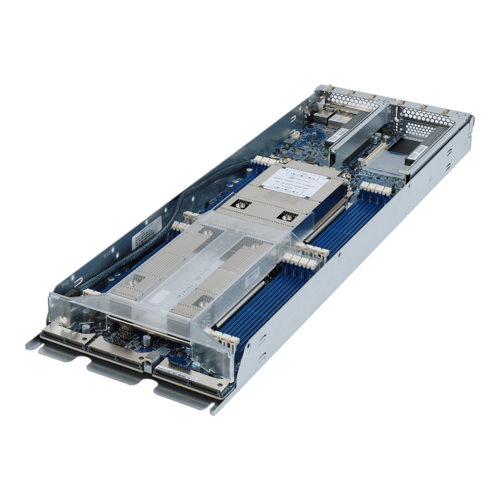

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Dual AMD EPYC™ 7003 series processor family
- 16x DIMM slots up to 4TB RDIMM/LRDIMM DDR4-3200MHz
- 2x 2.5" hot-swap NVMe/SATA drive bays
2x M.2 with PCIe Gen3 x4 interface 2242/2260/2280/22110
NOTE: CPU TDP is limited to 155W if using M.2 device - 2 x 1GbE LAN ports (1 x Intel® I350-AM2), 1 x Dedicated management port
1 x CMC global management port - 2 x Low profile PCIe Gen4 x16 expansion slots

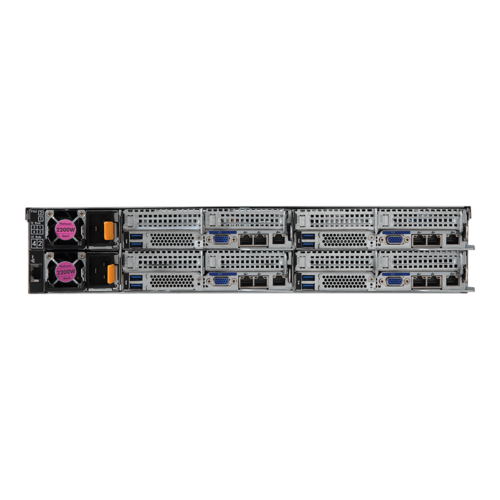

1 x OCP 2.0 Gen3 x16 mezzanine slots - 2200W 80 PLUS Platinum redundant PSU
| Applications: | Cloud Computing, Data Center, HCI, HPC |
| Case Depth: | 33" (840mm) |
| CPU Socket: | 8 CPUs |
| CPU Type: | AMD EPYC 7002 ROME (2.Gen), AMD EPYC 7003 MILAN (3.Gen) |
| DIMM Slots: | 64 DIMMs |
| Drive Bays Form Factor: | 2.5", M.2 |
| SSDs/HDDs: | 8 Drives |
| Form Factor: | 2U |
| Max. GPU Count: | N/A |
| On-board Network: | 1GbE |
| Number of Nodes per System: | 4 Nodes |
| PCIe Slots: | 8 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | NVMe (native), SATA (native) |
| System Type: | High Density Server (Twins, Blades) |
Related links to "SYS-H262-Z63 (Rev. A00) - 2U - 4 Nodes Server"
Properties: "SYS-H262-Z63 (Rev. A00) - 2U - 4 Nodes Server"
| Applications: | Cloud Computing, Data Center, HCI, HPC |
| Case Depth: | 33" (840mm) |
| CPU Socket: | 8 CPUs |
| CPU Type: | AMD EPYC 7002 ROME (2.Gen), AMD EPYC 7003 MILAN (3.Gen) |
| DIMM Slots: | 64 DIMMs |
| Drive Bays Form Factor: | 2.5", M.2 |
| SSDs/HDDs: | 8 Drives |
| Form Factor: | 2U |
| Max. GPU Count: | N/A |
| On-board Network: | 1GbE |
| Number of Nodes per System: | 4 Nodes |
| PCIe Slots: | 8 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | NVMe (native), SATA (native) |
| System Type: | High Density Server (Twins, Blades) |
