SYS-2014TP-HTR - 2U 4 Nodes - Server Barebone

4,100.88€ *
Content: 1 Stück

Prices plus VAT plus shipping costs

Delivery time 3-4 Weeks

Configure

  • SYS-2014TP-HTR
sysGen/SUPERMICRO AS-2014TP-HTR , includes: Mainboard Super H12SST-PS / 2U Rackmount... more
Product information "SYS-2014TP-HTR - 2U 4 Nodes - Server Barebone"

sysGen/SUPERMICRO AS-2014TP-HTR, includes:
Mainboard Super H12SST-PS / 2U Rackmount CSE-827HQ+-R2K04BP2

  • Compute Intensive Applications
  • HPC, Data Center, Enterprise Server
  • Hyperscale / Hyperconverged

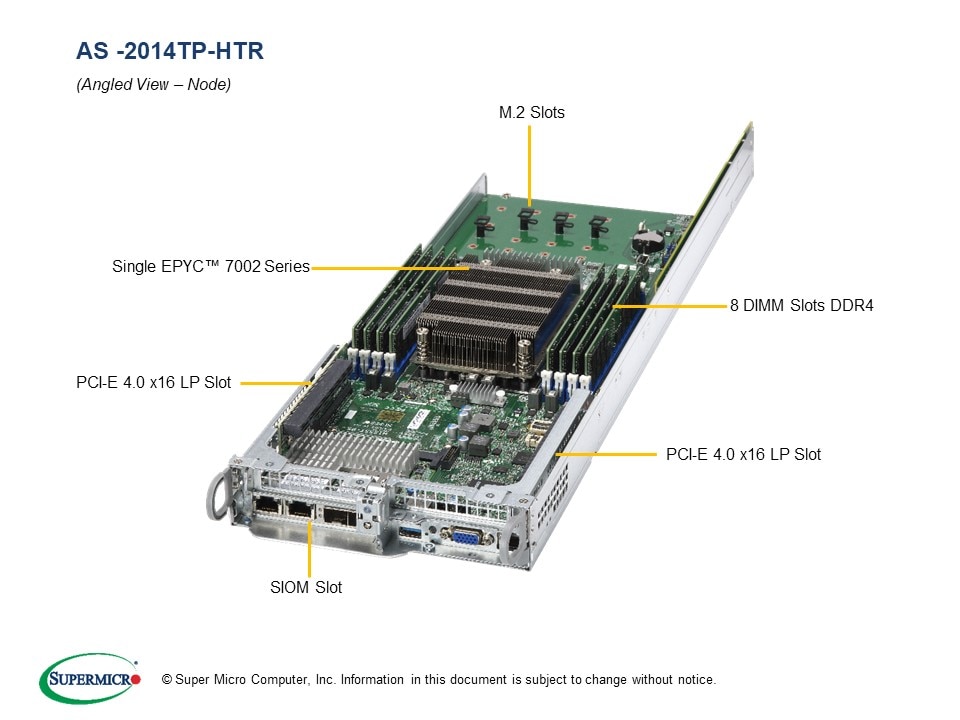

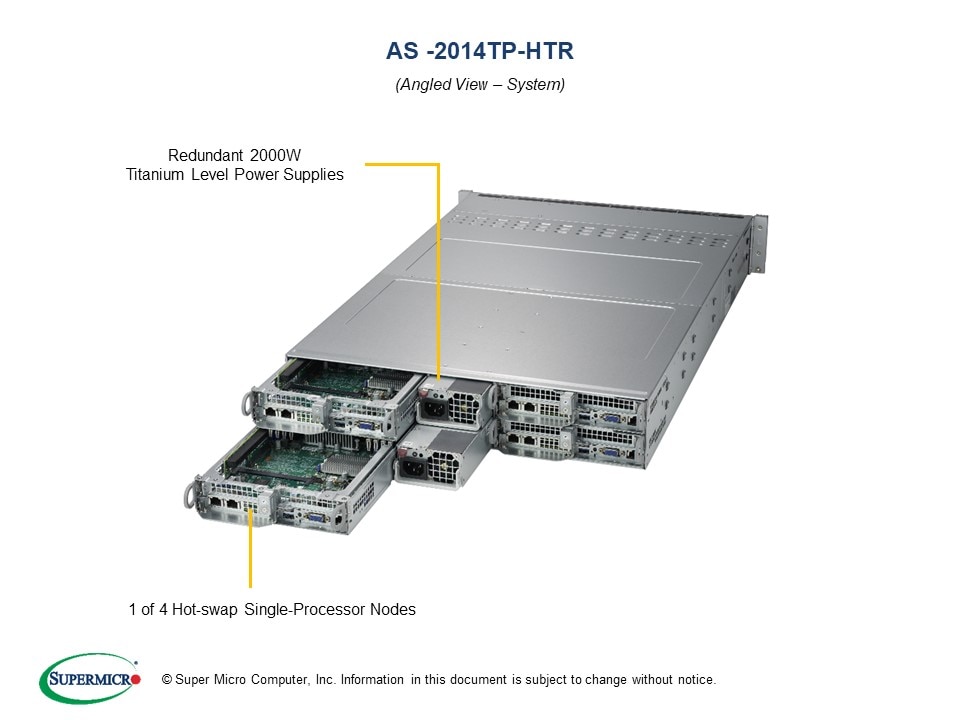

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  • Single AMD EPYC™ 7002/7003 Series Processor
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-3200MHz; 8 DIMM slots
  • 2 PCI-E 4.0 x16 (LP) slots
  • Flexible Networking support via SIOM; Dedicated IPMI 2.0 LAN • Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management

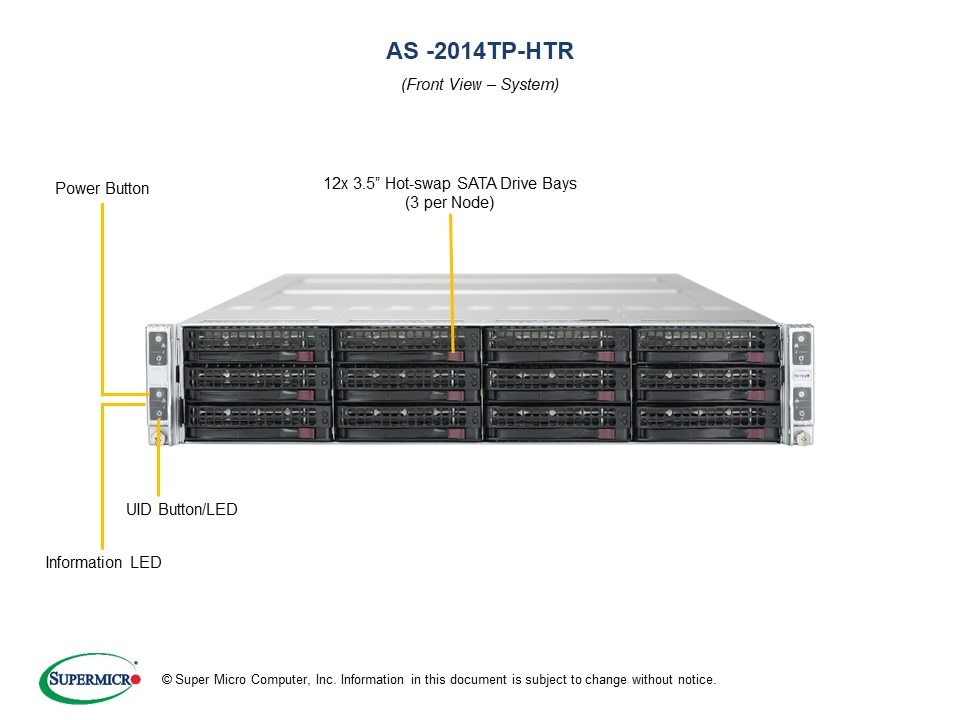

  • 3 Hot-swap 3.5" SATA3 drive bays M.2 Interface: 4 SATA/PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110, 2260, 2242 >M.2 Key: M-key

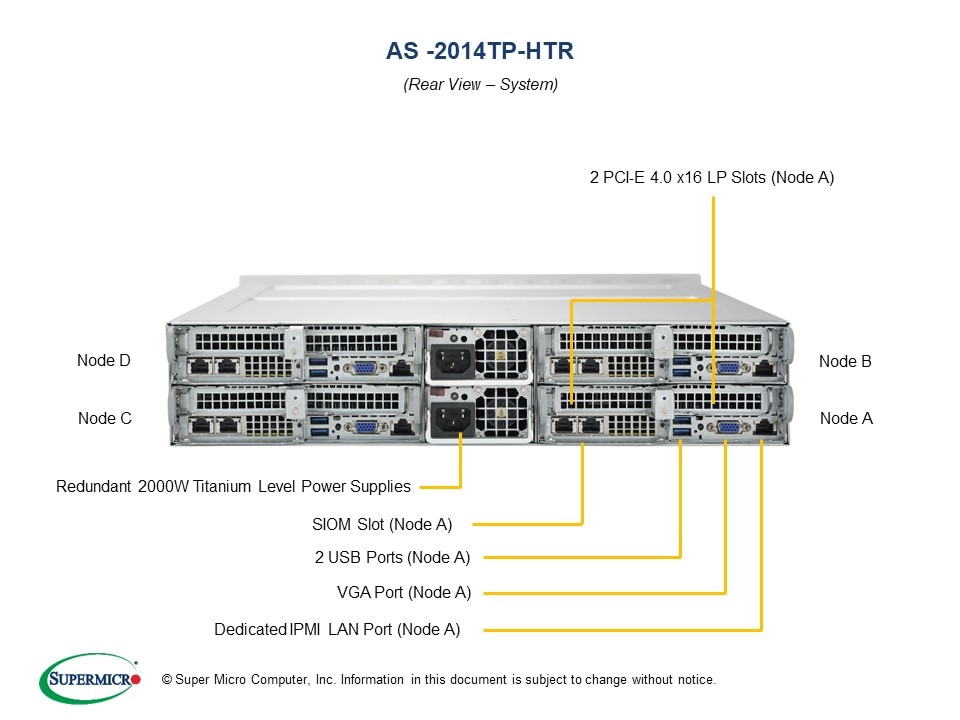

  • 2000W Redundant Power Supplies Titanium Level (96%) configuration and application load)
Applications: Cloud Computing, Data Center, HCI
System Type: High Density Server (Twins, Blades)
Form Factor: 2U
CPU Socket: 4 CPUs
CPU Type: AMD EPYC 7002 ROME (2.Gen), AMD EPYC 7003 MILAN (3.Gen)
Max. GPU Count: 0-OHNE GPU
DIMM Slots: 32 DIMMs
Storage Interface: SAS (optional), SATA (native)
Drive Bays: 12 Drives
Drive Bays Form Factor: 2.5", 3.5", M.2
PCIe Slots: 8 PCIe Slots
Case Depth: 30.5" (774mm)
Number of Nodes per System: 4 Nodes
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
Properties: "SYS-2014TP-HTR - 2U 4 Nodes - Server Barebone"
Applications: Cloud Computing, Data Center, HCI
System Type: High Density Server (Twins, Blades)
Form Factor: 2U
CPU Socket: 4 CPUs
CPU Type: AMD EPYC 7002 ROME (2.Gen), AMD EPYC 7003 MILAN (3.Gen)
Max. GPU Count: 0-OHNE GPU
DIMM Slots: 32 DIMMs
Storage Interface: SAS (optional), SATA (native)
Drive Bays: 12 Drives
Drive Bays Form Factor: 2.5", 3.5", M.2
PCIe Slots: 8 PCIe Slots
Case Depth: 30.5" (774mm)
Number of Nodes per System: 4 Nodes
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
