SYS-2124BT-HTR - 2U 4 Nodes - Server Barebone

Price On Request
Content: 1 Stück

Prices plus VAT plus shipping costs

Delivery time 4 Weeks

Configure

  • SYS-2124BT-HTR
sysGen/SUPERMICRO Server SYS-2124BT-HTR, Mainboard  Super   H12DST-B... more
Product information "SYS-2124BT-HTR - 2U 4 Nodes - Server Barebone"

sysGen/SUPERMICRO Server SYS-2124BT-HTR, Mainboard Super  H12DST-B

Complete System Only:   To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 8 DIMMs, 1 HDD and 1 SIOM card per node).

Applications

  • Compute Intensive Application
  • HPC, Data Center, Enterprise Server
  • Hyperscale / Hyperconverged

Features

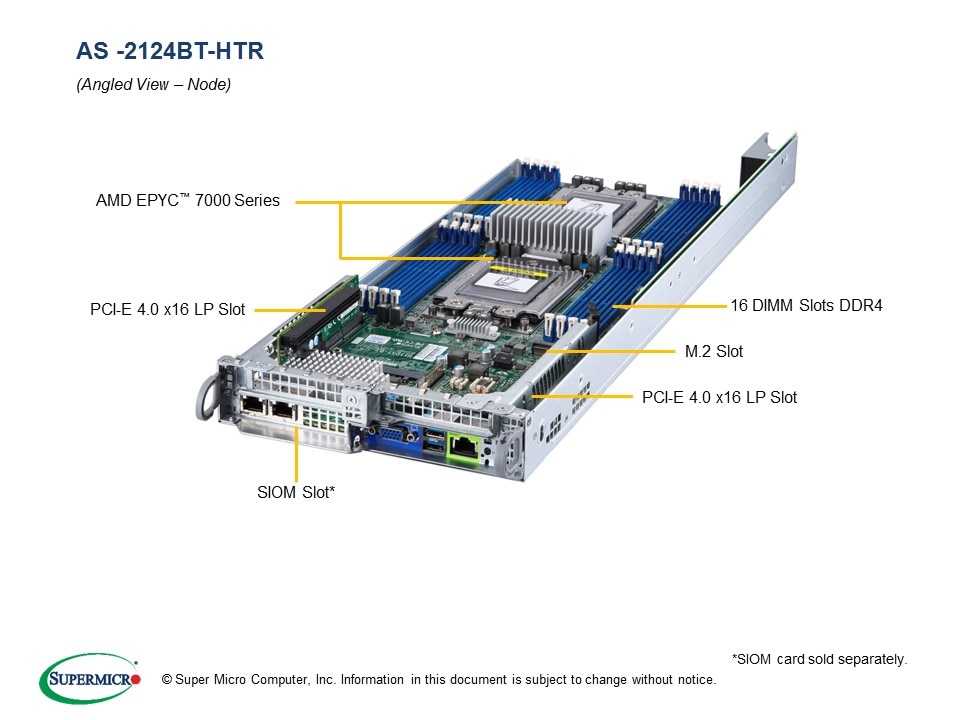

  • Dual AMD EPYC™ 7002/7003-Series Processors
  • Up to 4TB Registered ECC  DDR4-3200MHz SDRAM; 16 DIMM slots

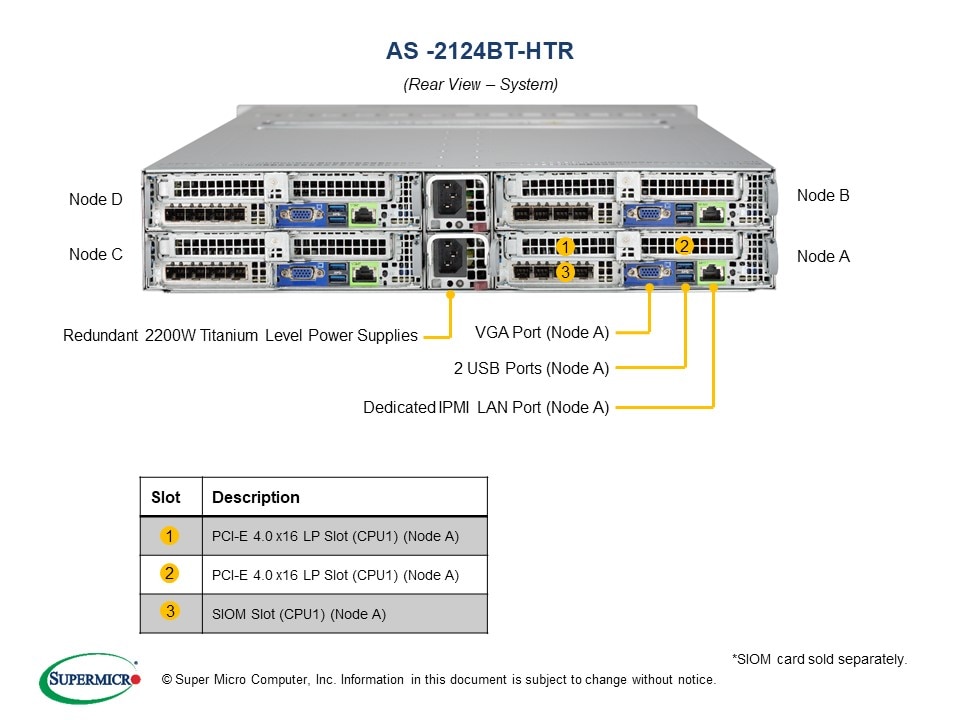

  • 2 PCI-E 4.0 x16 (LP) slot; 1 SIOM card support (flexible networking) Note: must bundle with Network card
  • Integrated IPMI 2.0 + KVM with  dedicated LAN

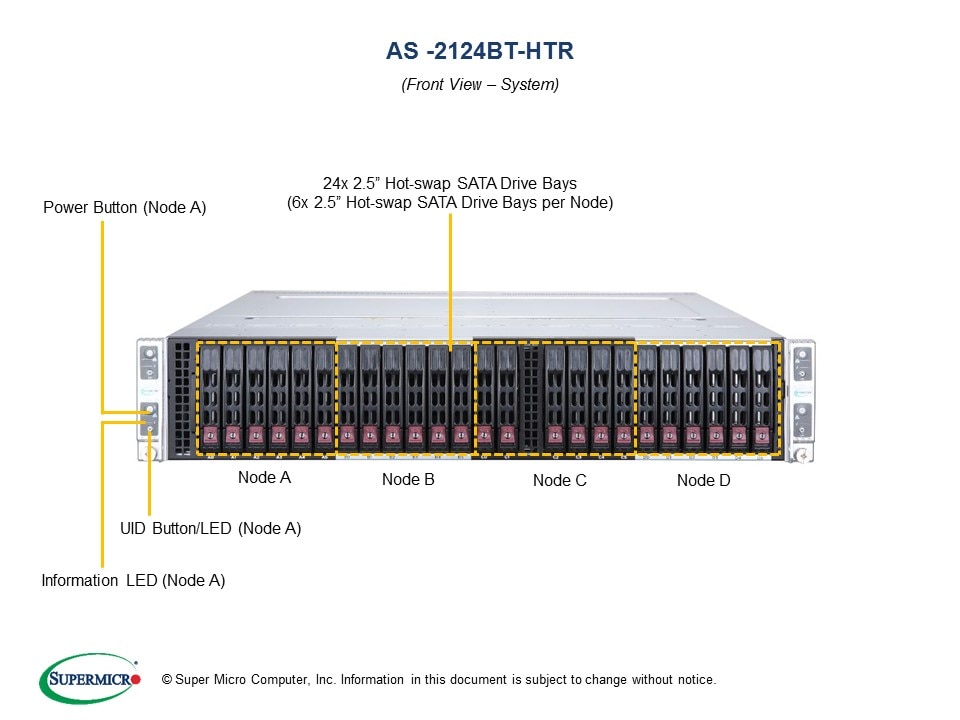

  • 6 Hot-swap 2.5" SATA3 drive bays
  • M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4. M.2 Form Factor: 2280, 22110. M.2 Key: M-key
  • Video via Aspeed AST2500 BMC

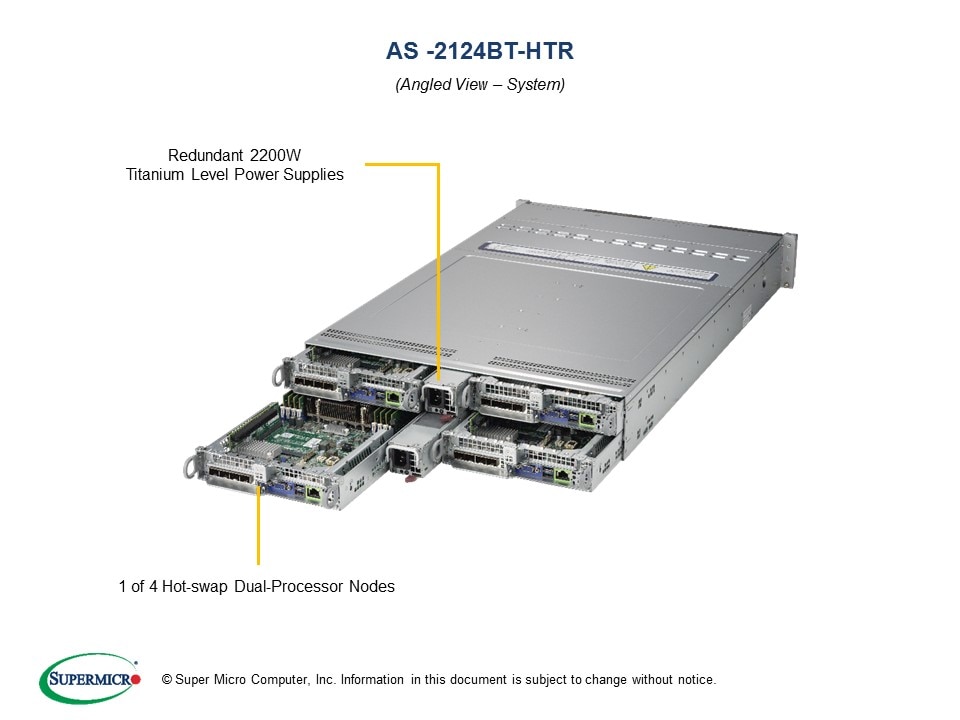

  • 2200W Redundant Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
Applications: Cloud Computing, Data Center, HPC
Case Depth: 28.74 (730mm)
CPU Socket: 8 CPUs
CPU Type: AMD EPYC 7002 ROME (2.Gen), AMD EPYC 7003 MILAN (3.Gen)
DIMM Slots: 64 DIMMs
Drive Bays Form Factor: 2.5", M.2
SSDs/HDDs: 24
Form Factor: 2U
Max. GPU Count: N/A
On-board Network: N/A
Number of Nodes per System: 4 Nodes
PCIe Slots: 8 PCIe Slots
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
Special Features: Complete System Only
Storage Interface: SATA (native)
System Type: High Density Server (Twins, Blades)
Properties: "SYS-2124BT-HTR - 2U 4 Nodes - Server Barebone"
Applications: Cloud Computing, Data Center, HPC
Case Depth: 28.74 (730mm)
CPU Socket: 8 CPUs
CPU Type: AMD EPYC 7002 ROME (2.Gen), AMD EPYC 7003 MILAN (3.Gen)
DIMM Slots: 64 DIMMs
Drive Bays Form Factor: 2.5", M.2
SSDs/HDDs: 24
Form Factor: 2U
Max. GPU Count: N/A
On-board Network: N/A
Number of Nodes per System: 4 Nodes
PCIe Slots: 8 PCIe Slots
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
Special Features: Complete System Only
Storage Interface: SATA (native)
System Type: High Density Server (Twins, Blades)
