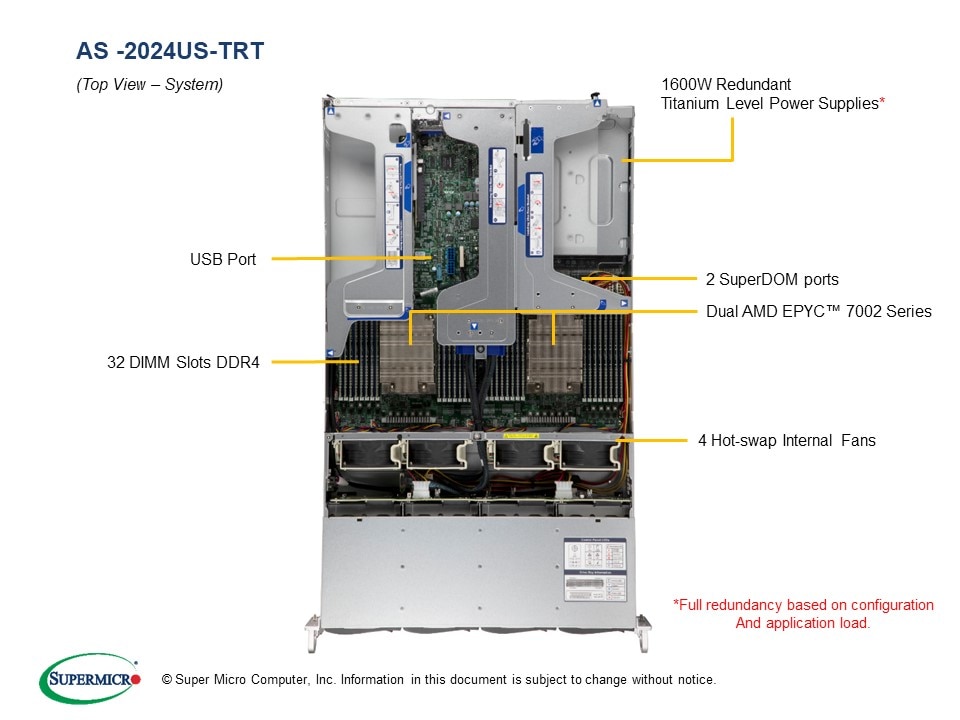

SYS-2024US-TRT - 2U - Server Barebone
Price On Request
Content: 1 Stück
Prices plus VAT plus shipping costs
Delivery time 4 Weeks
- Order number: SYS-2024US-TRT
sysGen/SUPERMICRO Server SYS-2024US-TRT, Mainboard H12DSU-iN... more
Product information "SYS-2024US-TRT - 2U - Server Barebone"
sysGen/SUPERMICRO Server SYS-2024US-TRT, Mainboard H12DSU-iN
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 HDD/NVMe.
Applications
- Virtualization
- Hyperconverge Storage
- Cloud Computing
- High End Enterprise Server
- Flexible Networking Options
Features
- Dual AMD EPYC™ 7002/7003 Series Processors
- Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
- 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs

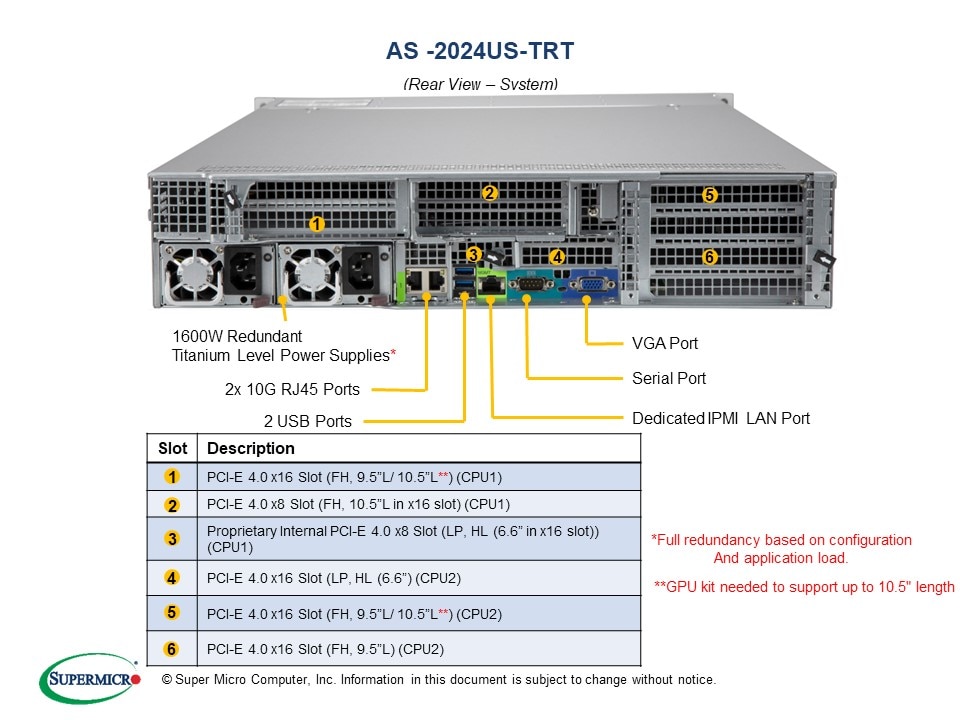

- 2 PCI-E 4.0 x16 (FH, 10.5" L) slots, 1 PCI-E 4.0 x16 (FH, 9.5" L) slot, 1 PCI-E 4.0 x16 (LP) slot, 1 PCI-E 4.0 x8 (FH, 9.5" L, in x16) slot, 1 PCI-E 4.0 x8 (internal proprietary LP in x16) slot
- Integrated IPMI 2.0 + KVM with dedicated LAN, Software Out of Band License, key (SFT-OOB-LIC) included, for OOB BIOS management
- Dual 10GBase-T LAN ports via Intel® X710-AT2

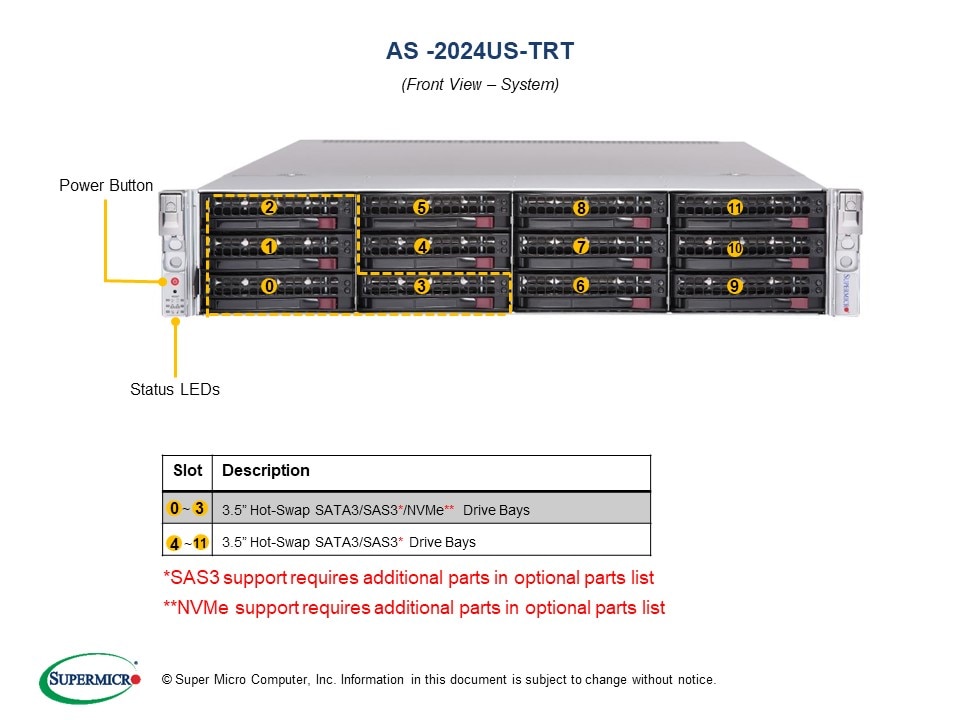

- 12 hot-swap 3.5" Drive Bays: 12 SATA3 by default or 8 SATA3 + 4 NVMe via optional tray or 12 SAS3 via optional SAS kit
- 1600W Redundant Power Supplies Titanium Level (96%+) (Full redundancy based on configuration and application load)
| Applications: | Cloud Computing, Flexible Networking Options, Virtualization |

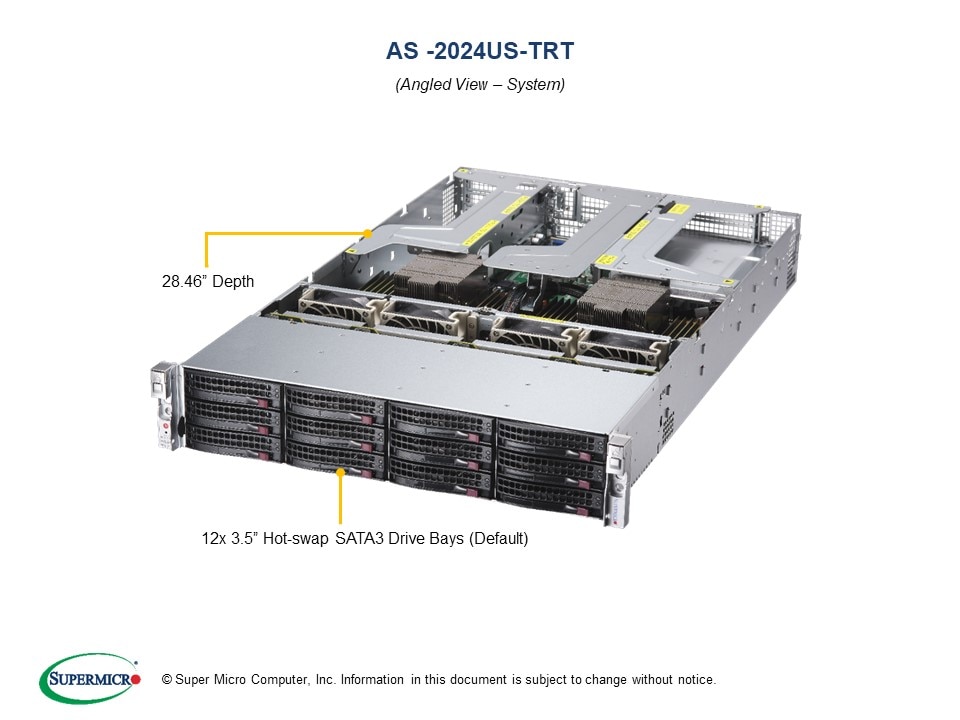

| Case Depth: | 28.46" (723mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | AMD EPYC 7002 ROME (2.Gen), AMD EPYC 7003 MILAN (3.Gen) |
| DIMM Slots: | 32 DIMMs |
| Drive Bays Form Factor: | 2.5", 3.5" |
| SSDs/HDDs: | 12 |
| Form Factor: | 2U |
| GPU Type: | PCIe |
| Max. GPU Count: | 2 GPUs |
| On-board Network: | 10GBase-T |
| PCIe Slots: | 6 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (native), SAS (optional), SATA (native) |
Related links to "SYS-2024US-TRT - 2U - Server Barebone"
Properties: "SYS-2024US-TRT - 2U - Server Barebone"
| Applications: | Cloud Computing, Flexible Networking Options, Virtualization |
| Case Depth: | 28.46" (723mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | AMD EPYC 7002 ROME (2.Gen), AMD EPYC 7003 MILAN (3.Gen) |
| DIMM Slots: | 32 DIMMs |
| Drive Bays Form Factor: | 2.5", 3.5" |
| SSDs/HDDs: | 12 |
| Form Factor: | 2U |
| GPU Type: | PCIe |
| Max. GPU Count: | 2 GPUs |
| On-board Network: | 10GBase-T |
| PCIe Slots: | 6 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (native), SAS (optional), SATA (native) |
