SYS-220U-MTNR - 2U - Server Barebone
Prices plus VAT plus shipping costs
Delivery time 4 Weeks
- Order number: SYS-220U-MTNR

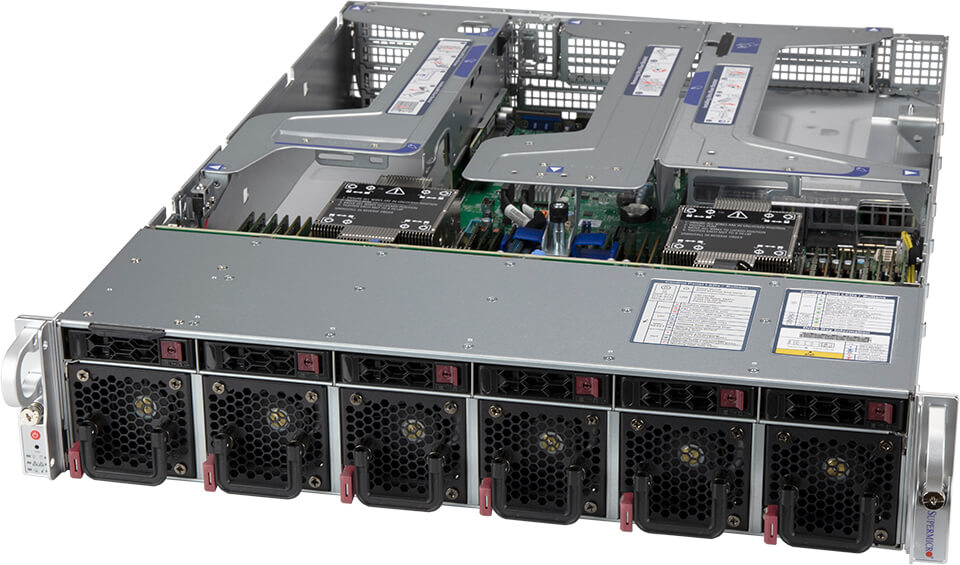

sysGen/SUPERMICRO Server SYS-220U-MTNR, Mainboard Super X12DPU-6
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 1 Storage Device HDD/HDS/M.2, and 1 NIC adapter*). *NIC adapter requirement includes either 1 Ultra Riser card with integrated NIC or 1 AOC-2UR668G4 Ultra Riser card with 1 standard PCI-E NIC adapter.
Applications
- Virtualization
- Cloud Computing
- High End Enterprise Server
- HPC
- Software Defined Storage
- High End Enterprise Server
- Application Tier Service Provider
- 5G/Telco
Features

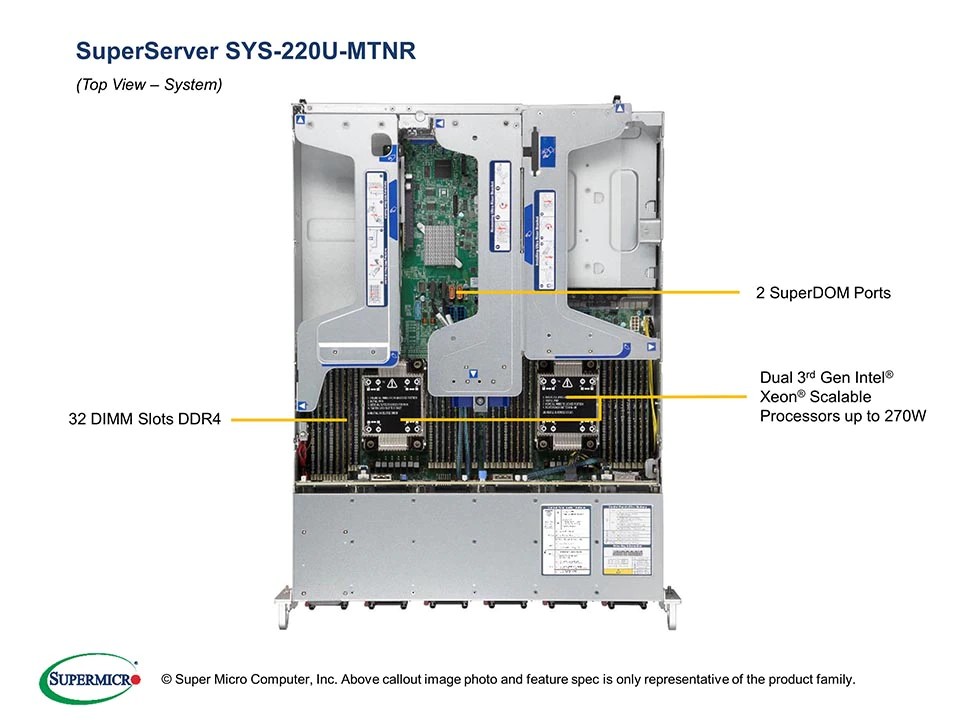

- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
- 32 DIMM Slots;
Up to 8TB DRAM;
Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);

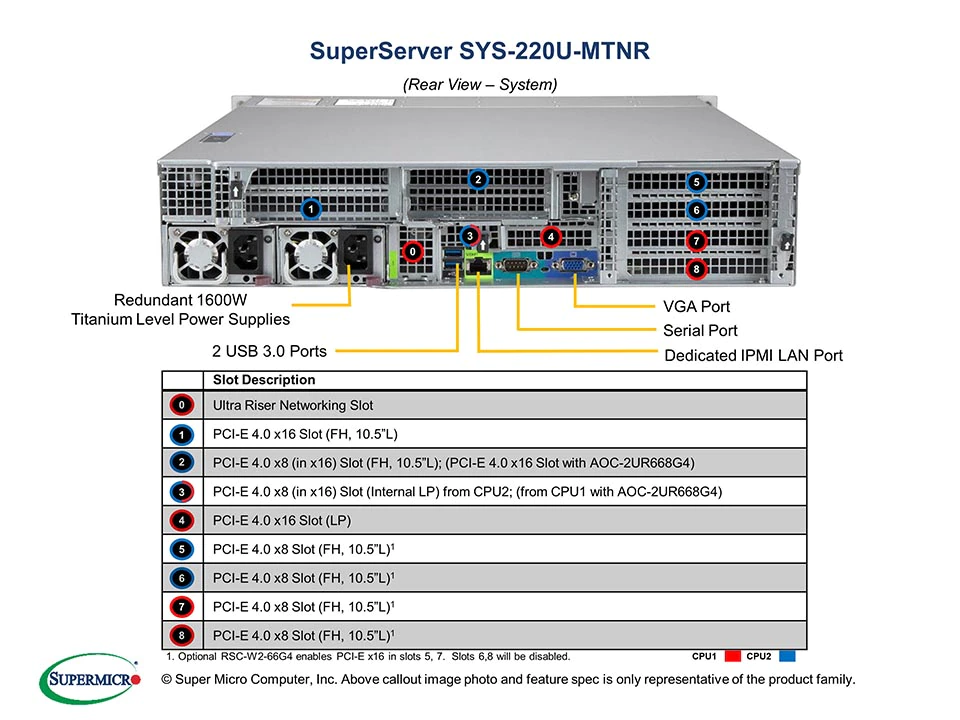

Intel® Optane™ Persistent Memory 200 series - 1 internal PCI-E 4.0 x8 (in x16 slot, LP)
1 PCI-E 4.0 x16 (FH, 10.5"L)
1 PCI-E 4.0 x16 (LP)
5 PCI-E 4.0 x8 (FH, 10.5"L) - 6 heavy duty fans with optimal fan speed control
- Flexible networking options

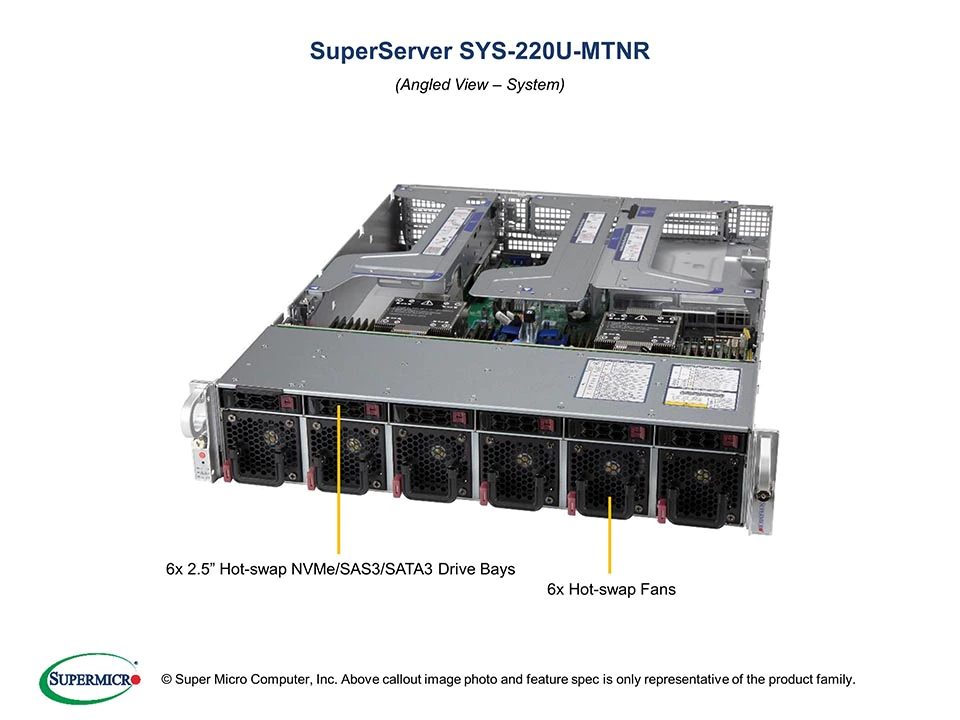

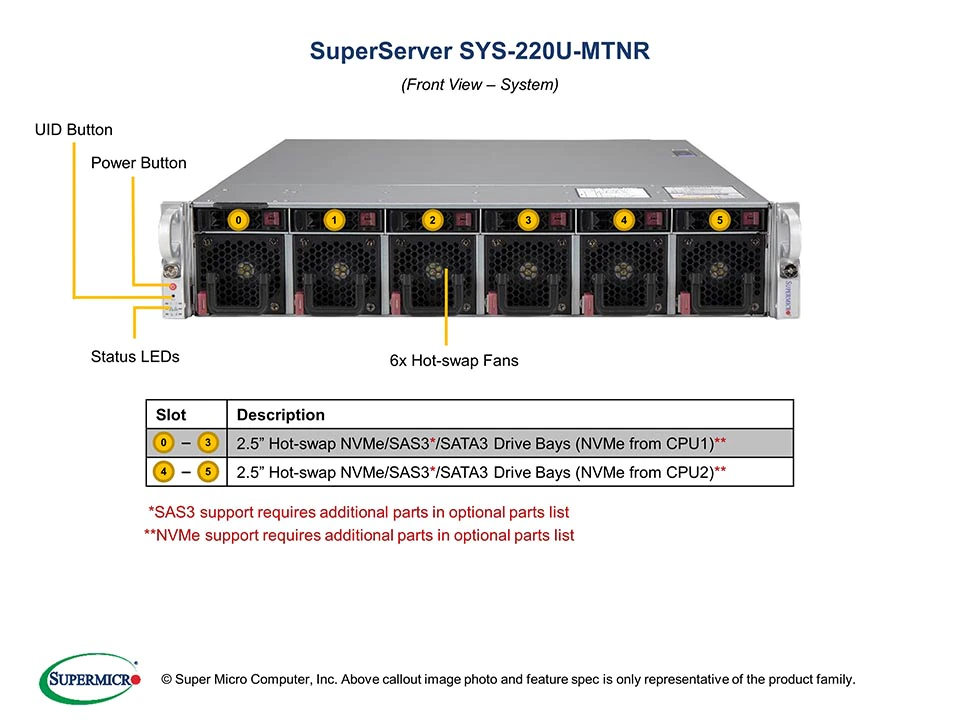

- 6x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
- 1600W redundant Titanium level power supplies
| Applications: | Cloud Computing, HPC, Virtualization |
| Case Depth: | 22.6" (574mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 32 DIMMs |
| Drive Bays Form Factor: | 2.5" |
| SSDs/HDDs: | 6 |
| Form Factor: | 2U |
| GPU Type: | PCIe |
| Max. GPU Count: | 4 GPUs |
| On-board Network: | N/A |
| PCIe Slots: | 8 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (optional), SAS (optional), SATA (native) |
| System Type: | Super Server |
| Applications: | Cloud Computing, HPC, Virtualization |
| Case Depth: | 22.6" (574mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 32 DIMMs |
| Drive Bays Form Factor: | 2.5" |
| SSDs/HDDs: | 6 |
| Form Factor: | 2U |
| GPU Type: | PCIe |
| Max. GPU Count: | 4 GPUs |
| On-board Network: | N/A |
| PCIe Slots: | 8 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (optional), SAS (optional), SATA (native) |
| System Type: | Super Server |
