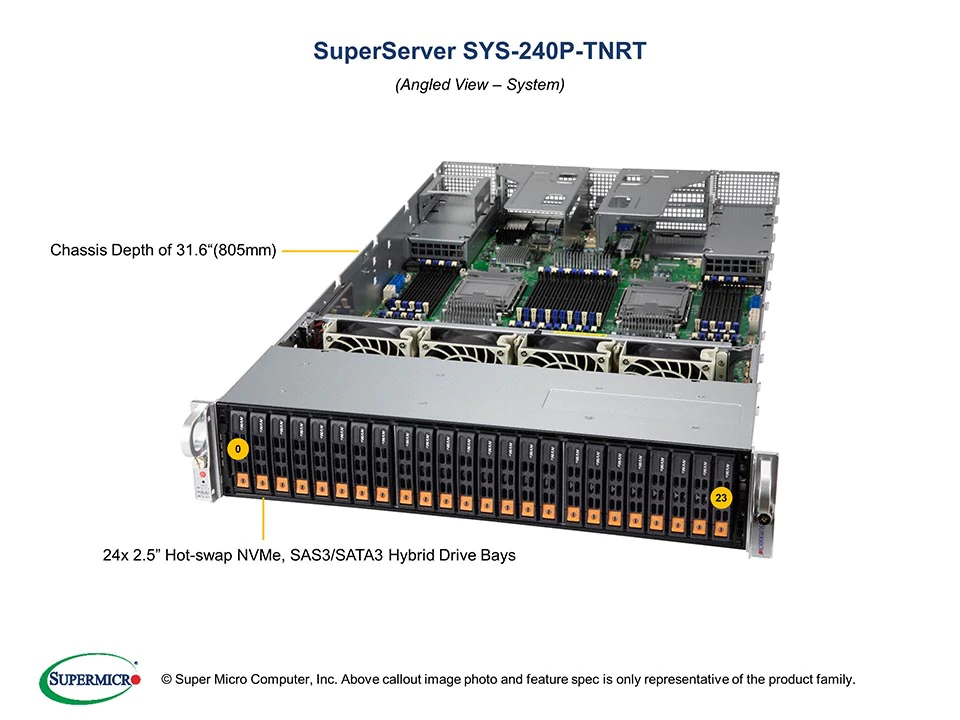

SYS-240P-TNRT - 2U - Server Barebone
- Order number: SYS-240P-TNRT
sysGen/SUPERMICRO Server SYS-240P-TNRT, Mainboard Super X12QCH+ Complete... more
Product information "SYS-240P-TNRT - 2U - Server Barebone"
sysGen/SUPERMICRO Server SYS-240P-TNRT, Mainboard Super X12QCH+
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 4 CPUs, 4 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC).
Applications
- Virtualization
- Artificial Intelligence (AI)
- Business Intelligence
- Scientific Visualization
- HCI
Features

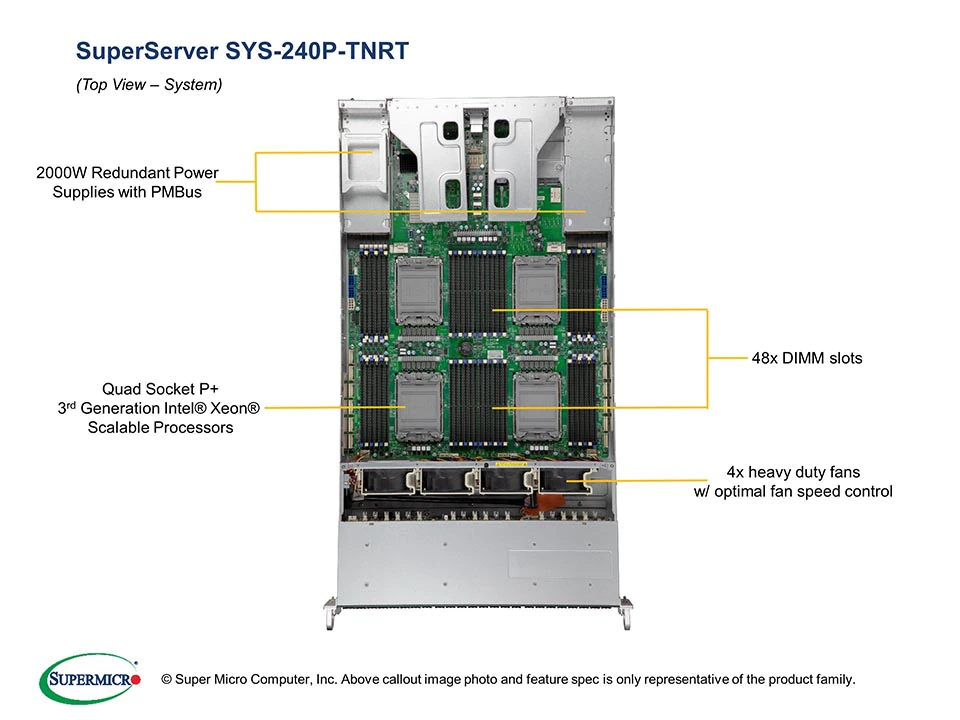

- Quad Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable processors
- 48 DIMMs; Up to 18TB 3DS ECC DDR4-3200:LRDIMM/RDIMM/Intel® DCPMM

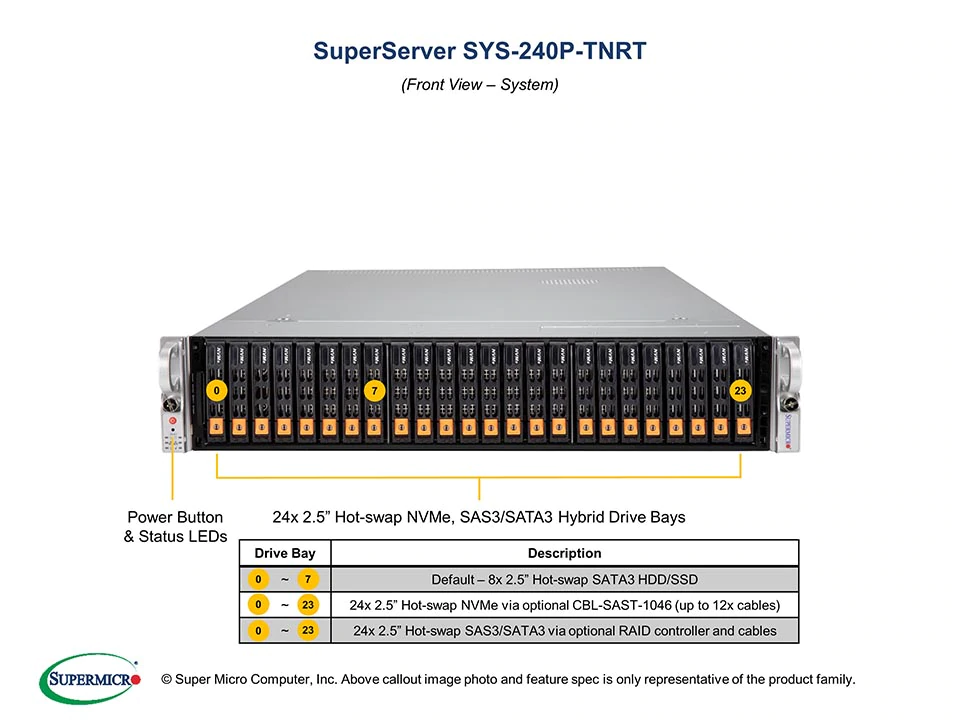

- Up to 24 Hot-swap 2.5" NVMe/SAS3/SATA3 drive bays (Default with 8 SAS3/SATA3 drive bays);
2 x M.2 NVMe OR 2 M.2 SATA3NOTE: SAS card is required for SAS devices support - 4 heavy duty fans w/ optimal fan speed control; 1 Air Shroud

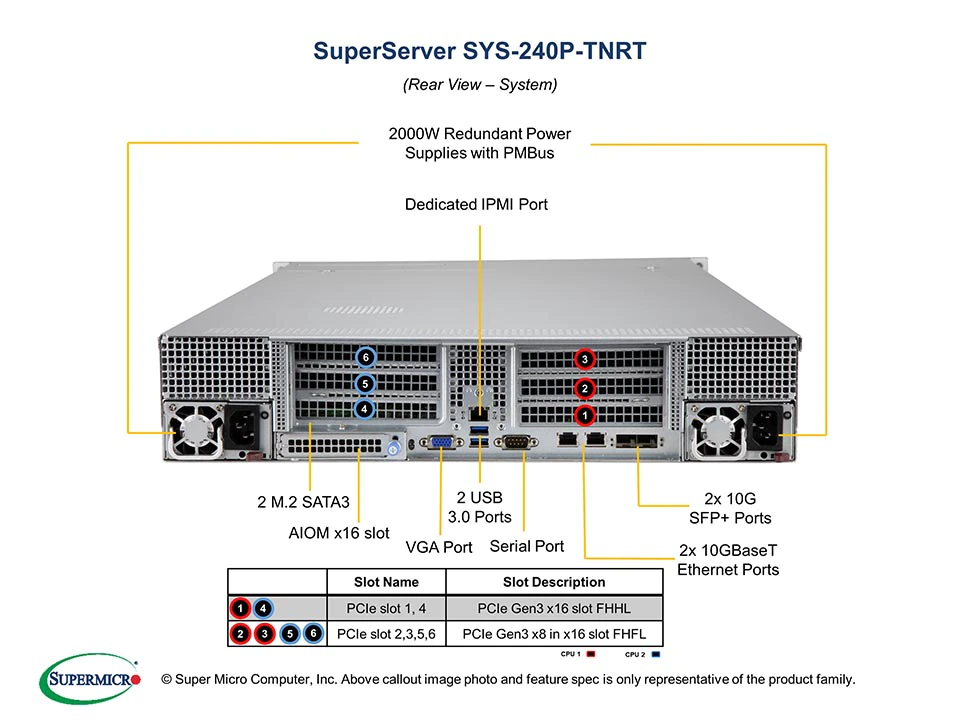

- Intel® Ethernet Controller X710-TM4 2x 10G RJ45 + 2x 10G SFP+ port; (optional) AIOM up to 100G QSFP28
- 4x 2000W Redundant Power Supplies, Titanium Level
| Applications: | Cloud Computing, HPC, Virtualization |
| Case Depth: | 31.6" (803mm) |
| CPU Socket: | Quad Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 48 DIMMs |
| Drive Bays Form Factor: | 2.5", M.2 |
| SSDs/HDDs: | 24 |
| Form Factor: | 2U |
| GPU Type: | PCIe |
| Max. GPU Count: | 2 GPUs |
| On-board Network: | 25GbE |
| PCIe Slots: | 6 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (native), SAS (optional), SATA (optional) |
| System Type: | Super Server |
