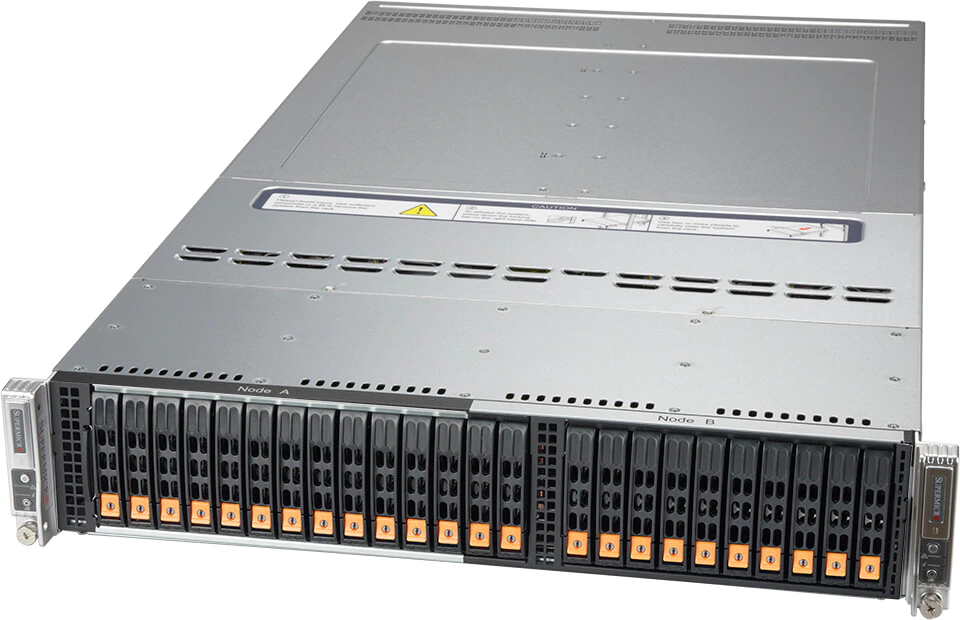

SYS-220BT-DNTR - 2U - 2 Nodes Server
- Order number: SYS-220BT-DNTR
sysGen/SUPERMICRO Server SYS-220BT-DNTR, Mainboard Super X12DPT-B6... more
Product information "SYS-220BT-DNTR - 2U - 2 Nodes Server"

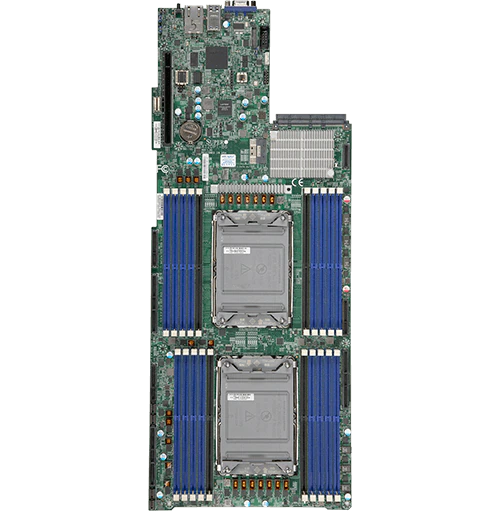

sysGen/SUPERMICRO Server SYS-220BT-DNTR, Mainboard Super X12DPT-B6
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 DIMMs are recommended per node). Minimum requirement is 2 CPUs, 2 DIMMs, 1 NIC and 1 storage device per node (HDD/SSD/NVMe/M.2)
Applications
- High-Performance File System
- Diskless HPC Clusters
- Scale Out All-Flash NVMe Storage
- Big Data Analytics and AI
Features

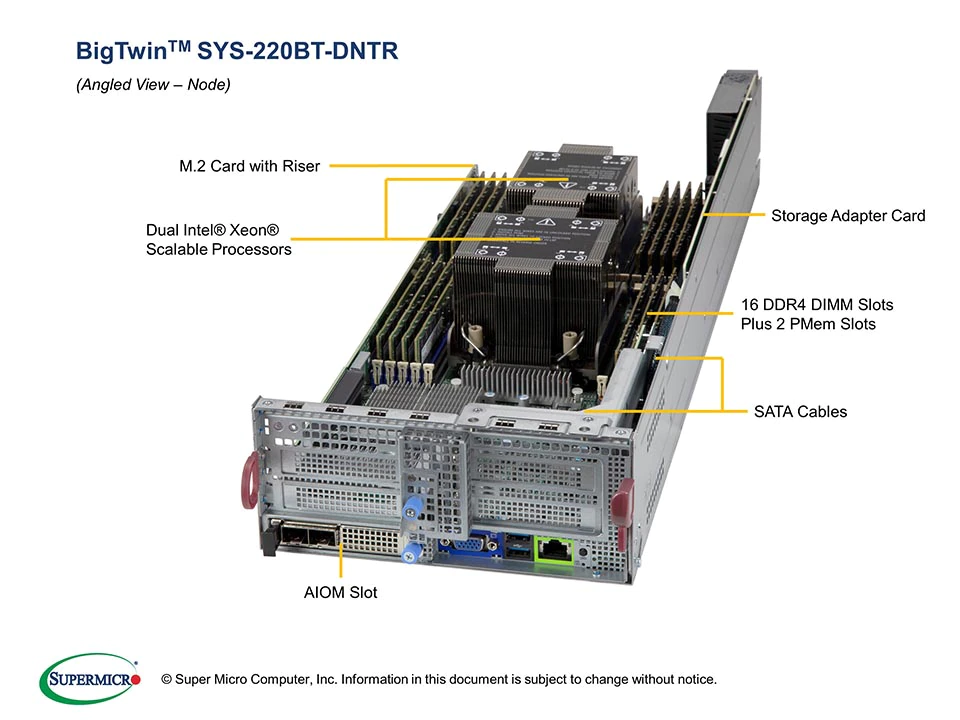

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
- 20 DIMM Slots 3200MHz ECC DDR4 RDIMM (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
- Up to 4TB: 16x 256 GB DRAM
- Up to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem
- Intel® Optane™ persistent memory 200 series

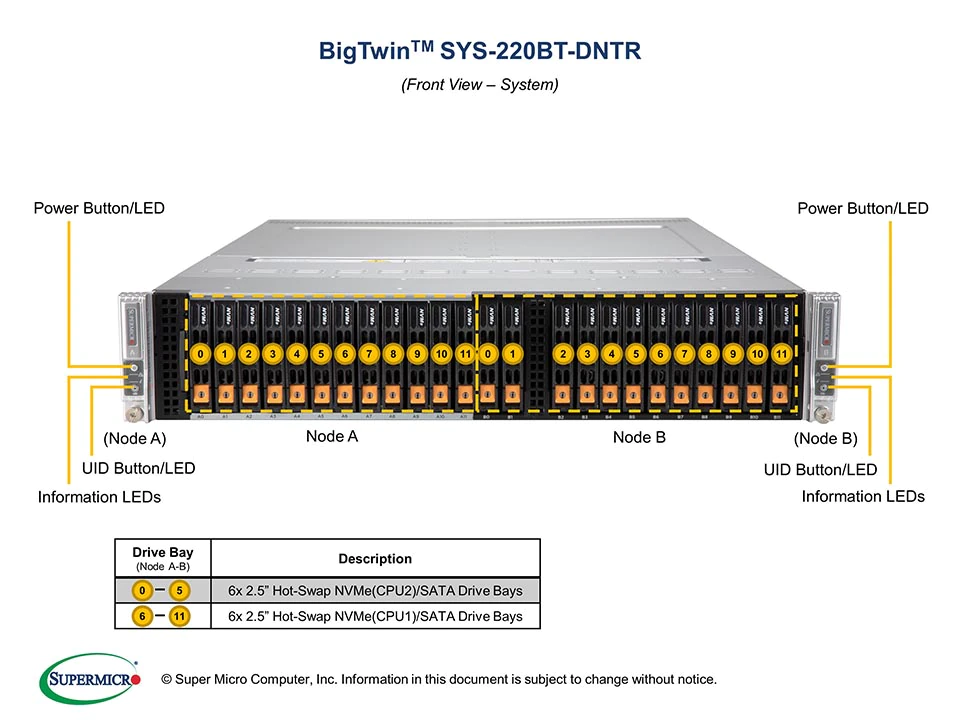

- 12 Hot-swap 2.5" drive bays; 12 PCI-E 4.0 NVMe/SATA 2.5" drives

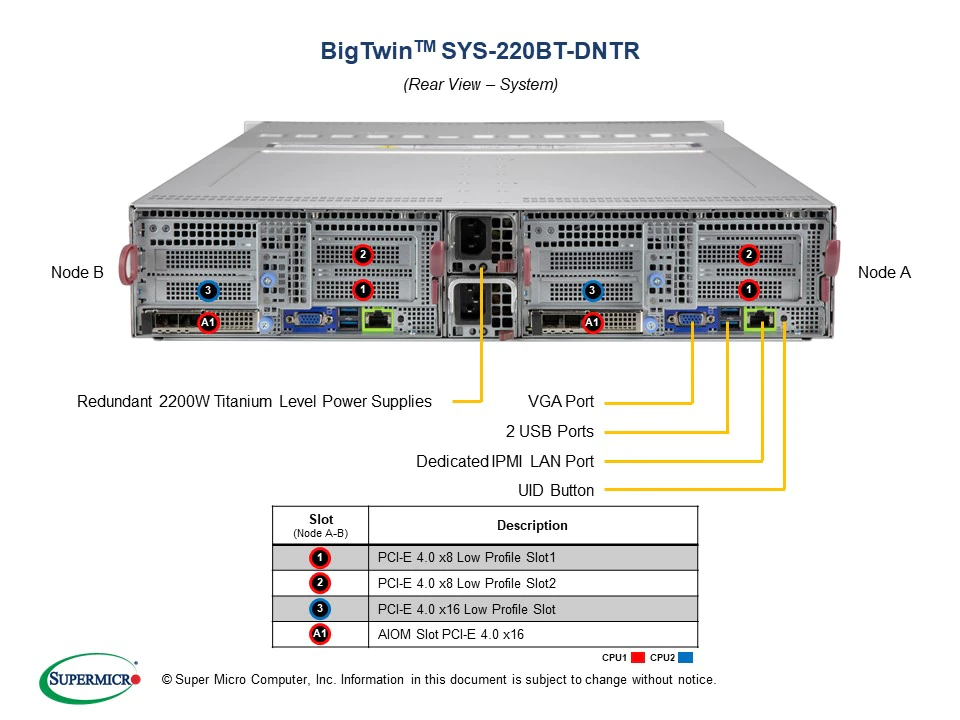

- 1 PCI-E 4.0 x16 (LP) slot; 2 PCI-E 4.0 x8 (LP) slot; Tool-less support
- Internal PCI-E 3.0 x8 for 2 M.2 NVMe/SATA support onboard
- Optional NVMe Boot Controller via AOC-SMG3-2M2-B
- 2 cooling fans per node, 16.5K RPM, Liquid Cooling Support
- Balanced IO Performance (6 PCI-E 4.0 NVMe drives per Socket)

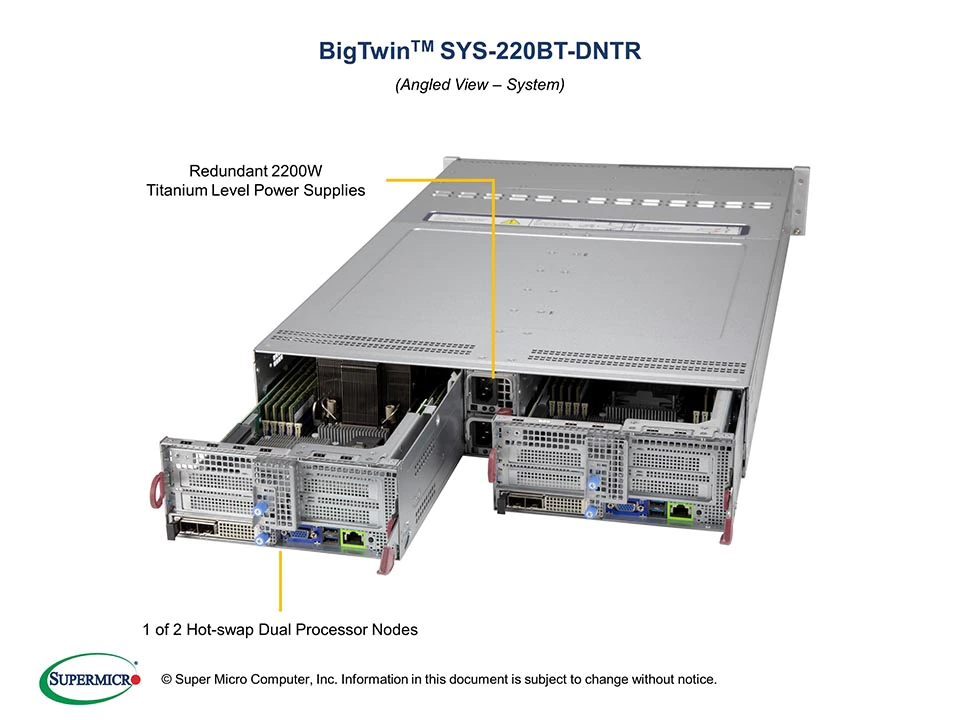

- 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
| Applications: | Cloud Computing, Data Center, HCI, HPC |
| Case Depth: | 28.74 (730mm) |
| CPU Socket: | Quad Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 40 DIMMs |
| Drive Bays Form Factor: | 2.5", M.2 |
| SSDs/HDDs: | 24 |
| Form Factor: | 2U |
| Max. GPU Count: | N/A |
| On-board Network: | N/A |
| Number of Nodes per System: | 2 Nodes |
| PCIe Slots: | 6 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (native), SAS (optional), SATA (native) |
| System Type: | High Density Server (Twins, Blades) |
Related links to "SYS-220BT-DNTR - 2U - 2 Nodes Server"
Properties: "SYS-220BT-DNTR - 2U - 2 Nodes Server"
| Applications: | Cloud Computing, Data Center, HCI, HPC |
| Case Depth: | 28.74 (730mm) |
| CPU Socket: | Quad Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 40 DIMMs |
| Drive Bays Form Factor: | 2.5", M.2 |
| SSDs/HDDs: | 24 |
| Form Factor: | 2U |
| Max. GPU Count: | N/A |
| On-board Network: | N/A |
| Number of Nodes per System: | 2 Nodes |
| PCIe Slots: | 6 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (native), SAS (optional), SATA (native) |
| System Type: | High Density Server (Twins, Blades) |
