SYS-220GQ-TNAR+ - 2U - HGX A100 4x 80GB - Server
Price On Request
Content: 1 Stück
Prices plus VAT plus shipping costs
Delivery time on request
- Order number: SYS-220GQ-TNAR+-80GB
sysGen/SUPERMICRO Server SYS-220GQ-TNAR+, Mainboard Super X12DPG-QR... more
Product information "SYS-220GQ-TNAR+ - 2U - HGX A100 4x 80GB - Server"
sysGen/SUPERMICRO Server SYS-220GQ-TNAR+, Mainboard Super X12DPG-QR
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, Min of 512GB Memory for 80G HGX-4 A100 OR Min of 256GB Memory for 40G HGX-4 A100, 1 Storage device, and 1 NIC included in IO board).
Applications
- AI/Deep Learning
- Virtualization
- Cloud Computing
- High End Enterprise Server
Features

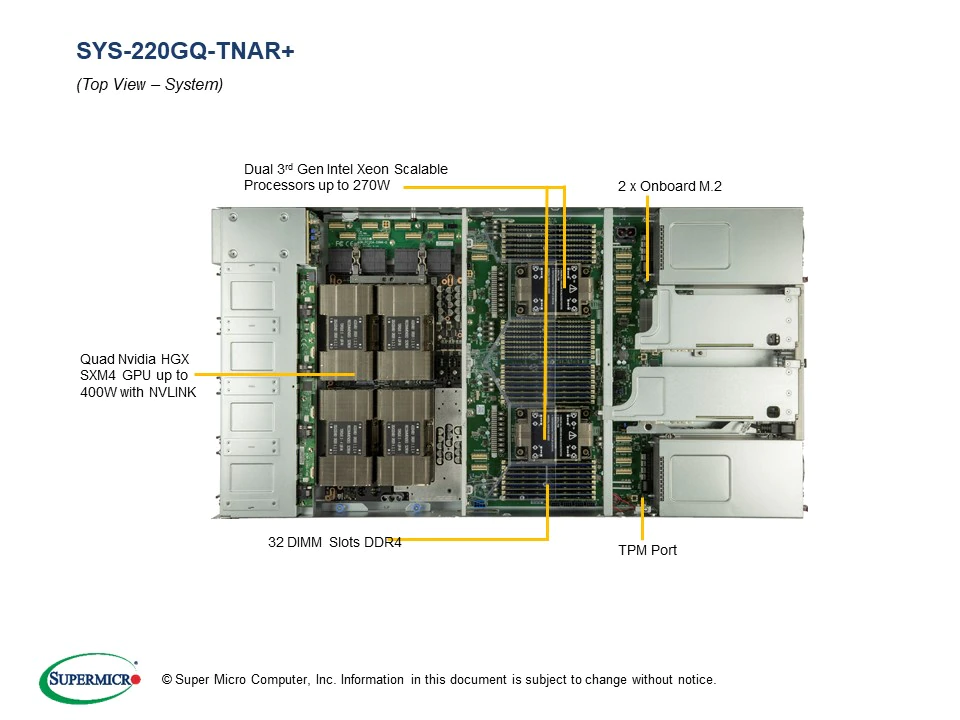

- 32 DIMM Slots;
- Up to 8TB DRAM;
- Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
- 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
- Intel® Optane™ Persistent Memory 200 series
- HGX A100 4-GPUs 80GB (SXM4)
- 4x PCI-E Gen 4.0 X16 LP Slots
- Flexible networking options

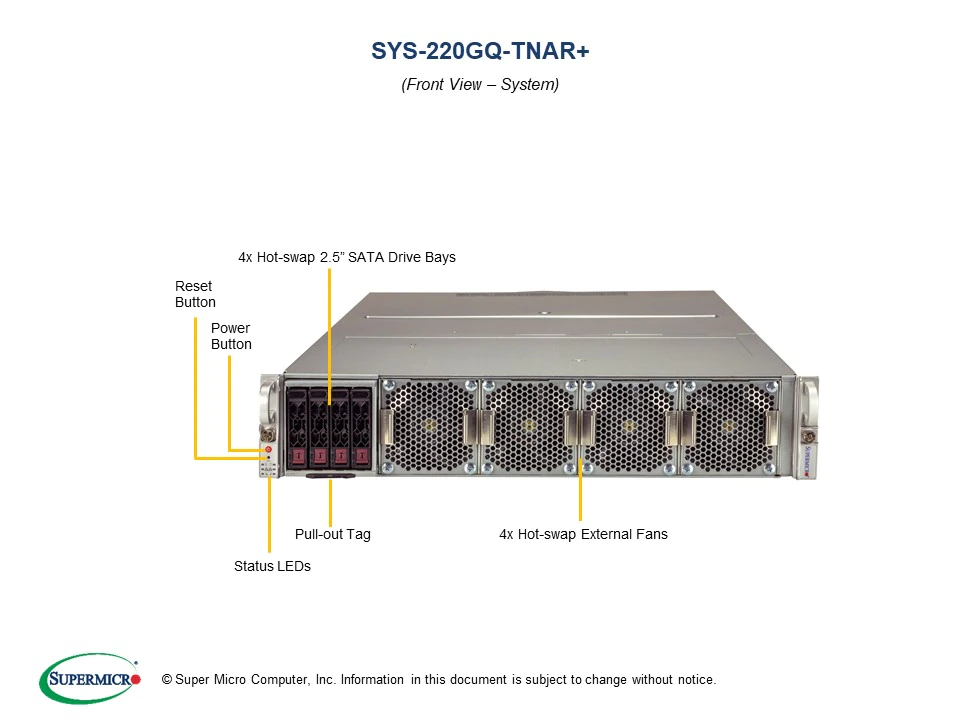

- 4x 2.5" Hot-swap SATA drive bays
NOTE: SAS card is required for SAS devices support - 4 heavy duty fans with optimal fan speed control

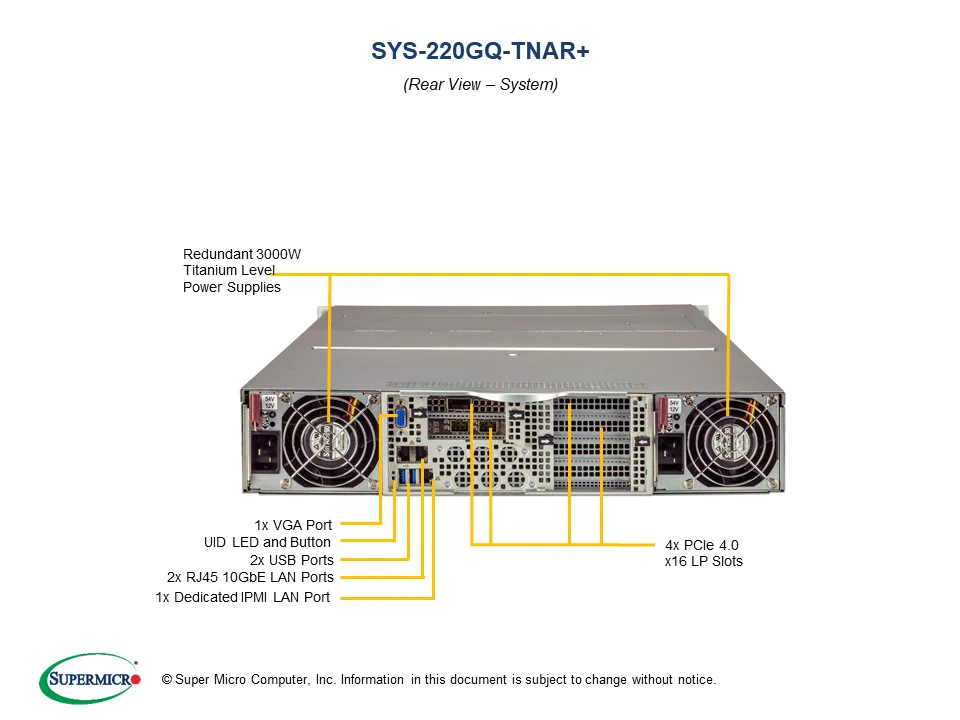

- 2x 3000W redundant Titanium level power supplies
| Applications: | AI / Deep Learning, Cloud Computing, HPC, Virtualization |
| Case Depth: | 32.7" (830mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 32 DIMMs |
| Drive Bays Form Factor: | 2.5" |
| SSDs/HDDs: | 4 |
| Form Factor: | 2U |
| GPU Type: | NVLink SXM4 |
| Max. GPU Count: | 4 GPUs |
| On-board Network: | N/A |
| PCIe Slots: | 4 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (optional), SAS (optional), SATA (native) |
| System Type: | GPU Server, HGX/DGX, Super Server |
