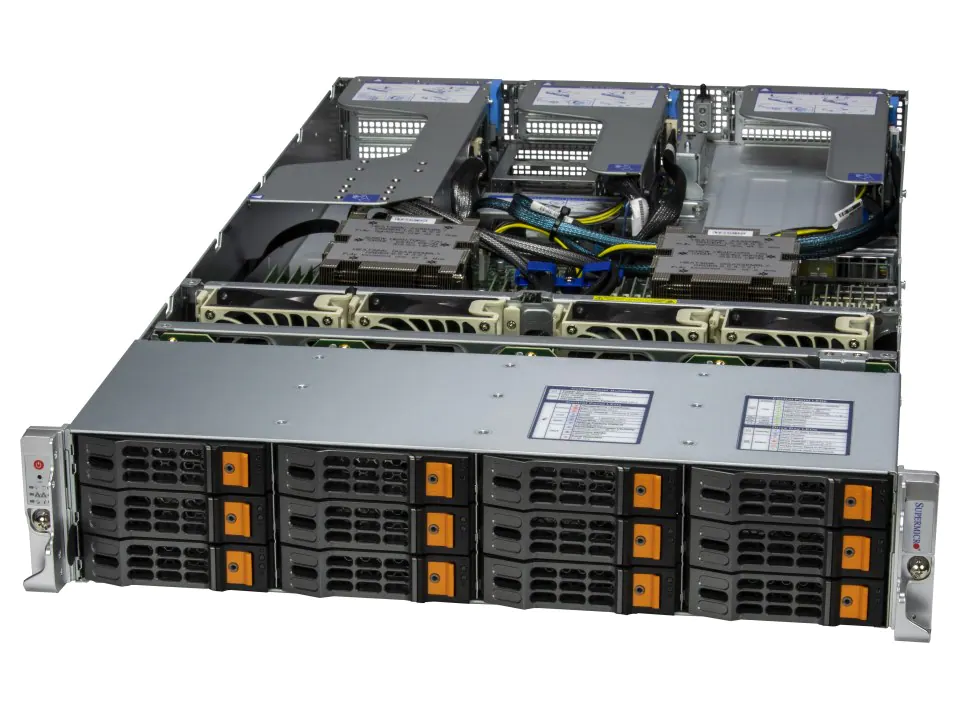

SYS-2025HS-TNR - 2U - A+ Server

Price On Request
Content: 1 Stück

Prices plus VAT plus shipping costs

Delivery time 4 Weeks

Request
Due to the complexity of the system, we kindly ask you to send us your configuration wishes by request. We will be happy to prepare a technically tested offer for you.


  • SYS-2025HS-TNR
sysGen/SUPERMICRO Server  SYS-2025HS-TNR , Mainboard H13DSH   Complete System... more
Product information "SYS-2025HS-TNR - 2U - A+ Server"

sysGen/SUPERMICRO Server SYS-2025HS-TNR, Mainboard H13DSH

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 1 CPUs, 1 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC).

Applications

  • Virtualization
  • Cloud Computing
  • High-End Enterprise Server
  • AI Inference and Machine Learning
  • Software-defined Storage

Features

  • Dual Socket SP5 4th Generation AMD EPYC™ 9004 Series Processor

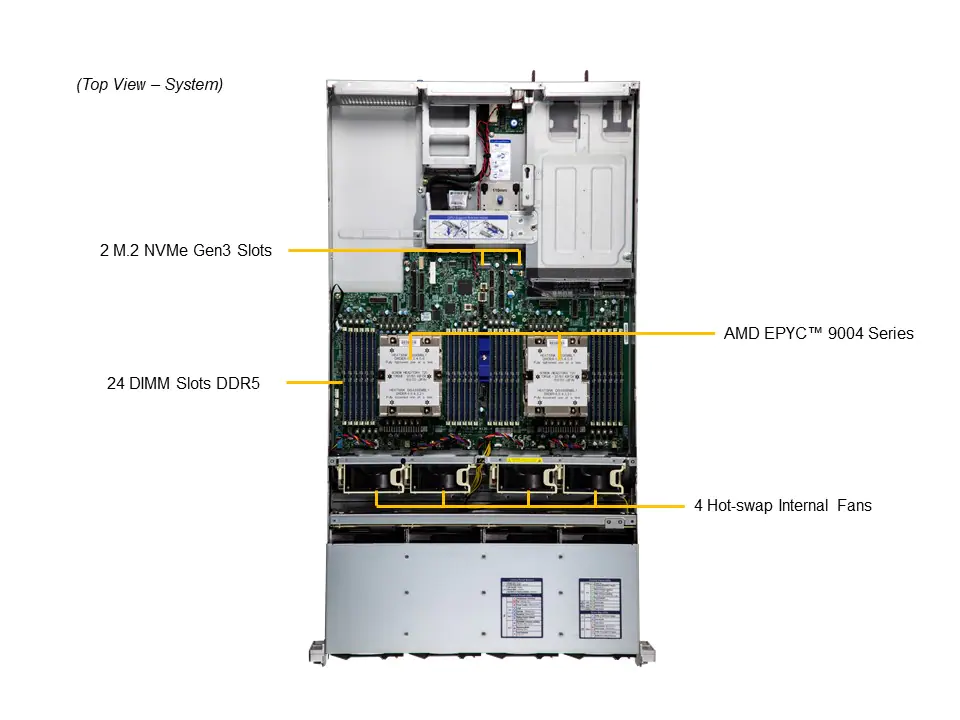

  • 24 DIMM slots up to 6TB 3DS ECC RDIMM DDR5-4800MHz
  • 1 AIOM/OCP NIC 3.0 Slot
  • Configurable PCI-E slot options up to 8 PCI-E 5.0 x8 or 4 PCI-E 5.0 x16 FH, 10.5"L

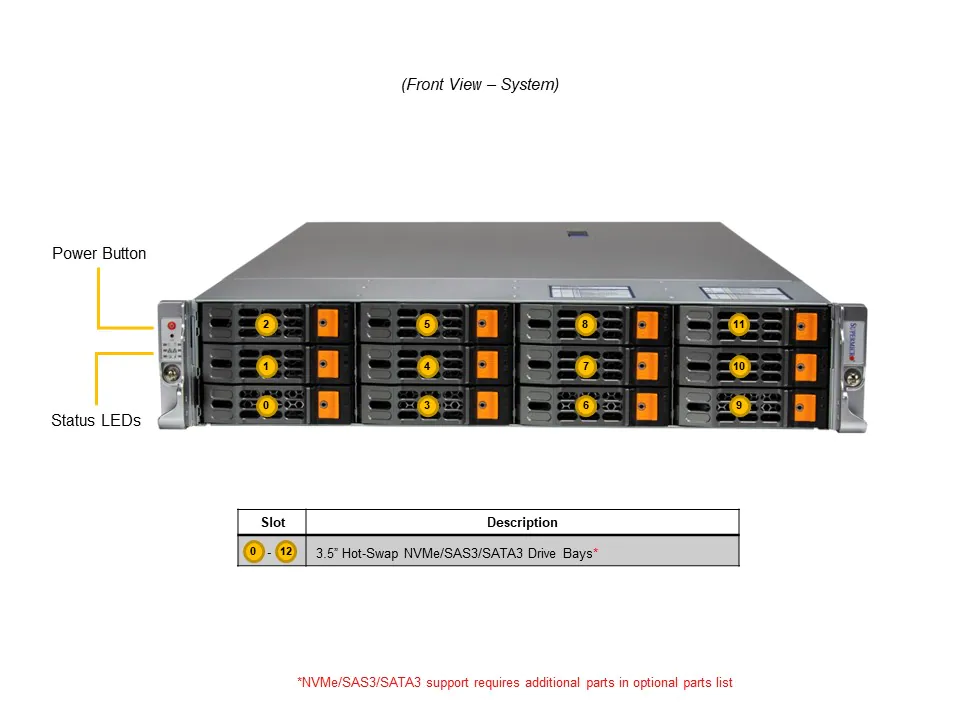

  • 12 Hot-swap 3.5” NVMe/SAS/SATA (Optional parts required for NVMe/SAS/SATA configurations)
  • 2x NVMe (PCIe 3.0 x4, Boot drive only), M-Key, 2280/22110
  • 1600W Redundant Power Supplies  (Titanium Level)
    Optional Configuration: 1200W/2000W/2600W Redundant Power Supplies (Titanium Level)
    (*Full redundancy based on configuration and application load)

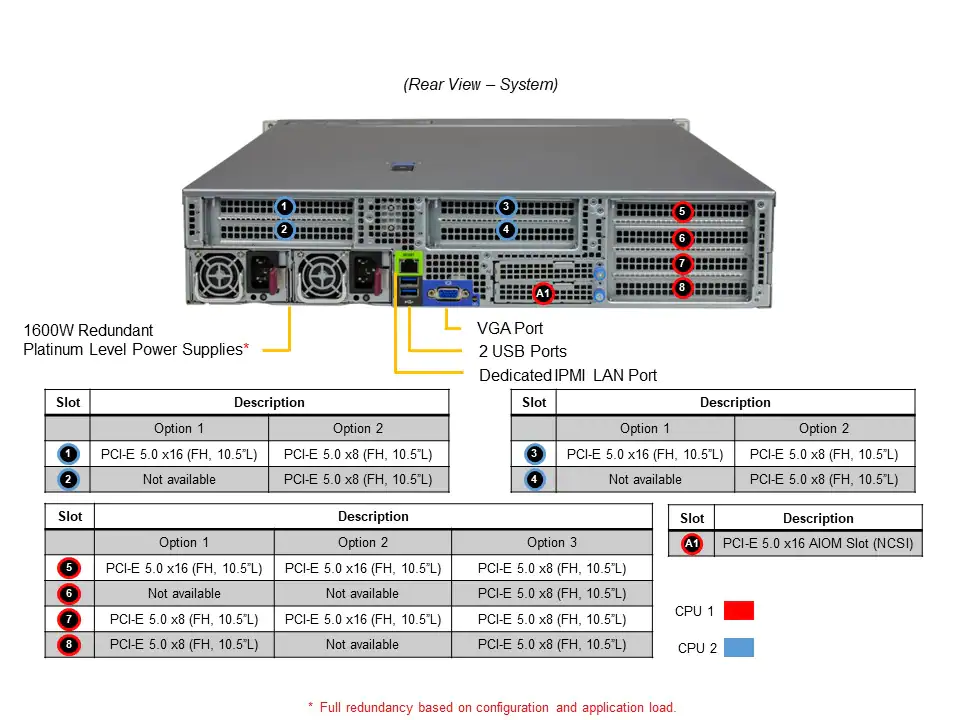

  • 1 VGA Port 2 USB rear



Applications: Cloud Computing, HPC, Virtualization

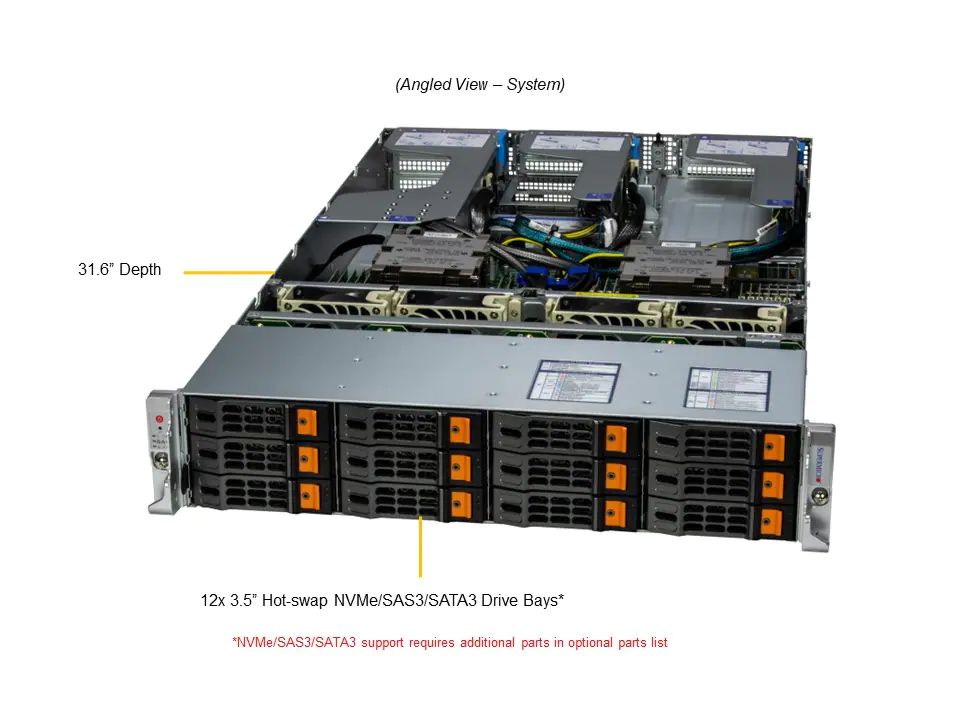

Case Depth: 31.6" (803mm)
CPU Socket: Dual Socket
CPU Type: AMD EPYC 9004 Genoa (4.Gen)
DIMM Slots: 24 DIMMs
Drive Bays Form Factor: 3.5", M.2
Form Factor: 2U
Max. GPU Count: N/A
On-board Network: N/A
PCIe Slots: 8 PCIe Slots
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
Special Features: Complete System Only
Storage Interface: NVMe (native), SAS (optional), SATA (native)
System Type: Storage Server, Super Server
Properties: "SYS-2025HS-TNR - 2U - A+ Server"
Applications: Cloud Computing, HPC, Virtualization
Case Depth: 31.6" (803mm)
CPU Socket: Dual Socket
CPU Type: AMD EPYC 9004 Genoa (4.Gen)
DIMM Slots: 24 DIMMs
Drive Bays Form Factor: 3.5", M.2
Form Factor: 2U
Max. GPU Count: N/A
On-board Network: N/A
PCIe Slots: 8 PCIe Slots
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
Special Features: Complete System Only
Storage Interface: NVMe (native), SAS (optional), SATA (native)
System Type: Storage Server, Super Server
