SYS-H273-Z81 (Rev. AAW1) - 2U - 4 Nodes - Twin Server
- Order number: SYS-H273-Z81-AAW1
sysGen/GIGABYTE Server SYS-H273-Z81 (rev. AAW1) ,... more
Product information "SYS-H273-Z81 (Rev. AAW1) - 2U - 4 Nodes - Twin Server"
sysGen/GIGABYTE Server SYS-H273-Z81 (rev. AAW1) , Mainboard MZ83-HD0 :
Applications
- Multi-Purpose CDN
- HPC, Data Center, Enterprise Server
- MEC (Multi-Access Edge Computing)
- EDA (Electric Design Automation)
- High-availability Cache Cluster
Features

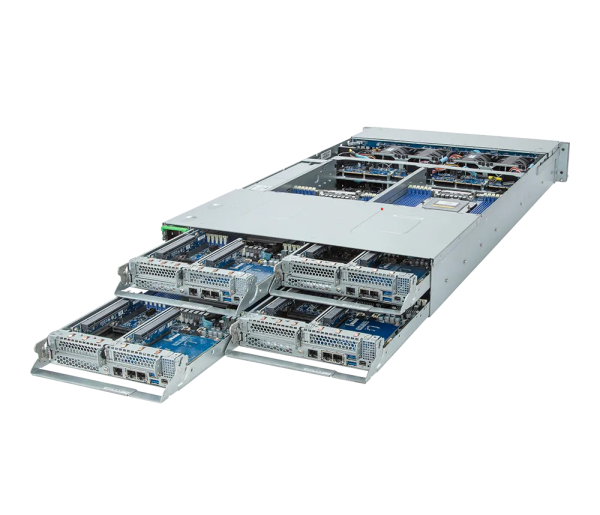

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- 2U 4-node rear access server system
- AMD EPYC™ 9004 series processor family
- Dual processors per node, 5nm technology
- 12-Channel RDIMM DDR5 per processor, 96 x DIMMs
- Dual ROM Architecture supported
- 8 x 1Gb/s LAN ports (Intel® I350-AM2)
- 4 x Dedicated management ports
- 8 x 2.5" Gen4 NVMe / SATA hot-swappable bays
- 4 x M.2 with PCIe Gen4 x4 interface (optional)
- 8 x Low profile PCIe Gen5 x16 expansion slots
- 4 x OCP 3.0 Gen5 x16 mezzanine slots
- Dual 3000W (240V) 80 PLUS Titanium redundant power supply
| Applications: | Cloud Computing, HPC |
| Case Depth: | 34.5" (877mm) |
| CPU Socket: | 8 CPUs |
| CPU Type: | AMD EPYC 9004 Genoa (4.Gen) |
| DIMM Slots: | 96 DIMMs |
| Drive Bays Form Factor: | 2.5", M.2 |
| SSDs/HDDs: | 8 Drives |
| Form Factor: | 2U |
| Max. GPU Count: | N/A |
| On-board Network: | 1GbE |
| Number of Nodes per System: | 4 Nodes |
| PCIe Slots: | 8 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | NVMe (native), SAS (optional), SATA (native) |
| System Type: | High Density Server (Twins, Blades) |
