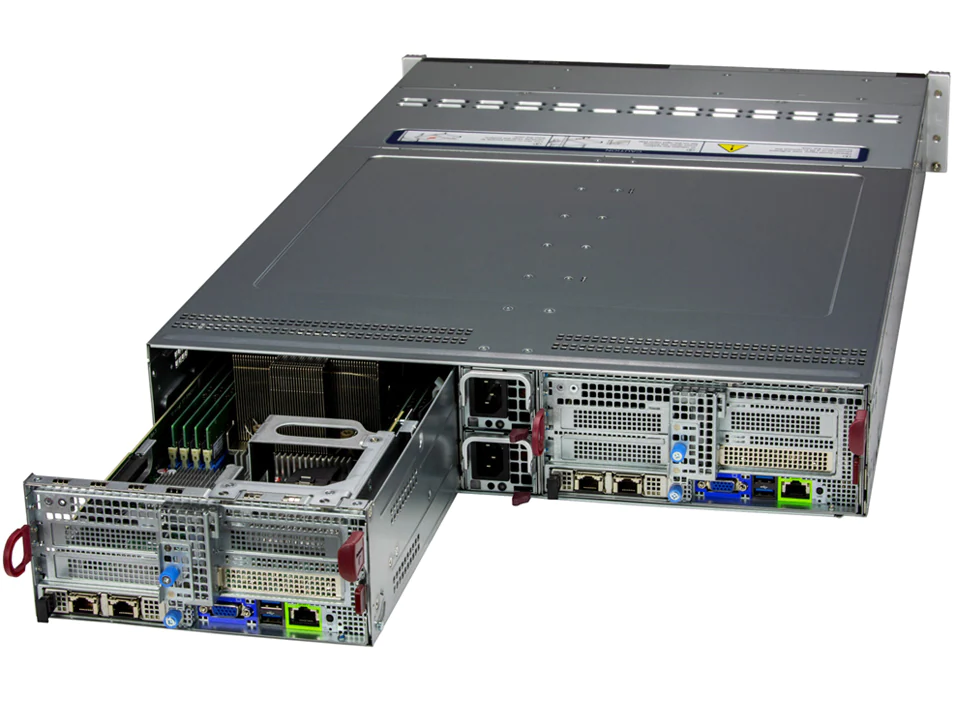

SYS-221BT-DNTR - 2U - 2 Nodes BigTwin SuperServer
Prices plus VAT plus shipping costs
Delivery time 4 Weeks
- Order number: SYS-221BT-DNTR
sysGen/SUPERMICRO Server SYS-221BT-DNTR, Mainboard Super X13DET-B
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 DIMMs are recommended per node). Minimum requirement is 2 CPUs, 2 DIMMs, 1 NIC and 1 storage device per node (HDD/SSD/NVMe/M.2)
Applications
- High-Performance File System
- Diskless HPC Clusters
- Scale Out All-Flash NVMe Storage
- Big Data Analytics and AI
Features

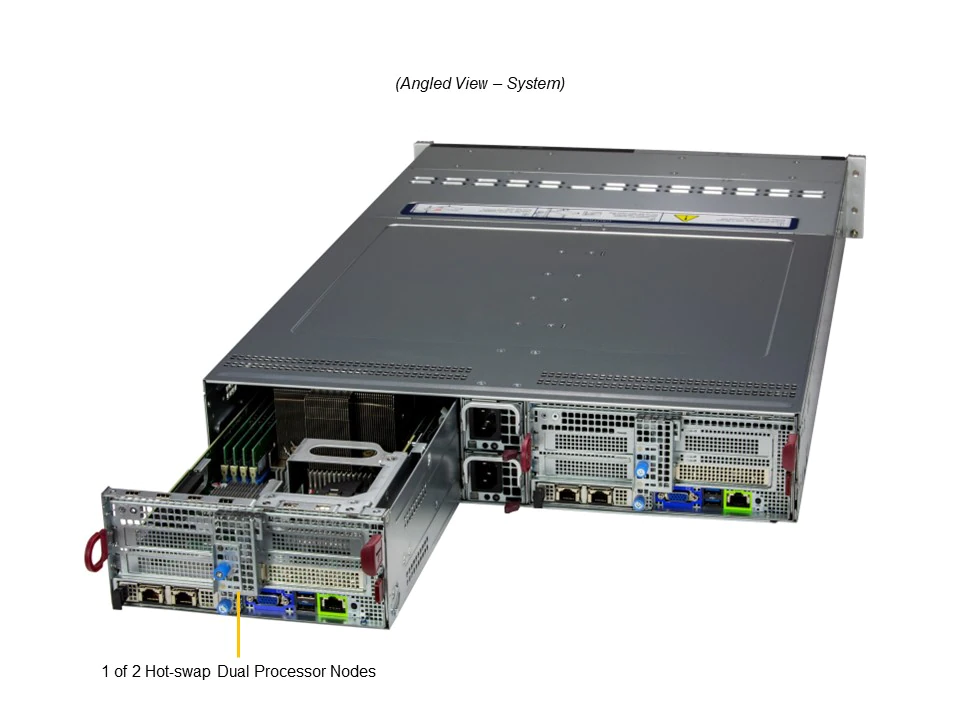

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

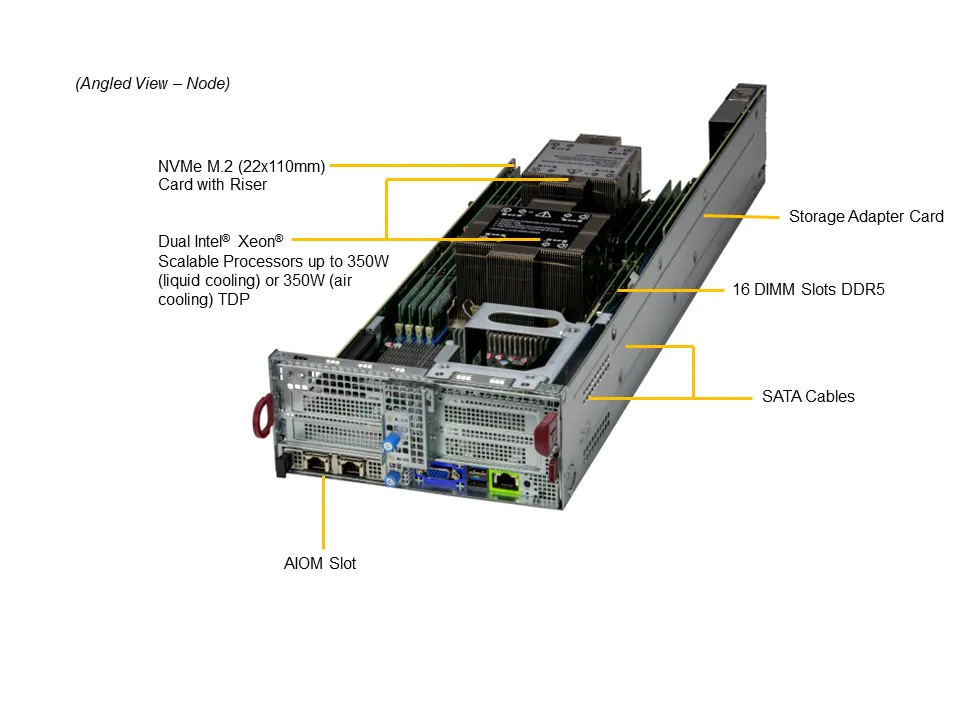

- Dual Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable Processors
- 16x DIMM slots up to 4TB Registered ECC DDR5-4800MHz

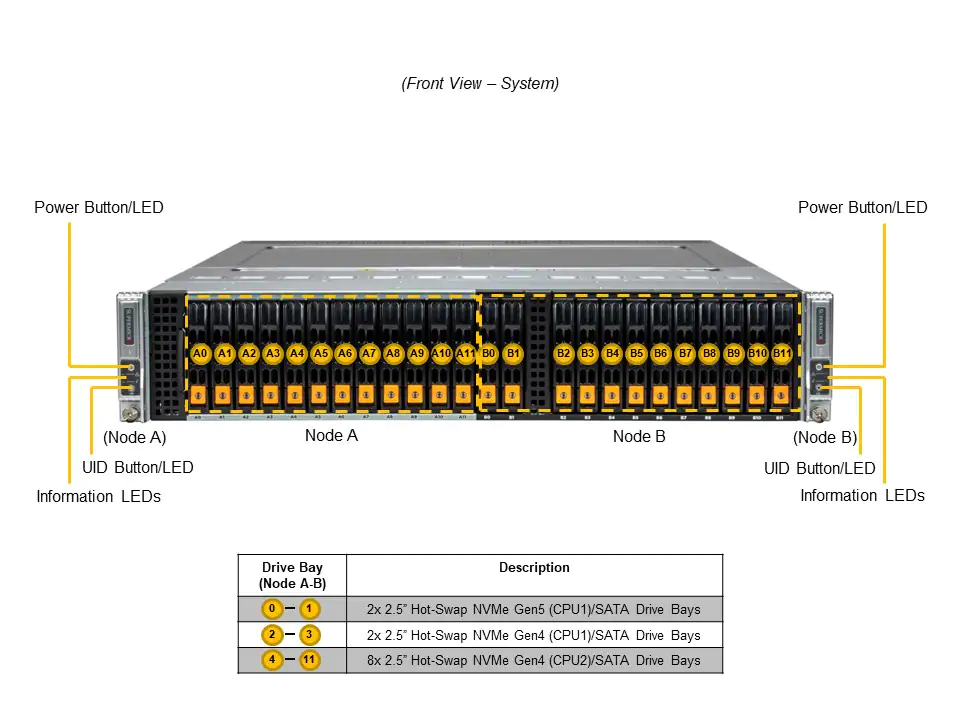

- 12 hot-Swap 2.5” drive bays (2x PCIe 5.0 NVMe and 10x PCIe 4.0 NVMe/SATA)

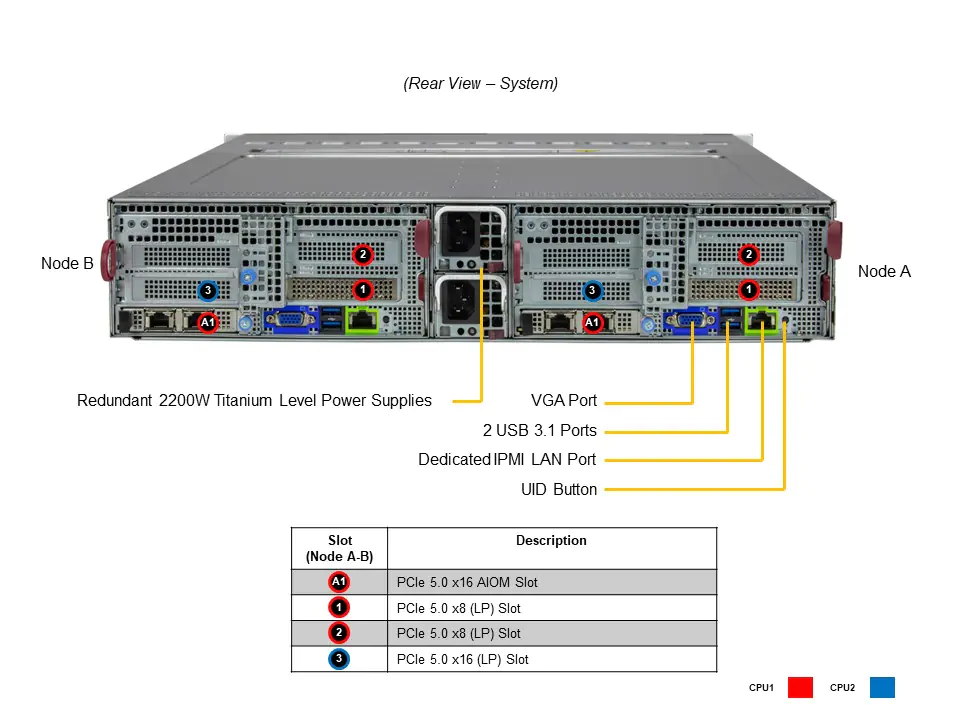

2x M.2 with PCIe Gen4 x4 interface 2280/22110 - 1x PCIe 5.0 x16 (LP) slot, 2x PCIe 5.0 x8 (LP) slots
- Network connectivity via AIOM (OCP 3.0 compliant)
- 4 cooling fans per 2U enclosure, 16.5K RPM; Shared Cooling Design
Liquid Cooling Support - 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
NOTE: Supports up to 350W TDP CPUs (Aircooled)
Supports up to 350W TDP CPUs (Liquid Cooled).
| Applications: | Cloud Computing, Data Center, HCI, HPC |
| Case Depth: | 28.74 (730mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | Intel Xeon Scalable Sapphire Rapids (4.Gen) |
| DIMM Slots: | 16 DIMMs |
| Drive Bays Form Factor: | 2.5", M.2 |
| SSDs/HDDs: | 24 |
| Form Factor: | 2U |
| Max. GPU Count: | N/A |
| On-board Network: | N/A |
| Number of Nodes per System: | 2 Nodes |
| PCIe Slots: | 6 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (native), SATA (native) |
| System Type: | High Density Server (Twins, Blades) |
| Applications: | Cloud Computing, Data Center, HCI, HPC |
| Case Depth: | 28.74 (730mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | Intel Xeon Scalable Sapphire Rapids (4.Gen) |
| DIMM Slots: | 16 DIMMs |
| Drive Bays Form Factor: | 2.5", M.2 |
| SSDs/HDDs: | 24 |
| Form Factor: | 2U |
| Max. GPU Count: | N/A |
| On-board Network: | N/A |
| Number of Nodes per System: | 2 Nodes |
| PCIe Slots: | 6 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (native), SATA (native) |
| System Type: | High Density Server (Twins, Blades) |
