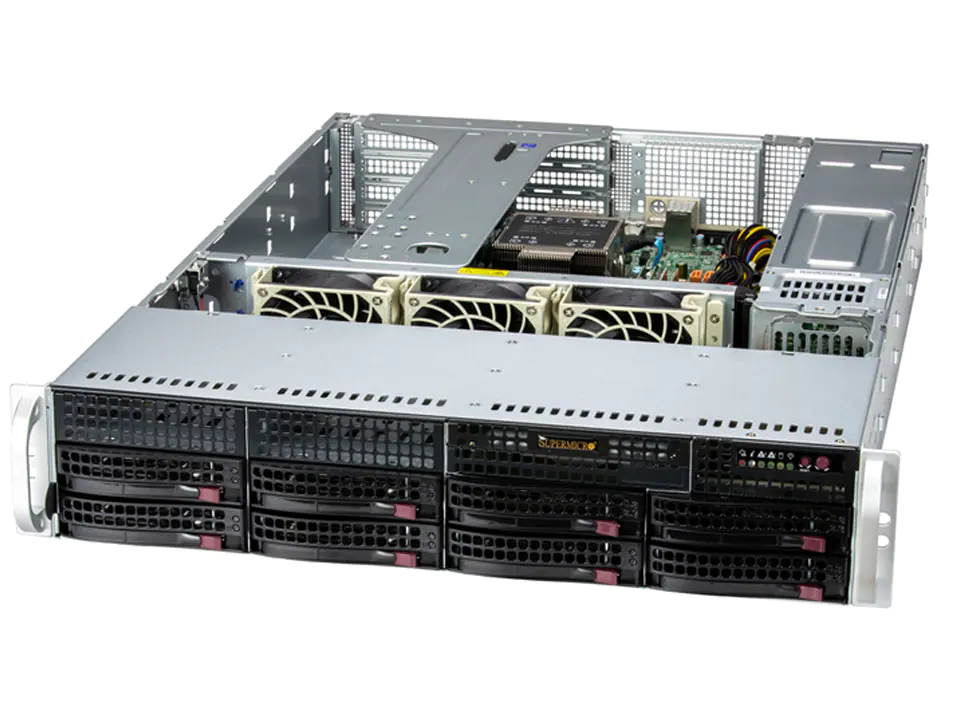

SYS-521E-WR - 1U - Server Barebone

Price On Request
Content: 1 Stück

Prices plus VAT plus shipping costs

Delivery time 3-4 Weeks

Configure

  • SYS-521E-WR
sysGen/SUPERMICRO Server SYS-521E-WR, Mainboard  Super X13SEW-F Complete... more
Product information "SYS-521E-WR - 1U - Server Barebone"

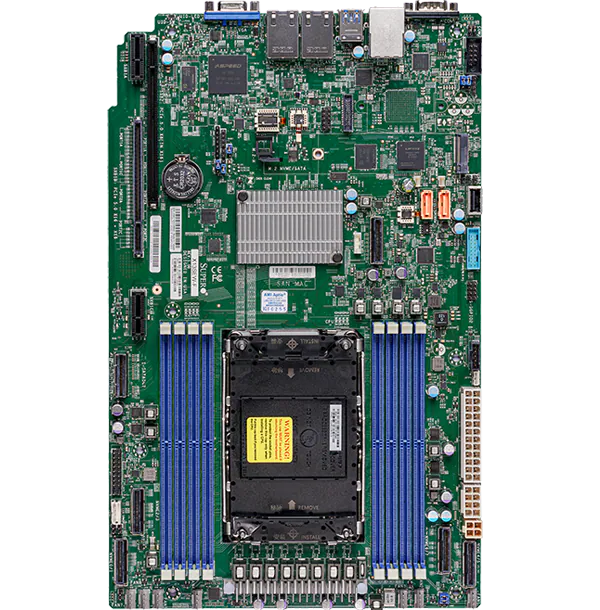

sysGen/SUPERMICRO Server SYS-521E-WR, Mainboard Super X13SEW-F

Complete System Only:  To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 1 CPU, 1 DIMMs, 1 Storage Device HDD/HDS (not include M.2))

Applications

  • Data Center Optimized
  • Database/Storage
  • Network Appliance
  • Entry GPU server

Features

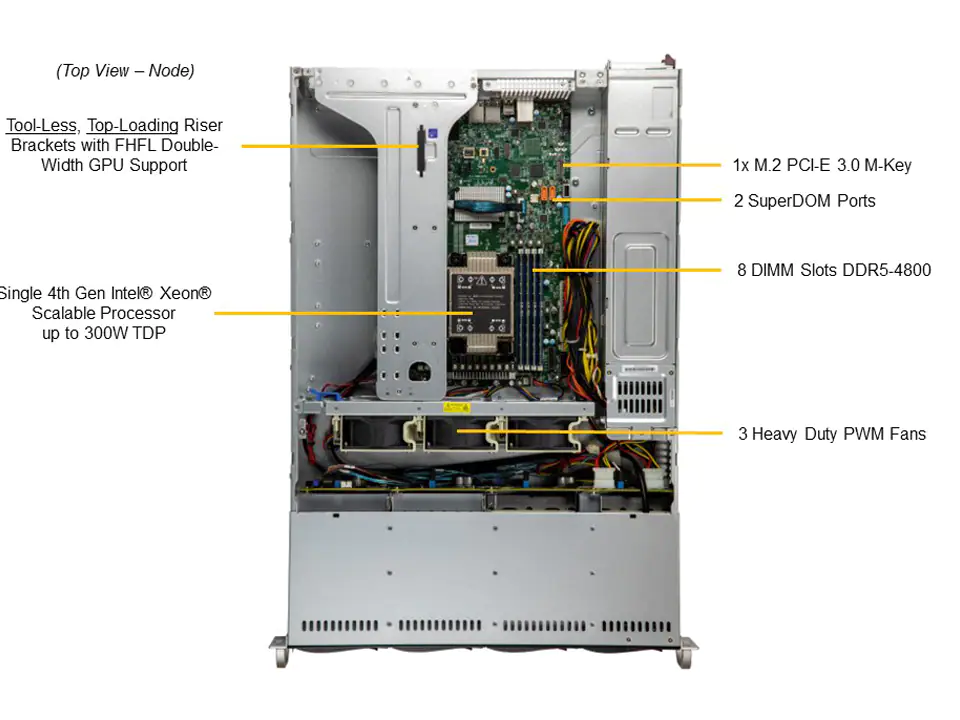

  • Single Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors
  • 8 DIMM slots supporting up to 2TB of memory; RDIMMs up to DDR5-4800

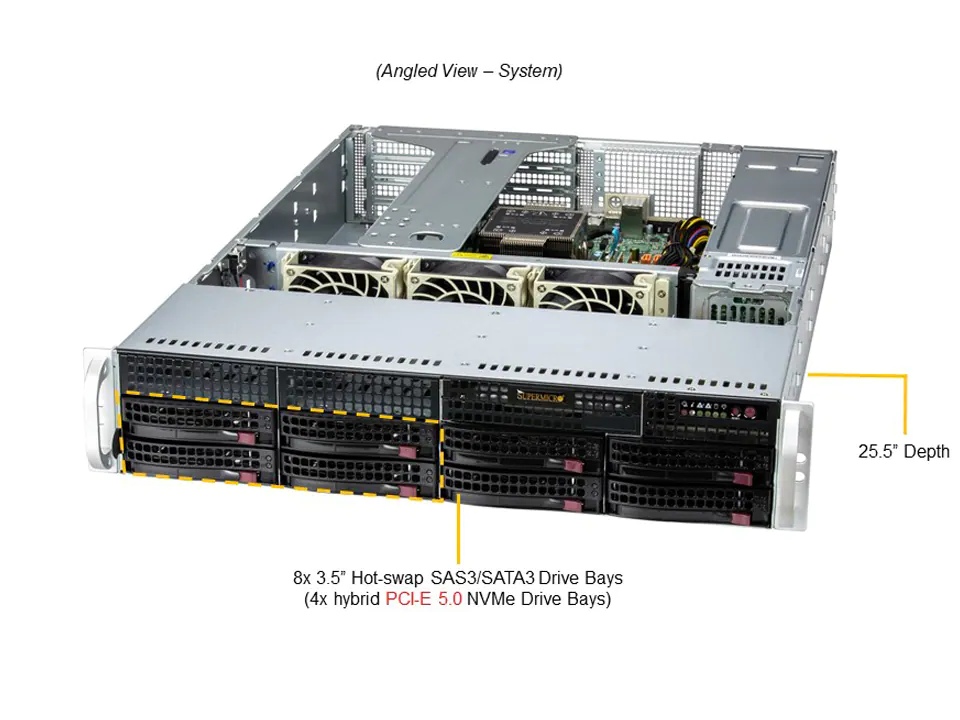

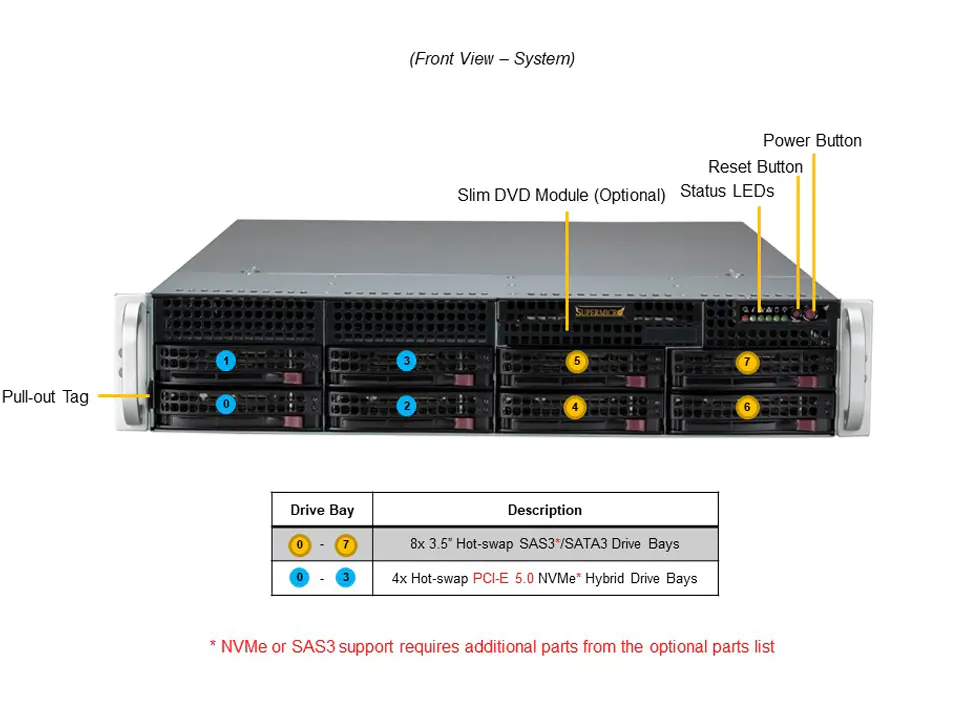

  • 8 x 3.5" hot-swap NVMe/SATA/SAS drive bays;
    1 x internal M.2 NVMe/SATA drive slots;
    NOTE: SAS card is required for SAS devices support
  • 2 x PCIe Gen5 x16 FHFL slot(s)
    2 x PCIe Gen5 x8 LP slot(s)

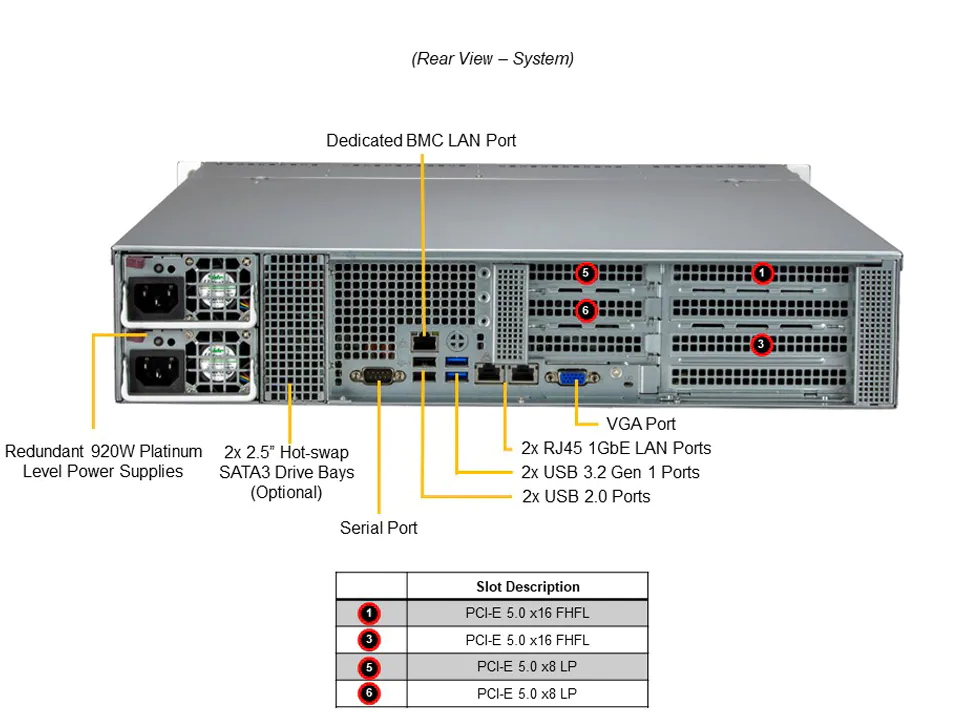

  • Onboard 1G LAN ports (Intel® i210), 1 dedicated IPMI LAN
  • 920W redundant power supply
Applications: Cloud Computing, Data Center, General Purpose, Virtualization
Case Depth: 25.1" (647mm)
CPU Socket: Single Socket
CPU Type: Intel Xeon Scalable Sapphire Rapids (4.Gen)
DIMM Slots: 8 DIMMs
Drive Bays Form Factor: 3.5", M.2
SSDs/HDDs: 8 Drives
Form Factor: 2U
GPU Type: PCIe
Max. GPU Count: 2 GPUs
On-board Network: 1GBase-T
PCIe Slots: 4 PCIe Slots
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
Special Features: Complete System Only
Storage Interface: NVMe (native), SAS (optional), SATA (native)
System Type: GPU Server, Super Server
Properties: "SYS-521E-WR - 1U - Server Barebone"
Applications: Cloud Computing, Data Center, General Purpose, Virtualization
Case Depth: 25.1" (647mm)
CPU Socket: Single Socket
CPU Type: Intel Xeon Scalable Sapphire Rapids (4.Gen)
DIMM Slots: 8 DIMMs
Drive Bays Form Factor: 3.5", M.2
SSDs/HDDs: 8 Drives
Form Factor: 2U
GPU Type: PCIe
Max. GPU Count: 2 GPUs
On-board Network: 1GBase-T
PCIe Slots: 4 PCIe Slots
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
Special Features: Complete System Only
Storage Interface: NVMe (native), SAS (optional), SATA (native)
System Type: GPU Server, Super Server
