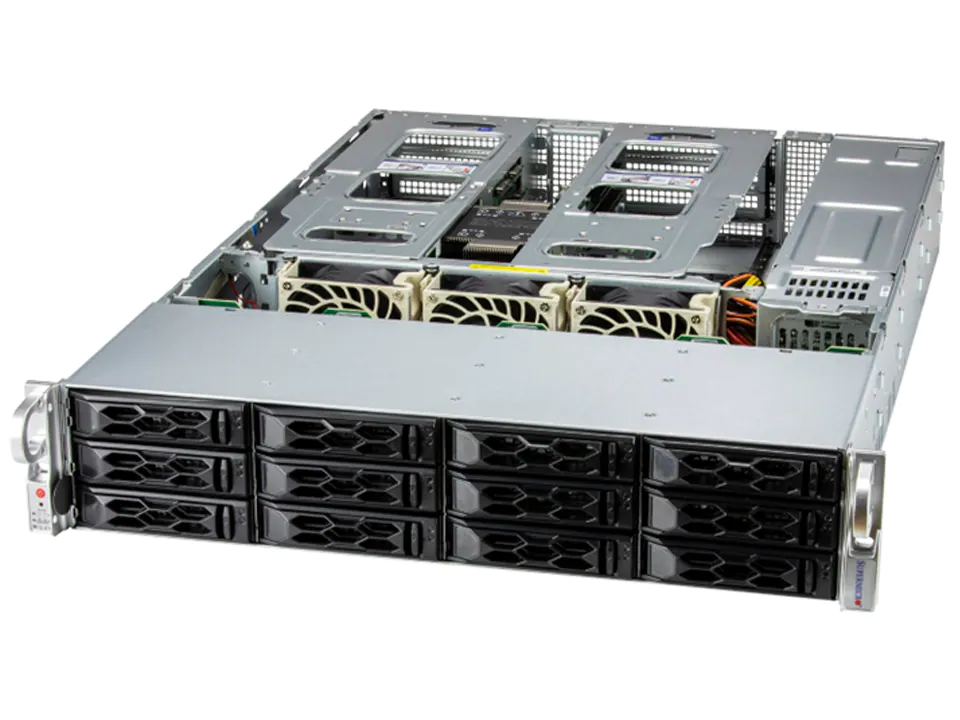

SYS-521C-NR - 2U - Server Barebone

Price On Request

Content: 1 Stück

Prices plus VAT plus shipping costs

Delivery time 3-4 Weeks

Configure

Order number: SYS-521C-NR

sysGen/SUPERMICRO Server SYS-521C-NR, Mainboard Super X13SEDW-F Complete... more

Close menu

Product information "SYS-521C-NR - 2U - Server Barebone"

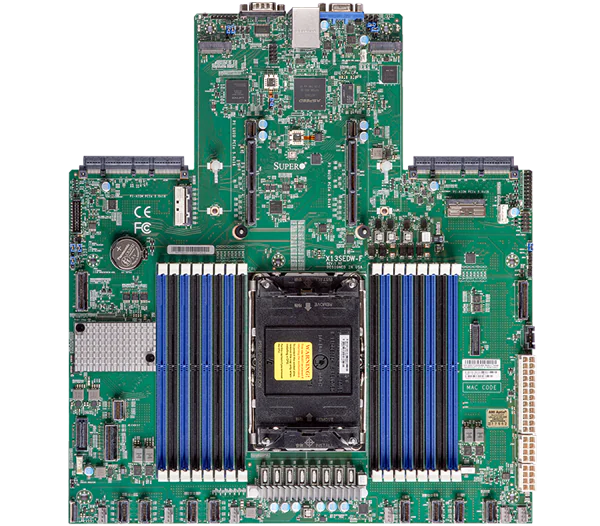

sysGen/SUPERMICRO Server SYS-521C-NR, Mainboard Super X13SEDW-F

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 1 CPU, 2 DIMMs, 1 Storage Device HDD/HDS (not include M.2), and 1 expansion slot/ AIOM NIC.

Applications

Cloud Computing
Network Appliance
Database/Storage
Data Center Optimized
AI inferencing, ML training

Features

Single Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable processors

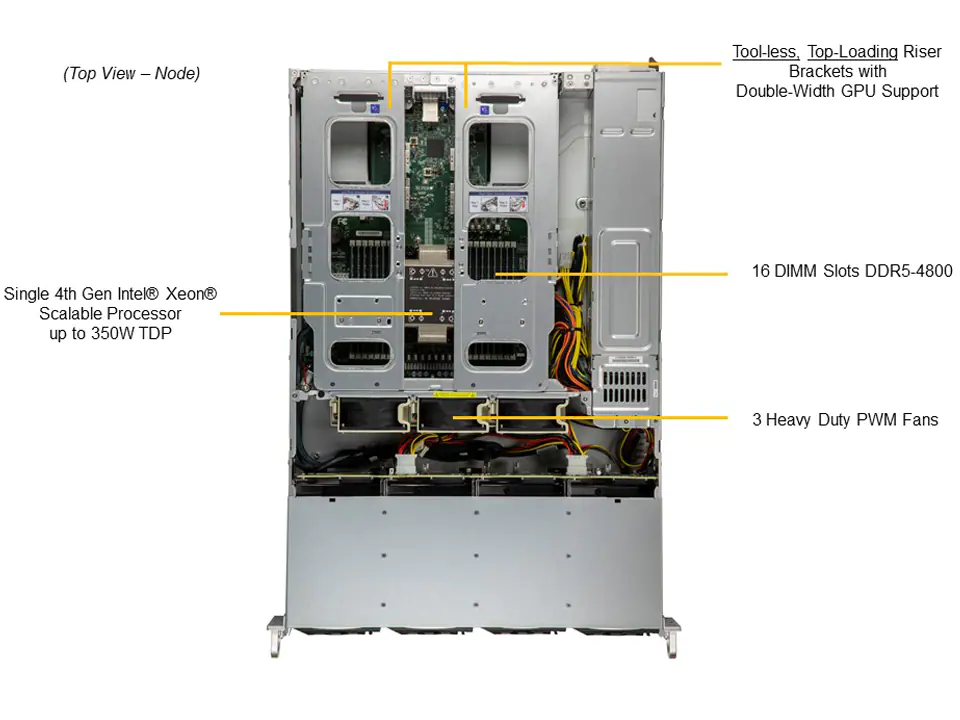

16 DIMM slots supporting up to 4TB of memory; RDIMMs up to DDR5-4800

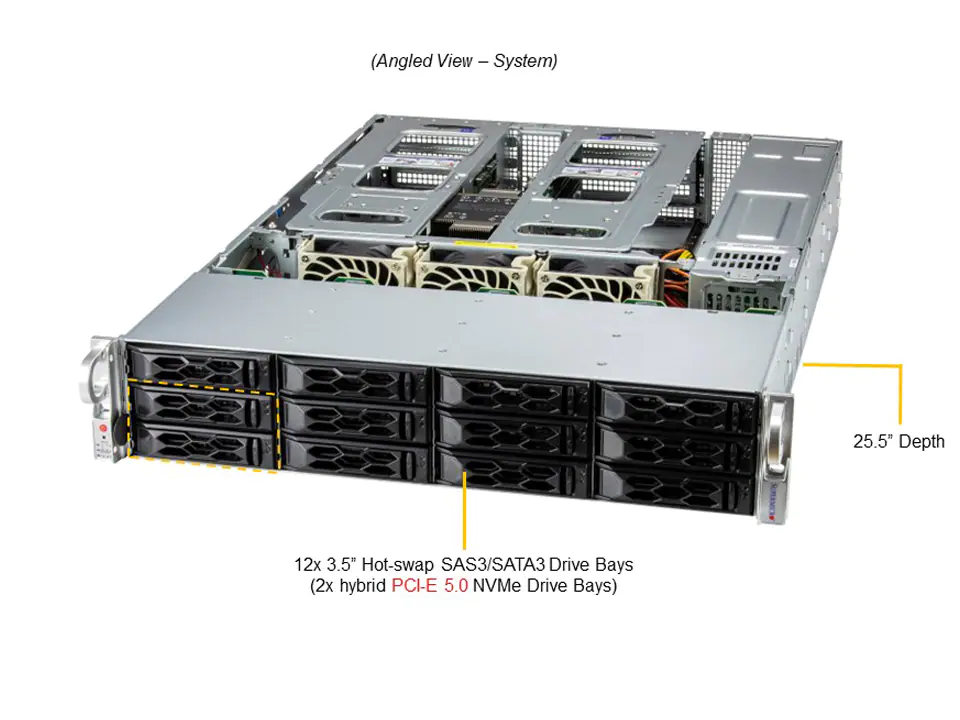

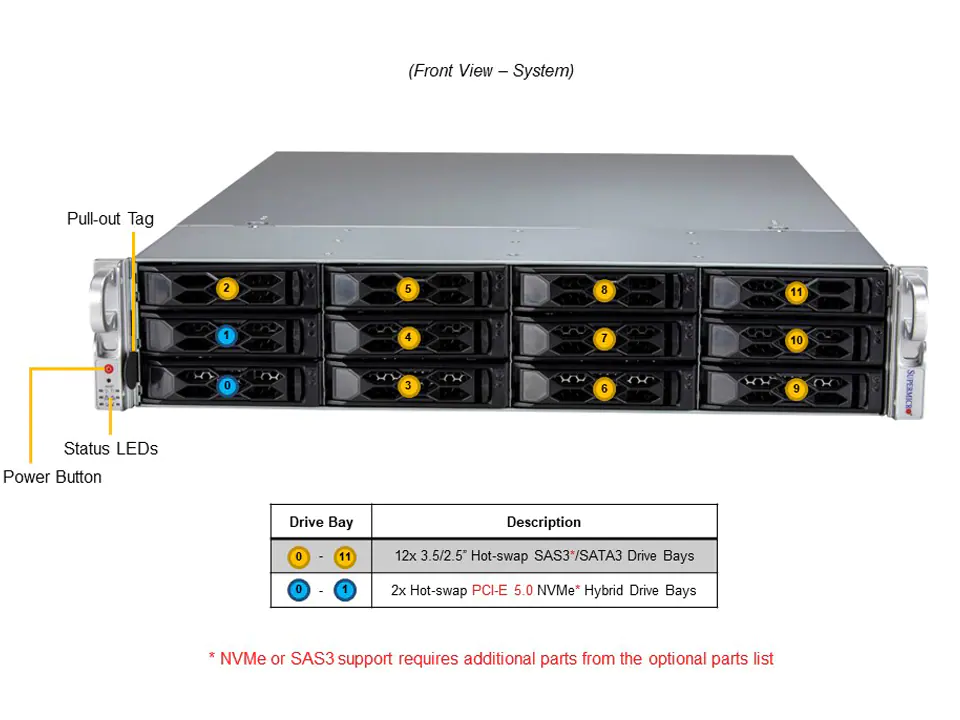

12 x 3.5" hot-swap NVMe/SATA/SAS drive bays (2 x 3.5" NVMe hybrid);
2 x internal PCIe 3.0 x2 M.2 NVMe/SATA drive slots;

NOTE: SAS card is required for SAS devices support

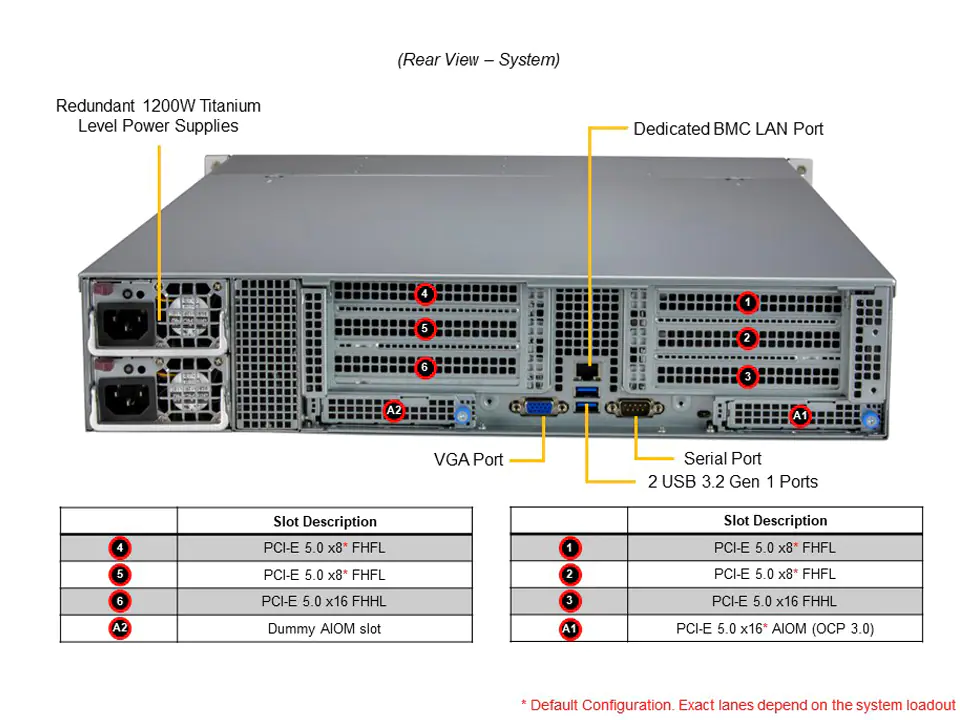

4 x PCIe Gen5 x8 FHFL slot(s)
2 x PCIe Gen5 x16 FHHL slot(s)
Single AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
1200W redundant titanium power supply

Applications:	AI Inference and Machine Learing, Cloud Computing, Database/Storage, Data Center Optimized, General Purpose, Networking Apllication
Case Depth:	25.5" (648mm)
CPU Socket:	Single Socket
CPU Type:	Intel Xeon Scalable Emerald Rapids(5 Gen), Intel Xeon Scalable Sapphire Rapids (4.Gen)
DIMM Slots:	16 DIMMs
Drive Bays Form Factor:	3.5", M.2
SSDs/HDDs:	12
Form Factor:	2U
GPU Type:	PCIe
Max. GPU Count:	2 GPUs
On-board Network:	N/A
PCIe Slots:	6 PCIe Slots
Redundant Power Supply:	Redundant Power Supply incl.
Remote Management:	Remote Management incl.
Special Features:	Complete System Only
Storage Interface:	NVMe (optional), SAS (optional), SATA (native)
System Type:	GPU Server, Super Server

Related links to "SYS-521C-NR - 2U - Server Barebone"

Open properties

Menü schließen

Properties: "SYS-521C-NR - 2U - Server Barebone"

Applications:	AI Inference and Machine Learing, Cloud Computing, Database/Storage, Data Center Optimized, General Purpose, Networking Apllication
Case Depth:	25.5" (648mm)
CPU Socket:	Single Socket
CPU Type:	Intel Xeon Scalable Emerald Rapids(5 Gen), Intel Xeon Scalable Sapphire Rapids (4.Gen)
DIMM Slots:	16 DIMMs
Drive Bays Form Factor:	3.5", M.2
SSDs/HDDs:	12
Form Factor:	2U
GPU Type:	PCIe
Max. GPU Count:	2 GPUs
On-board Network:	N/A
PCIe Slots:	6 PCIe Slots
Redundant Power Supply:	Redundant Power Supply incl.
Remote Management:	Remote Management incl.
Special Features:	Complete System Only
Storage Interface:	NVMe (optional), SAS (optional), SATA (native)
System Type:	GPU Server, Super Server
