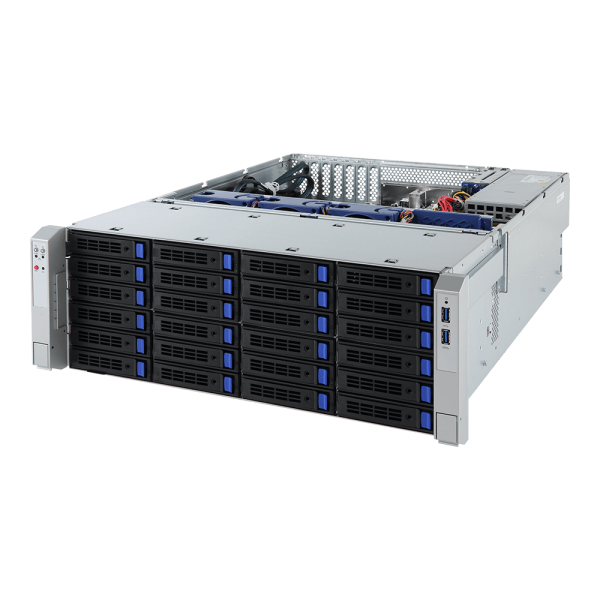

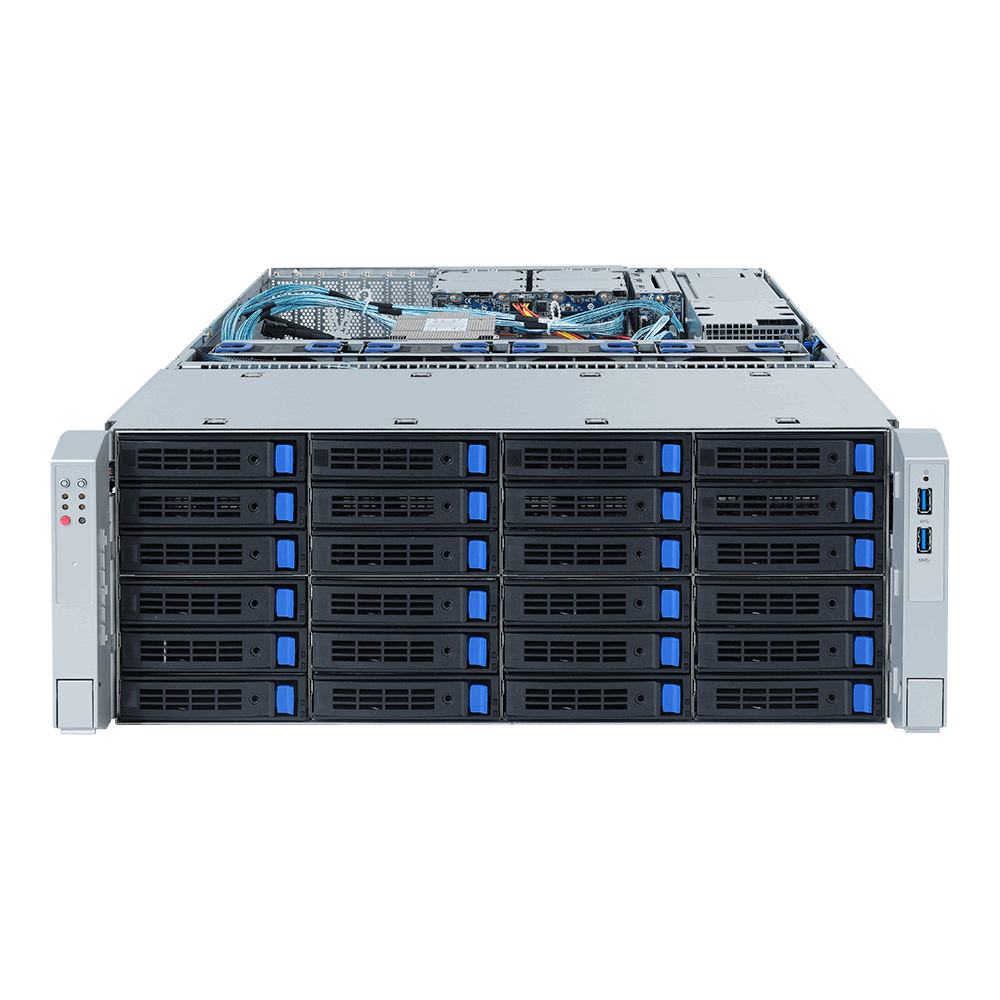

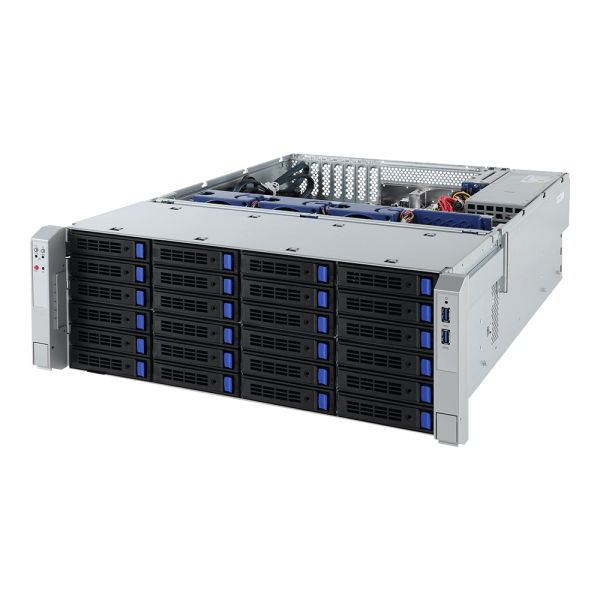

SYS-S452-Z30 (Rev. A00) - 4U - Storage Server
- Order number: SYS-S452-Z30-A00
sysGen/Gigabyte Server SYS-S452-Z30 (rev. A00), Mainboard MZ32-AR0... more
Product information "SYS-S452-Z30 (Rev. A00) - 4U - Storage Server"
sysGen/Gigabyte Server SYS-S452-Z30 (rev. A00), Mainboard MZ32-AR0
Applications
- DB Processing
- File Storage
- Cloud Computing
- Data Center Appilcations
- Virtual Server
Features
- Single AMD EPYC™ 7002/7003 series processor family
- 16x DIMM slots up to 4TB 3DS ECC RDIMM/LRDIMM DDR4-3200MHz
- 36 x 3.5" SATA/SAS hot-swap HDD/ SSD bays
2 x 2.5" SATA hot-swap SSD bays
4 x 2.5" SATA/NVMe hybrid hot-swap SSD bays
NOTE: SAS card is required for SAS devices support - 2 x Ultra-Fast M.2 with PCIe Gen3 x4 bandwidth interface 2242/2260/2280
- Up to 4 x PCIe Gen4 slots and 2 x PCIe Gen3 low profile slots
- 2 x 1Gb/s LAN ports (Intel® I350-AM2), 1 x dedicated management port
- Dual 1200W (240V) 80 PLUS Platinum redundant power supply
| Applications: | Backup Storage, Data Center |
| System Type: | Storage Server |
| Form Factor: | 4U |
| CPU Socket: | Single Socket |
| CPU Type: | AMD EPYC 7002 ROME (2.Gen), AMD EPYC 7003 MILAN (3.Gen) |
| Max. GPU Count: | N/A |
| DIMM Slots: | 16 DIMMs |
| Storage Interface: | NVMe (native), SAS (optional), SATA (native) |
| Network Speed: | 1GbE |
| Drive Bays: | 42 Drives |
| Drive Bays Form Factor: | 2.5", 3.5", M.2 |
| PCIe Slots: | 6 PCIe Slots |
| Case Depth: | 24.6" (625mm) |
| Number of Nodes per System: | 1 Node |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
Related links to "SYS-S452-Z30 (Rev. A00) - 4U - Storage Server"
Properties: "SYS-S452-Z30 (Rev. A00) - 4U - Storage Server"
| Applications: | Backup Storage, Data Center |
| System Type: | Storage Server |
| Form Factor: | 4U |
| CPU Socket: | Single Socket |
| CPU Type: | AMD EPYC 7002 ROME (2.Gen), AMD EPYC 7003 MILAN (3.Gen) |
| Max. GPU Count: | N/A |
| DIMM Slots: | 16 DIMMs |
| Storage Interface: | NVMe (native), SAS (optional), SATA (native) |
| Network Speed: | 1GbE |
| Drive Bays: | 42 Drives |
| Drive Bays Form Factor: | 2.5", 3.5", M.2 |
| PCIe Slots: | 6 PCIe Slots |
| Case Depth: | 24.6" (625mm) |
| Number of Nodes per System: | 1 Node |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
Related links to "SYS-S452-Z30 (Rev. A00) - 4U - Storage Server"
