SYS-420GP-TNR | sysGen GmbH

6,577.94€ *

Content: 1 Stück

Prices plus VAT plus shipping costs

Delivery time 3-4 Weeks

Configure

Order number: SYS-420GP-TNR

sysGen/SUPERMICRO Server SYS-420GP-TNR, Mainboard Super X12DPG-OA6 ... more

Close menu

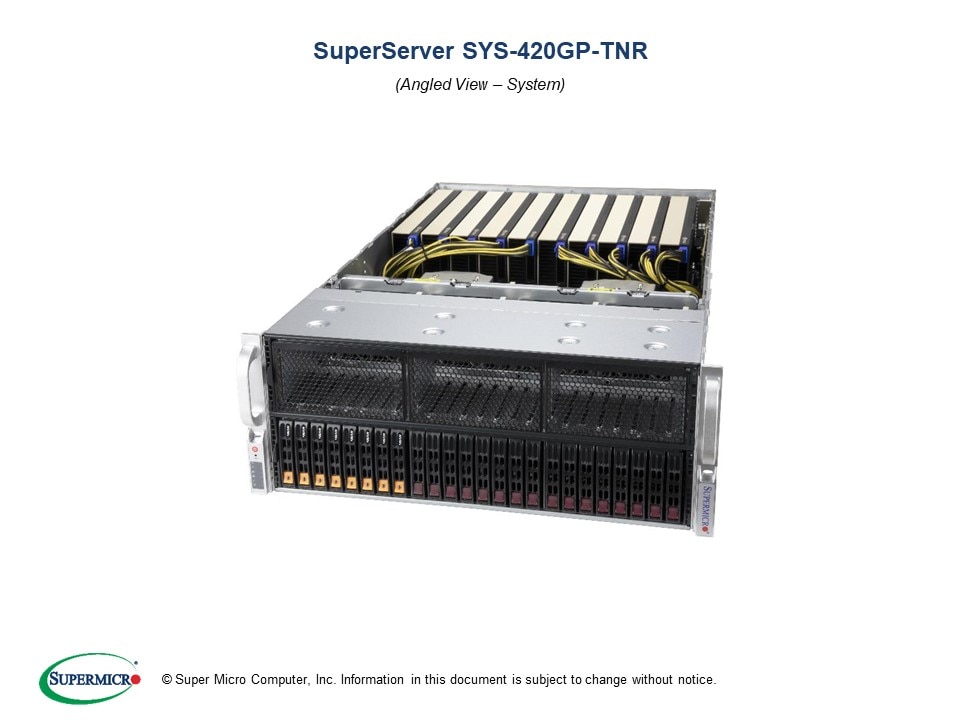

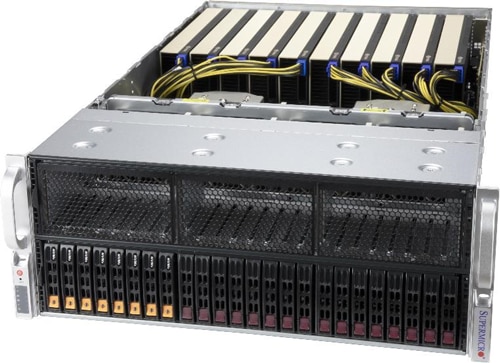

Product information "SYS-420GP-TNR - 4U - Server"

sysGen/SUPERMICRO Server SYS-420GP-TNR, Mainboard Super X12DPG-OA6

Complete System Only: To maintain quality and integrity, this system is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 2 GPUs, and 1 Storage device )

Applications

High Perfomance Computing
Rendering
VDI
AI / Deep LearningTraining

Features

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
Intel® C621A Chipset

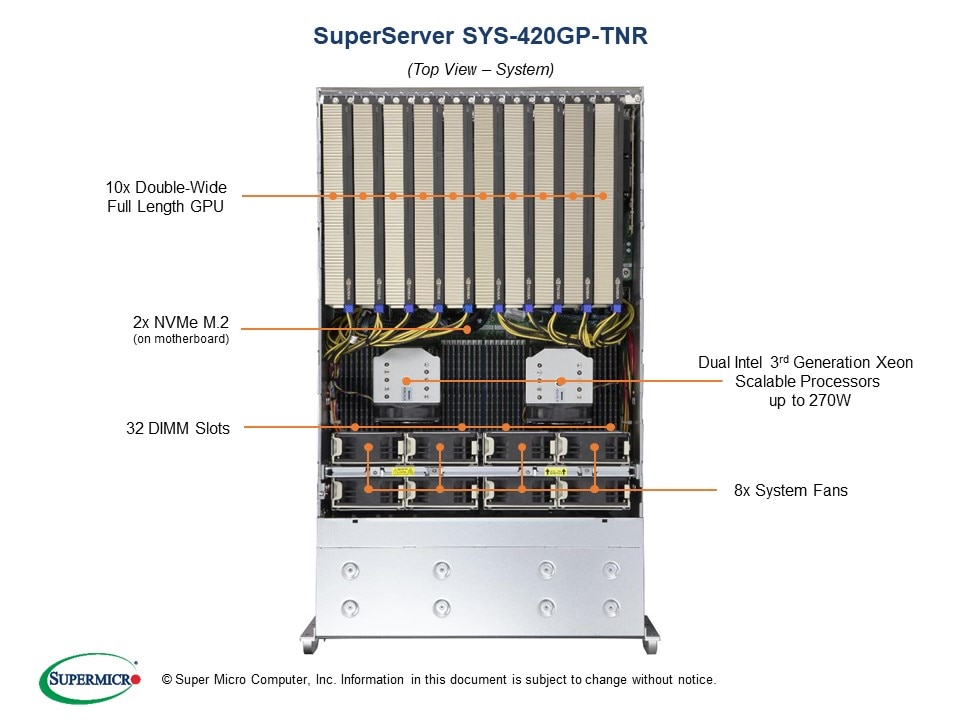

32 DIMM Slots;
Up to 8TB DRAM;
Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
Intel® Optane™ Persistent Memory 200 series

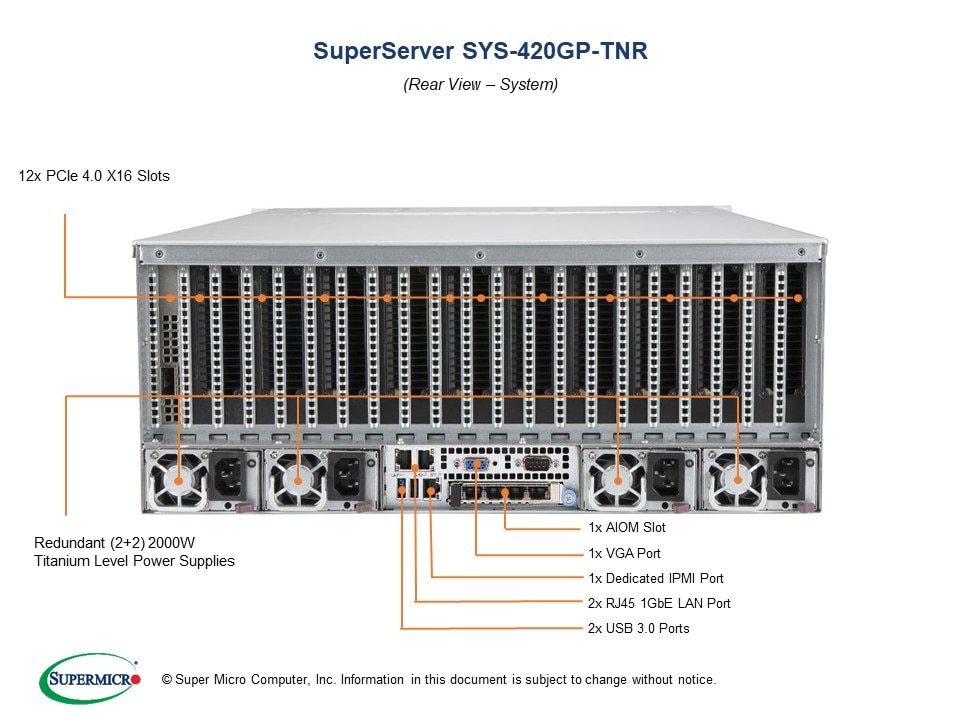

12 PCIe Gen 4.0 X16 FHFL Slots
AIOM/OCP 3.0 Support
Flexible networking options
2x M.2 NVMe for boot drive only

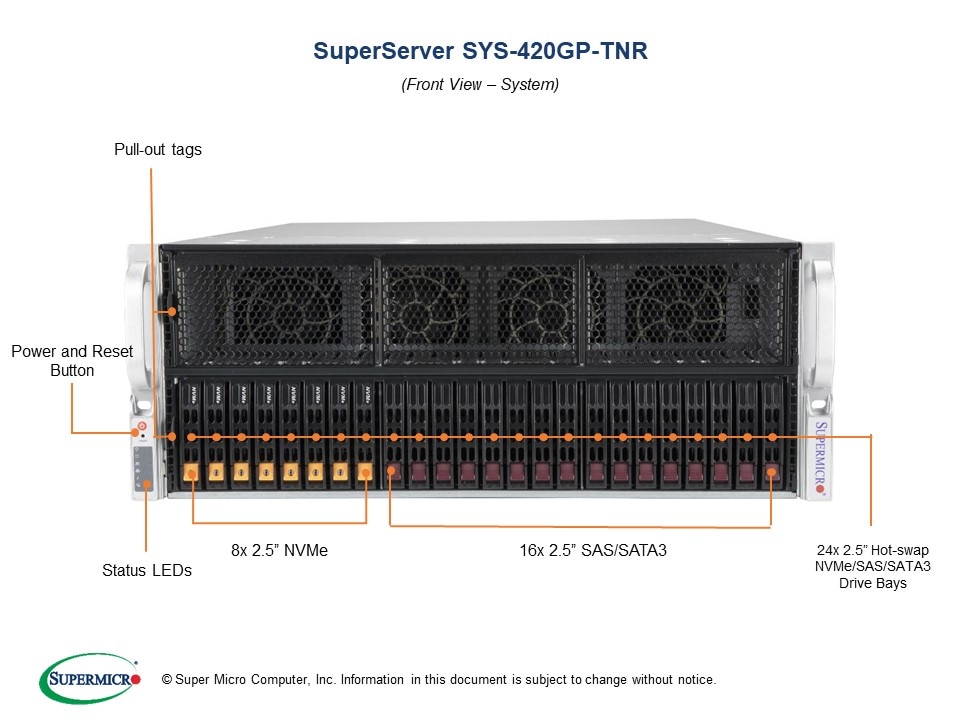

8x HOT SWAP 2.5” NVMe
8x HOT SWAP 2.5” SATA
8x HOT SWAP 2.5” SATA/SAS (AOC required)
Total 24x 2.5" Hot-swap drive bays
8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
4x 2000W redundant Titanium level power supplies

Applications:	AI / Deep Learning, Cloud Computing, HPC, Virtualization
Case Depth:	29" (737mm)
CPU Socket:	Dual Socket
CPU Type:	Intel Xeon Scalable Ice Lake (3.Gen)
DIMM Slots:	32 DIMMs
Drive Bays Form Factor:	2.5", M.2
SSDs/HDDs:	24
Form Factor:	4U
GPU Type:	PCIe
Max. GPU Count:	10 GPUs
On-board Network:	1GbE
PCIe Slots:	12 PCIe Slots
Redundant Power Supply:	Redundant Power Supply incl.
Remote Management:	Remote Management incl.
Special Features:	Complete System Only
Storage Interface:	NVMe (native), SAS (native), SATA (native)
System Type:	GPU Server

Related links to "SYS-420GP-TNR - 4U - Server"

Open properties

Menü schließen

Properties: "SYS-420GP-TNR - 4U - Server"

Applications:	AI / Deep Learning, Cloud Computing, HPC, Virtualization
Case Depth:	29" (737mm)
CPU Socket:	Dual Socket
CPU Type:	Intel Xeon Scalable Ice Lake (3.Gen)
DIMM Slots:	32 DIMMs
Drive Bays Form Factor:	2.5", M.2
SSDs/HDDs:	24
Form Factor:	4U
GPU Type:	PCIe
Max. GPU Count:	10 GPUs
On-board Network:	1GbE
PCIe Slots:	12 PCIe Slots
Redundant Power Supply:	Redundant Power Supply incl.
Remote Management:	Remote Management incl.
Special Features:	Complete System Only
Storage Interface:	NVMe (native), SAS (native), SATA (native)
System Type:	GPU Server
