CSE-946SE2C-R1K66JBOD

Price On Request
Content: 1 Stück

Prices plus VAT plus shipping costs

Delivery time 3-4 Weeks

Configure

  • CSE-946SE2C-R1K66JBOD
sysGen/SUPERMICRO CSE-946SE2C-R1K66JBOD , includes: Simply Double High Density JBOD... more
Product information "CSE-946SE2C-R1K66JBOD"

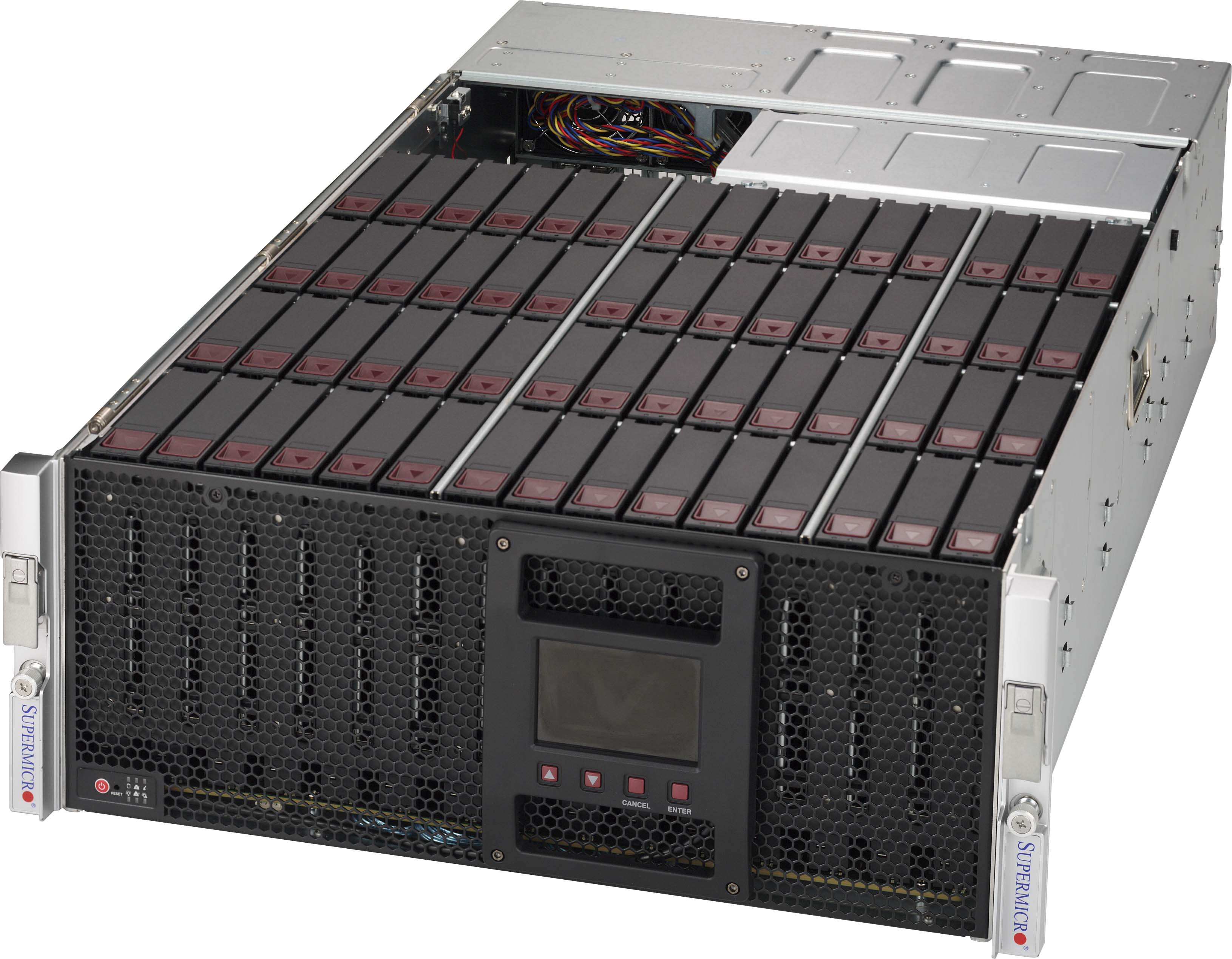

sysGen/SUPERMICRO CSE-946SE2C-R1K66JBOD, includes:

  • Simply Double High Density JBOD Storage Enclosure

The JBOD supports the following:

  • Extreme High Density and High Capacity Storage Chassis support 60 x 3.5" Top Loading SAS 12Gb/s Hot Swapping HDD/SSD Bays
  • Tool-less HDD tray with HDD LED indicator
  • Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
  • 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
  • 1x IPMI port for Remote System Power on/off and system monitoring
  • Support NTP for time synchronization & RTC battery backup
  • 1600W (1+1) Redundant High-efficiency Platinum Level Power Supplies

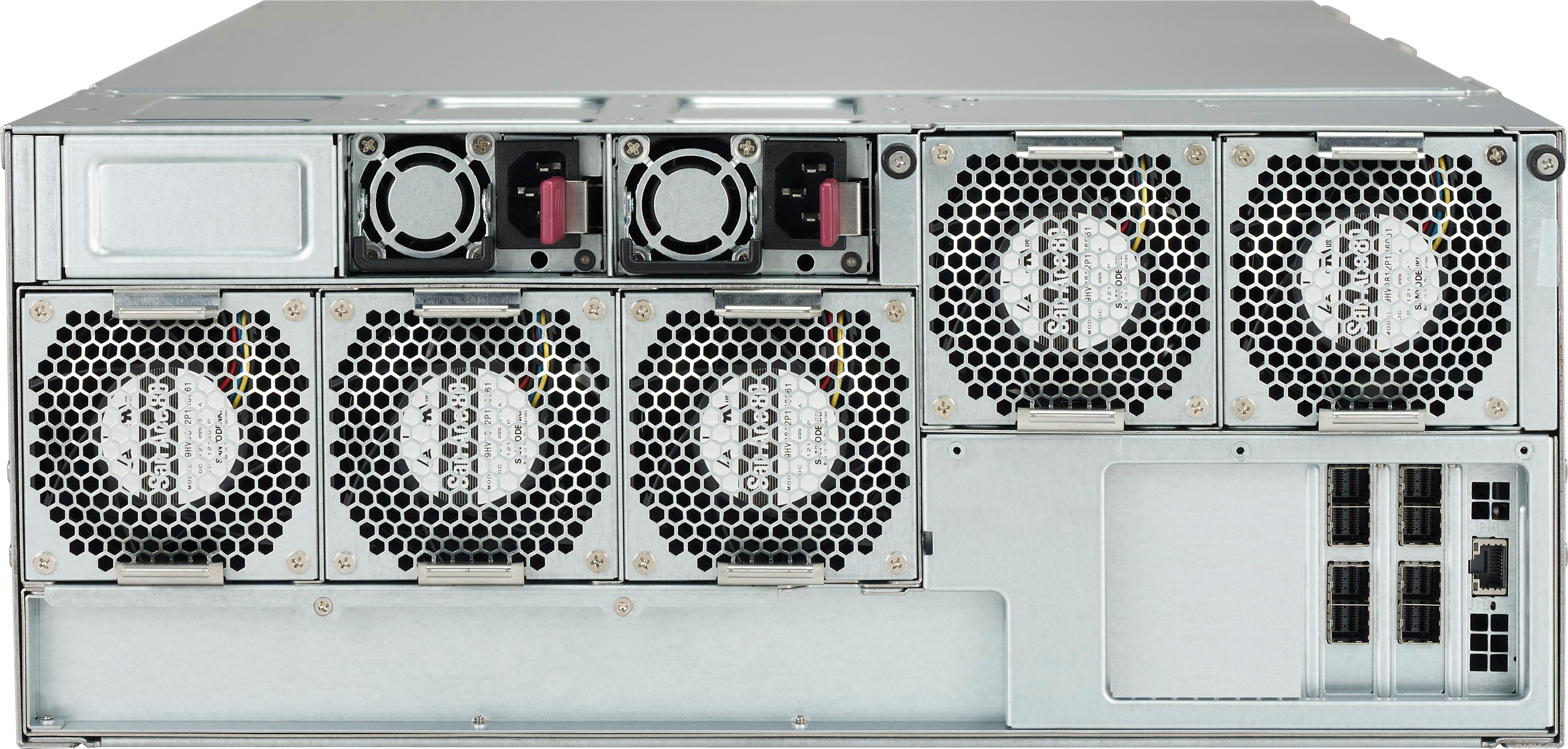

  • Optimized cooling w/ 5x 80x38mm rear hot-swap fans
  • Support front LCD panel for system status & error info (Option)
  • Ideal for Cloud backup, data Replication or High density Archive Storage Applications
  • Qualified SAS HBA / controller:
    AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
    AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
Applications: Backup Storage, Big Data, Cloud Computing, Data Center
System Type: JBOD/JBOF
Form Factor: 4U
Max. GPU Count: 0-OHNE GPU
Storage Interface: SAS (native), SATA (native)
Drive Bays: 60 Drives
Drive Bays Form Factor: 2.5", 3.5"
Case Depth: 30.2" (767mm)
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
Properties: "CSE-946SE2C-R1K66JBOD"
Applications: Backup Storage, Big Data, Cloud Computing, Data Center
System Type: JBOD/JBOF
Form Factor: 4U
Max. GPU Count: 0-OHNE GPU
Storage Interface: SAS (native), SATA (native)
Drive Bays: 60 Drives
Drive Bays Form Factor: 2.5", 3.5"
Case Depth: 30.2" (767mm)
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
