CSE-847E1C-R1K23JBOD
Price On Request
Content: 1 Stück
Prices plus VAT plus shipping costs
Delivery time 3-4 Weeks
- Order number: CSE-847E1C-R1K23JBOD
sysGen/SUPERMICRO CSE-847E1C-R1K23JBOD , includes: Simply Double High Density JBOD Storage... more
Product information "CSE-847E1C-R1K23JBOD"
sysGen/SUPERMICRO CSE-847E1C-R1K23JBOD, includes:
- Simply Double High Density JBOD Storage Enclosure
The JBOD supports the following:

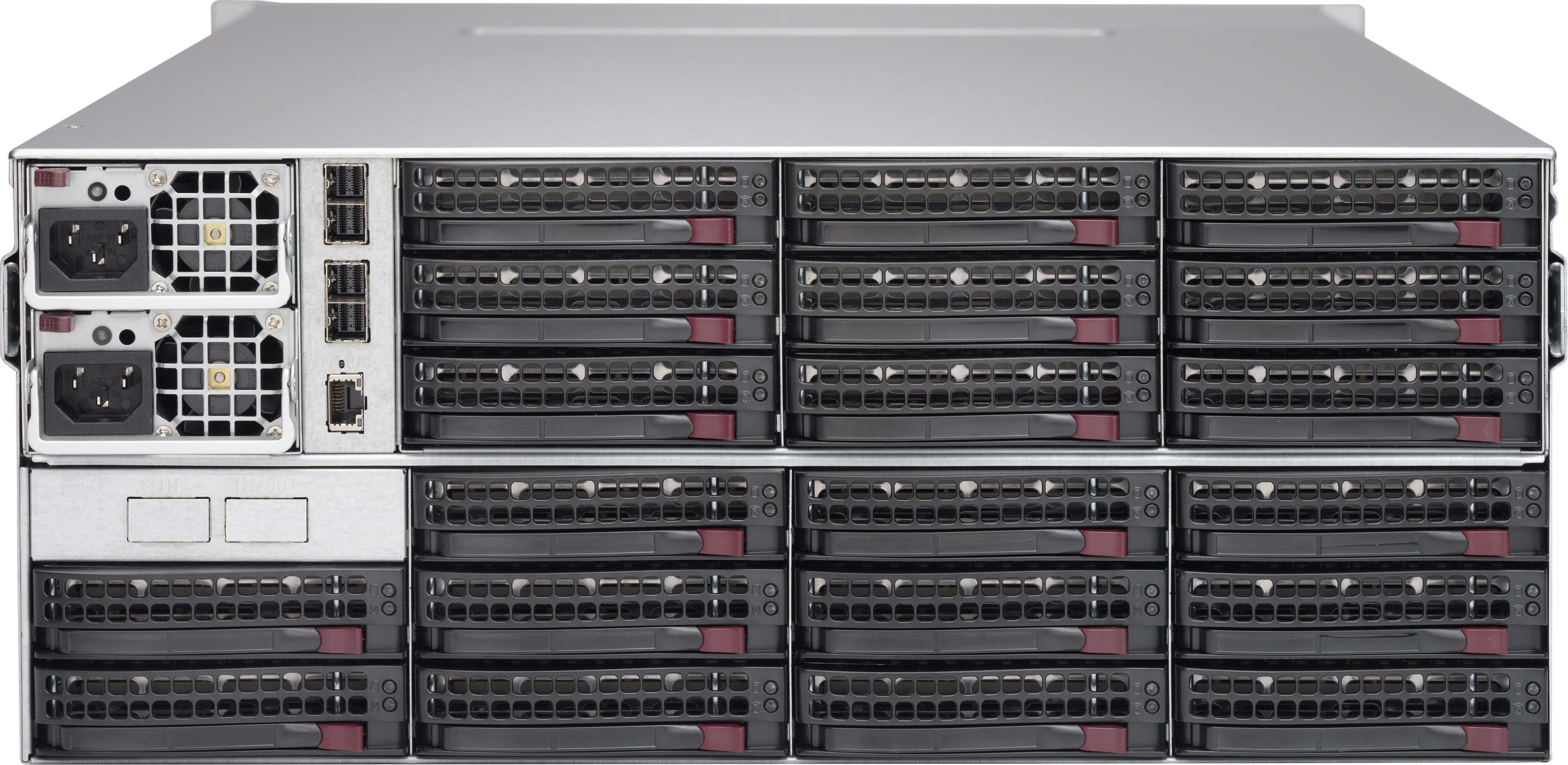

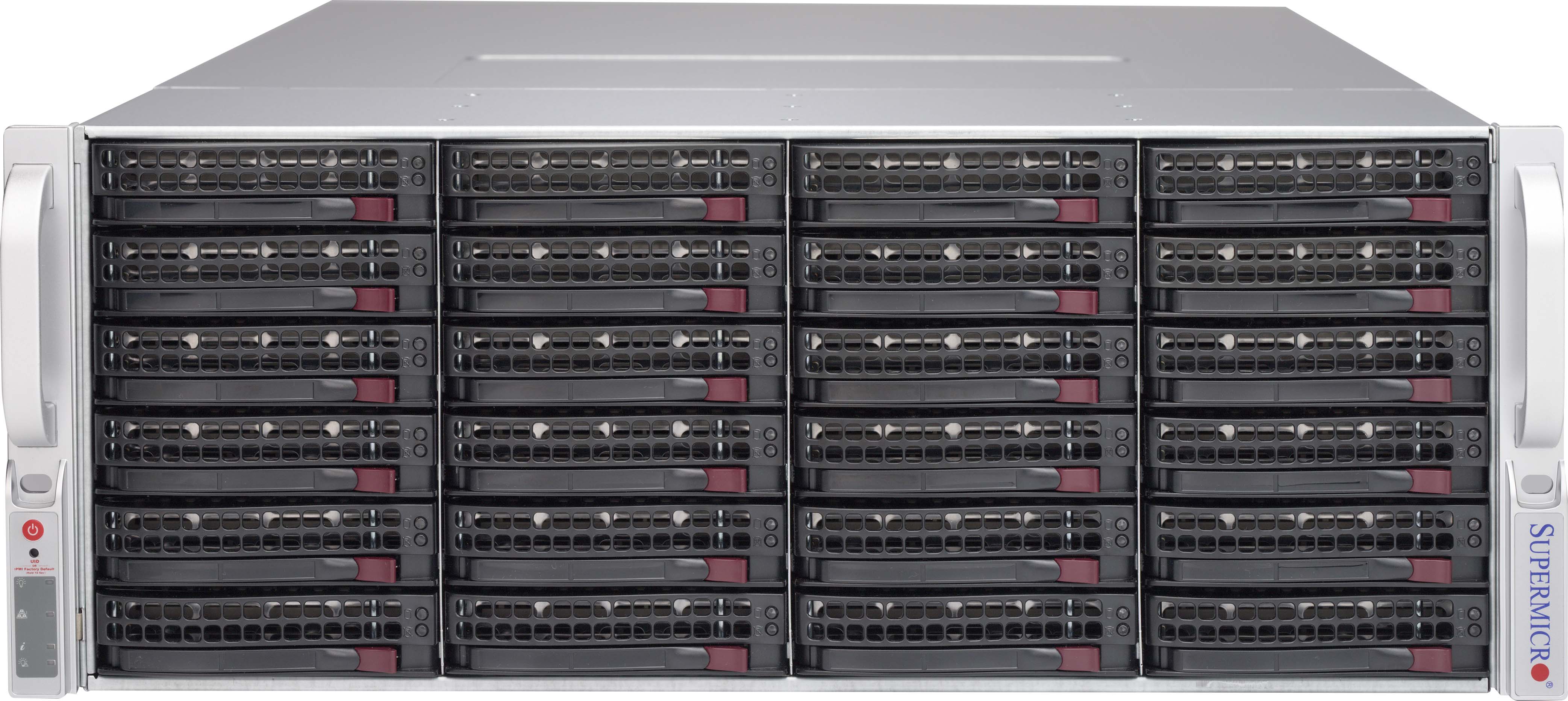

- 44x (24 front + 20 rear) 3.5" hot-swap SAS/SATA drive bays supporting SAS3/2 or SATA3 HDDs with 12Gbps throughput
- Redundant 1200W Titaninum Level (1+1) power supplies with PMBus
- 7x 8cm (middle) hot-swap redundant cooling fans
- SAS3 (12Gbps) backplane with single expander supports SAS3/SATA3 drives for capacity expansion
- JBOD Power Control Board with IPMI for remote monitor and power on-off
- 4x External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port
- Palletized packaging for easy shipping and handling
- Qualified SAS HBA / controller:
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
| Applications: | Backup Storage, Big Data, Cloud Computing, Data Center |
| Case Depth: | 27.5" (699mm) |
| Drive Bays Form Factor: | 2.5", 3.5" |
| SSDs/HDDs: | 44 |
| Form Factor: | 4U |
| Max. GPU Count: | N/A |
| On-board Network: | N/A |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | SAS (native), SATA (native) |
| System Type: | JBOD |
Related links to "CSE-847E1C-R1K23JBOD"
Properties: "CSE-847E1C-R1K23JBOD"
| Applications: | Backup Storage, Big Data, Cloud Computing, Data Center |
| Case Depth: | 27.5" (699mm) |
| Drive Bays Form Factor: | 2.5", 3.5" |
| SSDs/HDDs: | 44 |
| Form Factor: | 4U |
| Max. GPU Count: | N/A |
| On-board Network: | N/A |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | SAS (native), SATA (native) |
| System Type: | JBOD |
