CSE-417BE1C-R1K23JBOD
Price On Request
Content: 1 Stück
Prices plus VAT plus shipping costs
Delivery time 3-4 Weeks
- Order number: CSE-417BE1C-R1K23JBOD
sysGen/SUPERMICRO CSE-417BE1C-R1K23JBOD , includes: Simply Double High Density JBOD... more
Product information "CSE-417BE1C-R1K23JBOD"
sysGen/SUPERMICRO CSE-417BE1C-R1K23JBOD, includes:
- Simply Double High Density JBOD Storage Enclosure
The JBOD supports the following:
- Extremely high-density 4U storage server chassis (saves 2U space)

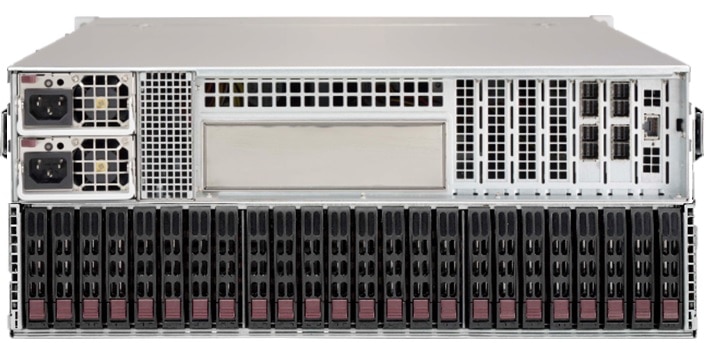

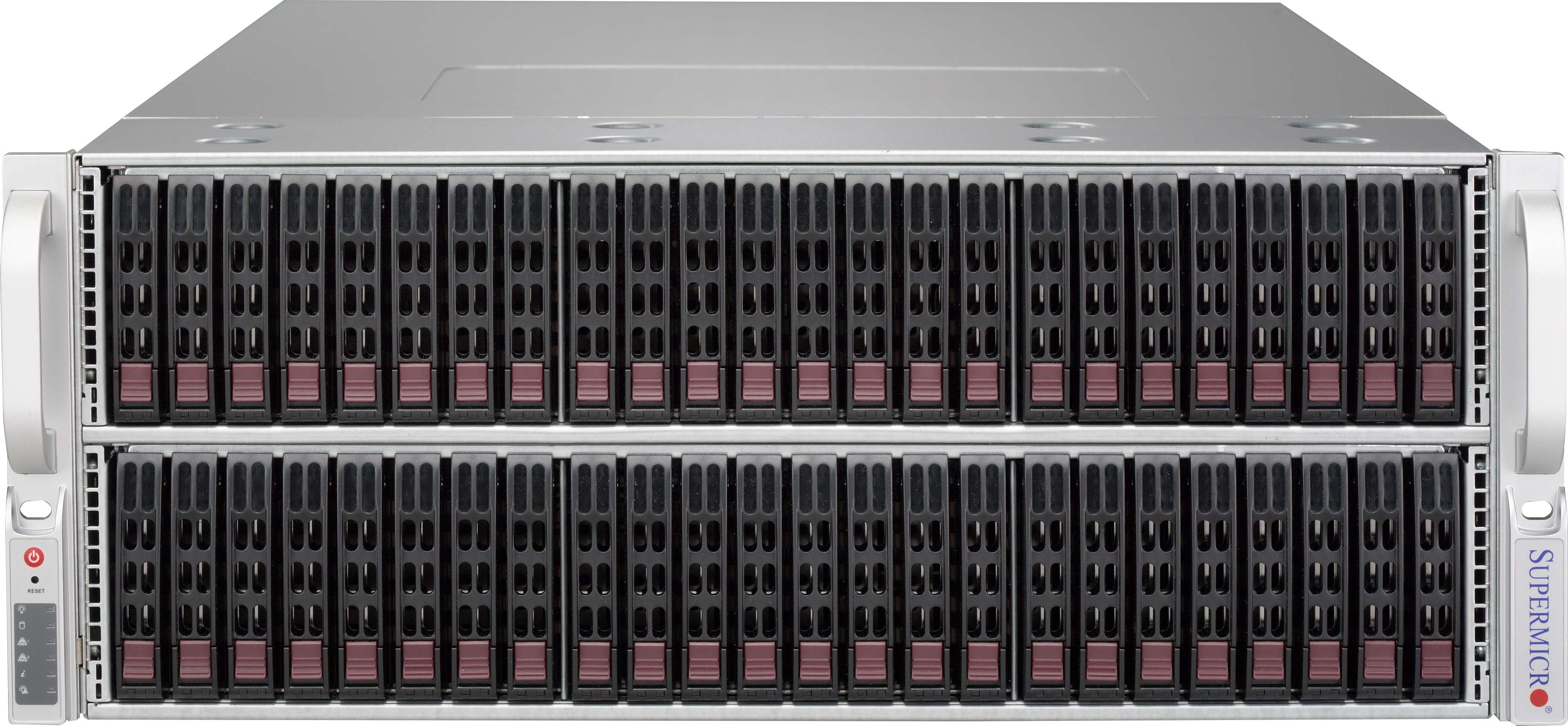

- Maximum drives per enclosure: 72x (48 front + 24 rear) 2.5" hot-swap HDD bays for server chassis
- SAS3 (12Gbps) single expander backplane
- 1200W Titanium Level (1+1) redundant power supplies with PMBus
- Optimized thermal solution with 100% redundant cooling design
- Qualified SAS HBA / controller:
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
| Applications: | Backup Storage, Big Data, Cloud Computing, Data Center |
| Case Depth: | 27.5" (699mm) |
| Drive Bays Form Factor: | 2.5" |
| SSDs/HDDs: | 72 |
| Form Factor: | 4U |
| Max. GPU Count: | N/A |
| On-board Network: | N/A |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | SAS (native), SATA (native) |
| System Type: | JBOD |
Related links to "CSE-417BE1C-R1K23JBOD"
Properties: "CSE-417BE1C-R1K23JBOD"
| Applications: | Backup Storage, Big Data, Cloud Computing, Data Center |
| Case Depth: | 27.5" (699mm) |
| Drive Bays Form Factor: | 2.5" |
| SSDs/HDDs: | 72 |
| Form Factor: | 4U |
| Max. GPU Count: | N/A |
| On-board Network: | N/A |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | SAS (native), SATA (native) |
| System Type: | JBOD |
