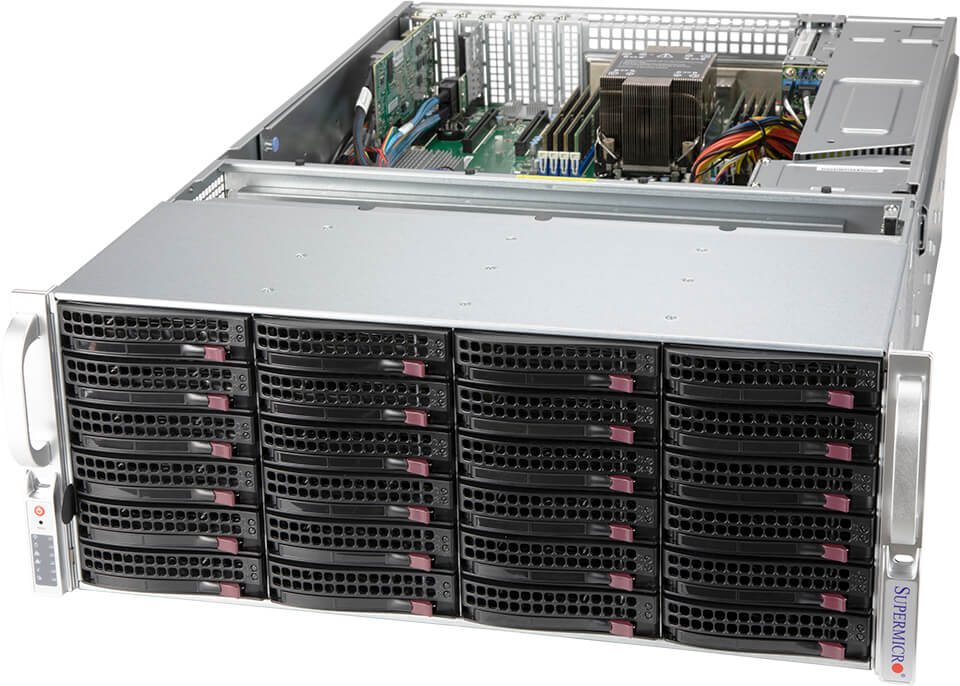

SSG-540P-E1CTR36H - 4U - Storage Server
Price On Request
Content: 1 Stück
Prices plus VAT plus shipping costs
Delivery time 3-4 Weeks
- Order number: SSG-540P-E1CTR36H
sysGen/SUPERMICRO Server SYS-540P-E1CTR36H, Mainboard Super X12SPI-TF... more
Product information "SSG-540P-E1CTR36H - 4U - Storage Server"
sysGen/SUPERMICRO Server SYS-540P-E1CTR36H, Mainboard Super X12SPI-TF
Applications
- HPC, Data Center
- Cloud Computing
- High End Enterprise Server
- Appliance Optimized Storage
Features

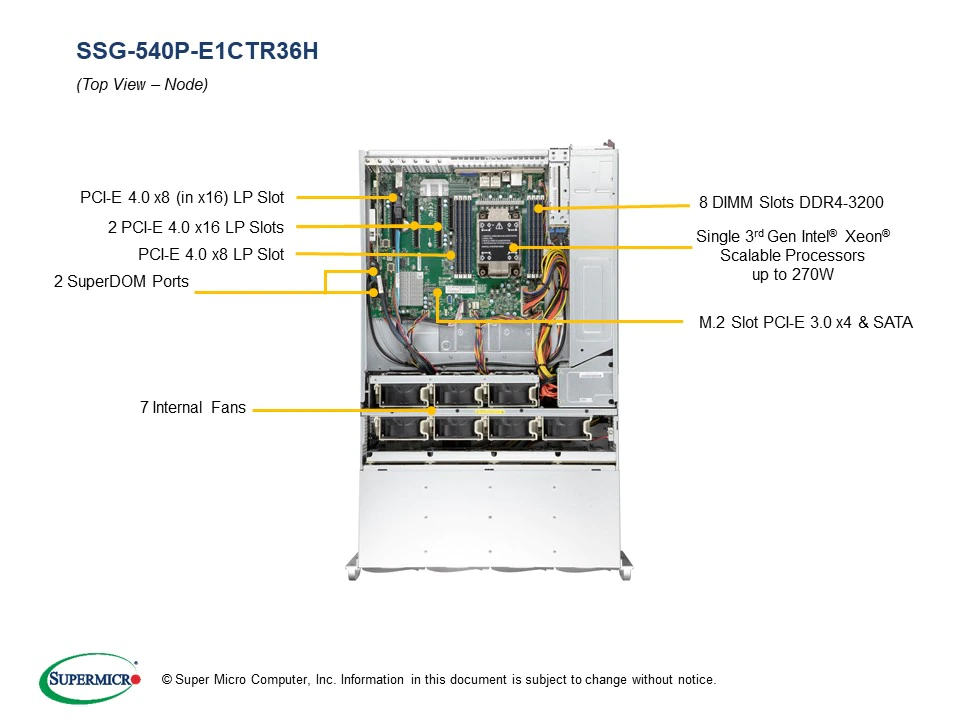

- Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
- 8x DIMM slots up to 2TB 3DS RDIMM/LRDIMM DDR4-3200

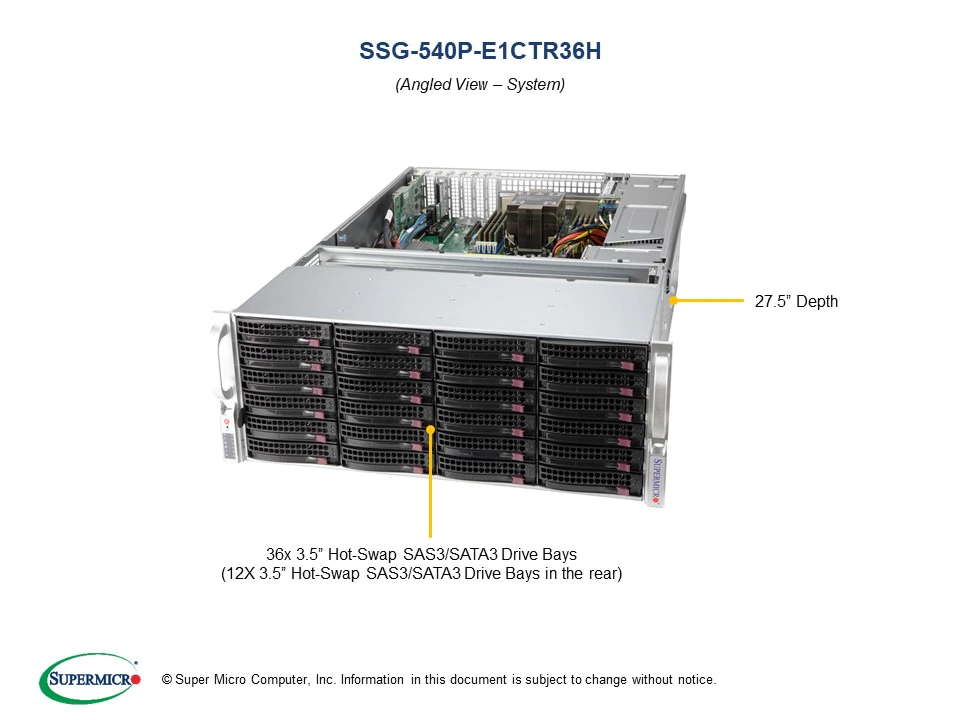

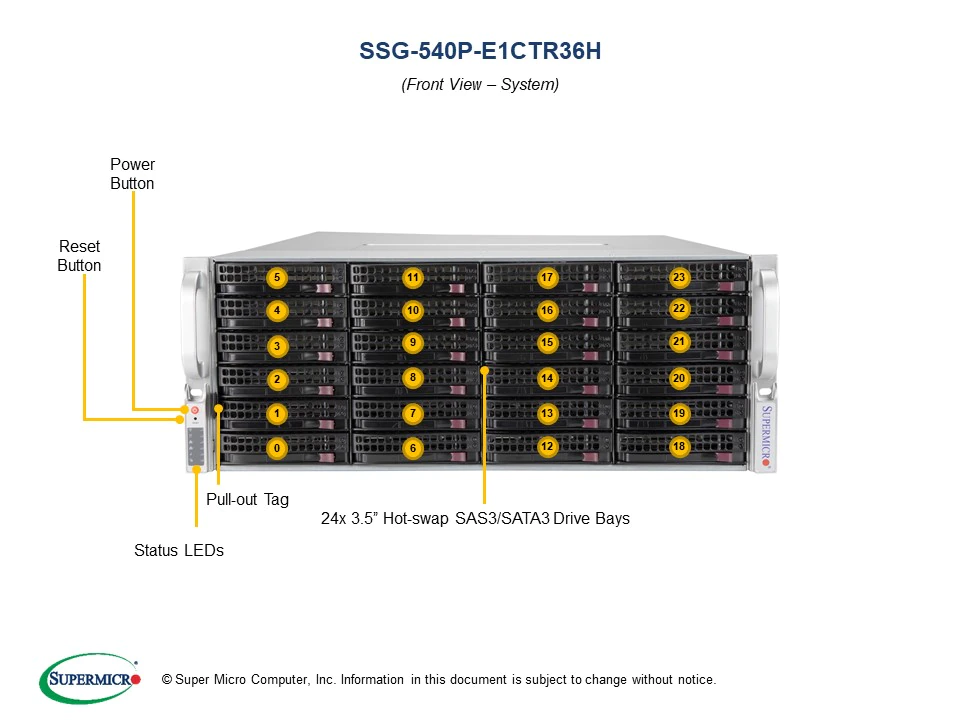

- 36x Hot-swap 3.5" SAS3/SATA3 drive bays (24 front + 12 rear)
2x Hot-swap 2.5" NVMe/SATA (rear, optional)
2x Internal fixed bay support up to 4x 2.5" drive bays (optional)
1x M.2 PCI-E 3.0 x4 and SATA 2280, 22110 - 2 PCI-E 4.0 x16 (LP) slots, 2 PCI-E 4.0 x8 (LP) slots

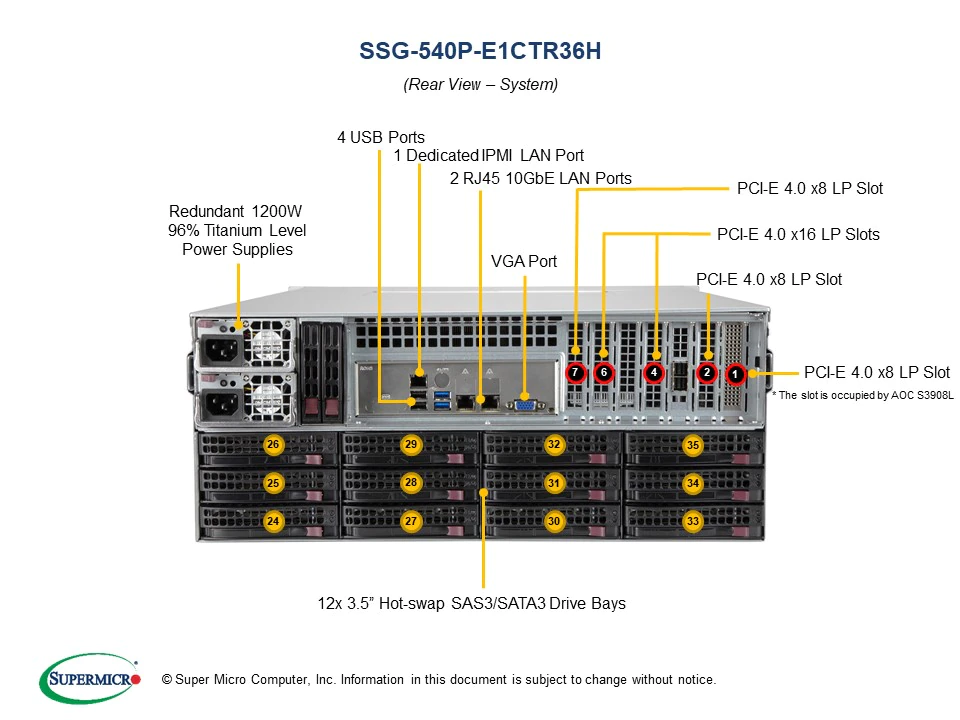

- 2 RJ45 10GBase-T LAN ports, 1 x dedicated management port
- 1200W Titanium Redundant Power Supply
| Applications: | Backup Storage, Data Center, HPC |
| Case Depth: | 27.5" (699mm) |
| CPU Socket: | Single Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 8 DIMMs |
| Drive Bays Form Factor: | 2.5", 3.5", M.2 |
| SSDs/HDDs: | 36 |
| Form Factor: | 4U |
| Max. GPU Count: | N/A |
| On-board Network: | 10GBase-T |
| PCIe Slots: | 4 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | NVMe (optional), SAS (native), SATA (native) |
| System Type: | Storage Server |
Related links to "SSG-540P-E1CTR36H - 4U - Storage Server"
Properties: "SSG-540P-E1CTR36H - 4U - Storage Server"
| Applications: | Backup Storage, Data Center, HPC |
| Case Depth: | 27.5" (699mm) |
| CPU Socket: | Single Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 8 DIMMs |
| Drive Bays Form Factor: | 2.5", 3.5", M.2 |
| SSDs/HDDs: | 36 |
| Form Factor: | 4U |
| Max. GPU Count: | N/A |
| On-board Network: | 10GBase-T |
| PCIe Slots: | 4 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | NVMe (optional), SAS (native), SATA (native) |
| System Type: | Storage Server |
