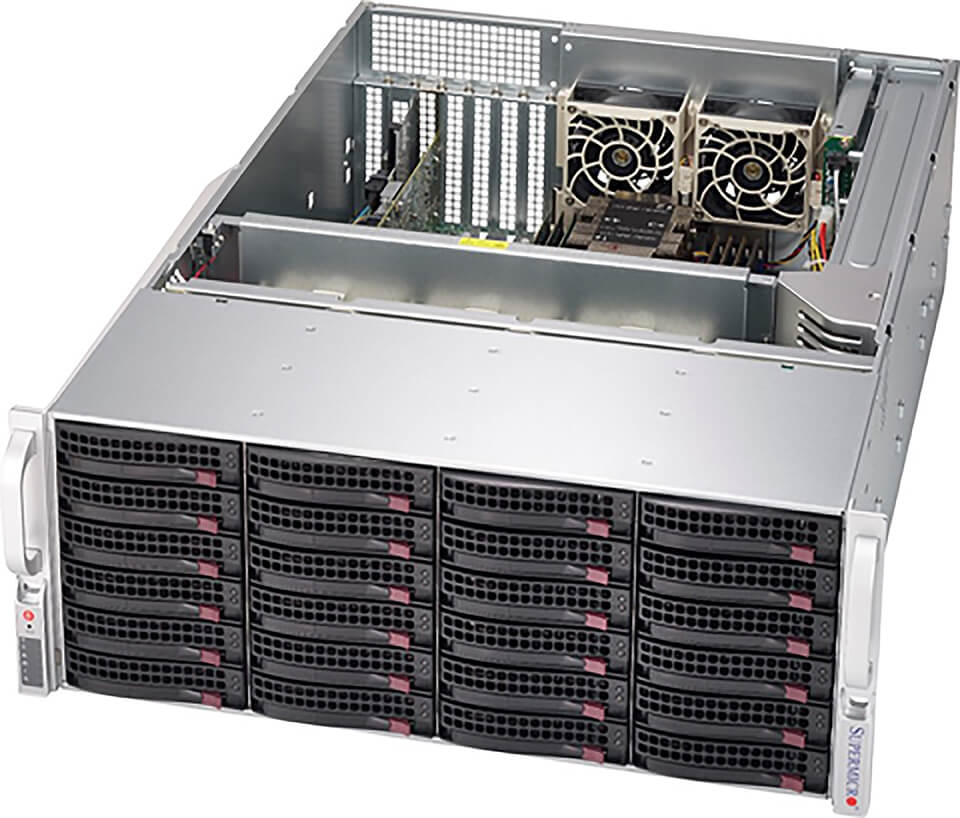

SSG-640P-E1CR24L - 4U - Storage Server
Price On Request
Content: 1 Stück
Prices plus VAT plus shipping costs
Delivery time 3-4 Weeks
- Order number: SSG-640P-E1CR24L
sysGen/SUPERMICRO Server SSG-640P-E1CR24L, Mainboard Super X12DPi-NT6... more
Product information "SSG-640P-E1CR24L - 4U - Storage Server"
sysGen/SUPERMICRO Server SSG-640P-E1CR24L, Mainboard Super X12DPi-NT6
Applications
- Enterprise Server
- iSCSI SAN
- HPC, Data Center
- Database Processing & Storage
- Corporate Database
- Density Optimized Storage Building Block
Features

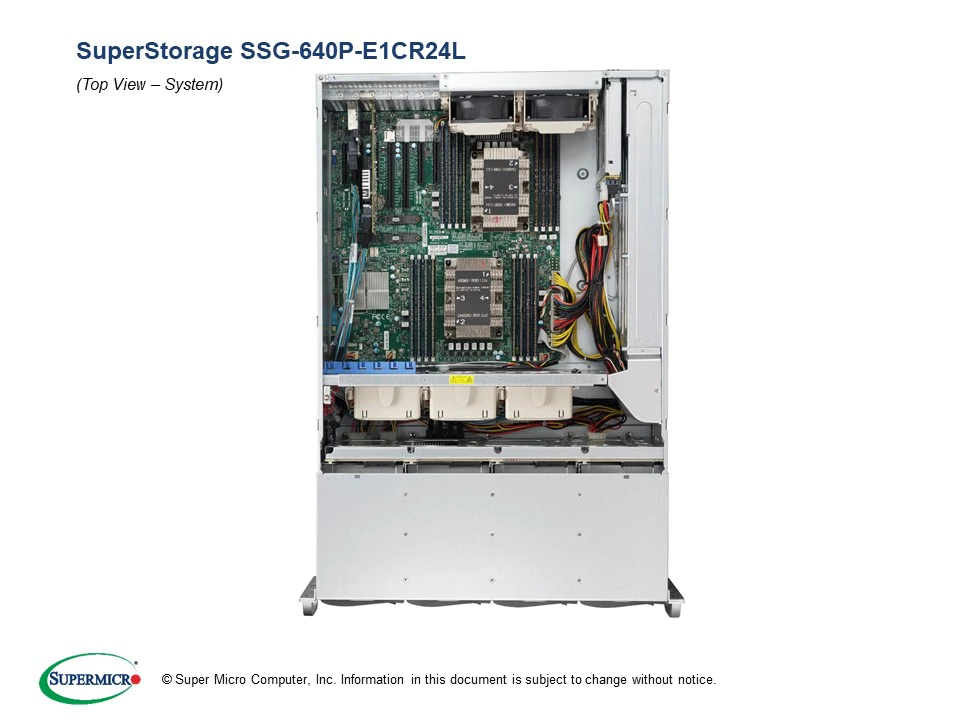

- Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
- 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots 200 series
Up to 4TB: 16x 256 GB DRAM and 8x 512 GB PMem - 4 PCI-E 4.0 x16 (LP) slots, 2 PCI-E 4.0 x8 (LP) slots;

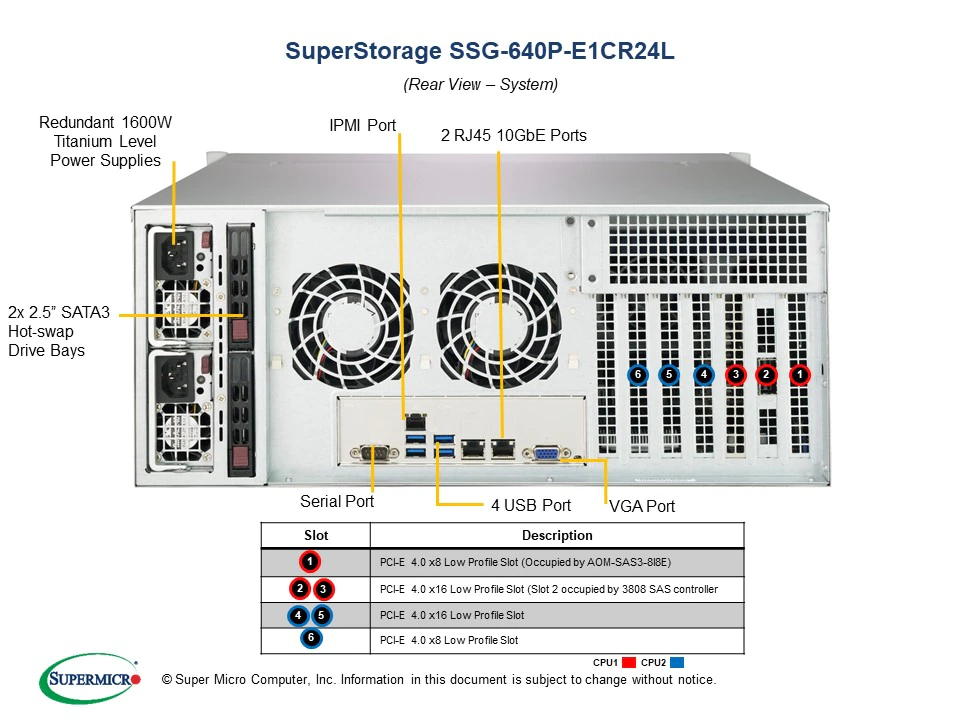

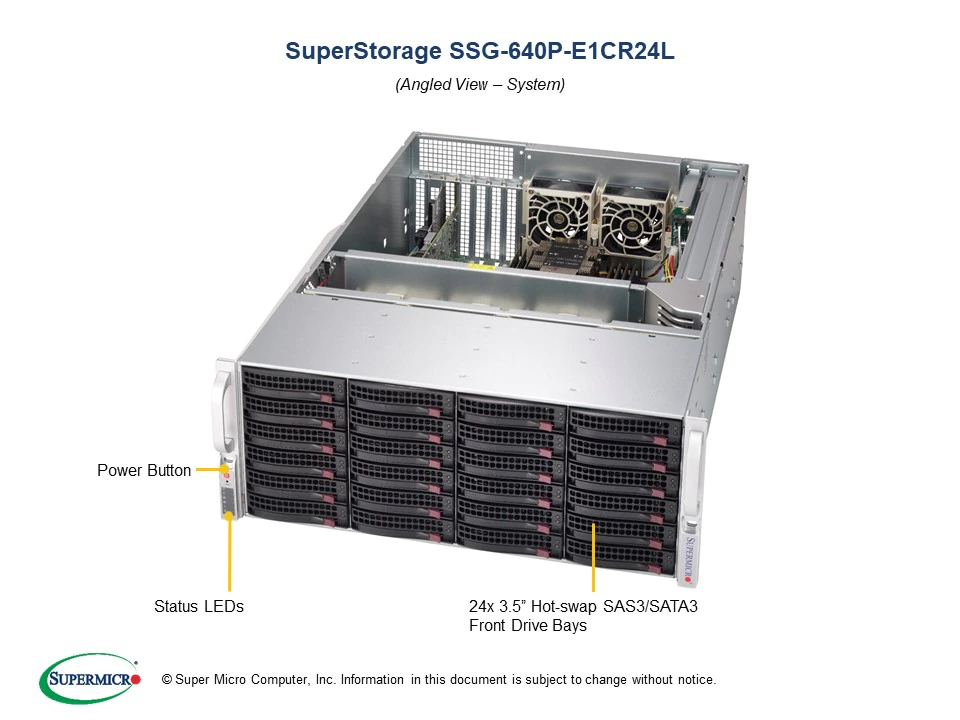

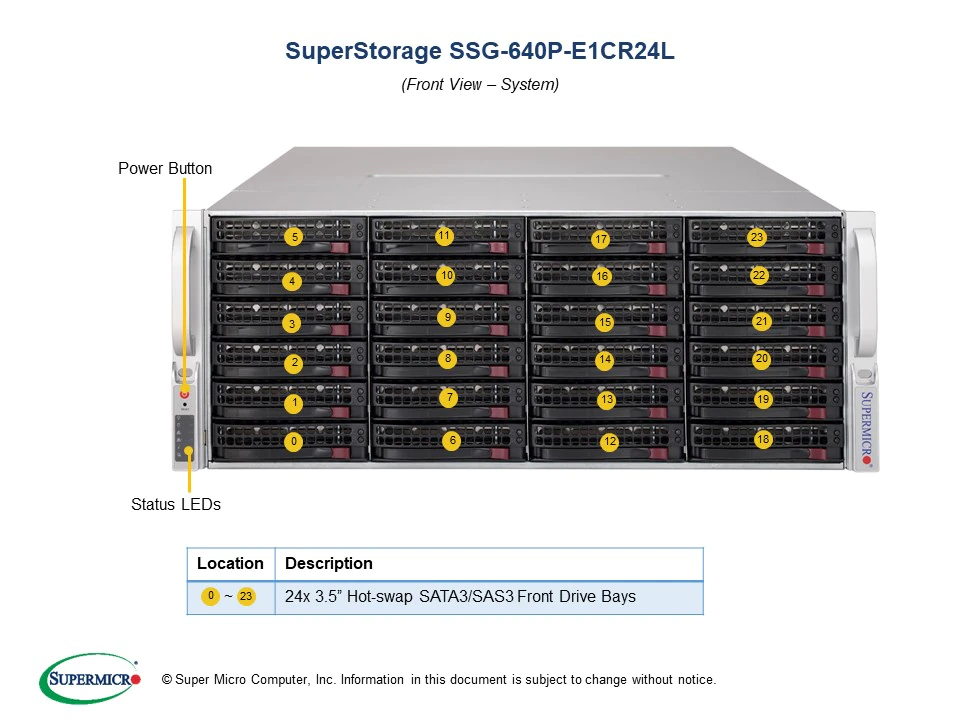

PCIe slot 1&2 are occupied by the JBOD Expansion/Storage Controller - 24 3.5"/2.5" Hot-swap SAS3/SATA3 drives, 2x Rear SATA Slots,
1x SATA/NVMe M.2 (form factor: 2280 and 22110) - 2x 10GbE BaseT with Intel® X550
- Redundant Titanium 1200W Power Supply
| Applications: | Backup Storage, Data Center, HPC |
| Case Depth: | 26.5" (673mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 16 DIMMs |
| Drive Bays Form Factor: | 2.5", 3.5", M.2 |
| SSDs/HDDs: | 26 |
| Form Factor: | 4U |
| Max. GPU Count: | N/A |
| On-board Network: | 10GBase-T |
| PCIe Slots: | 6 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | NVMe (optional), SAS (native), SATA (native) |
| System Type: | Storage Server |
Related links to "SSG-640P-E1CR24L - 4U - Storage Server"
Properties: "SSG-640P-E1CR24L - 4U - Storage Server"
| Applications: | Backup Storage, Data Center, HPC |
| Case Depth: | 26.5" (673mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 16 DIMMs |
| Drive Bays Form Factor: | 2.5", 3.5", M.2 |
| SSDs/HDDs: | 26 |
| Form Factor: | 4U |
| Max. GPU Count: | N/A |
| On-board Network: | 10GBase-T |
| PCIe Slots: | 6 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | NVMe (optional), SAS (native), SATA (native) |
| System Type: | Storage Server |
Related links to "SSG-640P-E1CR24L - 4U - Storage Server"
