SYS-420GP-TNAR - 4U - HGX A100 8x 80GB - Server
Prices plus VAT plus shipping costs
Delivery time on request
- Order number: SYS-420GP-TNAR-80GB

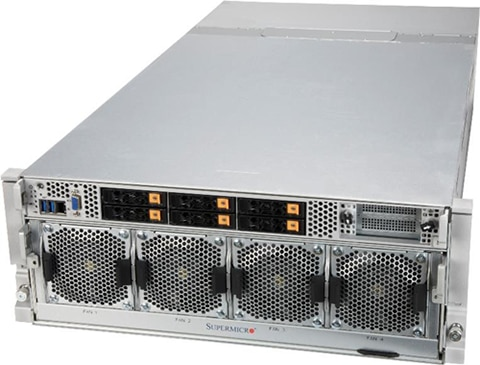

sysGen/SUPERMICRO SYS-420GP-TNAR - 4U - NVIDIA HGX A100 8x 80GB - Server, Mainboard Super X12DGO-6 / 4U Rackmountable CSE-438G
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, minimum of 1TB Memory (2TB highly recommended) for 80GB HGX-8 A100 OR minimum of 512GB Memory for 40GB HGX-8 A100, 1 Storage device, and 1 NIC).
Applications
- High Perfomance Computing
- AI / Deep LearningTraining
Features
- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors

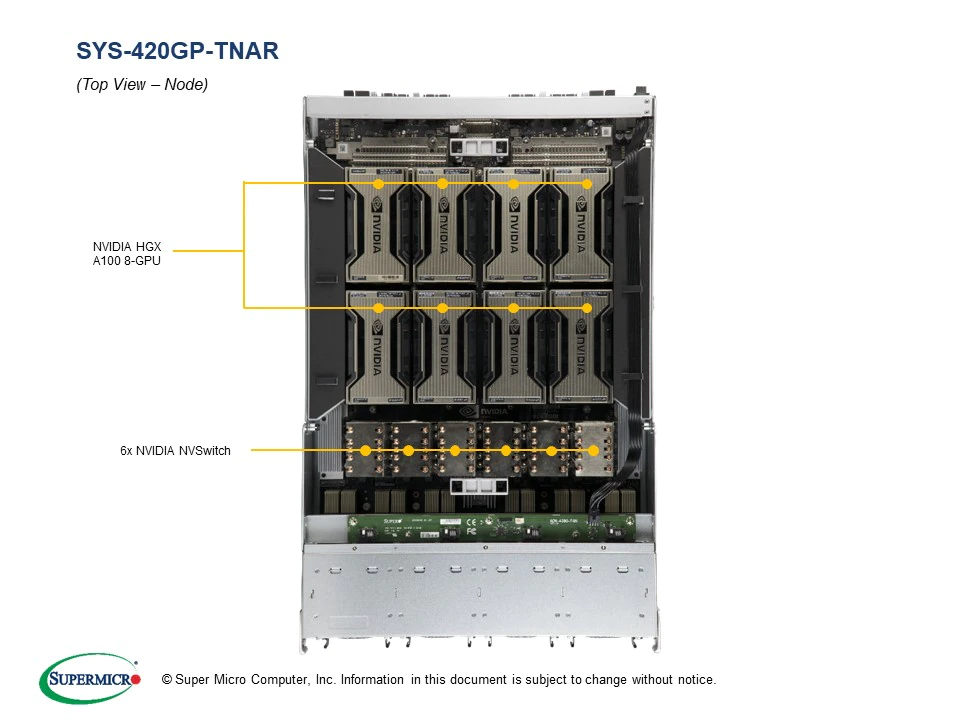

- HGX A100 8-GPUs 80GB

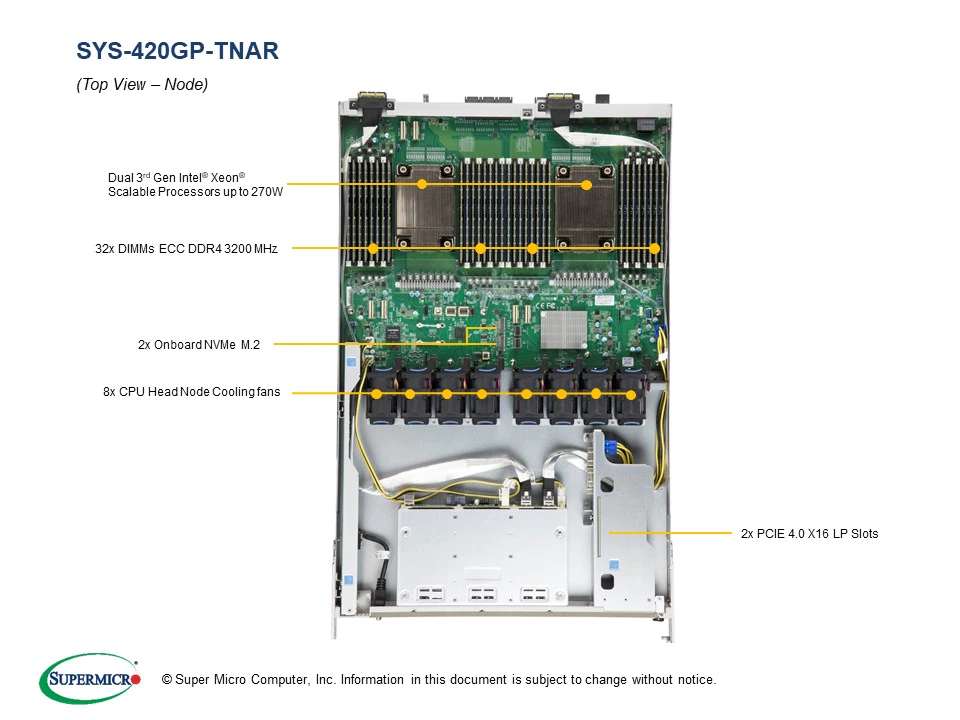

- 32 DIMM Slots up to 8TB DRAM ECC DDR4 LRDIMM/RDIMM;
Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
Intel® Optane™ Persistent Memory 200 series - Intel® C621A Chipset

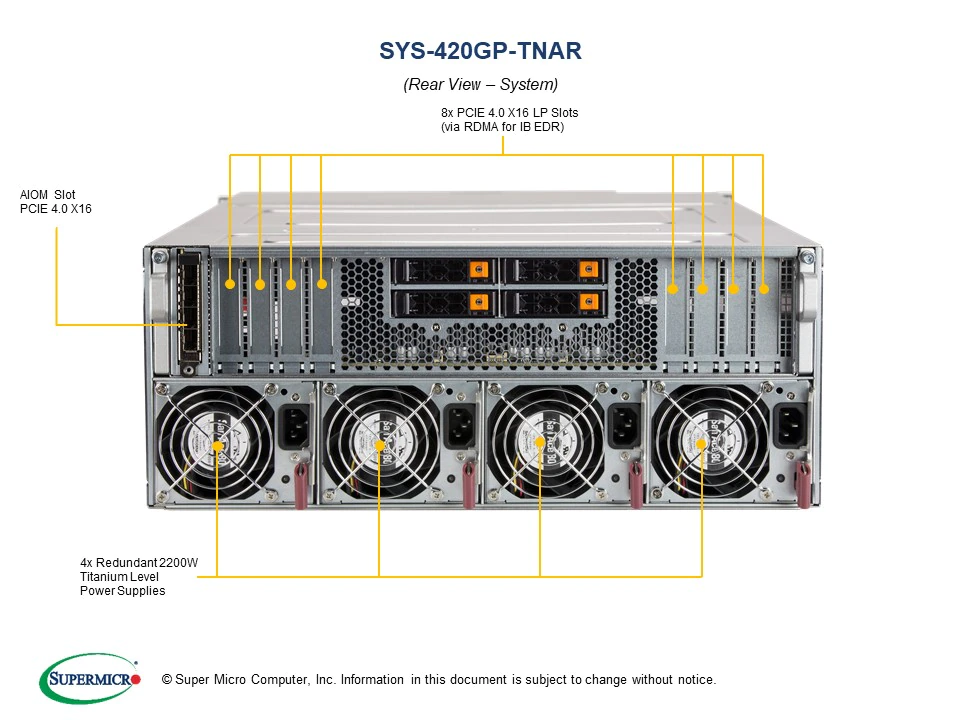

- 10 PCI-E Gen 4.0 X16 LP Slots
AIOM/OCP 3.0 Support - Flexible networking options
- 2 M.2 NVMe and SATA for boot drive only

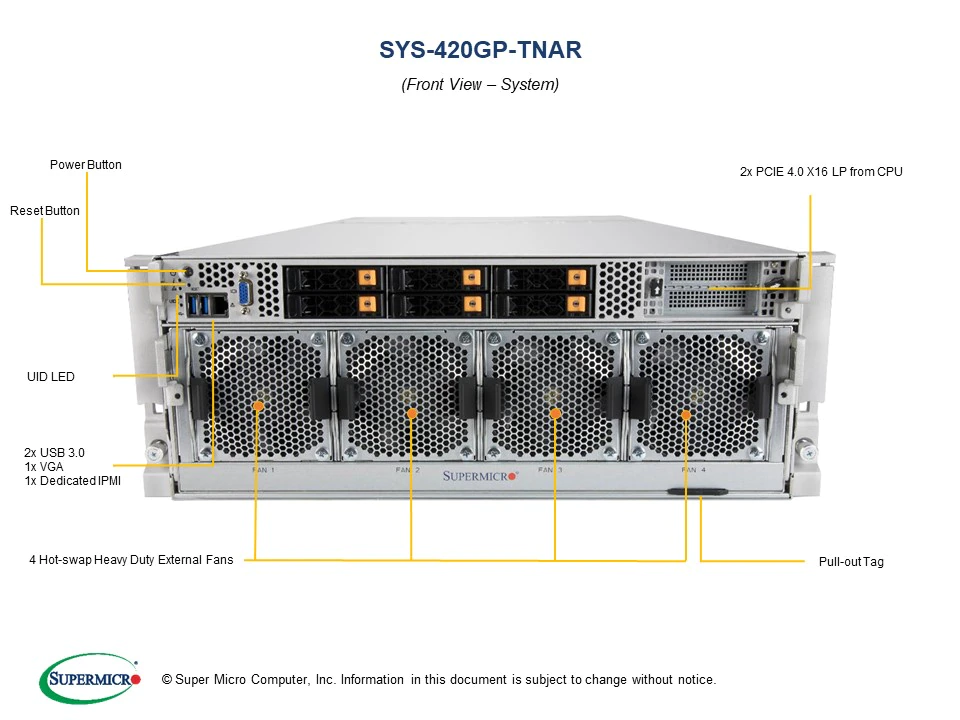

6x 2.5" Hot-swap NVMe/SATA/SAS drive bays - 4 heavy duty fans with optimal fan speed control
- 4x 2200W redundant Titanium level power supplies
| Applications: | AI / Deep Learning, HPC |
| Case Depth: | 35.4" (900mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 32 DIMMs |
| Drive Bays Form Factor: | 2.5", M.2 |
| SSDs/HDDs: | 6 |
| Form Factor: | 4U |
| GPU Type: | NVLink SXM4 |
| Max. GPU Count: | 8 GPUs |
| On-board Network: | N/A |
| PCIe Slots: | 10 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only, NVIDIA HGX™ A100 |
| Storage Interface: | NVMe (native), SAS (native), SATA (native) |
| System Type: | GPU Server, Super Server |
| Applications: | AI / Deep Learning, HPC |
| Case Depth: | 35.4" (900mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 32 DIMMs |
| Drive Bays Form Factor: | 2.5", M.2 |
| SSDs/HDDs: | 6 |
| Form Factor: | 4U |
| GPU Type: | NVLink SXM4 |
| Max. GPU Count: | 8 GPUs |
| On-board Network: | N/A |
| PCIe Slots: | 10 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only, NVIDIA HGX™ A100 |
| Storage Interface: | NVMe (native), SAS (native), SATA (native) |
| System Type: | GPU Server, Super Server |
