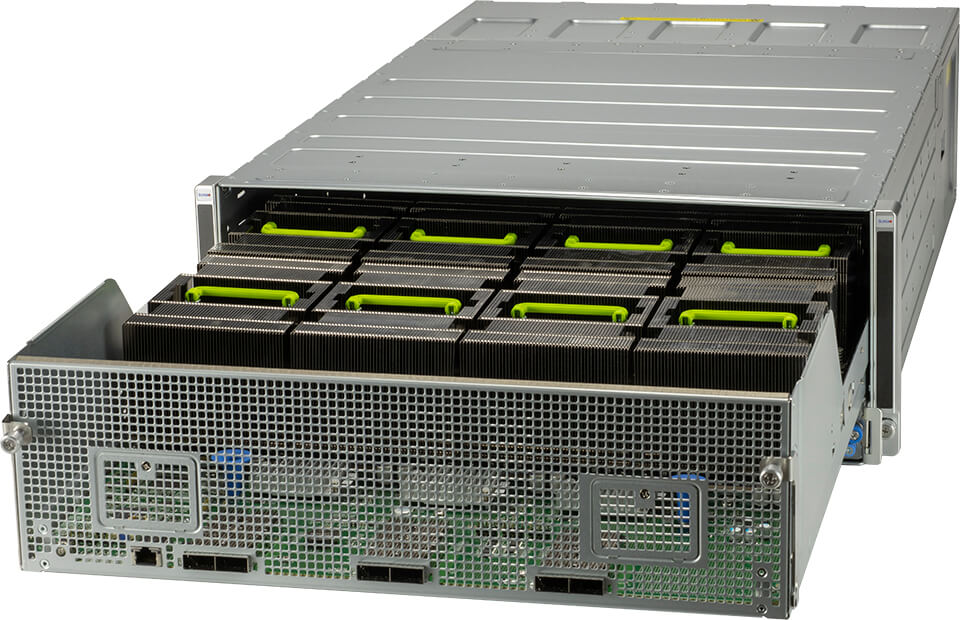

SYS-420GH-TNGR - 4U - 8x Habana Gaudi HL-205 AI Processors
- Order number: SYS-420GH-TNGR
sysGen/SUPERMICRO Server SYS-420GH-TNGR, Mainboard Super X12DPG-U6... more
Product information "SYS-420GH-TNGR - 4U - 8x Habana Gaudi HL-205 AI Processors"
sysGen/SUPERMICRO Server SYS-420GH-TNGR, Mainboard Super X12DPG-U6
Complete System Only: Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 16 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC).
Applications
- Computer Vision
- Natural Language Processing
- Purpose Built for AI/Deep Learning Training
Features
- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors

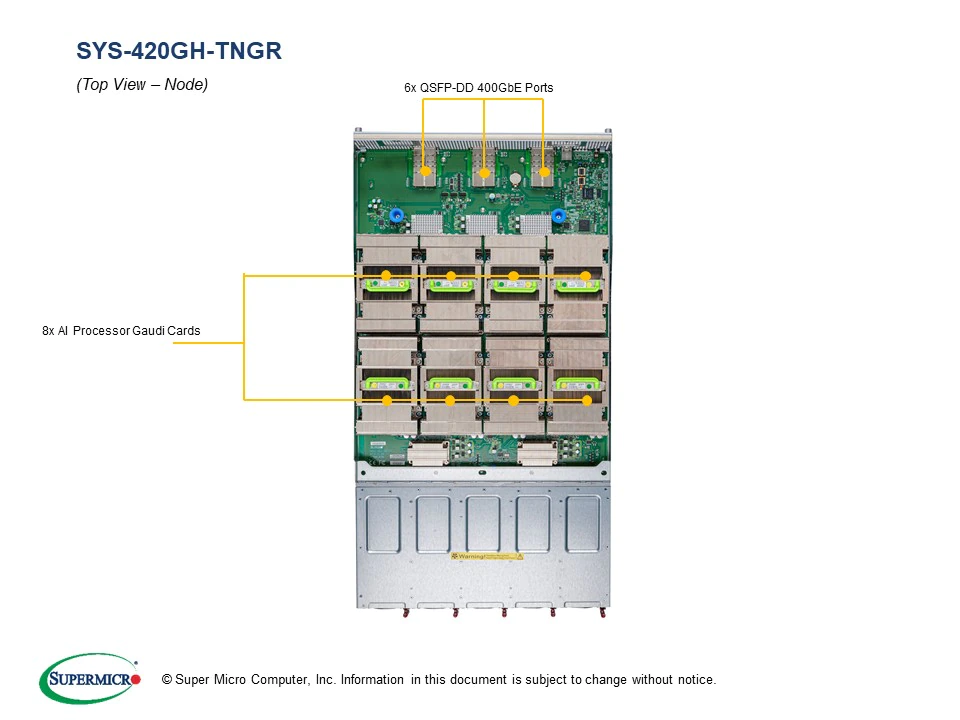

- High Density 4U System supporting 8x Habana Gaudi HL-205 AI Processors
(supported via included carrier board HGI-MEZZ) - 32 DIMM Slots up to 8TB DRAM ECC DDR4 LRDIMM/RDIMM
- 24x on-board 100GbE RDMA (via 6x QSFP-DDs) for scale-out
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support - 1x PCI-E 4.0 x16 FHHL slot + 2x PCI-E 4.0 AIOM (OCP 3.0 superset) slots
- 2 M.2 NVMe OR 2 M.2 SATA3
4x 2.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe hybrid) - 5 removable heavy-duty Fan(s)

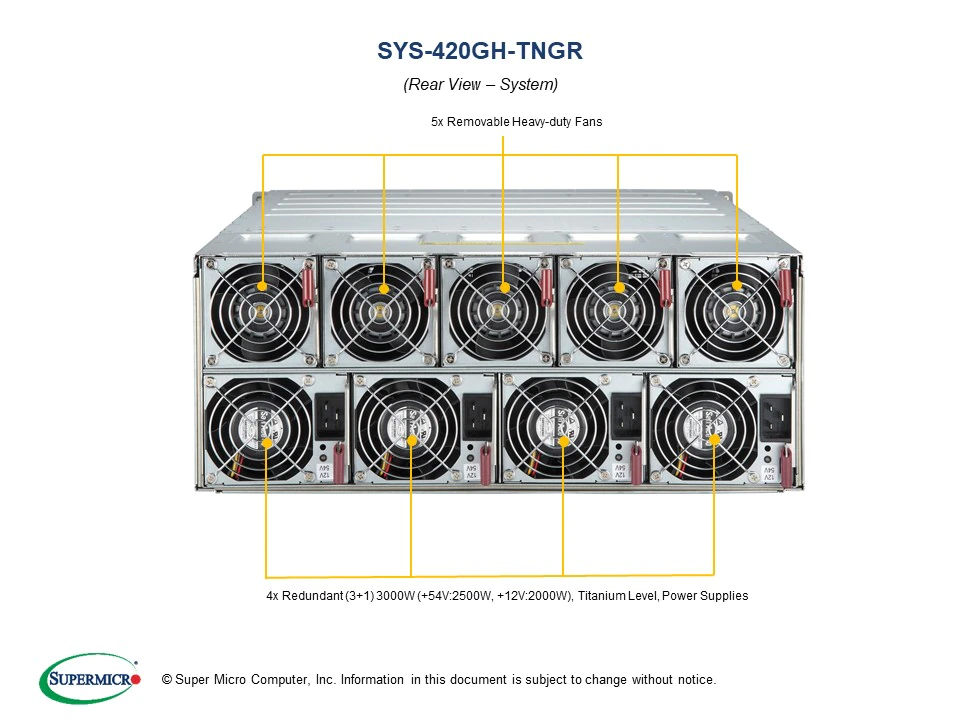

- 4x 3000W Redundant Power Supplies, Titanium Level
| Applications: | AI / Deep Learning, HPC |
| Case Depth: | 32" (813mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 32 DIMMs |
| Drive Bays Form Factor: | 2.5", M.2 |
| SSDs/HDDs: | 4 |
| Form Factor: | 4U |
| GPU Type: | Habana Gaudi HL-205 |
| Max. GPU Count: | 8 GPUs |
| On-board Network: | 10GBase-T, 100GbE QSFP-DDs |
| PCIe Slots: | 1 PCIe Slot |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (native), SAS (native), SATA (native) |
| System Type: | GPU Server, Super Server |
Related links to "SYS-420GH-TNGR - 4U - 8x Habana Gaudi HL-205 AI Processors"
Properties: "SYS-420GH-TNGR - 4U - 8x Habana Gaudi HL-205 AI Processors"
| Applications: | AI / Deep Learning, HPC |
| Case Depth: | 32" (813mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 32 DIMMs |
| Drive Bays Form Factor: | 2.5", M.2 |
| SSDs/HDDs: | 4 |
| Form Factor: | 4U |
| GPU Type: | Habana Gaudi HL-205 |
| Max. GPU Count: | 8 GPUs |
| On-board Network: | 10GBase-T, 100GbE QSFP-DDs |
| PCIe Slots: | 1 PCIe Slot |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (native), SAS (native), SATA (native) |
| System Type: | GPU Server, Super Server |
Related links to "SYS-420GH-TNGR - 4U - 8x Habana Gaudi HL-205 AI Processors"
