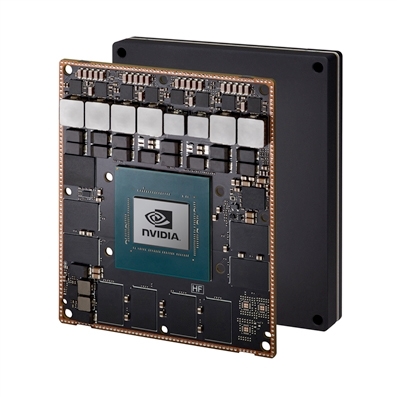

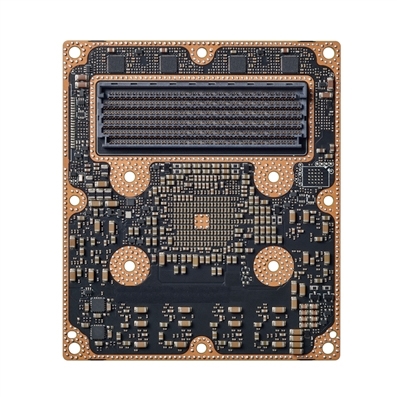

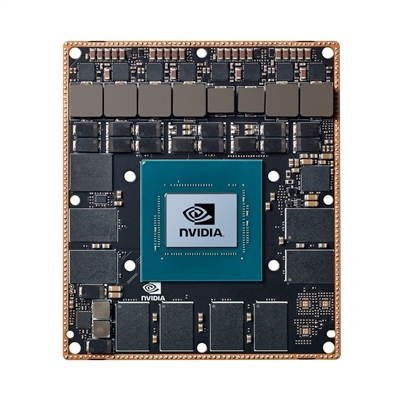

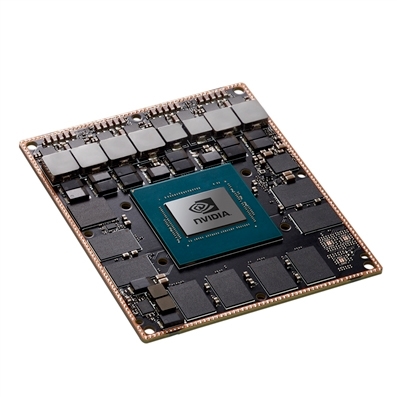

NVIDIA JETSON AGX XAVIER MODULE 32GB
- Order number: NVIDIA JETSON AGX XAVIER MODULE 32GB - 900-82888-0040-000
The NVIDIA Jetson AGX Xavier delivers up to 32TOPS of accelerated computing capability in a compact form factor consuming under 30 watts.
This advanced system-on-module is powered by the NVIDIA Xavier SoC, it is designed for cost-effective and performance-driven autonomous machine applications. Heterogeneous accelerated computing architecture delivers advanced compute performance and allows AI at the edge. It comes with integrated memory, storage, power management, and an innovative thermal design to enable faster time to market. The Jetson AGX Xavier is able to run modern AI workloads and solve problems in optical inspection, manufacturing, robotics, logistics, retail, service, agriculture, smart cities, and healthcare.
Jetson AGX Xavier is supported by the NVIDIA JetPack SDK, which includes board support package (BSP), Linux OS, NVIDIA CUDA, cuDNN, and TensorRT software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. It’s also supported by the NVIDIA DeepStream SDK, which delivers a complete toolkit for real-time situational awareness through intelligent video analytics (IVA) and NVIDIA Isaac SDK, which delivers a software toolkit for robot development. These helps boost performance and accelerate software development, while reducing development cost and effort.
Features:
- Module
- 512-Core NVIDIA Volta GPU with Tensor Cores
- (2x) NVDLA Engines
- 8-Core ARM v8.2 64-Bit Carmel CPU
- 32GB 256-Bit LPDDR4x| 136.5GB/s
- 32 GB eMMC 5.1 Flash Storage
- 7-Way VLIW Vision Accelerator Processor
- Voltage input 5 V, 9 V~20 V
- Module Power: 10 W~30 W
Environment
- Operating temperature: -25 C to 80 C measured on the TTP surface
- Storage temperature: -25 C to 80 C
- Humidity: 95% RH, -10 C to 65 C (non-operational)
- Vibration: 5 G RMS 10 to 500 Hz (random/ sinusoidal)
- Shock: 50 G, half sine 11 ms duration
| Jetson CPU: | 8-Core ARM v8.2 64-Bit CPU, 8 MB L2 + 4 MB L3 |
| Jetson Memory: | 32GB 256-Bit LPDDR4x| 136.5GB/s |
| Jetson Data Storage: | 32 GB eMMC 5.1 |
| Jetson GPU: | 512-Core Volta GPU with Tensor Cores |
| Jetson PCIe: | (8x) PCIe Gen4 / (8x) SLVS-EC (3x) USB 3.1, Single Lane UFS |
| Jetson Connectivity: | Gigabit Ethernet |
| Jetson Display: | HDMI 2.0, eDP 1.4, DP 1.2(three simultaneous) |
| Jetson Encoder/Decoder: | 2x 8K30|6x 4Kp60| 12x 4Kp30| 26x 1080p60| 72x 1080p30 (HEVC), 4x4K60|8x 4Kp30|16x 1080p60| 32x 1080p30(HEVC) |
| Jetson Vision Accelerator: | 7-Way VLIW Vision Processor |
| Jetson DL Accelerator: | (2x) NVDLA Engines |
| Jetson CSI: | 16(4x4 or 6x2or 6x1) lanes MIPI CSI-2 D-PHY 1.2 (total up to 40Gbps) C-PHY 1.1 (total up to 59Gbps |
| Jetson Size: | 87 mm x 100 mm |
| Jetson Power: | 10 W~30 W |
| Jetson Mechanical: | 699 pin Molex Mirror Mex Connector Integrated Thermal Transfer Plate |
| Jetson Miscellaneous: | UART, SPI, CAN, I2 C, I2 S, DMIC, GPIOs |
| Jetson CPU: | 8-Core ARM v8.2 64-Bit CPU, 8 MB L2 + 4 MB L3 |
| Jetson Memory: | 32GB 256-Bit LPDDR4x| 136.5GB/s |
| Jetson Data Storage: | 32 GB eMMC 5.1 |
| Jetson GPU: | 512-Core Volta GPU with Tensor Cores |
| Jetson PCIe: | (8x) PCIe Gen4 / (8x) SLVS-EC (3x) USB 3.1, Single Lane UFS |
| Jetson Connectivity: | Gigabit Ethernet |
| Jetson Display: | HDMI 2.0, eDP 1.4, DP 1.2(three simultaneous) |
| Jetson Encoder/Decoder: | 2x 8K30|6x 4Kp60| 12x 4Kp30| 26x 1080p60| 72x 1080p30 (HEVC), 4x4K60|8x 4Kp30|16x 1080p60| 32x 1080p30(HEVC) |
| Jetson Vision Accelerator: | 7-Way VLIW Vision Processor |
| Jetson DL Accelerator: | (2x) NVDLA Engines |
| Jetson CSI: | 16(4x4 or 6x2or 6x1) lanes MIPI CSI-2 D-PHY 1.2 (total up to 40Gbps) C-PHY 1.1 (total up to 59Gbps |
| Jetson Size: | 87 mm x 100 mm |
| Jetson Power: | 10 W~30 W |
| Jetson Mechanical: | 699 pin Molex Mirror Mex Connector Integrated Thermal Transfer Plate |
| Jetson Miscellaneous: | UART, SPI, CAN, I2 C, I2 S, DMIC, GPIOs |
