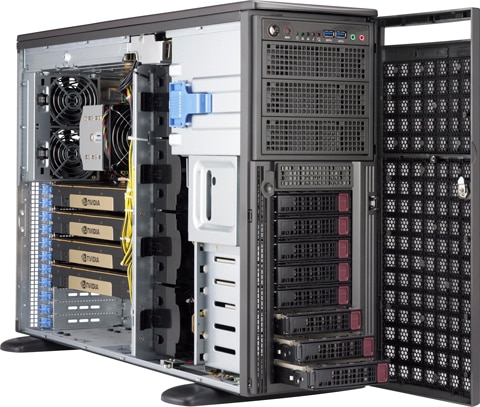

SYS-540A-TR - FULL TOWER
Price On Request
Content: 1 Stück
Prices plus VAT plus shipping costs
Delivery time 3-4 Weeks
- Order number: SYS-540A-TR
sysGen/SUPERMICRO SYS-540A-TR , includes: Mainboard Super X12SPA-TF / Full... more
Product information "SYS-540A-TR - FULL TOWER"
sysGen/SUPERMICRO SYS-540A-TR, includes:

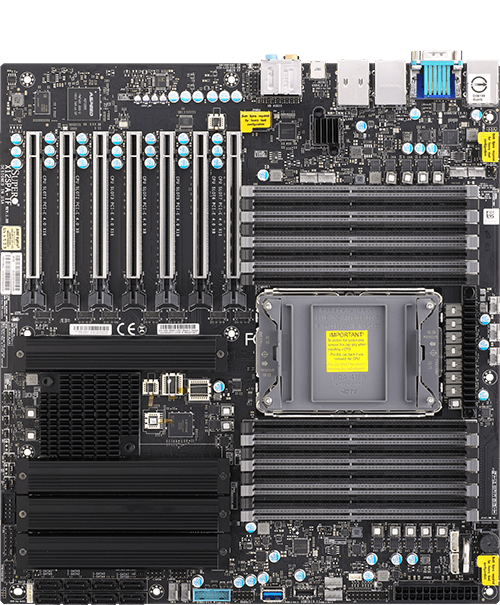

Mainboard Super X12SPA-TF / Full Tower CSE-747BTS-R2K20BP
- Deep Learning / AI / Machine Learning
- Development
- Supports 3rd Gen Intel® Xeon® Scalable or Xeon® W-3300 Processors with TDP up to 270W
- 7 PCI-E 4.0 Slots
- 1x 10GBase-T, 1x 1GbE, and dedicated IPMI LAN ports
- 3x 12cm PWM Fans
- 4x 92mm hot-swap fan(s) 2x 80mm rear hot-swap exhaust PWM fan(s)
- 2200W Redundant (1+1) Power Supplies Titanium Level Certified
| Applications: | AI / Deep Learning, Machine Learning |

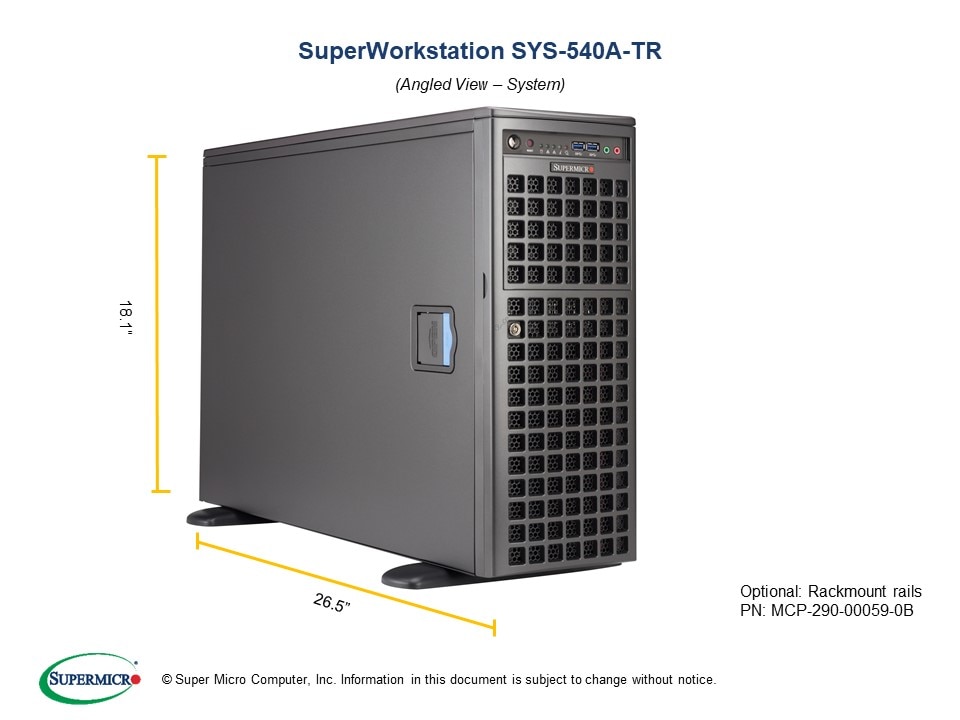

| Case Depth: | 26.5" (673mm) |
| CPU Socket: | Single Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 16 DIMMs |
| Drive Bays Form Factor: | 3.5", 5.25, M.2 |
| SSDs/HDDs: | 8 Drives |
| Form Factor: | Tower |
| Max. GPU Count: | 3 GPUs |
| On-board Network: | 1GBase-T, 10GBase-T |
| PCIe Slots: | 7 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | NVMe (optional), SAS (optional), SATA (native) |
| System Type: | Super Server, Workstation |
Related links to "SYS-540A-TR - FULL TOWER"
Properties: "SYS-540A-TR - FULL TOWER"
| Applications: | AI / Deep Learning, Machine Learning |
| Case Depth: | 26.5" (673mm) |
| CPU Socket: | Single Socket |
| CPU Type: | Intel Xeon Scalable Ice Lake (3.Gen) |
| DIMM Slots: | 16 DIMMs |
| Drive Bays Form Factor: | 3.5", 5.25, M.2 |
| SSDs/HDDs: | 8 Drives |
| Form Factor: | Tower |
| Max. GPU Count: | 3 GPUs |
| On-board Network: | 1GBase-T, 10GBase-T |
| PCIe Slots: | 7 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | NVMe (optional), SAS (optional), SATA (native) |
| System Type: | Super Server, Workstation |
Related links to "SYS-540A-TR - FULL TOWER"
Request form
Do you need further information, personal advice or a quotation? Please use our Request Form or alternatively our other request forms:
NVIDIA DGX Server Storage GPU/Workstation HPC
We thank you in advance for your interest in our products, services and solutions and will contact you as soon as possible.
