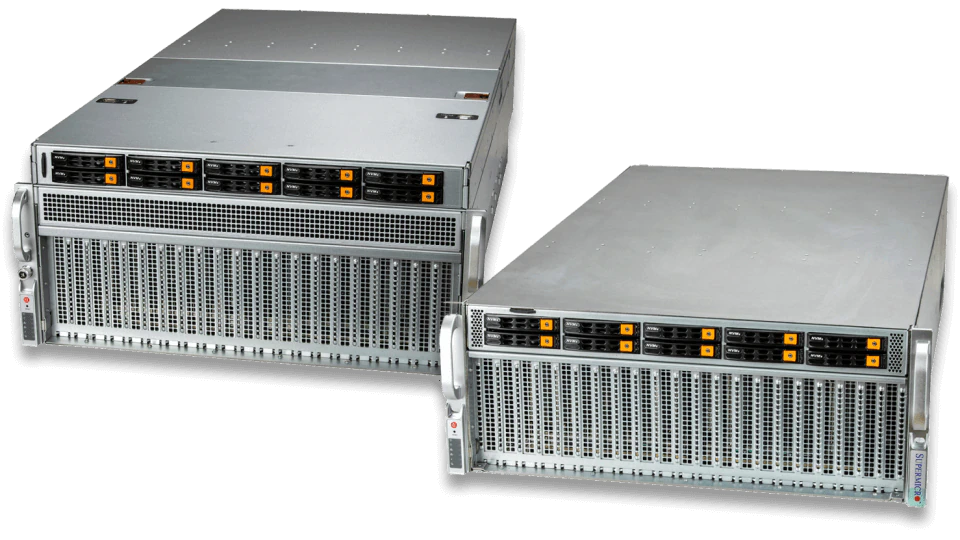

Supermicro’s Universal GPU System is the industry’s most advanced and flexible GPU server platform in the market today. Designed for large-scale AI deep learning and HPC workloads, this modular, standards-based platform supports the best available GPU technologies in a variety of form factors and combinations both today and into the future.
Supermicro Server
  • Dual 3rd Gen Intel® Xeon® Scalable or AMD EPYC™ 7003 Series processors
  • Supports a range of industry-standard GPU form factors
  • Modular design for maximum flexibility
  • 4U chassis supports up to 10x 2.5” NVMe/SATA drives
  • Optional 1U expansion module for improved thermal capacity up to 700W GPUs and 2 additional AIOM/PCIe slots

Supports Industry-Standard GPU Form Factors

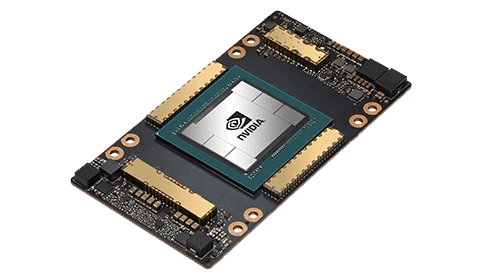

NVIDIA HGX

NVIDIA hGX

4 NVIDIA HGX A100 4-GPU (SXM4)with NVLink GPU-to GPU interconnect

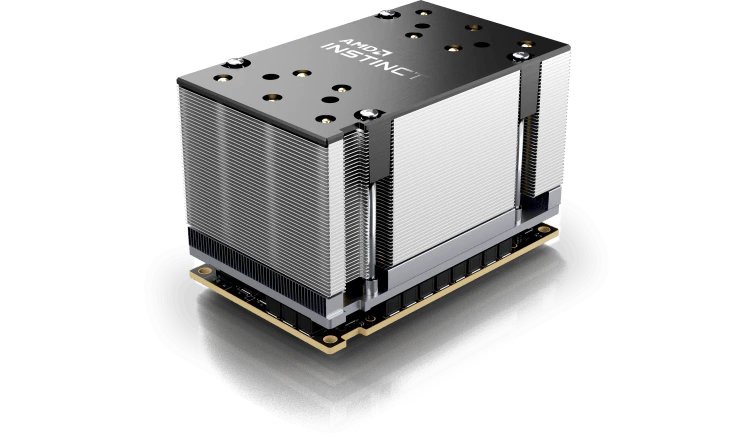

AMD Instinct

amd iNSTINCT™ AND OAM

4 AMD Instinct MI250 OAM Accelerators ​​​​​​​with AMD Infinity Fabric™ GPU-to-GPU interconnect

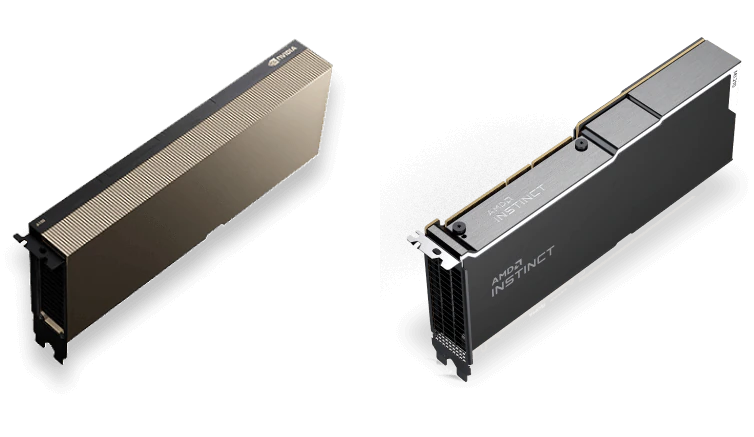

PCIe GPU Cards

PCIe

Up to 10 full-width PCI-E 4.0 x16 GPUs

​​​​​​​PROCESSOR
Dual AMD EPYC™ 7003 Series processors
Dual 3rd Gen Intel® Xeon® Scalable processors
​​​​​​​RAM​​​​​​​
32 DIMMs; up to 8TB Registered ECC DDR4-3200MHz
32 DIMMs; up to 8TB Registered ECC DDR4-3200MHz
or ​​​​​​​12TB with Intel® Optane® Persistent Memory
STORAGE
10x 2.5” U.2 NVMe or 2.5” SATA drive bays
10x 2.5” U.2 NVMe or 2.5” SATA drive bays
SUPPORTED GPUs
AMD Instinct™ 4-GPU MI250 OAM Accelerator
NVIDIA HGX™ A100 4-GPU SXM4 Multi-GPU Board
​​​​​​​PCI-E
8x PCI-E 4.0 x16 slots (low-profile)
8x PCI-E 4.0 x16 slots (low-profile)
EXPANSION OPTIONS
Optional 1U expansion module for up to 700W GPUs
​​​​​​​ and 2 additional AIOM/PCIe slots
Optional 1U expansion module for up to 700W GPUs
​​​​​​​ and 2 additional AIOM/PCIe slots
POWER SUPPLY
4x 3000W Titanium Level redundant power supplies
4x 3000W Titanium Level redundant power supplies
