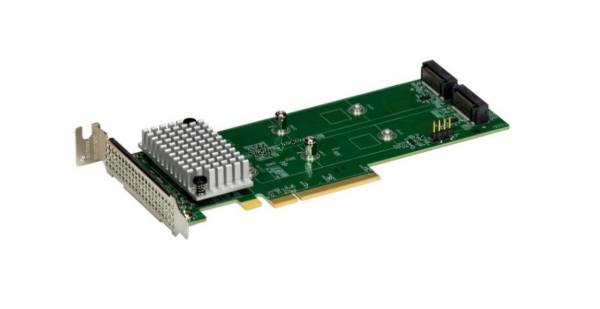

AOC-SLG4-2H8M2 - 2x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier
- Order number: AOC-SLG4-2H8M2-O
Technical Specifications General Broadcom® SAS3808 I/O RAID Controller PCIe Gen4... more
Product information "AOC-SLG4-2H8M2 - 2x Hybrid Gen 4 NVMe/SATA M.2 RAID 0/1 Carrier"
Technical Specifications
General
- Broadcom® SAS3808 I/O RAID Controller
- PCIe Gen4 x8 Host interface
- Dual M-Key sockets (for two M.2 SSD)
- Adjustable stand-offs supporting 22110, 2280, and 2242 M.2 SSD form factors
- Support NVMe Gen 4 (16 Gbps) M.2 modules and SATA Gen 3 (6 Gbps) M.2 modules
- Supports RAID 0 and RAID 1
- Support MCTP over PCIe/I2C, BMC-enabled management, Secure Erase.
- Support Hardware Secure Boot
- Support on-board LEDs for SSD Activity and Status
- UEFI Configuration utility
- Thermal operating range: System dependent (55°C or higher with enough airflow)
OS Support
- Windows, Linux, and VMWare
