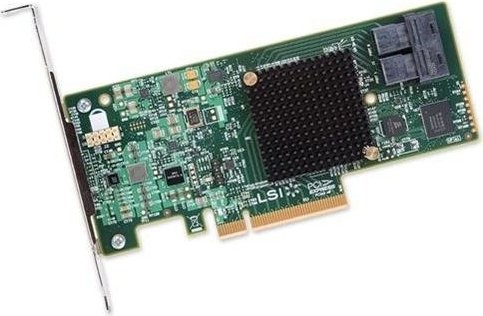

Broadcom SAS HBA 9300-8i - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8

Broadcom SAS HBA 9300-8i - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8
Price On Request
Content: 1 Stück

Prices plus VAT plus shipping costs


  • H5-25573-00
Overview The LSI®  PCI Express®  (PCIe® )-to-Serial Attached SCSI (SAS)... more
Product information "Broadcom SAS HBA 9300-8i - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8"


The LSI® PCI Express® (PCIe®)-to-Serial Attached SCSI (SAS) host bus adapter (HBA), referred to as the LSI 12Gb/s SAS HBA, provides high-performance internal storage connectivity for servers and workstations. The LSI 12Gb/s SAS HBA provides eight lanes of 12Gb/s SAS connectivity and is matched with eight lanes of PCIe 3.0 8Gb/s performance. The low-profile design of the SAS HBA includes a full-height bracket and low-profile mounting bracket that create a universal fit for any server. The LSI 12Gb/s SAS HBA is based on the Fusion-MPT™-architected LSI SAS 3008 controller that integrates the latest enhancements in PCIe 3.0 technology and 12Gb/s SAS technology. The LSI 12Gb/s SAS HBA has onboard Flash memory for the firmware, and BIOS and NVSRAM for RAID support (RAID 0, RAID 1, RAID 10, and RAID 1E).


  • Implements LSI SAS 3008 eight-port 12Gb/s SAS to PCIe 3.0 controller
  • Supports eight-lane, full-duplex PCIe 3.0 performance
  • Supports eight internal 12Gb/s SATA+SAS ports
  • Supports SATA link rates of 3Gb/s and 6Gb/s
  • Supports SAS link rates of 3Gb/s, 6Gb/s, and 12Gb/s
  • Provides two x4 internal mini-SAS HD connectors (SFF-8643)
  • Supports passive copper cable, active copper cable, and optical cable
  • Can upgrade to support Integrated RAID (RAID 0, RAID 1, RAID 10, and RAID 1E)
  • Supports up to 1024 SATA or SAS end devices
  • Offered with a full-height bracket and a low-profile vented bracket
  • Provides one heartbeat LED
