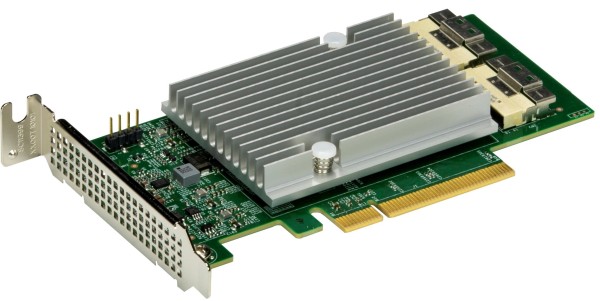

AOC-S3816L-L16IR - Supermicro 16-Port 12Gb/s SAS PCIe Gen 4.0 Internal RAID Adapter

Technical Specifications General Broadcom 3816 SAS controller, 16 internal ports,... more
Product information "AOC-S3816L-L16IR - Supermicro 16-Port 12Gb/s SAS PCIe Gen 4.0 Internal RAID Adapter"
Technical Specifications
General
- Broadcom 3816 SAS controller, 16 internal ports, 12Gb/s per port, with RAID 0, 1, and 10.
- 2x SlimSAS x8 white (85-Ohm) connector interface
- Supports up to 63 SAS/SATA physical devices with expander
- Processor at 1.6 GHz
- Supports 3.0, 6.0 and 12.0 Gb/s SAS data transfer rates and 3.0 & 6.0 Gb SATA
- Supports MCTP over PCIe/ I2C
- Supports BMC-enabled management
- Supports MegaRAID SafeStore Software (Included)
- UEFI Configuration utility
- Supports HW Secure Boot
- Thermal operating range: System dependent (55°C or higher w/ enough airflow)
OS Support
- Windows, Linux, and VMWare
PCIe: | x8 PCIe Gen 4.0 |
Form Factor: | Low Profile |
Max Physical Drives: | 16 |
Supported RAID levels : | RAID 0, 1, 10 |
Related links to "AOC-S3816L-L16IR - Supermicro 16-Port 12Gb/s SAS PCIe Gen 4.0 Internal RAID Adapter"
Properties: "AOC-S3816L-L16IR - Supermicro 16-Port 12Gb/s SAS PCIe Gen 4.0 Internal RAID Adapter"
PCIe: | x8 PCIe Gen 4.0 |
Form Factor: | Low Profile |
Max Physical Drives: | 16 |
Supported RAID levels : | RAID 0, 1, 10 |
