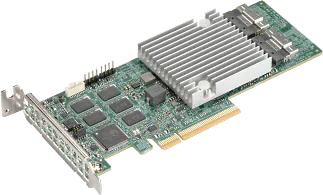

AOC-S3916L-H16IR - Supermicro 16-Port 12Gb/s Multi-Port SAS PCIe Gen 4.0 Internal RAID Adapter
Technical Specifications General 16 internal SAS3 ports, Supports up to 240 physical... more
Product information "AOC-S3916L-H16IR - Supermicro 16-Port 12Gb/s Multi-Port SAS PCIe Gen 4.0 Internal RAID Adapter"
Technical Specifications
General
- 16 internal SAS3 ports, Supports up to 240 physical devices with expander
- 2x SlimSAS x8 black (100-Ohm) connectors
- Low profile x8 PCIe Gen 4.0 root complex interface
- Supports RAID 0, 1, 5, 6, 10, 50, 60
- 8GB DDR4 onboard cache memory – 2666MHz
- Power consumption: 18 Watts
- Supports 3.0, 6.0 and 12.0 Gb/s SAS data transfer rates and 3.0 & 6.0 Gb SATA
- Support for MCTP over PCIe
- Cachevault to protect onboard cache memory
- Supercap - BTR-CVPM05 (Optional)
- TFM – Included on-board
- Supports advanced software Encryption - included
- Supports in LSA Storage Authority Software WebGUI
- Secure boot
- UEFI Configuration utility
- Dimensions: 2.71" x 6.6" (H x L)
- Thermal operating range: System dependent (55°C or higher with enough airflow)
OS Support
- Windows/Linux
| PCIe: | , x8 PCIe Gen 4.0 |
| Max TDP: | 18 W |
| Form Factor: | Low Profile |
| Supported RAID levels : | RAID 0, 1, 5, 6, 10, 50 and 60. |
Related links to "AOC-S3916L-H16IR - Supermicro 16-Port 12Gb/s Multi-Port SAS PCIe Gen 4.0 Internal RAID Adapter"
Properties: "AOC-S3916L-H16IR - Supermicro 16-Port 12Gb/s Multi-Port SAS PCIe Gen 4.0 Internal RAID Adapter"
| PCIe: | , x8 PCIe Gen 4.0 |
| Max TDP: | 18 W |
| Form Factor: | Low Profile |
| Supported RAID levels : | RAID 0, 1, 5, 6, 10, 50 and 60. |
