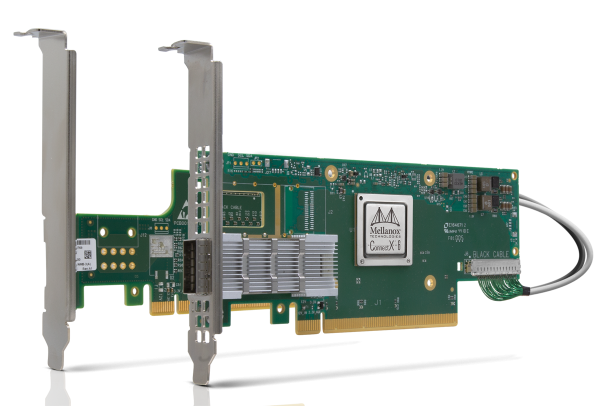

MCX614105A-VCAT - ConnectX®-6 EN adapter card kit, 200GbE, single-port QSFP56

MCX614105A-VCAT - ConnectX®-6 EN adapter card kit, 200GbE, single-port QSFP56
1,457.77€ *
Content: 1 Stück

Prices plus VAT plus shipping costs




  • MCX614105A-VCAT
Features   Up to 200GbE connectivity per port Maximum bandwidth of 200Gb/s Up to... more
Product information "MCX614105A-VCAT - ConnectX®-6 EN adapter card kit, 200GbE, single-port QSFP56"

Features



  • Up to 200GbE connectivity per port
  • Maximum bandwidth of 200Gb/s
  • Up to 215 million messages/sec
  • Sub 0.8usec latency
  • Block-level XTS-AES mode hardware encryption
  • Optional FIPS-compliant adapter card
  • Support both 50G SerDes (PAM4) and 25G SerDes (NRZ) based ports
  • Best-in-class packet pacing with sub-nanosecond accuracy
  • PCIe Gen4/Gen3 with up to x32 lanes
  • RoHS compliant
  • ODCC compatible

Benefits

  • Most intelligent, highest performance fabric for compute and storage infrastructures
  • Cutting-edge performance in virtualized HPC networks including Network Function Virtualization (NFV)
  • Advanced storage capabilities including block-level encryption and checksum offloads
  • Host Chaining technology for economical rack design
  • Smart interconnect for x86, Power, Arm, GPU and FPGA-based platforms
  • Flexible programmable pipeline for new network flows
  • Enabler for efficient service chaining
  • Efficient I/O consolidation, lowering data center costs and complexity
Speed: 200G
Network Technologie: Infiniband
Form Factor: Standard Full Profile
Port Type: QSFP56
Ports: Single Port
Properties: "MCX614105A-VCAT - ConnectX®-6 EN adapter card kit, 200GbE, single-port QSFP56"
Speed: 200G
Network Technologie: Infiniband
Form Factor: Standard Full Profile
Port Type: QSFP56
Ports: Single Port
