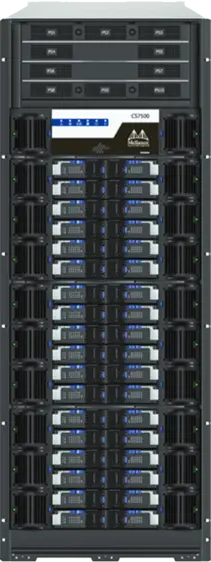

NVIDIA MCS7500 130Tb/s 648-Port EDR InfiniBand Smart Director Switch
- Order number: MCS7500+SUP-CS7500-3S
NVIDIA MCS7500 130Tb/s 648-Port EDR InfiniBand Chassis Switch Includes 20 Fans and 10 Power Supplies N+N RoHS R6
648-port EDR 100Gb/s InfiniBand Smart Director Switch
NVIDIA Networking MCS7500 provides the world's first smart switch, enabling in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. The CS7500 system provides the highest performing fabric solution in a 28U form factor by delivering 130Tb/s of full bi-directional bandwidth with 400ns port latency.
Built with NVIDIA's latest Switch-IB InfiniBand switch devices, the CS7500 provides up to 648 100Gb/s full bi-directional bandwidth per port. The CS7500 modular chassis switch provides an excellent price performance ratio for medium to extremely large size clusters, along with the reliability and manageability expected from a director-class switch.
CS7500 is the world's first smart network switch, designed to enable in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. The Co-Design architecture enables the usage of all active data center devices to accelerate the communications frameworks, resulting in order of magnitude applications performance improvements.
Benefits
- Industry-leading switch platform in performance, power, and density
- Designed for energy and cost savings
- Collective communication acceleration
- Maximizes performance by removing fabric congestions
- Backward compatible to FDR and QDR technologies
Key Features
- Performance
- 648 EDR 100Gb/s ports in a 28U switch
- 130Tb/s aggregate switch throughput
- Ultra low switch latency
- Optimized design
- N+N redundant & hot-swappable power
- 80 gold+ and energy star certified power supplies
- Dual-core x86 CPU
- SGCC platings
| Cable Connection: | QSFP28 |
| Technology: | Infiniband |
| Data Transmission Rate: | 100 Gb/s |
| Port Count: | 648 Ports |
| Form Factor: | 28 U |
| Aggregate Switch Throughput: | 130 Tb/s |
| Cable Connection: | QSFP28 |
| Technology: | Infiniband |
| Data Transmission Rate: | 100 Gb/s |
| Port Count: | 648 Ports |
| Form Factor: | 28 U |
| Aggregate Switch Throughput: | 130 Tb/s |
Silver Support's Service Information: "SUP-CS7500-3S"
- Service Name: M-1 Global Support Silver Support Plan - Extended Service
- Service Main Type: Exchange
- Service Sub Type: Physical, Electronic
- Provided Support: Parts Replacement, Phone Support
- Service Response Time: Next Business Day - Advance Hardware Replacement
- Service Location: Service Depot
- Service Duration: 3 Years
- Service Characteristic: Parts
- Product Supported: Mellanox InfiniBand CS7500
