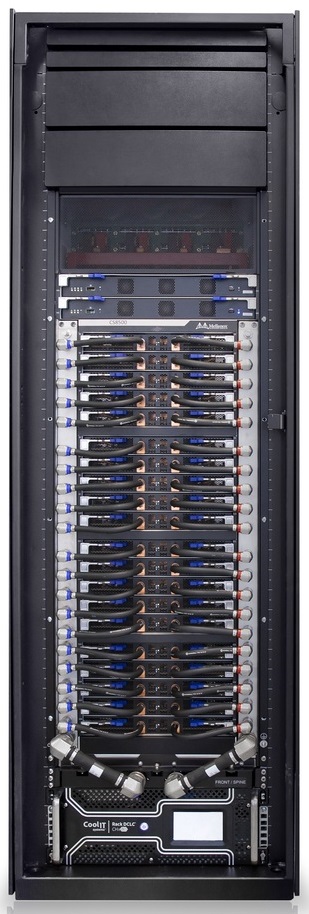

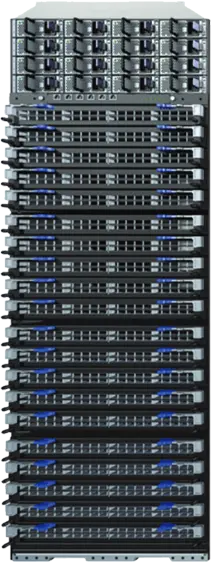

NVIDIA MCS8500 320Tb/s 800-port HDR 200Gb/s InfiniBand Smart Modular Switch
- Order number: MCS8500+SUP-CS8500-4S
NVIDIA MCS8500 320Tb/s 800-Port HDR InfiniBand Chassis Includes 9 Power Supply Units (N+1) with Support for up to 16 Power Supply Units (N+N) RoHS6
800-port HDR 200Gb/s InfiniBand Smart Modular Switch
NVIDIA Networking MCS8500 provides the world's smartest switch, enabling in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. CS8500 has the highest performing fabric solution in a 29U form factor by delivering 320Tb/s of full bi-directional bandwidth with ultra-low port latency.
Built with Quantum InfiniBand switch devices, the CS8500 provides up to 800 200Gb/s full bi-directional bandwidth per port. The CS8500 modular chassis switch provides an excellent price performance ratio for medium to extremely large size clusters, along with the reliability and manageability expected from a modular-class switch.
CS8500 is the world's smartest network switch designed to enable in-network computing through NVIDIA Networking Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. This architecture enables the usage of all active data center devices to accelerate the communications frameworks, resulting in an order of magnitude improvement in applications performance.
Benefits
- Industry-leading switch platform in performance, power, and density
- Collective communication acceleration
- Maximizes performance by removing fabric congestions
- Backward compatible to previous InfiniBand speeds
Key Features
- Performance
- 800 HDR 200Gb/s ports; 1600 HDR100 100Gb/s ports
- 320Tb/s aggregate switch throughput
- Ultra low switch latency
- Optimized design
- N+N redundant & hot-swappable power
- 80+ platinum and energy star certified power supplies
- x86 ComEx Broadwell CPU
- Liquid-cooled system
- 7” Tablet LCD for best LED visibility
- RoHS-compliant
| Cable Connection: | QSFP28 |
| Technology: | Infiniband |
| Data Transmission Rate: | 200 Gb/s |
| Port Count: | 800 Ports |
| Form Factor: | 29 U |
| Aggregate Switch Throughput: | 320 Tb/s |
| Cable Connection: | QSFP28 |
| Technology: | Infiniband |
| Data Transmission Rate: | 200 Gb/s |
| Port Count: | 800 Ports |
| Form Factor: | 29 U |
| Aggregate Switch Throughput: | 320 Tb/s |
Silver Support's Service Information: "SUP-CS8500-4S"
- Service Name: Technical Support Silver Support - Extended Service
- Service Main Type: Exchange
- Service Sub Type: Physical, Electronic
- Provided Support: Replacement
- Provided Support: Phone Support
- Service Response Time: - Advance Hardware Replacement
- Service Location: Service Depot
- Service Duration: 4 Years
- Service Characteristic: Labor
- Product Supported: Mellanox Quantum CS8500
