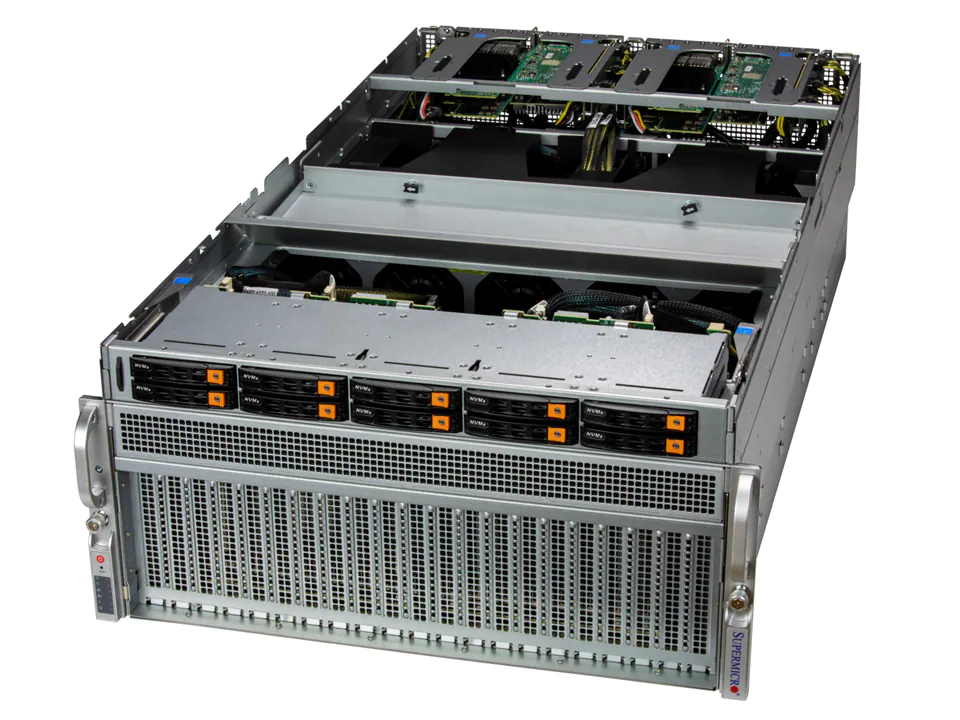

SYS-521GU-TNXR - 5U - HGX H100 4-GPU SXM5 SuperServer

Price On Request
Content: 1 Stück

Prices plus VAT plus shipping costs

Delivery time on request

Configure

  • SYS-521GU-TNXR
sysGen/SUPERMICRO Server SYS-521GU-TNXR, Mainboard  Super X13DGU Complete... more
Product information "SYS-521GU-TNXR - 5U - HGX H100 4-GPU SXM5 SuperServer"

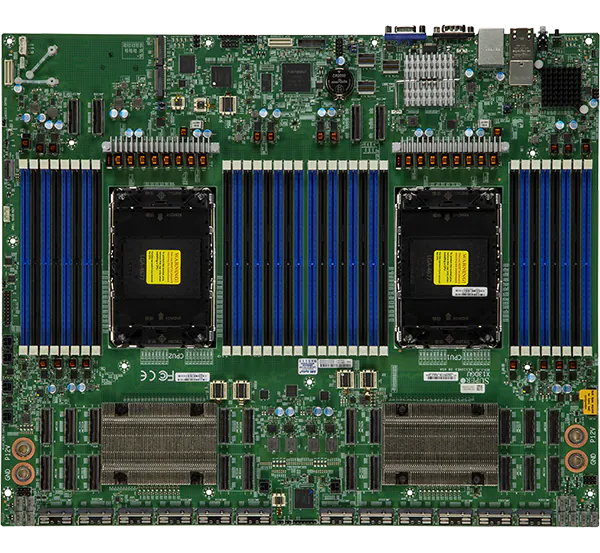

sysGen/SUPERMICRO Server SYS-521GU-TNXR, Mainboard Super X13DGU

Complete System Only:  To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC).

Applications

  • High Performance Computing
  • AI/Deep Learning Training

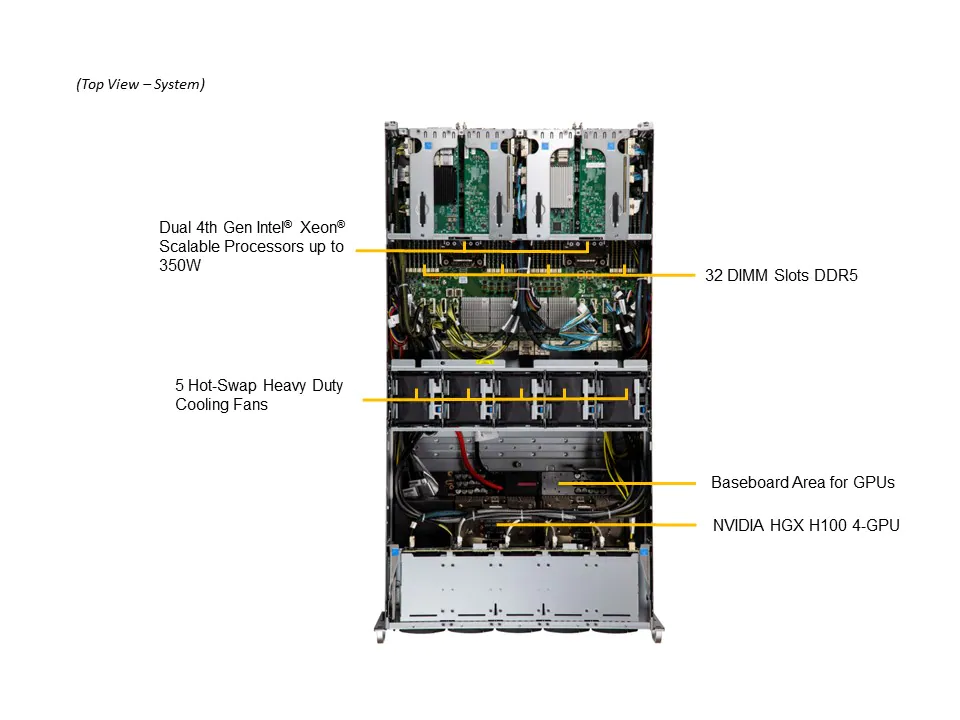

Features

  • Incl. HGX H100 4-GPU SXM5 Multi-GPU Board
  • Dual Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable Processors
  • 32 x DIMM slots up to 8TB Registered ECC DDR5-4800MHz

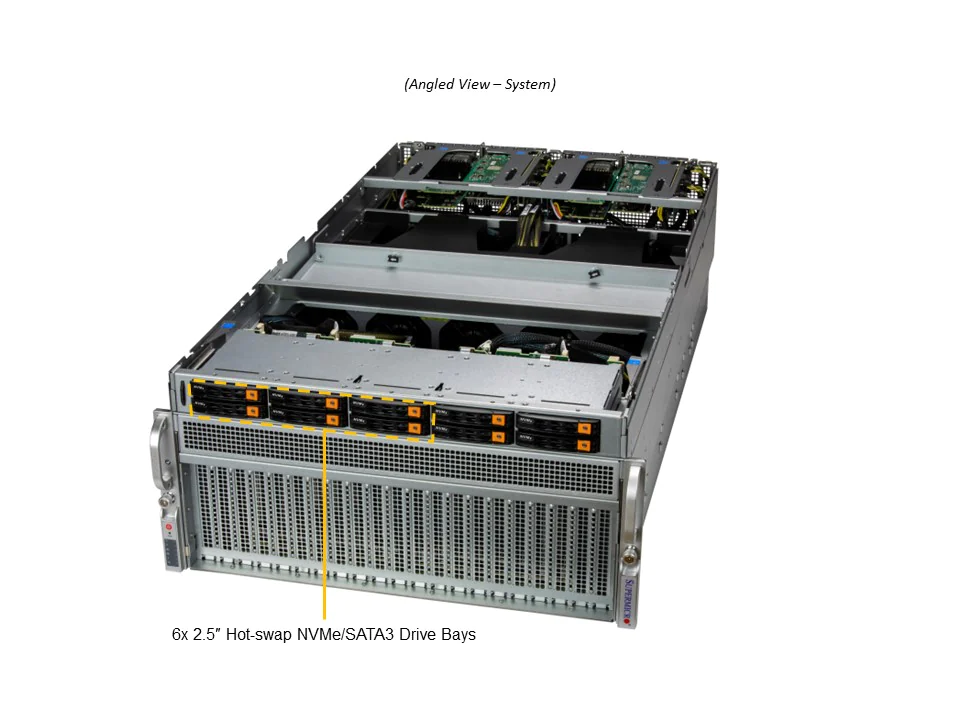

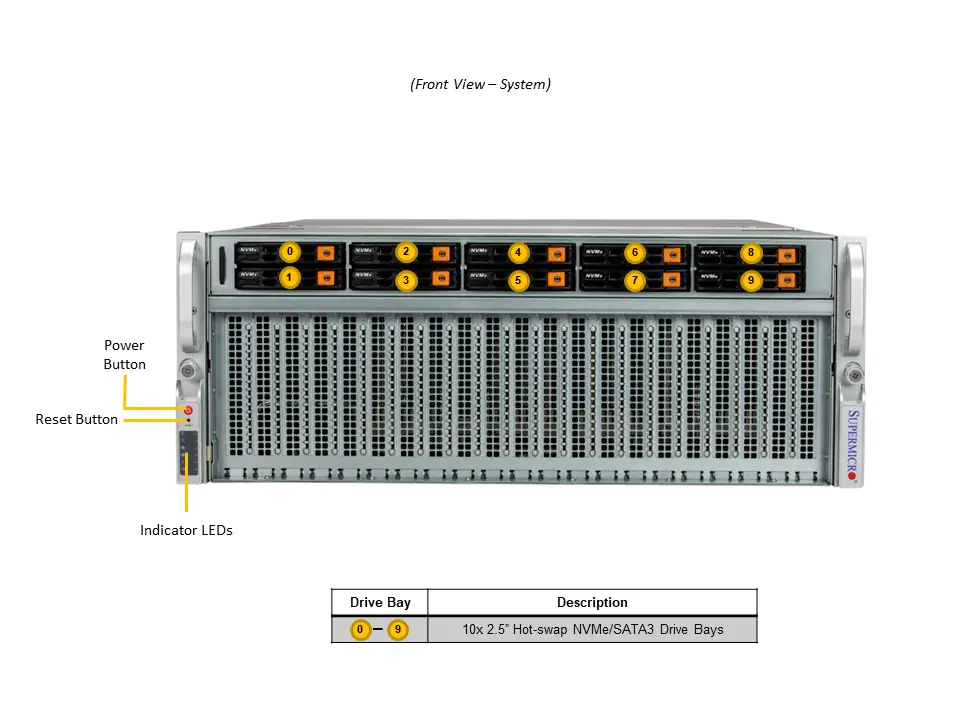

  • 10 x 2.5" hot-swap NVMe/SATA/SAS drive bays
    2 x M.2 NVMe and SATA  for boot drive only
    NOTE: SAS card is required for SAS devices support
  • 10 x PCIe Gen5 x16 expansion slots
    AIOM/OCP 3.0 Support
  • Dual 10GBase-T via Intel® X710-AT2
  • 5 heavy duty fans with optimal fan speed control
    Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)

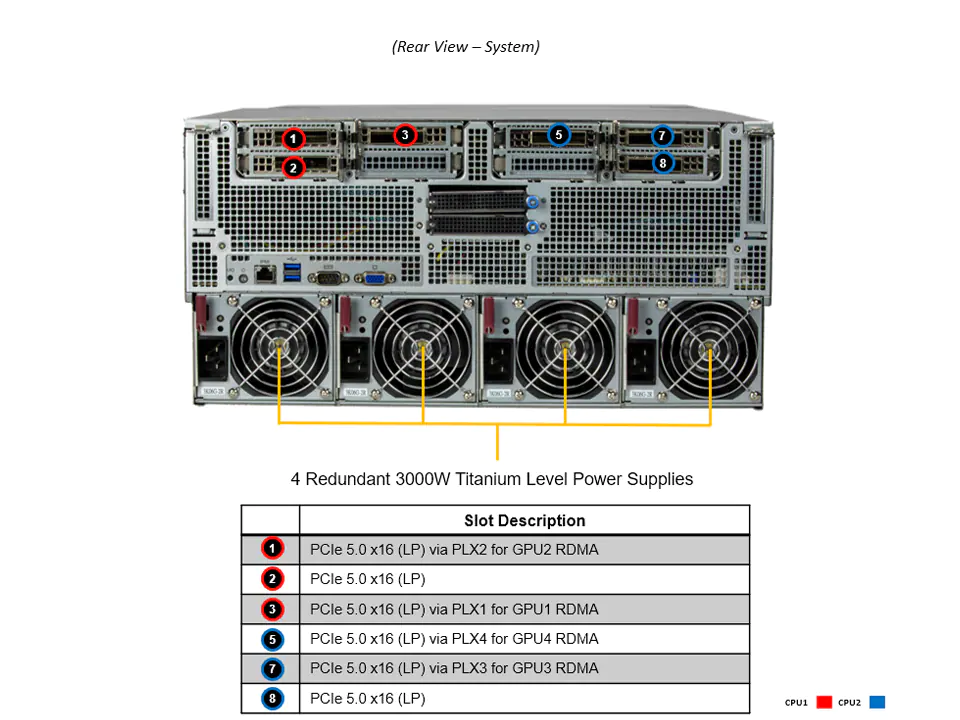

  • 4 x 3000W redundant Titanium level power supplies
Applications: AI / Deep Learning, HPC
Case Depth: 29" (737mm)
CPU Socket: Dual Socket
CPU Type: Intel Xeon Scalable Sapphire Rapids (4.Gen)
DIMM Slots: 32 DIMMs
Drive Bays Form Factor: 2.5", M.2
SSDs/HDDs: 10
Form Factor: 5U
GPU Type: NVLink SXM5
Max. GPU Count: 4 GPUs
On-board Network: 10GBase-T
PCIe Slots: 10 PCIe Slots
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
Special Features: Complete System Only
Storage Interface: NVMe (native), SAS (optional), SATA (native)
System Type: GPU Server
Properties: "SYS-521GU-TNXR - 5U - HGX H100 4-GPU SXM5 SuperServer"
Applications: AI / Deep Learning, HPC
Case Depth: 29" (737mm)
CPU Socket: Dual Socket
CPU Type: Intel Xeon Scalable Sapphire Rapids (4.Gen)
DIMM Slots: 32 DIMMs
Drive Bays Form Factor: 2.5", M.2
SSDs/HDDs: 10
Form Factor: 5U
GPU Type: NVLink SXM5
Max. GPU Count: 4 GPUs
On-board Network: 10GBase-T
PCIe Slots: 10 PCIe Slots
Redundant Power Supply: Redundant Power Supply incl.
Remote Management: Remote Management incl.
Special Features: Complete System Only
Storage Interface: NVMe (native), SAS (optional), SATA (native)
System Type: GPU Server
