Nvidia spectrum 4 51.2 Tb/S ethernet swiTch asic

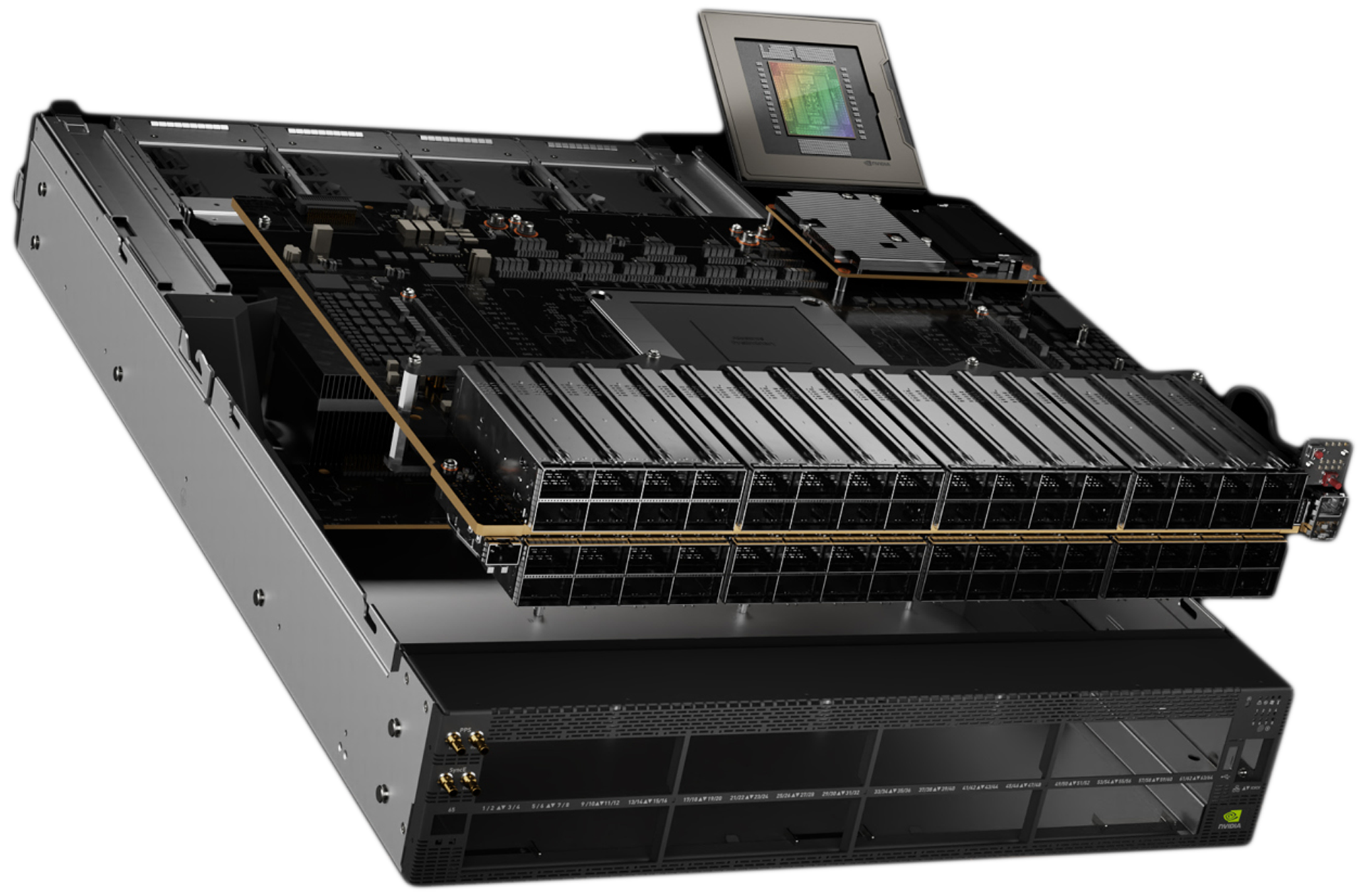

Cloud-native, accelerated computing and AI are the new frontiers of networking, with the amount of data generated by AI growing exponentially and driving ever-increasing performance volumes across all industries. All workloads are becoming cloud-native and scaling with containerized microservices that require large bandwidth for data access and communication in the data center. The new NVIDIA Spectrum®-4, the 5th generation ASIC in the NVIDIA Spectrum Ethernet platform, is just in time to meet the demands of cloud-native, accelerated compute and AI workloads. Spectrum accelerates workloads from the core to the cloud to the edge.

Spectrum-4 not only provides accelerated Ethernet for all data center workloads, but also the most advanced and innovative feature set to date. This includes unique features such as cloud security through MACsec over VXLAN and end-to-end nanosecond time precision from switch to host.

PRODUCT NOTIFICATION

Model Name	SPECTRUM 4
800GbE ports	64
400GbE ports	128
200/100/50/25/10 GbE ports	256
Height	1U/2U
Switching speed	8.4Bpps
Switching capacity	51.2Tb/s
Packet Buffer	256GB
Switching speed	2 X 256 GbE
Latency	-
Power	-
CPU	Intel x86, AMD x86, ARM
Energy consumption	-

THE ADVANTAGES OF THE SPECTRUM-4

Consistent performance

Adaptive routing tuned for AI applications
Industry-leading low latency
Accelerated RoCE data path for NVMe-oF and Magnum IO

Advanced network virtualization

VXLAN bridging and routing in one pass
Centralized VXLAN routing
Comprehensive and programmable tunneling technology support
Network Address Translation(NAT)

Accelerated event-based telemetry

Actionable telemetry with WJH
FabricView histograms
Streaming telemetry
In-band network telemetry
Telemetry CPU Utilizations

Cloud-level
scaling and security

Half a million flexible entries spread across routes, MAC, MPLS, etc.
Up to one million on-chip IPv4 routes
100x more ACLs
10x better V XLAN VTEP and tunnel scaling
12.8 Tb/s line rate encryption
Class C PTP and SyncE time synchronization
MACsec and V XLANSec encryption
Secured switch offerings via hardware root-of-trust

Mellanox Spectrum® 10-400 Gigabit Ethernet Switches

The Mellanox Spectrum® Ethernet switch family delivers the highest performance and port density with a complete chassis and fabric management solution that enables converged data centers to operate at any scale while reducing operational costs and infrastructure complexity. This family includes a broad portfolio of top-of-rack (TOR) switches with 12 to 128 ports and Ethernet data rates of 1GbE, 10GbE, 25GbE, 40GbE, 50GbE, 100GbE, 200GbE and 400GbE per port. These switches enable the creation of cost-effective and scalable switch fabrics, from a few nodes to tens of thousands of nodes. High-performance, cost-effective, and efficient Ethernet switches for reliable data transmission.


Model Name	SN4600	SN4700	SN3700C	SN2010	SN2700	SN2410
400GbE ports	-	32	-	-	-	-
200GbE ports	64	64	-	-	-	-
100GbE ports	128	128	32	4	32	8
50GbE ports	128	128	128	-	-	-
40GbE ports	64	64	32	4	32	8
25GbE ports	128	128	128	34	64	64
10GbE ports	128	128	128	34	64	64
1GbE ports	128	128	128	-	-	-
Height	2U	1U	1U	1RU	1RU	1RU
Switching speed	8.4Bpps	8.4Bpps	4.76 Bpps	2.52 Bpps	9.52 Bpps	5.96 Bpps
Switching capacity	25.6Tb/s	25.6Tb/s	6.4Tb/s	1.7Tb/s	6.4Tb/s	4Tb/s
System memory	16MB	16MB	8GB	8GB	8GB	8GB
SSD Memory	64GB	64GB	32GB	16GB	32GB	32GB
Packet Buffer	64GB	64MB	42MB	16MB	16MB	16MB
Latency	-	-	425ns	300ns	300ns	300ns
Power	-	-	-	9:8 blocking	3:2 blocking	Non-blocking
Mgmt/Serial/USB Ports	1/1 RJ45/1	1/1 RJ45/1	1/1 RJ45/1	1/1 RJ45/1	1/1 RJ45/1 Mini	1/1 RJ45/1 Mini
CPU	Quad-core x86	Quad-core x86	x86	x86	x86	x86
H.S. Power Supplies	2 (1+1 redundant)	2 (1+1 redundant)	2 (1+1 redundant)	No	2 (1+1 redundant)	2 (1+1 redundant)
H.S. Fan	N.a.	6 (N+1 redundant)	4 (N+1 redundant)	No	4 (N+1 redundant)	4 (N+1 redundant)
Energy consumption	-	-	-	57 W	150 W	165 W
Model	MSN4600-CS2FO	MSN4700-WS2FO	MSN3700-CS2FO	MSN2010-CB2FO	MSN2700-CS2FO MSN2700-BS2FO	MSN2410-CB2FO MSN2410-BB2FO

THE ADVANTAGES ON SPECTRUM-3

Software Defined Networking (SDN) support

Efficiency

Simple scaling:

Elasticity

Arranged and organized data center

Runs with Mellanox Onyx, Cumulus Linux, SONiC and native Linux

ConnectX-6 EN SmartNIC Adapter cards

ConnectX-6 is the world's first 200 Gbps Ethernet network adapter card, delivering world-leading performance, intelligent offloads, and in-network computing. This results in the highest return on investment for cloud, Web 2.0, Big Data, storage, and machine learning applications.

ConnectX-6
Model Name	MCX614106A-CCAT	MCX614105A-VCAT	MCX614106A-VCAT	MCX613106A-VDAT
ASIC & PCI Dev ID	ConnectX®-6
Speed	100GbE	200GbE	200GbE	200GbE
Ports	2	1	2	2
Connections	QSFP56	QSFP56	QSFP56	QSFP56
PCI	PCIe 3.0	PCIe 3.0	PCIe 3.0	PCIe 4.0
Lanes	2x16 Socket Direct	2x16 Socket Direct	2x16 Socket Direct	x16
Form Factor	PCIe HHHL	PCIe HHHL	PCIe HHHL	PCIe HHHL
Model	MCX614106A-CCAT	MCX614105A-VCAT	MCX614106A-VCAT	MCX613106A-VDAT

ConnectX-5 EN Adapter cards

ConnectX-5 EN supports dual 100 Gigabit Ethernet ports and offers sub-600ns low latency, ultra-high message rates, PCIe switch, and NVMe over fabric offloads. ConnectX-5 offers the most powerful and flexible solution for the most demanding applications such as machine learning, data analytics and more.

ConnectX-5 EN
Model Name	MCX515A-CCAT	MCX516A-CCAT	MCX516A-CDAT	MCX512A-ACAT
ASIC & PCI Dev ID	ConnectX®-5
Speed	100GbE	100GbE	100GbE	25GbE
Ports	1	2	2	2
Connections	QSFP28	QSFP28	QSFP28	SFP28
PCI	PCIe3.0	PCIe3.0	PCIe 3.0/4.0	2x PCIe 3.0
Lanes	x16	x16	x16	x8
Bracket	tall bracket*
Dimensions	14.2cm x 6.9cm (Low Profile)
Model	MCX515A-CCAT	MCX516A-CCAT		MCX512A-ACAT

Why Mellanox Ethernet Network Adapter?

The advantages

Industry-leading throughput and latency performance

Enables I/O consolidation by supporting TCP/IP and RDMA over Ethernet transport protocols on a single adapter

Improved productivity and efficiency

Supports industry-standard SR-IO virtualization technology and provides VM protection and granular I/O services for applications

High availability and high performance for data center networking

Software compatible with standard TCP/UDP/IP and iSCSI stacks

High-level silicon integration and no external memory design provides low power consumption, low cost and high reliability

Target application

Web 2.0 data centers and cloud computing

Low-latency financial services

storage

data centers virtualization

I/O consolidation (single unified wire for networking, storage and clustering)

video streaming

Enterprise data centers applications

accelerate backup and restore operations
