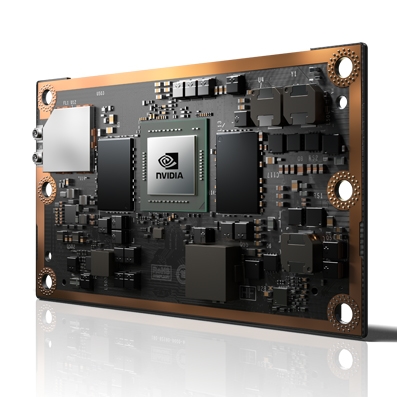

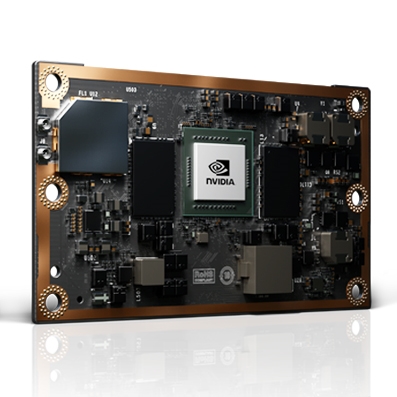

- Artikel-Nr.: NVIDIA JETSON TX2 MODULE 900-83310-0001-000
TAKE REAL-TIME AI PERFORMANCE FURTHER WITH THE HIGH-PERFORMANCE, LOW-POWER JETSON TX2.
The most innovative technology for AI computing and visual computing comes in a supercomputer the size of a credit card. Its small form factor and power envelope make the Jetson TX2 module ideal for intelligent edge devices like robots, drones, smart cameras, and portable medical devices.
Jetson TX2 features a variety of standard hardware interfaces that make it easy to integrate it into a wide range of products and form factors. Plus, it comes with the complete Jetpack SDK, which includes the BSP, libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more to accelerate your software development. And it’s supported by the Jetson developer site, which includes documentation, tutorials, and an ecosystem of partners and developers. It’s never been easier to get started with AI
Features:
- NVIDIA Pascal architecture GPU
- Dual-core Denver 2 64-bit CPU + quad-core
- ARM A57 Complex
- 8 GB L128 bit LPDDR4
- 32 GB eMMC 5.1
CPU: | HMP Dual Denver 2/2MB L2 + Quad ARM® A57/2MB L2 |
Speicher: | 8 GB 128-bit LPDDR4 58.3 GB/s |
Datenspeicher: | 32 GB eMMC, SDIO, SATA |
GPU: | NVIDIA Pascal, 256 NVIDIA CUDA cores |
PCIe: | Gen 2 | 1x4 + 1x1 OR 2x1 + 1x2 |
Konnektivität: | 1 Gigabit Ethernet, 802.11ac WLAN, Bluetooth |
Video: | 4K x 2K 60 Hz Decode (12-bit support), 4K x 2K 60 Hz Encode (HEVC) |
USB: | USB 3.0 + USB 2.0 |
Display: | HDMI 2.0 / eDP 1.4 / 2x DSI / 2x DP 1.2 |
CSI: | Up to 6 cameras (2 lane) CSI2 D-PHY 1.1 (2.5 Gbps/lane) |
Power: | 7.5 W / 15 W* |
Abmessung: | 50 mm x 87 mm (400-pin Compatible Board to Board Connector) |
Sonstiges: | CAN, UART, SPI, I2C, I2S, GPIOs |
CPU: | HMP Dual Denver 2/2MB L2 + Quad ARM® A57/2MB L2 |
Speicher: | 8 GB 128-bit LPDDR4 58.3 GB/s |
Datenspeicher: | 32 GB eMMC, SDIO, SATA |
GPU: | NVIDIA Pascal, 256 NVIDIA CUDA cores |
PCIe: | Gen 2 | 1x4 + 1x1 OR 2x1 + 1x2 |
Konnektivität: | 1 Gigabit Ethernet, 802.11ac WLAN, Bluetooth |
Video: | 4K x 2K 60 Hz Decode (12-bit support), 4K x 2K 60 Hz Encode (HEVC) |
USB: | USB 3.0 + USB 2.0 |
Display: | HDMI 2.0 / eDP 1.4 / 2x DSI / 2x DP 1.2 |
CSI: | Up to 6 cameras (2 lane) CSI2 D-PHY 1.1 (2.5 Gbps/lane) |
Power: | 7.5 W / 15 W* |
Abmessung: | 50 mm x 87 mm (400-pin Compatible Board to Board Connector) |
Sonstiges: | CAN, UART, SPI, I2C, I2S, GPIOs |
