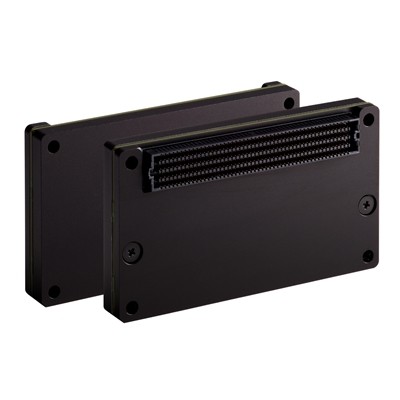

NVIDIA JETSON TX2 4GB MODULE

NVIDIA JETSON TX2 4GB MODULE
Preis auf Anfrage
Inhalt: 1 Stück

zzgl. MwSt. zzgl. Versandkosten




  • NVIDIA JETSON TX2 4GB MODULE - 900-83489-0080-000
The NVIDIA Jetson TX2 4GB delivers powerful computing performance in a small credit card form... mehr
Produktinformationen "NVIDIA JETSON TX2 4GB MODULE"

The NVIDIA Jetson TX2 4GB delivers powerful computing performance in a small credit card form factor to run modern AI workloads. It can be configured to operate between 7.5W and 15W making the module ideal for diverse set of intelligent edge devices like robots, drones, smart cameras, and portable medical devices.

Jetson TX2 4GB offers twice the performance per watt of Jetson TX1 at the same price, enabling the
development of high performance, energy efficient and affordable products. Jetson TX2 4GB features a variety of standard hardware interfaces, ranging from low speed GPIOs to high-speed PCIe and USBs. This makes it easy to be integrated into a wide range of products and form factors. The module is also supported by NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA, cuDNN, and TensorRTTM software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more.

The software is easy-to-use, making it fast and quick to get started. The same Jetpack SDK is used across the entire NVIDIA JetsonTM family of products and is fully compatible with NVIDIA’s world-leading AI platform for training and deploying
AI software. This proven software stack reduces complexity and overall effort for developers.

Features:

  • 256-core Pascal GPU
  • Dual-core NVIDIA Denver 2
    Quad-core ARM A57 complex
  • ARM A57 Complex
  • 4 GB 128 Bit LPDDR4 | 25.6 GB/s
  • 16 GB eMMC 5.1
CPU: Dual-core NVIDIA Denver 2 Quad-core ARM A57 complex
Speicher: 4 GB 128 Bit LPDDR4 | 25.6 GB/s
Datenspeicher: 16 GB eMMC 5.1
GPU: 256-core Pascal GPU
PCIe: 1x1+1x4 OR 2x1+1x2 PCIe Gen2
Konnektivität: Gigabit Ethernet
USB: 3x USB 3.0, 3x USB 2.0
Display: HDMI 2.0, eDP 1.4, DP 1.2
Encoder/Decoder: 2x 4Kp60| 4x 4Kp30| 7x 1080p60| 14x 1080p30 (H.264/H.265), 4Kp60| 3x 4Kp30| 4x 1080p60| 8x 1080p30 (H.265)
CSI: 12 (3x4 or 6x2) lanes MIPI CSI-2 D-PHY 1.1
Abmessung: 87 mm x 50 mm 400-pin Connector
Sonstiges: I2C, I2S, SPI, UART, SD/SDIO, SATA, GPIO
Eigenschaften: "NVIDIA JETSON TX2 4GB MODULE"
CPU: Dual-core NVIDIA Denver 2 Quad-core ARM A57 complex
Speicher: 4 GB 128 Bit LPDDR4 | 25.6 GB/s
Datenspeicher: 16 GB eMMC 5.1
GPU: 256-core Pascal GPU
PCIe: 1x1+1x4 OR 2x1+1x2 PCIe Gen2
Konnektivität: Gigabit Ethernet
USB: 3x USB 3.0, 3x USB 2.0
Display: HDMI 2.0, eDP 1.4, DP 1.2
Encoder/Decoder: 2x 4Kp60| 4x 4Kp30| 7x 1080p60| 14x 1080p30 (H.264/H.265), 4Kp60| 3x 4Kp30| 4x 1080p60| 8x 1080p30 (H.265)
CSI: 12 (3x4 or 6x2) lanes MIPI CSI-2 D-PHY 1.1
Abmessung: 87 mm x 50 mm 400-pin Connector
Sonstiges: I2C, I2S, SPI, UART, SD/SDIO, SATA, GPIO
