SYS-120U-TNR - 1U - Server Barebone
- Artikel-Nr.: SYS-120U-TNR
sysGen/SUPERMICRO Server SYS-120U-TNR, Mainboard Super X12DPU-6
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 1 Storage Device HDD/HDS/M.2, and 1 NIC adapter*). *NIC adapter requirement includes either 1 Ultra Riser card with integrated NIC or 1 AOC-URG4N4 Ultra Riser card with 1 standard PCI-E NIC adapter.
Applications
- Virtualization
- Cloud Computing
- Software Defined Storage
- 5G/Telco
- HPC
- High End Enterprise Server
- Application Tier Service Provider
Features
- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
- Intel® C621A Chipset
- 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;Intel® Optane™ Persistent Memory 200 series
- 1 Internal PCIe 4.0 x161 PCIe 4.0 x16 (LP)2 PCIe 4.0 x16 (FH, 10.5"L)
- Flexible networking options

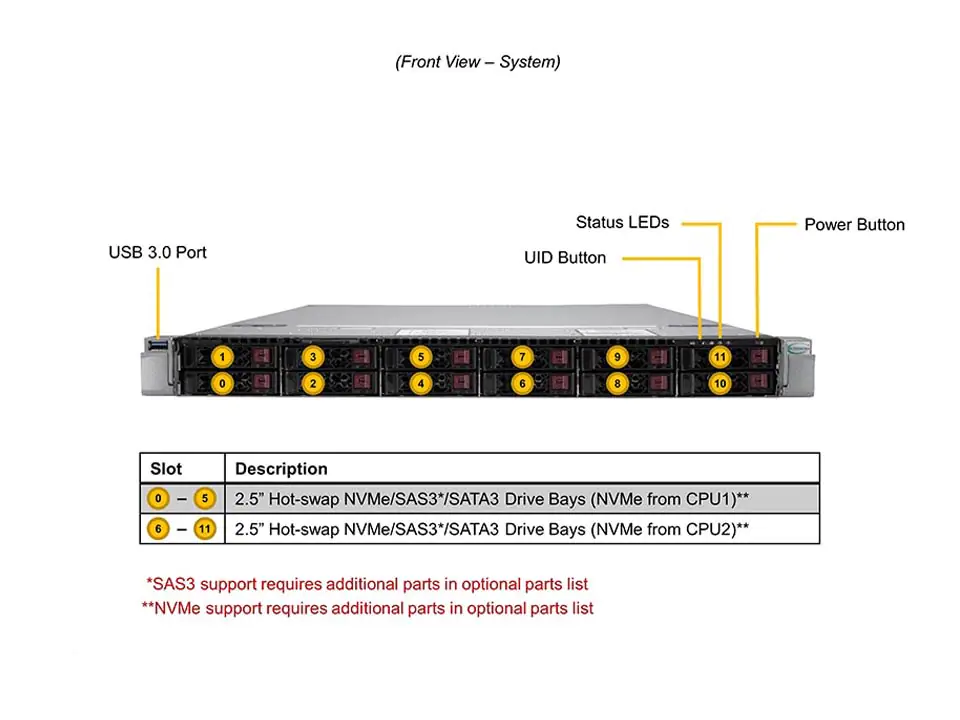

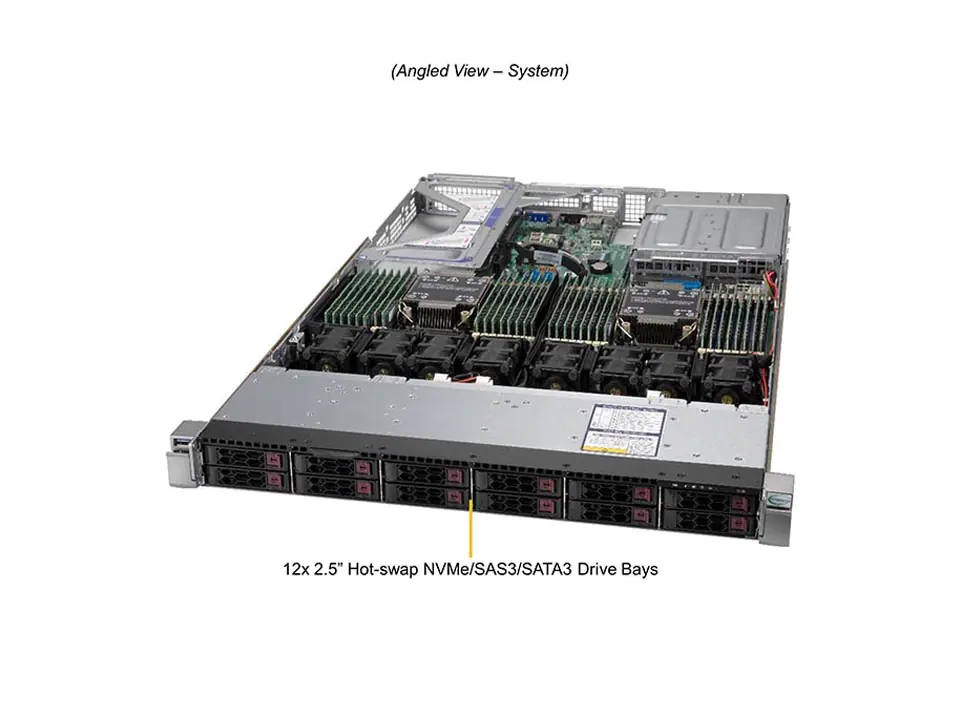

- 12x2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
- 8 heavy duty fans with optimal fan speed control
- 2x 10GbE BaseT and 2x 10GbE SFP+ with Intel® X710-TM4 (optional), 1 x dedicated management port

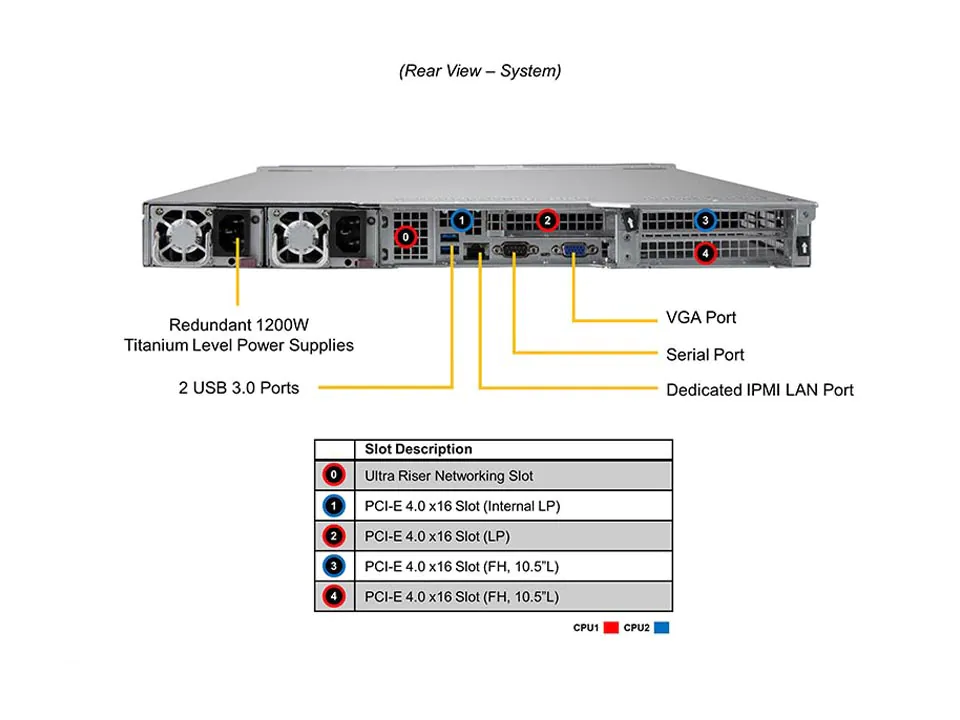

- 1200W redundant Titanium level power supplies
Anwendungen: | Data Center, General Purpose, Web Hosting |
Gehäuse Tiefe: | 29.1" (739mm) |
CPU Sockel: | Dual Socket |
CPU-Typ: | Intel Xeon Scalable Ice Lake (3.Gen) |
DIMM Steckplätze: | 32 DIMMs |
Speicher Formfaktor: | 2.5" |
Formfaktor: | 1U |
GPU-Typ: | PCIe |
Max. GPU Anzahl: | 2 GPUs |
On-Board Netzwerk: | N/A |
PCIe Steckplätze: | 3 PCIe Steckplätze |
Redundantes Netzteil: | Redundantes Netzteil inkl. |
Fernverwaltung: | Fernverwaltung inkl. |
Besondere Eigenschaften: | Complete System Only |
Speicherschnittstelle: | NVMe (optional), SAS (optional), SATA (native) |
Systemtyp: | Super Server |
Anwendungen: | Data Center, General Purpose, Web Hosting |
Gehäuse Tiefe: | 29.1" (739mm) |
CPU Sockel: | Dual Socket |
CPU-Typ: | Intel Xeon Scalable Ice Lake (3.Gen) |
DIMM Steckplätze: | 32 DIMMs |
Speicher Formfaktor: | 2.5" |
Formfaktor: | 1U |
GPU-Typ: | PCIe |
Max. GPU Anzahl: | 2 GPUs |
On-Board Netzwerk: | N/A |
PCIe Steckplätze: | 3 PCIe Steckplätze |
Redundantes Netzteil: | Redundantes Netzteil inkl. |
Fernverwaltung: | Fernverwaltung inkl. |
Besondere Eigenschaften: | Complete System Only |
Speicherschnittstelle: | NVMe (optional), SAS (optional), SATA (native) |
Systemtyp: | Super Server |
