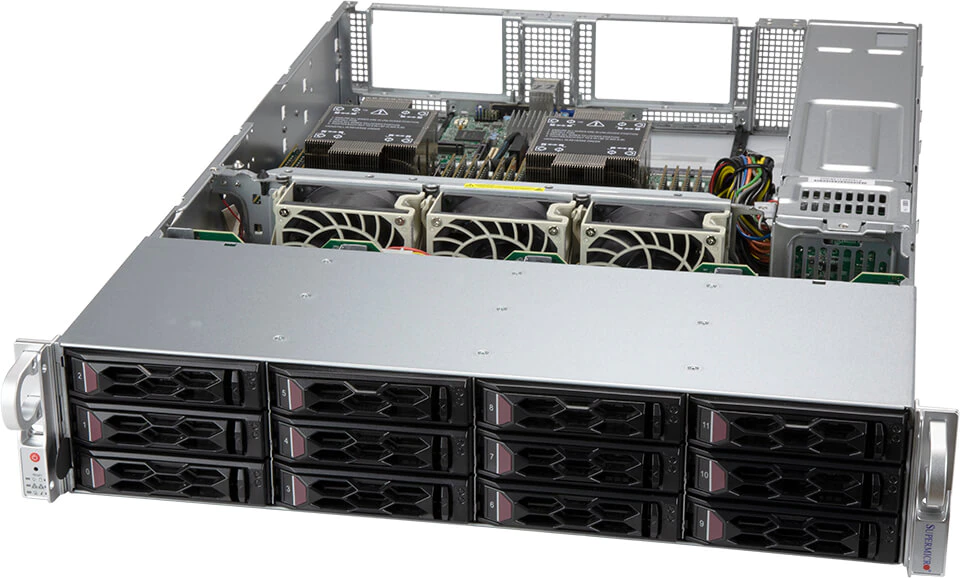

SYS-620C-TN12R - 2U - CloudDC Server

sysGen/SUPERMICRO SYS-620C-TN12R, includes:
Mainboard Super H12SSW-AN6 / 2U Rackmount CSE-LA26TS-R920AWP

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC).NIC requirement can either be AIOM or PCIe card.

Applications

• Web Server, Firewall Application
• Data Center Optimized, Value IaaS
• Cloud Computing, Compact Server
• DNS & Gateway Servers, Firewall Application
• CDN, Edge Nodes

Features

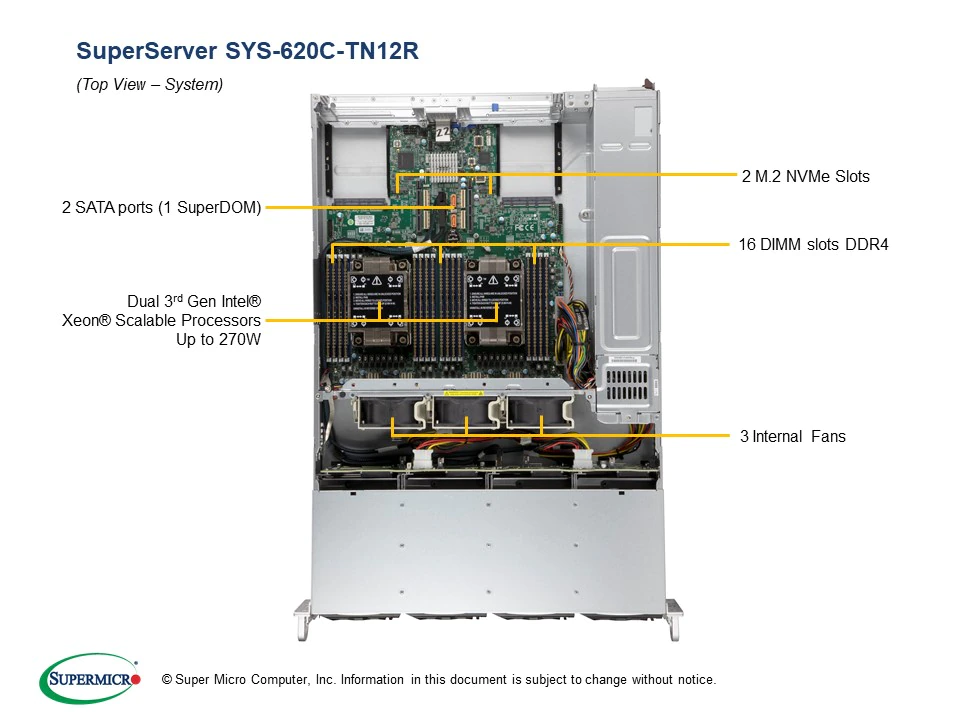

• Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
• 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® DCPMM

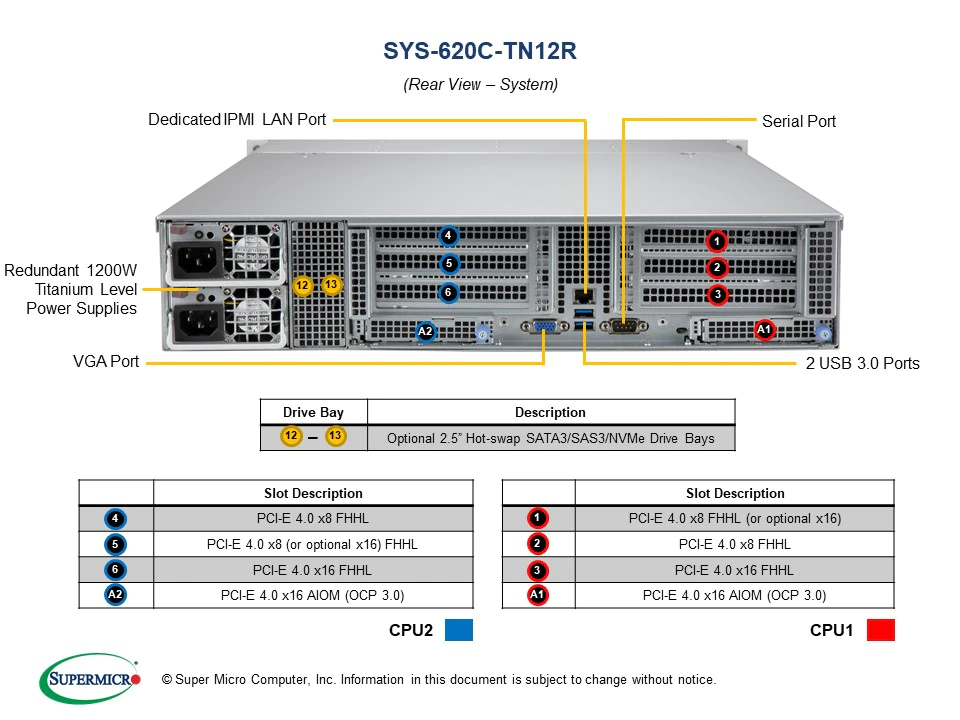

• 4 PCI-E 4.0 x16 FHHL (OR) 2 PCI-E 4.0 x16 FHHL and 4 PCI-E 4.0 x8 FHHL;
  2 PCI-E 4.0 x16 AIOM (OCP 3.0);
  2 PCI-E 3.0 x2 NVMe M.2

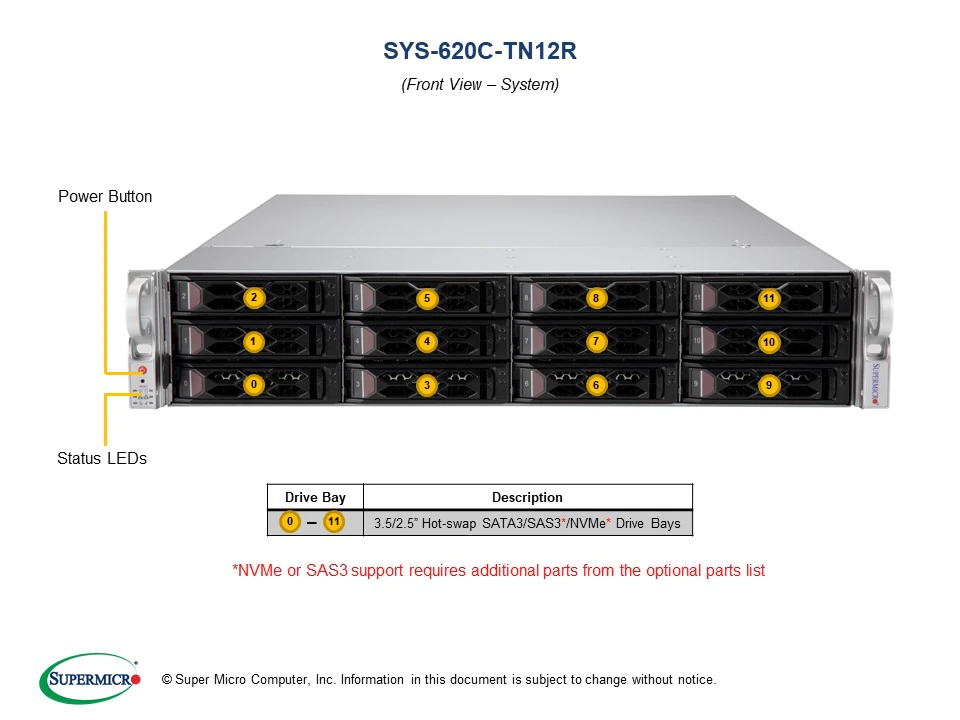

• 12x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
• Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
• 3 heavy duty fans with optimal fan speed control, 1 air shroud
• 1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
